Installing ThingsBoard Edge using Docker (Linux, macOS)

This guide provides step-by-step instructions for running ThingsBoard Edge on Linux or macOS using Docker.

Prerequisites

To run ThingsBoard Edge, you need an active ThingsBoard Community Edition account that supports Edge functionality.

You can install a local ThingsBoard CE server. The local server is accessible at http://localhost:8080.

Hardware requirements

The hardware requirements for ThingsBoard Edge depend on the number of connected devices and platform interaction intensity.

Workload	RAM	Description
Light	1 GB	Fewer than 100 devices, minimal dashboard/device management usage
Heavy	4 GB	100+ devices or intense platform interactions

Docker installation

Install Docker CE and Docker Compose before continuing.

Deploy a new Edge instance

To create a new Edge instance on your ThingsBoard Server:

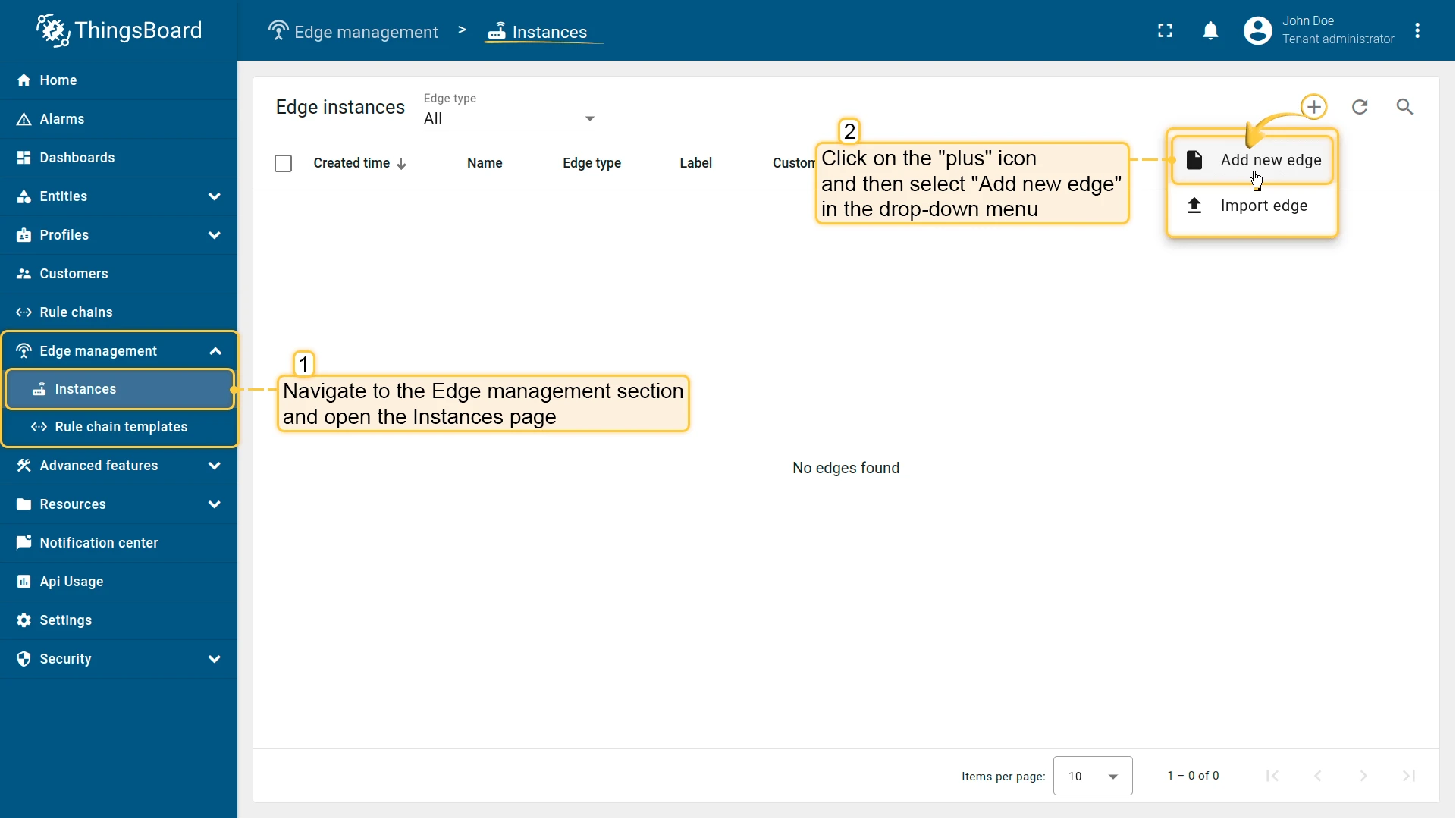

Sign in to your ThingsBoard instance and go to Edge Management → Instances. Click Add (+) in the top-right corner and select Add new edge.

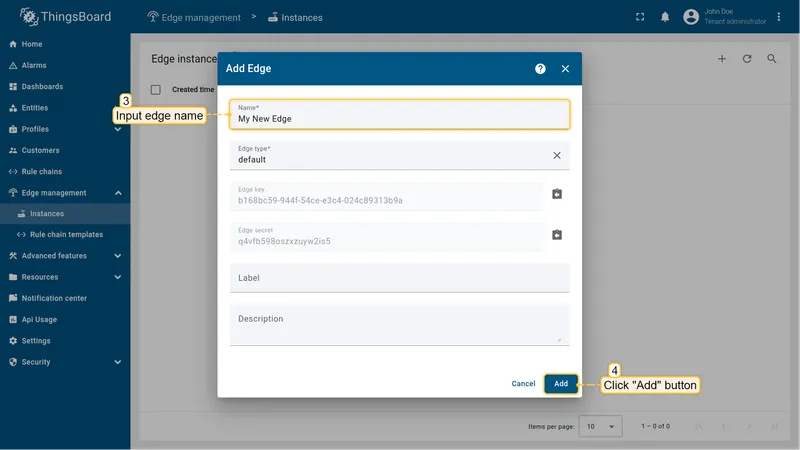

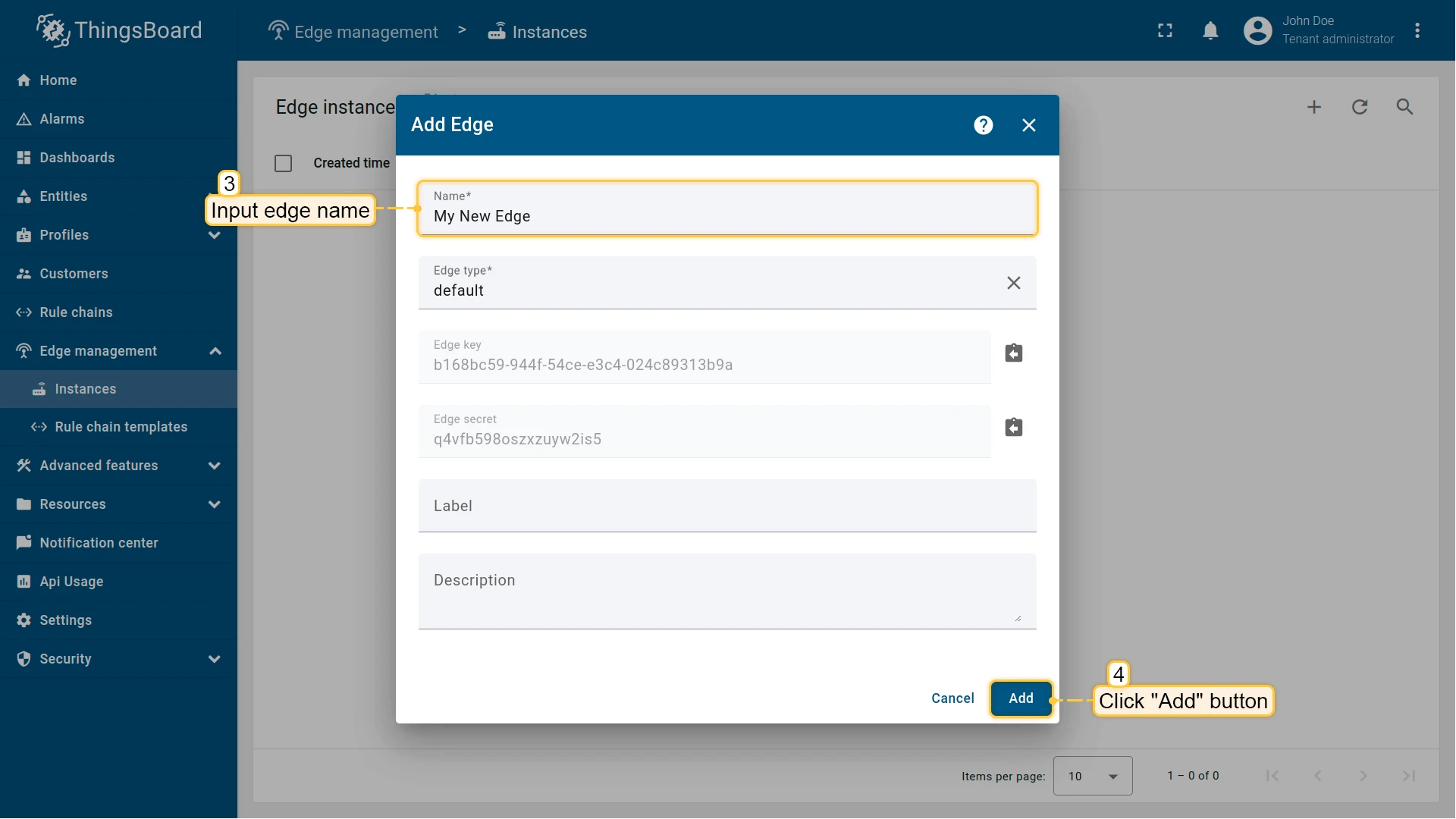

Enter a name for the Edge, like My New Edge.
Click Add.

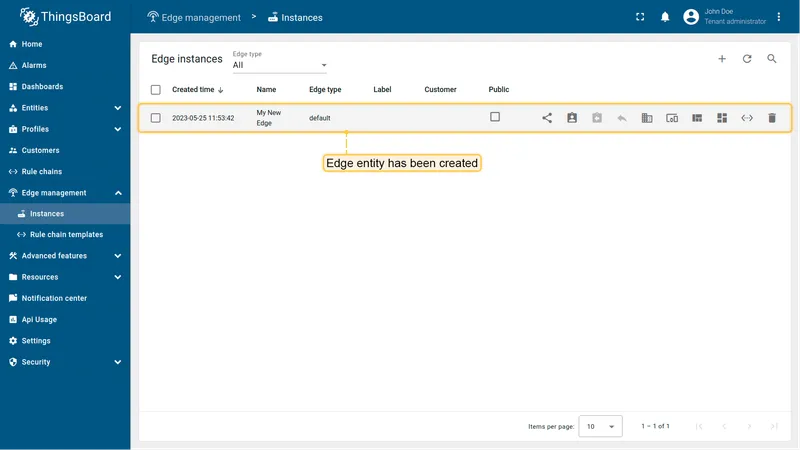

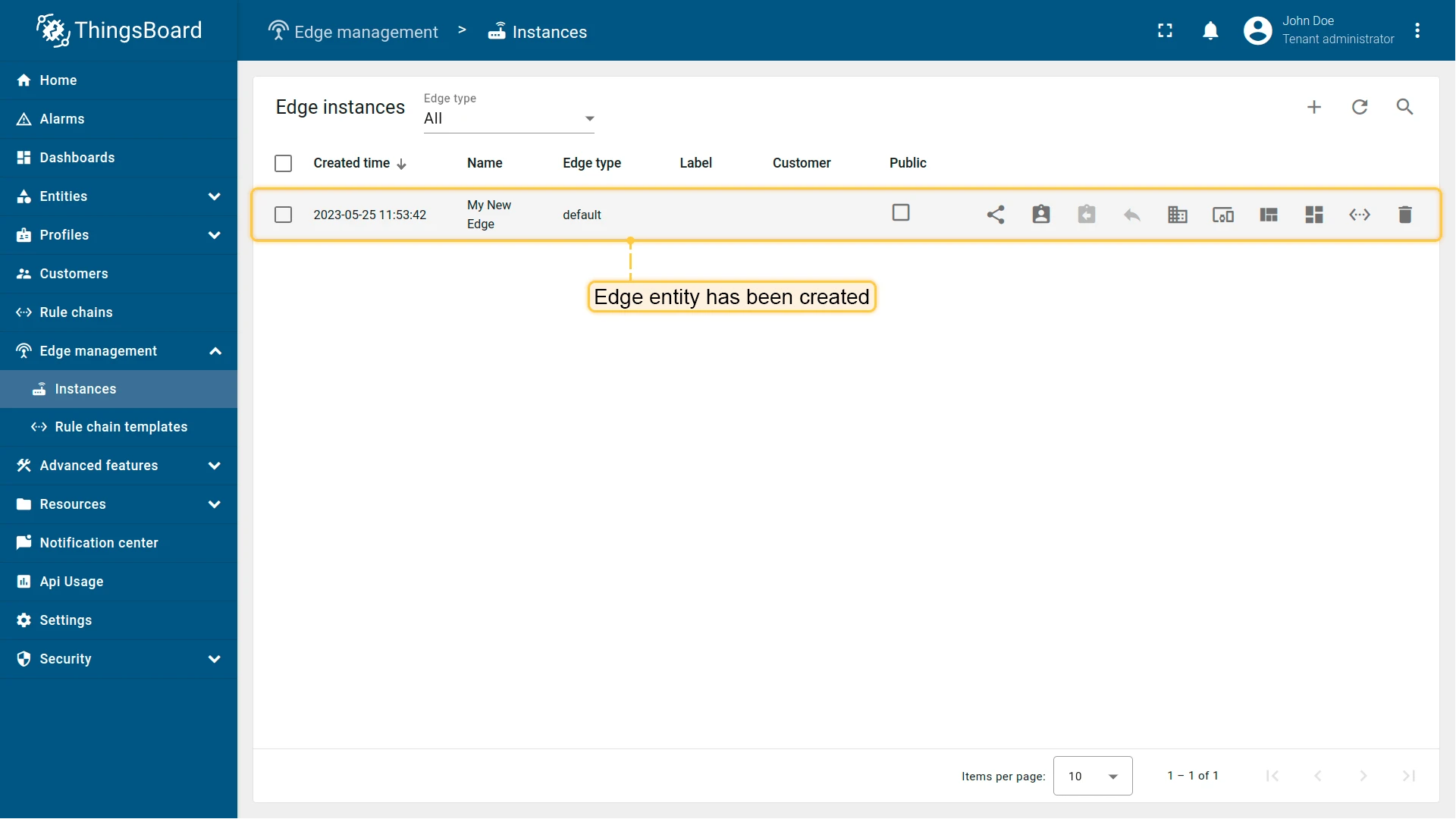

Your new Edge instance is created and appears at the top of the list.

Guided installation using ThingsBoard Server instructions

Once an Edge instance is created, the server generates pre-configured installation instructions containing the Edge credentials (Edge Key, Edge Secret, etc.). To access them:

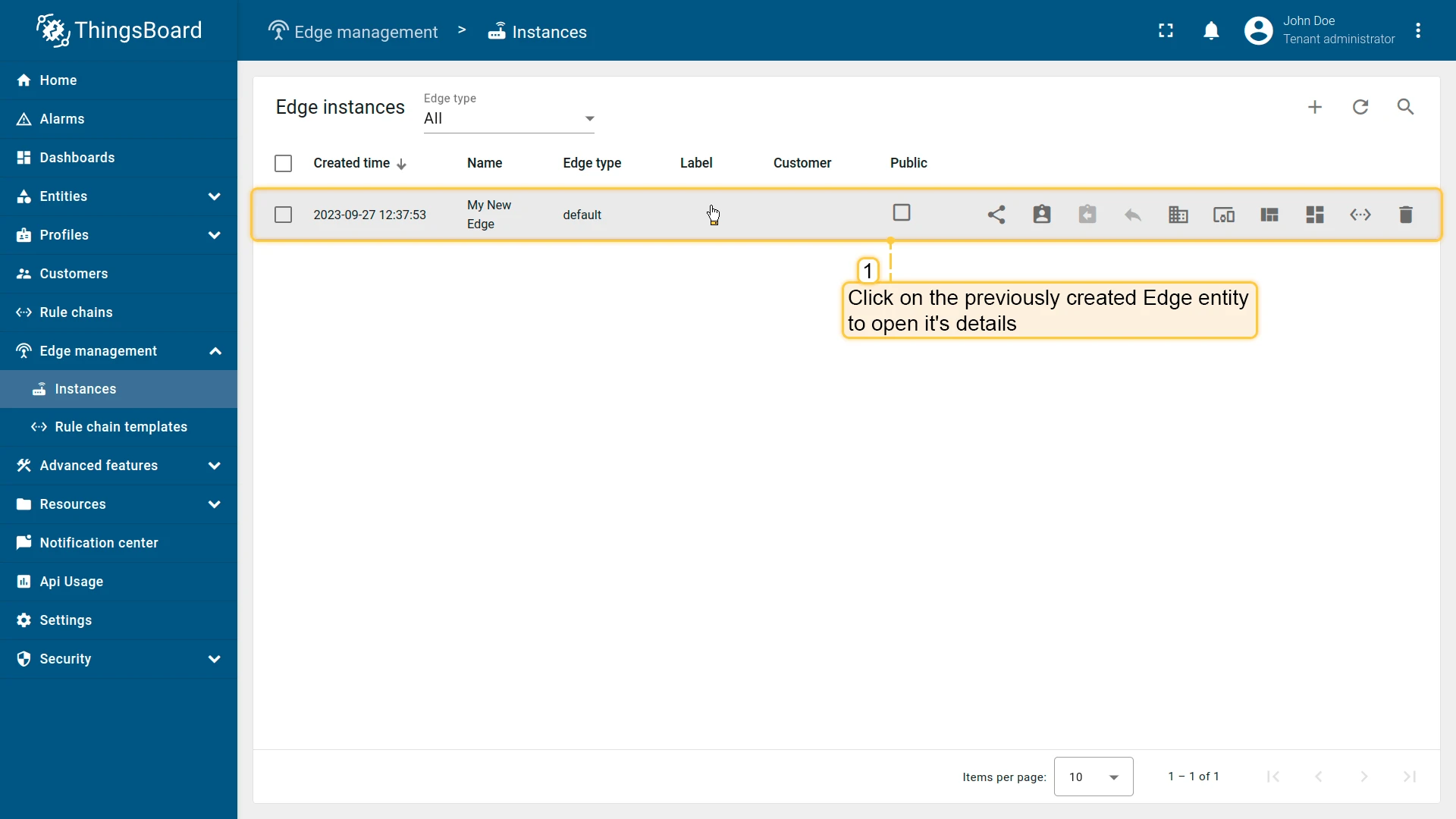

Click the Edge entity to open its details.

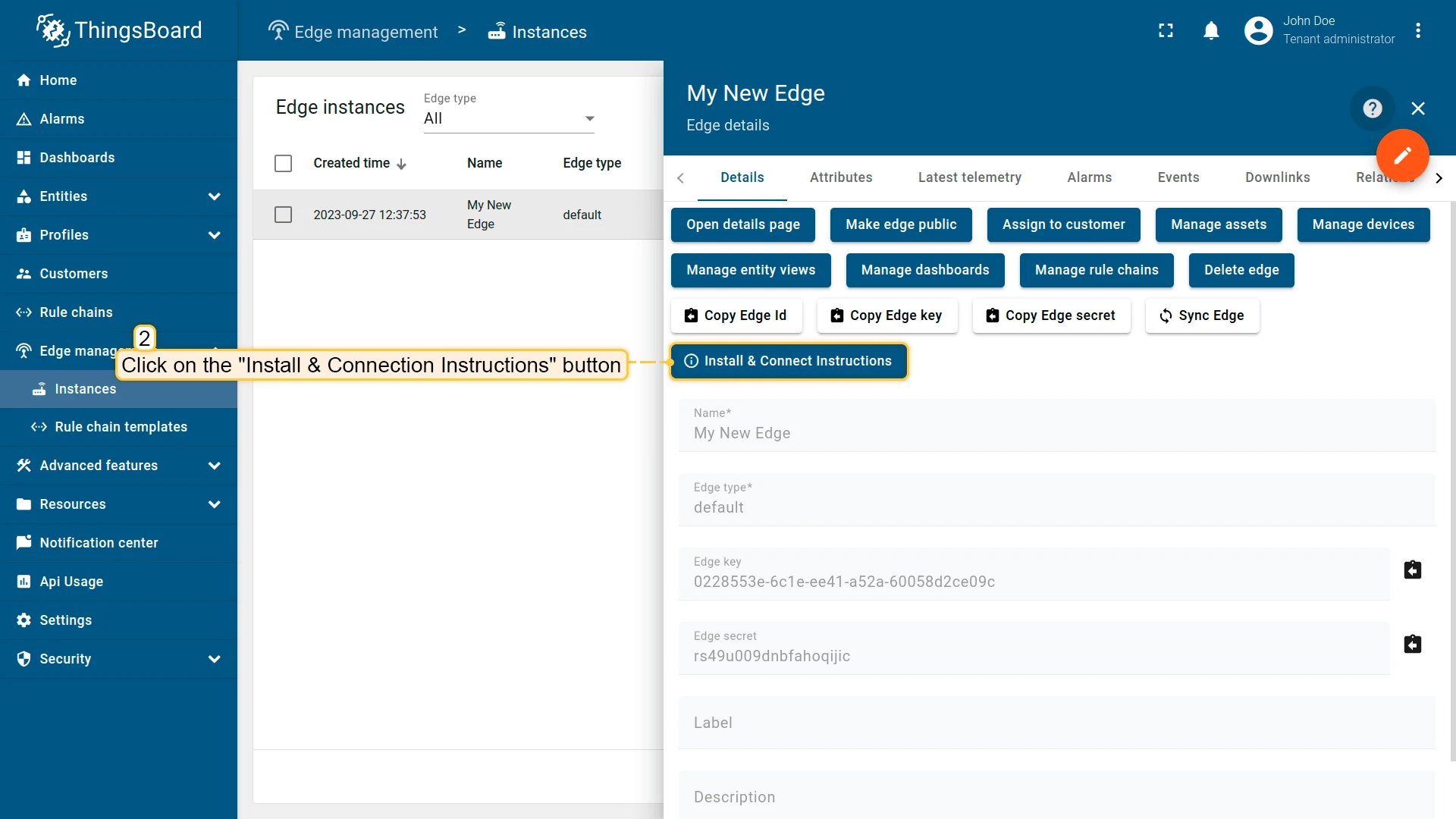

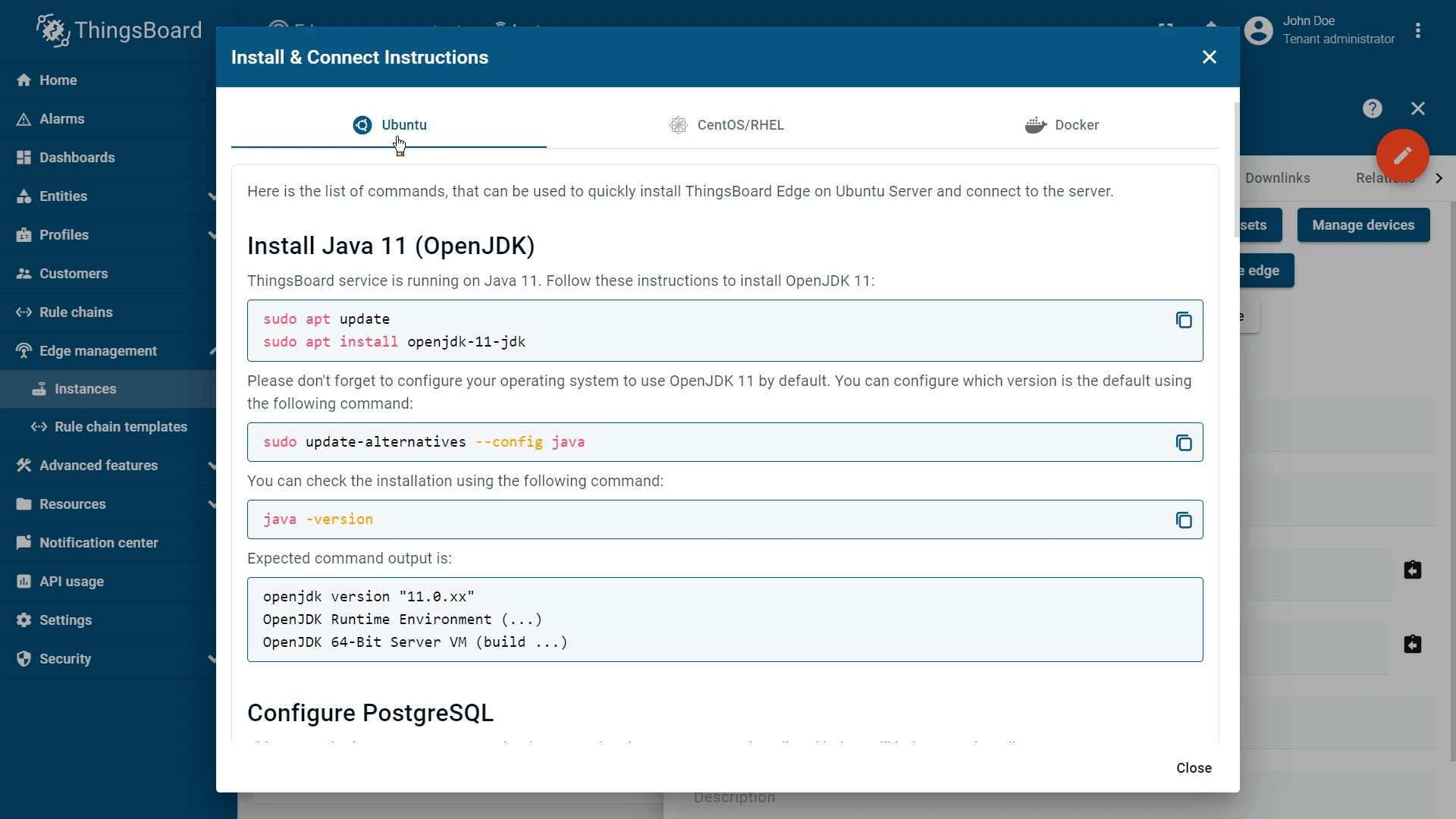

Click Install & Connection Instructions.

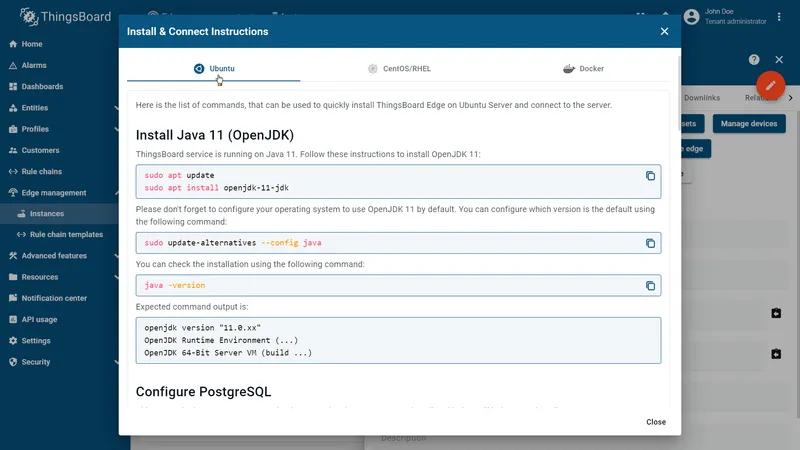

Select the installation method and follow the instructions to install Edge and connect it to the server.

Manual installation and configuration

If you are unable to use the guided instructions above, follow the steps below to install and configure Edge manually.

Step 1. Copy Edge credentials

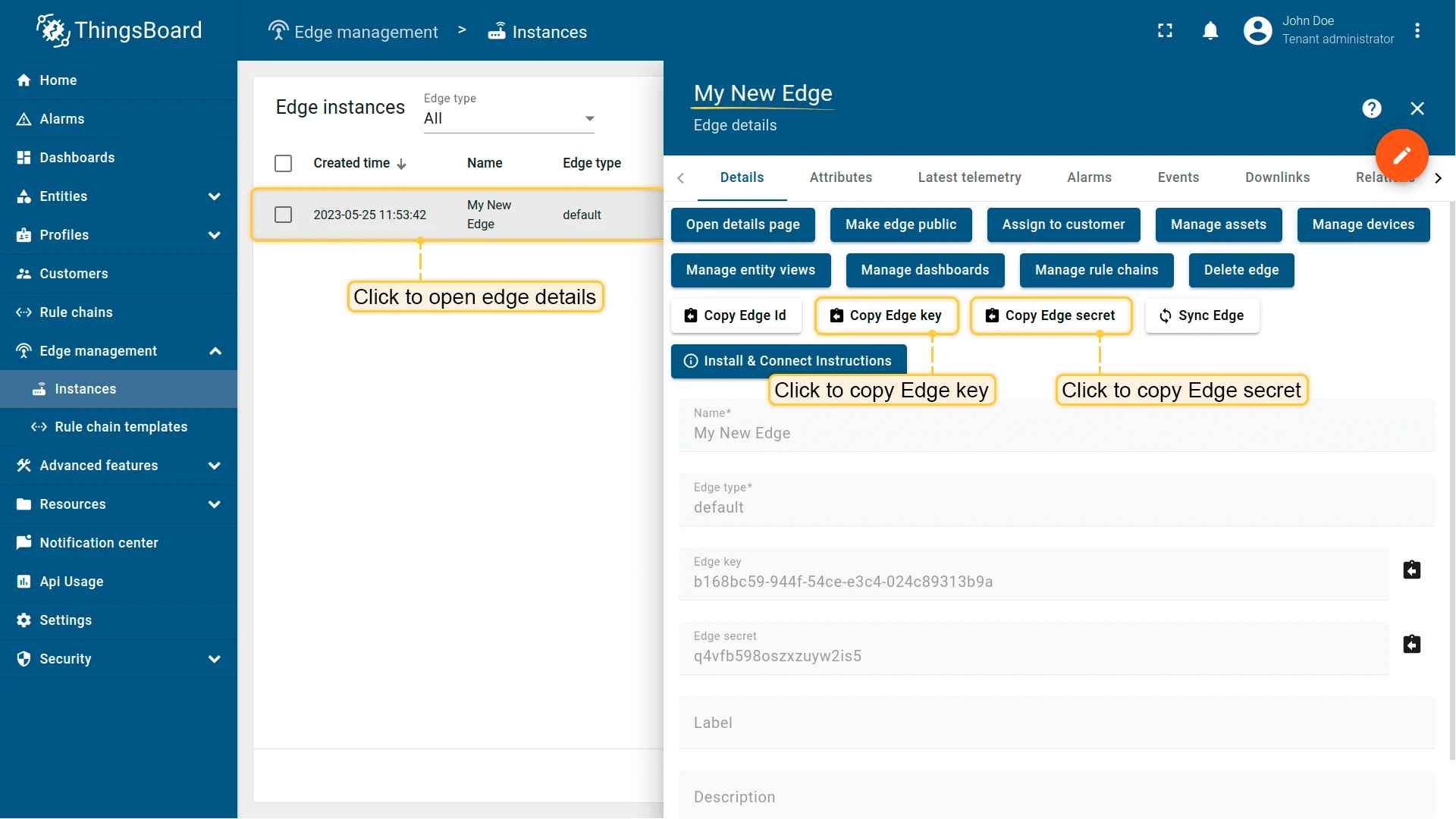

In the Edge instance details panel, click Copy Edge Key and Copy Edge Secret. Store these values securely — you need them in the next step.

Copy Edge Key and Edge Secret from the instance details panel

Step 2. Create the docker-compose.yml file

ThingsBoard Edge supports different queue implementations. Choose the one that fits your deployment:

In Memory: Built-in default. Suitable for development and PoC environments. Not recommended for production.
Kafka: Recommended for production deployments.
Hybrid: Combines PostgreSQL and Cassandra with Kafka. Recommended for 1M+ devices or high data ingestion rates (5000+ msg/sec).

Create the docker-compose.yml file based on your chosen queue:

services:
  mytbedge:
    restart: always
    image: "thingsboard/tb-edge:4.3.1.1"
    ports:
      - "8080:8080"
      - "1883:1883"
      - "5683-5688:5683-5688/udp"
    environment:
      SPRING_DATASOURCE_URL: jdbc:postgresql://postgres:5432/tb-edge
      CLOUD_ROUTING_KEY: PUT_YOUR_EDGE_KEY_HERE # e.g. 19ea7ee8-5e6d-e642-4f32-05440a529015
      CLOUD_ROUTING_SECRET: PUT_YOUR_EDGE_SECRET_HERE # e.g. bztvkvfqsye7omv9uxlp
      CLOUD_RPC_HOST: PUT_YOUR_CLOUD_IP # e.g. 192.168.1.1
    volumes:
      - tb-edge-data:/data
      - tb-edge-logs:/var/log/tb-edge
  postgres:
    restart: always
    image: "postgres:16"
    ports:
      - "5432"
    environment:
      POSTGRES_DB: tb-edge
      POSTGRES_PASSWORD: postgres
    volumes:
      - tb-edge-postgres-data:/var/lib/postgresql/data

volumes:
  tb-edge-data:
    name: tb-edge-data
  tb-edge-logs:
    name: tb-edge-logs
  tb-edge-postgres-data:
    name: tb-edge-postgres-data

Apache Kafka is an open-source stream processing platform recommended for production deployments. It provides reliable message delivery, high throughput, and replay support — making it suitable for environments where data loss is unacceptable.

services:
  mytbedge:
    restart: always
    image: "thingsboard/tb-edge:4.3.1.1"
    ports:
      - "8080:8080"
      - "1883:1883"
      - "5683-5688:5683-5688/udp"
    environment:
      SPRING_DATASOURCE_URL: jdbc:postgresql://postgres:5432/tb-edge
      CLOUD_ROUTING_KEY: PUT_YOUR_EDGE_KEY_HERE # e.g. 19ea7ee8-5e6d-e642-4f32-05440a529015
      CLOUD_ROUTING_SECRET: PUT_YOUR_EDGE_SECRET_HERE # e.g. bztvkvfqsye7omv9uxlp
      CLOUD_RPC_HOST: PUT_YOUR_CLOUD_IP # e.g. 192.168.1.1
      TB_QUEUE_TYPE: "kafka"
      TB_KAFKA_SERVERS: "kafka:9092"
    volumes:
      - tb-edge-data:/data
      - tb-edge-logs:/var/log/tb-edge
    extra_hosts:
      - "host.docker.internal:host-gateway"
  postgres:
    restart: always
    image: "postgres:16"
    ports:
      - "5432"
    environment:
      POSTGRES_DB: tb-edge
      POSTGRES_PASSWORD: postgres
    volumes:
      - tb-edge-postgres-data:/var/lib/postgresql/data
  kafka:
    restart: always
    image: bitnamilegacy/kafka:4.0
    ports:
      - 9092
      - 9093 #for Kraft
    environment:
      ALLOW_PLAINTEXT_LISTENER: "yes"
      KAFKA_CFG_LISTENERS: "INTERNAL://:9092,CONTROLLER://:9093"
      KAFKA_CFG_ADVERTISED_LISTENERS: "INTERNAL://kafka:9092"
      KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,CONTROLLER:PLAINTEXT"
      KAFKA_CFG_INTER_BROKER_LISTENER_NAME: "INTERNAL"
      KAFKA_CFG_AUTO_CREATE_TOPICS_ENABLE: "false"
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: "1"
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: "1"
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: "1"
      KAFKA_CFG_PROCESS_ROLES: "controller,broker" #KRaft
      KAFKA_CFG_NODE_ID: "0" #KRaft
      KAFKA_CFG_CONTROLLER_LISTENER_NAMES: "CONTROLLER" #KRaft
      KAFKA_CFG_CONTROLLER_QUORUM_VOTERS: "0@kafka:9093" #KRaft
    volumes:
      - kafka-data:/bitnami
volumes:
  tb-edge-data:
    name: tb-edge-data
  tb-edge-logs:
    name: tb-edge-logs
  tb-edge-postgres-data:
    name: tb-edge-postgres-data
  kafka-data:
    driver: local

Uses PostgreSQL for entity storage, Apache Cassandra for time-series data, and Apache Kafka as the message queue.

services:
  mytbedge:
    restart: always
    image: "thingsboard/tb-edge:4.3.1.1"
    ports:
      - "8080:8080"
      - "1883:1883"
      - "5683-5688:5683-5688/udp"
    environment:
      SPRING_DATASOURCE_URL: jdbc:postgresql://postgres:5432/tb-edge
      CLOUD_ROUTING_KEY: PUT_YOUR_EDGE_KEY_HERE # e.g. 19ea7ee8-5e6d-e642-4f32-05440a529015
      CLOUD_ROUTING_SECRET: PUT_YOUR_EDGE_SECRET_HERE # e.g. bztvkvfqsye7omv9uxlp
      CLOUD_RPC_HOST: PUT_YOUR_CLOUD_IP # e.g. 192.168.1.1
      TB_QUEUE_TYPE: "kafka"
      TB_KAFKA_SERVERS: "kafka:9092"
      DATABASE_TS_TYPE: "cassandra"
      CASSANDRA_URL: "cassandra:9042"
    volumes:
      - tb-edge-data:/data
      - tb-edge-logs:/var/log/tb-edge
    extra_hosts:
      - "host.docker.internal:host-gateway"
  postgres:
    restart: always
    image: "postgres:16"
    ports:
      - "5432"
    environment:
      POSTGRES_DB: tb-edge
      POSTGRES_PASSWORD: postgres
    volumes:
      - tb-edge-postgres-data:/var/lib/postgresql/data
  kafka:
    restart: always
    image: bitnamilegacy/kafka:4.0
    ports:
      - 9092
      - 9093 #for Kraft
    environment:
      ALLOW_PLAINTEXT_LISTENER: "yes"
      KAFKA_CFG_LISTENERS: "INTERNAL://:9092,CONTROLLER://:9093"
      KAFKA_CFG_ADVERTISED_LISTENERS: "INTERNAL://kafka:9092"
      KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP: "INTERNAL:PLAINTEXT,CONTROLLER:PLAINTEXT"
      KAFKA_CFG_INTER_BROKER_LISTENER_NAME: "INTERNAL"
      KAFKA_CFG_AUTO_CREATE_TOPICS_ENABLE: "false"
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: "1"
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: "1"
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: "1"
      KAFKA_CFG_PROCESS_ROLES: "controller,broker" #KRaft
      KAFKA_CFG_NODE_ID: "0" #KRaft
      KAFKA_CFG_CONTROLLER_LISTENER_NAMES: "CONTROLLER" #KRaft
      KAFKA_CFG_CONTROLLER_QUORUM_VOTERS: "0@kafka:9093" #KRaft
    volumes:
      - kafka-data:/bitnami
  cassandra:
    restart: always
    image: "cassandra:4.0"
    container_name: cassandra
    environment:
      CASSANDRA_CLUSTER_NAME: "Thingsboard Edge Cluster"
      CASSANDRA_KEYSPACE_NAME: "tb_edge"
      CASSANDRA_LOCAL_DATACENTER: "datacenter1"
    ports:
      - 9042:9042
    volumes:
      - ./data/cassandra:/var/lib/cassandra
volumes:
  tb-edge-data:
    name: tb-edge-data
  tb-edge-logs:
    name: tb-edge-logs
  tb-edge-postgres-data:
    name: tb-edge-postgres-data
  kafka-data:
    driver: local

Configuration parameters:

Parameter	Description
`restart: always`	ThingsBoard Edge automatically restarts on system reboot or failure
`8080:8080`	Maps local port 8080 to the container’s HTTP port
`1883:1883`	Maps local port 1883 to the container’s MQTT port
`5683-5688:5683-5688/udp`	Maps local UDP ports 5683–5688 to the container’s CoAP and LwM2M ports
`thingsboard/tb-edge:4.3.1.1`	ThingsBoard Edge Docker image
`CLOUD_ROUTING_KEY`	Your Edge key
`CLOUD_ROUTING_SECRET`	Your Edge secret
`CLOUD_RPC_HOST`	IP address or hostname of the ThingsBoard Server

If ThingsBoard Edge runs on the same machine as the ThingsBoard Server, update the port mapping to prevent conflicts. Ensure ports 18080, 11883, and 15683–15688 are not in use.

Run the following command to update docker-compose.yml:

sed -i 's/8080:8080/18080:8080/; s/1883:1883/11883:1883/; s/5683-5688:5683-5688\/udp/15683-15688:5683-5688\/udp/' docker-compose.yml

Step 3. Complete the installation

In the directory containing the docker-compose.yml file, run:

docker compose up -d && docker compose logs -f mytbedge

Once the service is running, open the Edge UI at http://localhost:8080.

Log in using the same default credentials listed in the Prerequisites section. You can change them in the Edge UI after logging in.

Step 4. Inspect logs, stop, and start

To detach from the session terminal without stopping the container, press Ctrl+p then Ctrl+q.

To view ThingsBoard Edge logs:

docker compose logs -f mytbedge

To stop the container:

docker compose stop mytbedge

To start the container:

docker compose start mytbedge

To stop and remove all containers, volumes, and networks:

docker compose down -v

To recreate and start all containers:

docker compose up -d

Troubleshooting

DNS issues

If you observe errors related to DNS resolution, for example:

127.0.1.1:53: cannot unmarshal DNS message

Configure your system to use Google Public DNS. For details, see the Linux and macOS instructions.
