Edge Over-the-Air Firmware And Software Updates

• Overview
• Provisioning OTA Packages to the ThingsBoard Repository
  • Create the OTA Update Package
  • Verify the OTA Update Package on the Edge Instance
• Next steps

Overview

The ThingsBoard Over-the-Air (OTA) Update feature is a powerful way to remotely manage device firmware or software, reducing the need for manual updates and enabling rapid deployment of enhancements or fixes.

The Edge OTA Update feature is designed similarly to the Platform (Cloud) OTA Update. As a result, the Edge OTA Update packages can be deployed in both Device and Device Profile configurations in the same manner as Platform Device and Device Profile configurations. Please refer to the Platform OTA Updates documentation for a general understanding of the OTA Update feature.

Provisioning OTA Packages to the ThingsBoard Repository

All OTA firmware and software packages are created on the Platform and automatically propagated to each Edge instance connected to it. No additional actions are required from the Tenant administrator or User.

Please note!

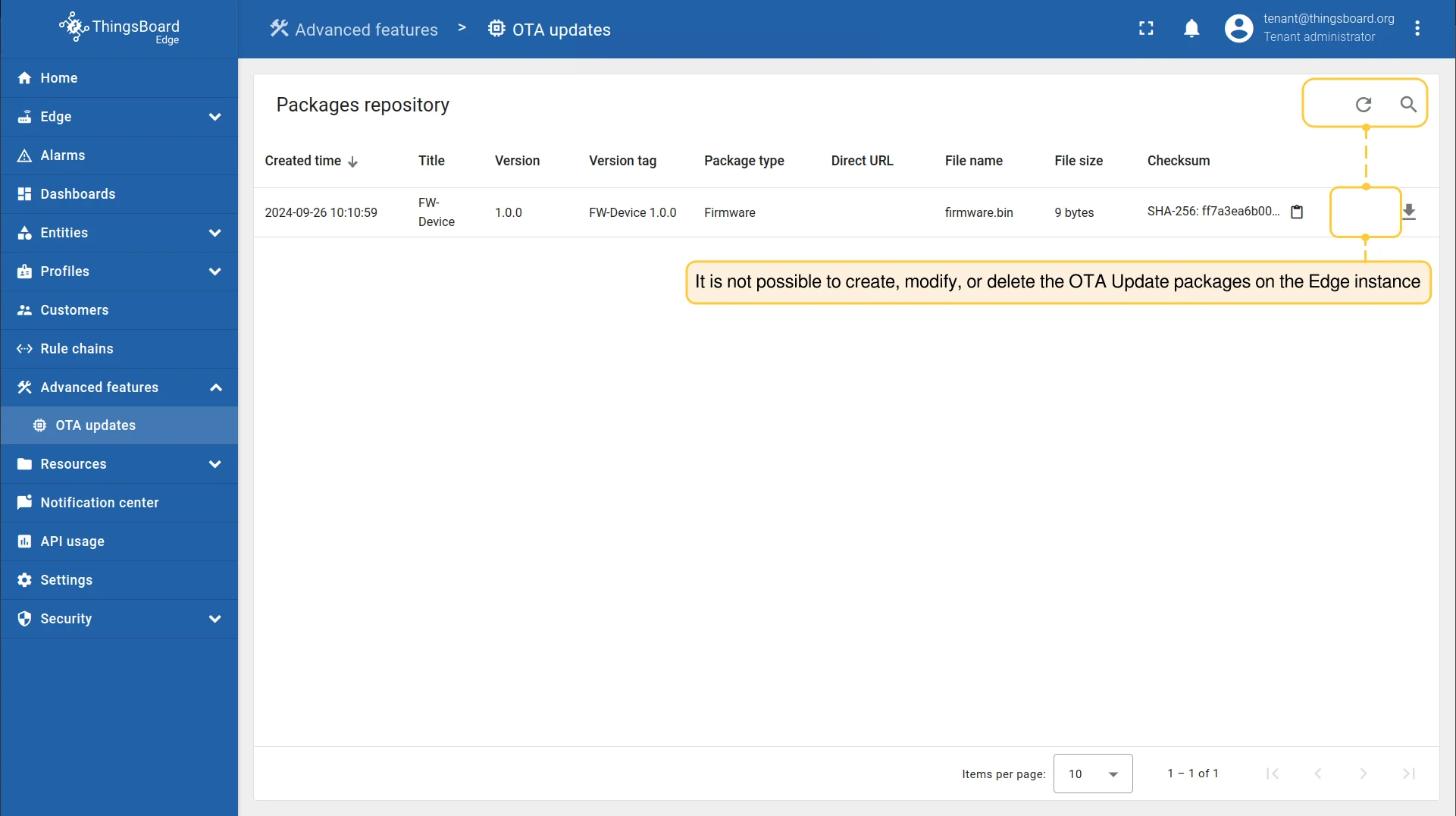

The OTA Update packages are created on the ThingsBoard Platform. It is not possible to create, modify, or delete the OTA Update packages on the Edge instance.

Create the OTA Update Package

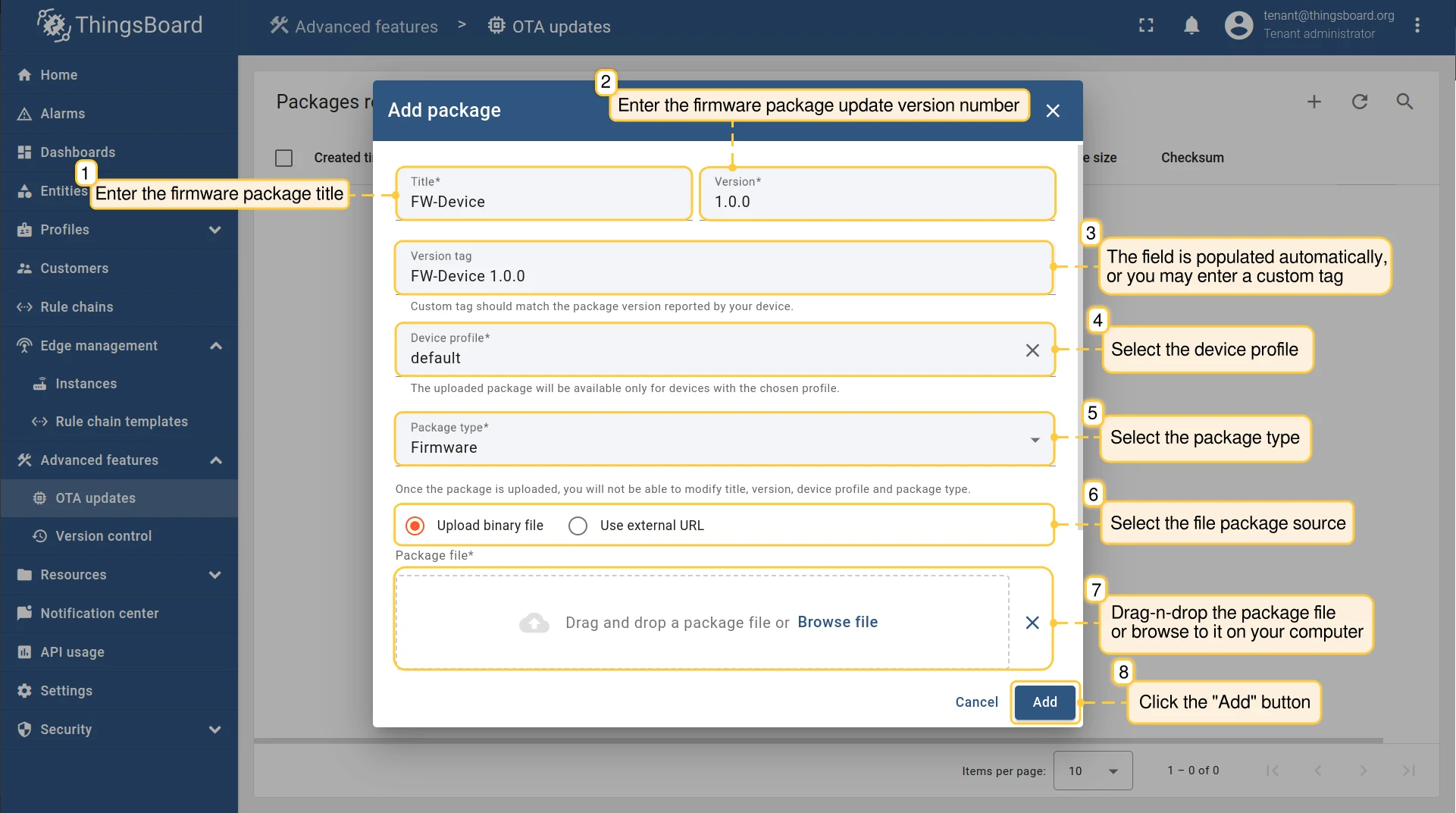

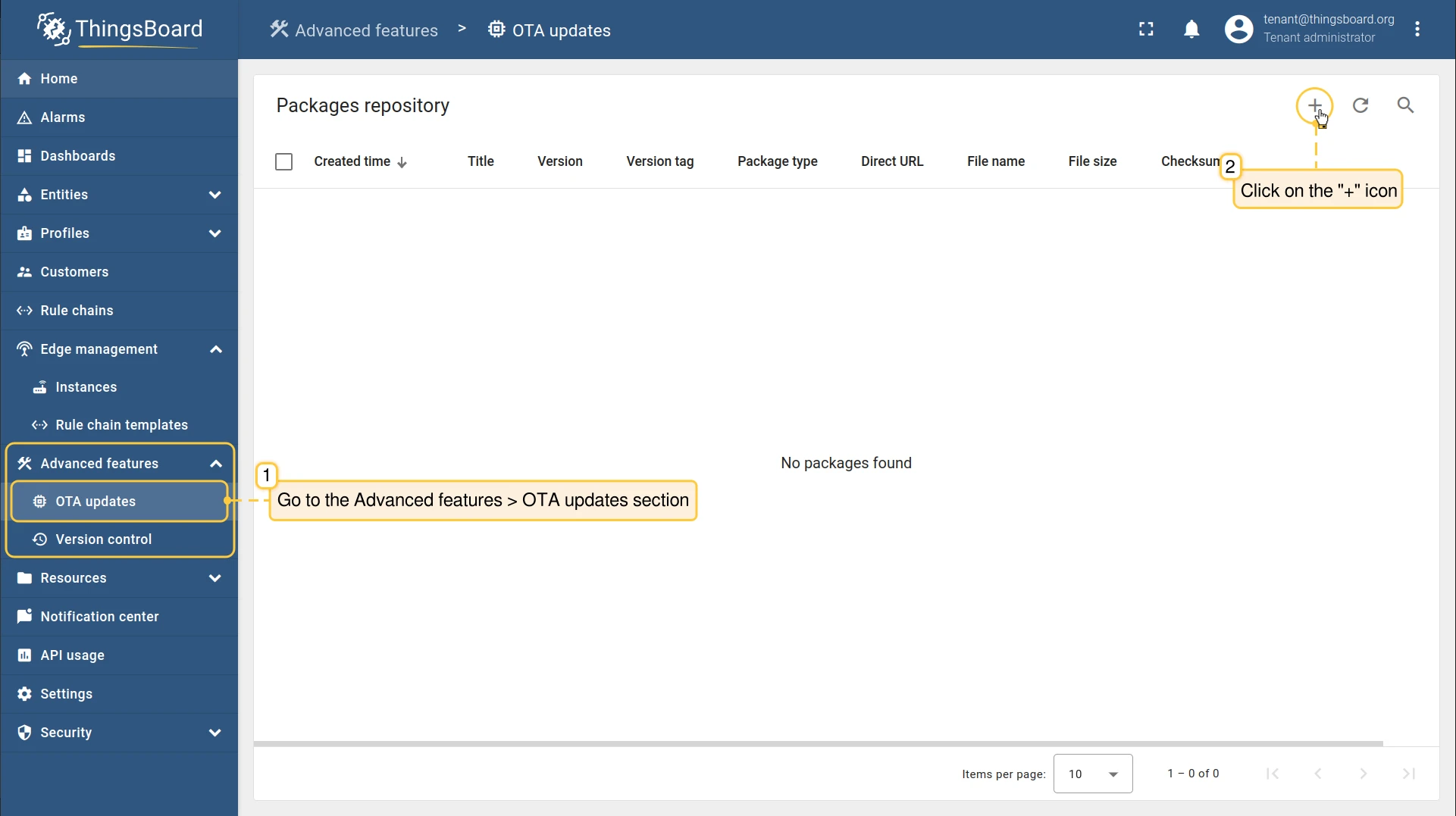

To create the OTA update package on your ThingsBoard Platform, navigate to the Advanced features > OTA updates section and click the ”+” icon. In the pop-up window, fill in the following fields:

• Title: Enter the firmware package name.
• Version: Enter the firmware package update version number.
• Version tag: The field is populated with the relevant information automatically. If a custom tag is entered, it should match the package version reported by the device in question (optional).
• Device profile: Select the device profile.
• Package Type: Select the package type (Firmware or Software).
• “Upload binary file”/”Use external URL” radiobutton: Select the file package source. Depending on the selected option, the following will occur:
  • Package file: Drag-n-drop the package file or browse to it on your computer.
  • Direct URL: Enter a direct URL to download the file.
• Click the “Add” button. Please note that once the package is uploaded, the title, version, device profile, and package type cannot be modified.

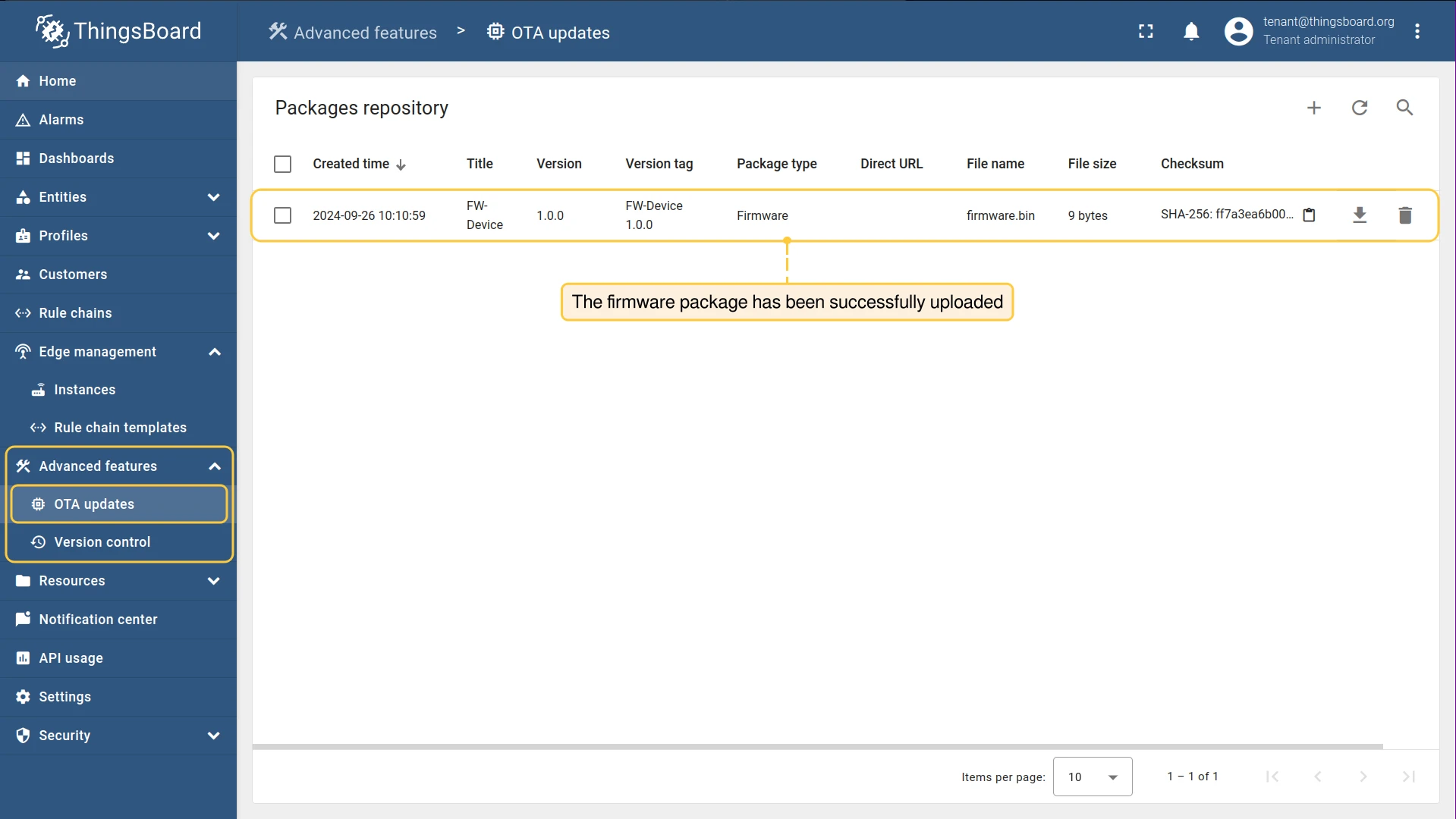

• Verify that firmware package has been successfully uploaded.

Verify the OTA Update Package on the Edge Instance

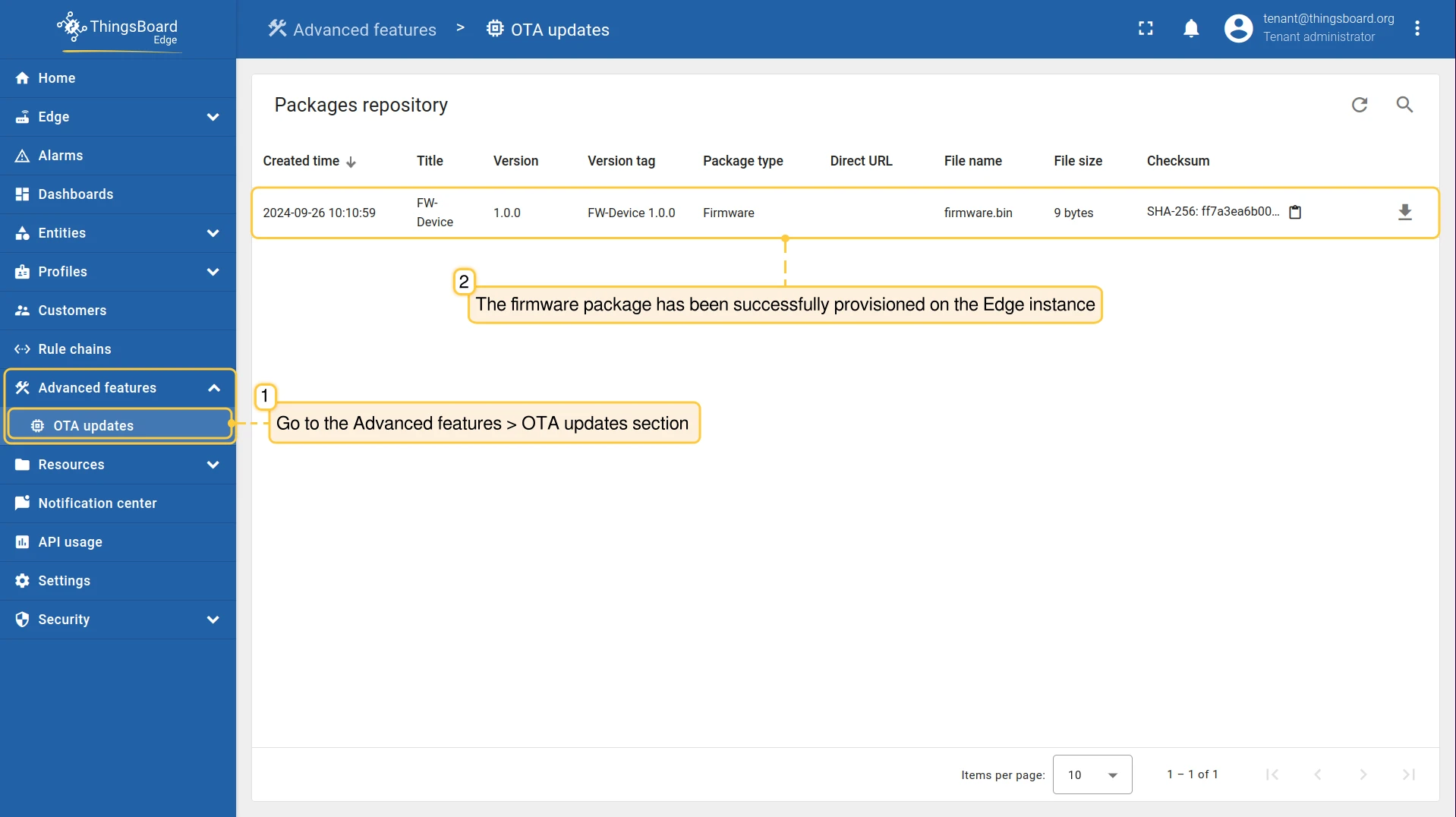

Log in to the ThingsBoard Edge instance using your credentials and navigate to the Advanced features > OTA updates section. This is to confirm that the firmware package has been successfully provisioned on the Edge instance.
