Connect a device and check connectivity
In this step, you will create a device on Edge and activate it.
Add a device on Edge
Section titled “Add a device on Edge”Edge synchronizes devices to your ThingsBoard account automatically.
-

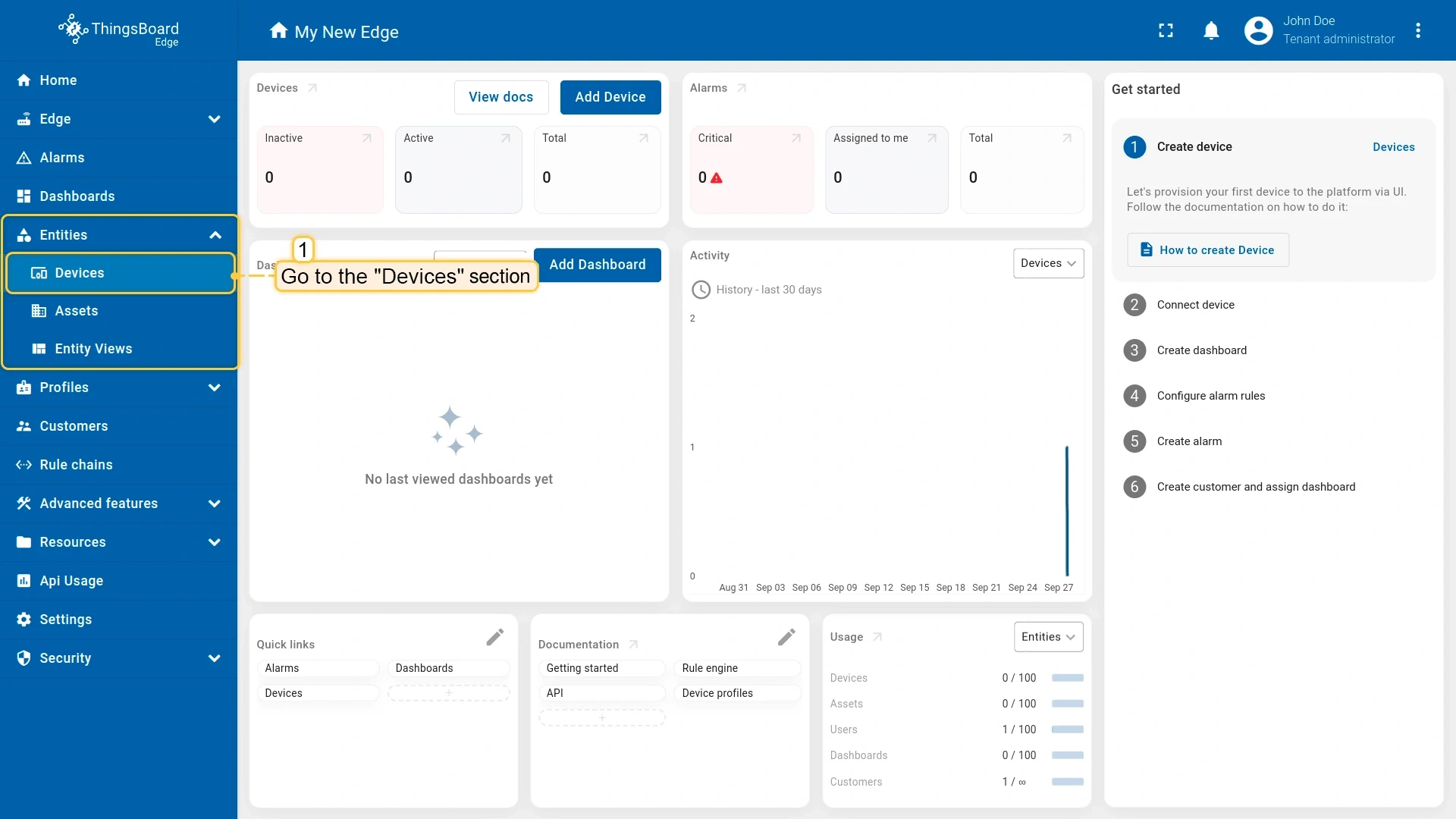

In the Edge UI (http://localhost:8080), go to Entities → Devices and click Add device (+).
-

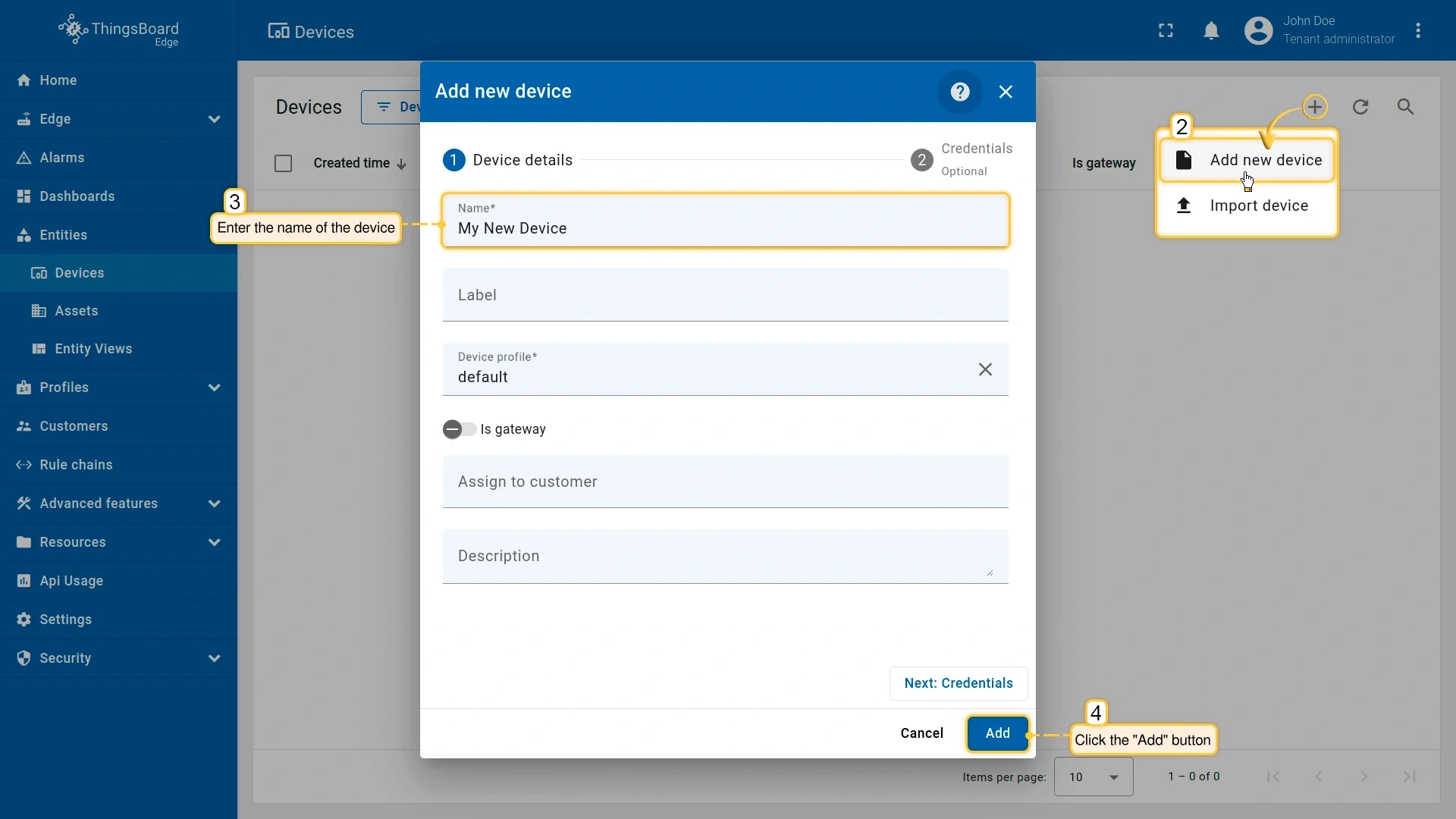

Enter a name and click Add.
Activate the device

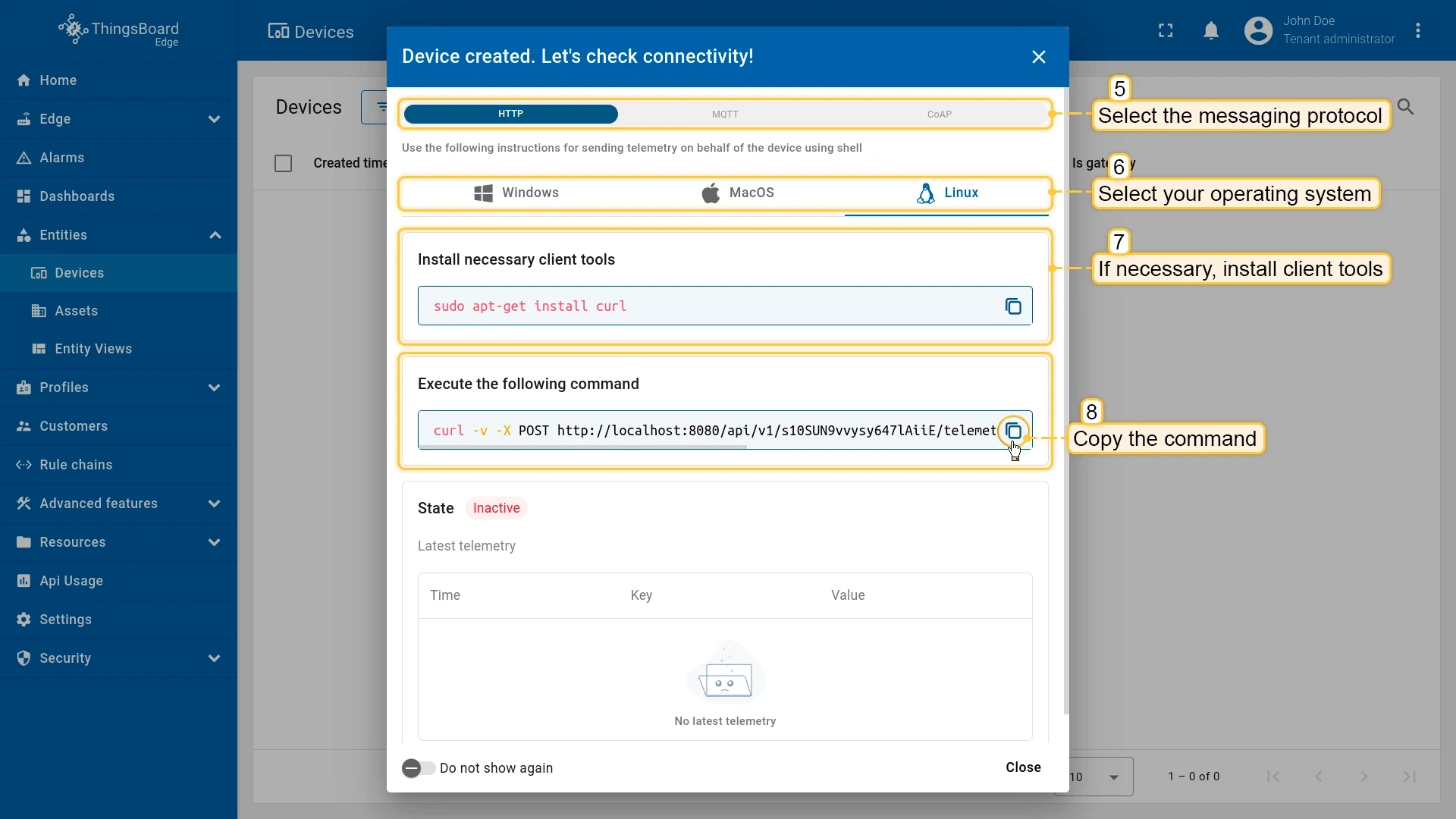

Section titled “Activate the device”After you create the device, a Check connectivity dialog appears with a pre-configured command for your selected protocol and operating system.
-

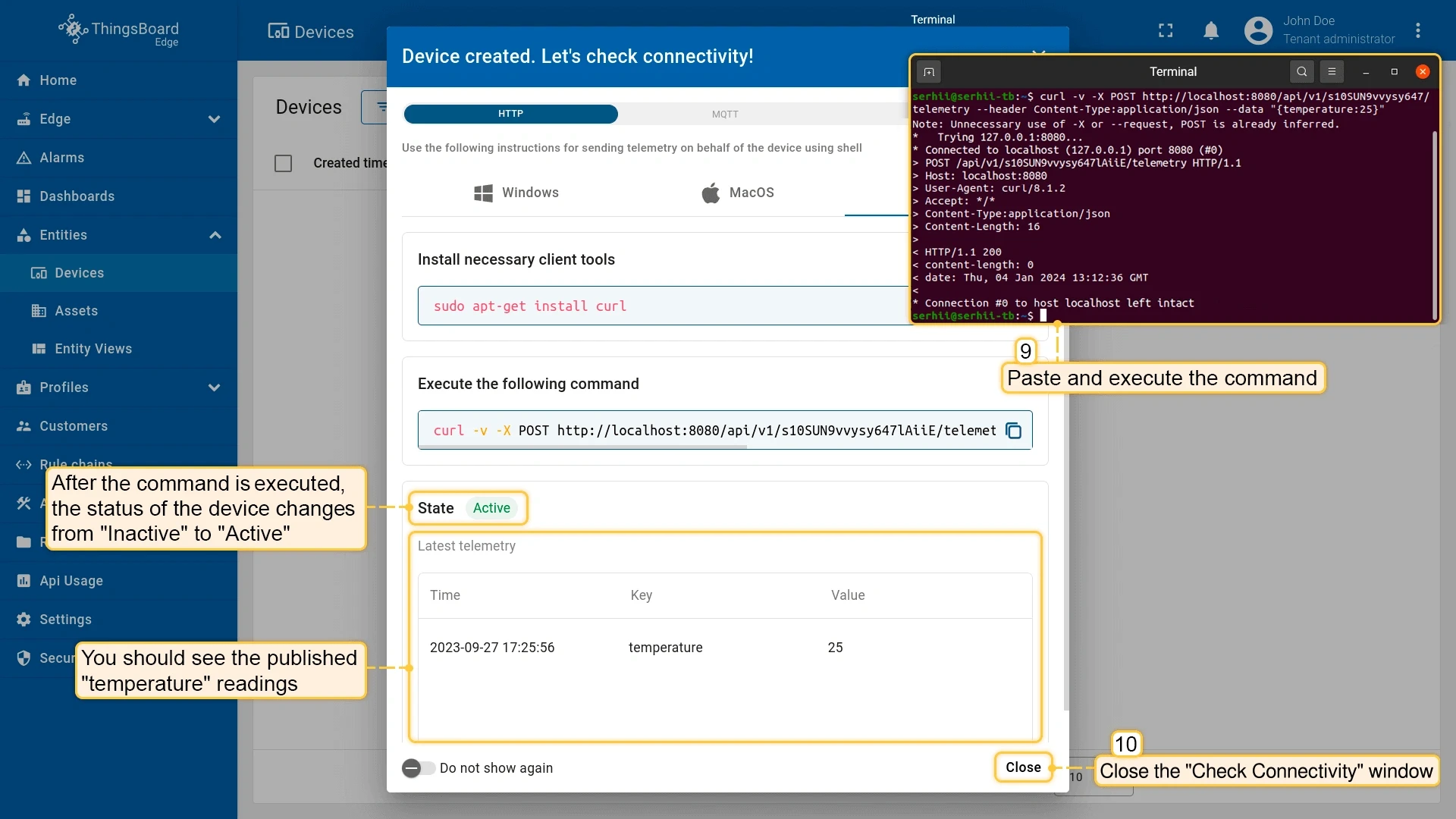

In the Check connectivity dialog, select your preferred protocol and run the displayed command. A
200 OKresponse confirms Edge received the data. The device status changes to Active. -

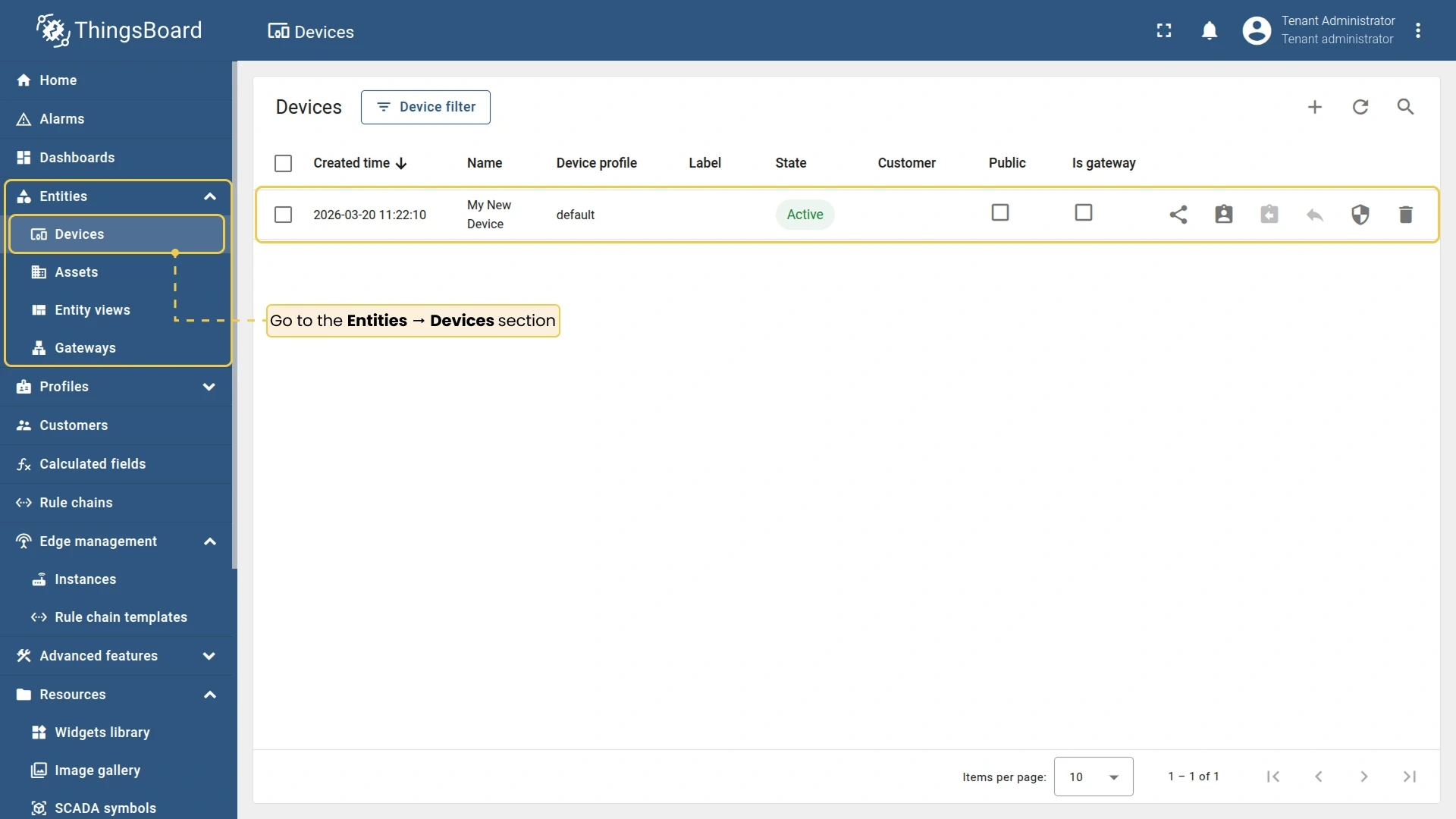

Optional: In your ThingsBoard account, go to Entities → Devices to confirm the device appears there.
