Blocked clients

The Blocked Clients feature lets administrators restrict broker access based on client identifiers or pattern-based rules. It strengthens security, conserves system resources, and provides fine-grained control over who can initiate and maintain connections.

TBMQ stores blocked client entries in memory for fast matching and synchronizes them across all broker nodes in a cluster using Kafka, ensuring consistent enforcement in distributed deployments.

Each entry supports an optional expiration timestamp. Once expired, the entry is treated as inactive and cleaned up automatically.

Block types

You can block a client using any of the following identifiers:

Block by	UI label	Description
`CLIENT_ID`	Client ID	Block clients with a specific client ID
`USERNAME`	Username	Block by MQTT username
`IP_ADDRESS`	IP address	Block by the client’s IP address
`REGEX`	Regex	Pattern-based blocking using a regular expression

The REGEX type matches against one of: BY_CLIENT_ID — labeled Client ID in the UI, BY_USERNAME — labeled Username, or BY_IP_ADDRESS — labeled IP address.

Example: To block all clients whose IDs start with test- followed by digits:

Block by:            REGEX
Regex pattern value: ^test-\d+$
Match by:            BY_CLIENT_ID

This matches test-001, test-42, and test-9999, but not demo-test-1, test-user, or test-.

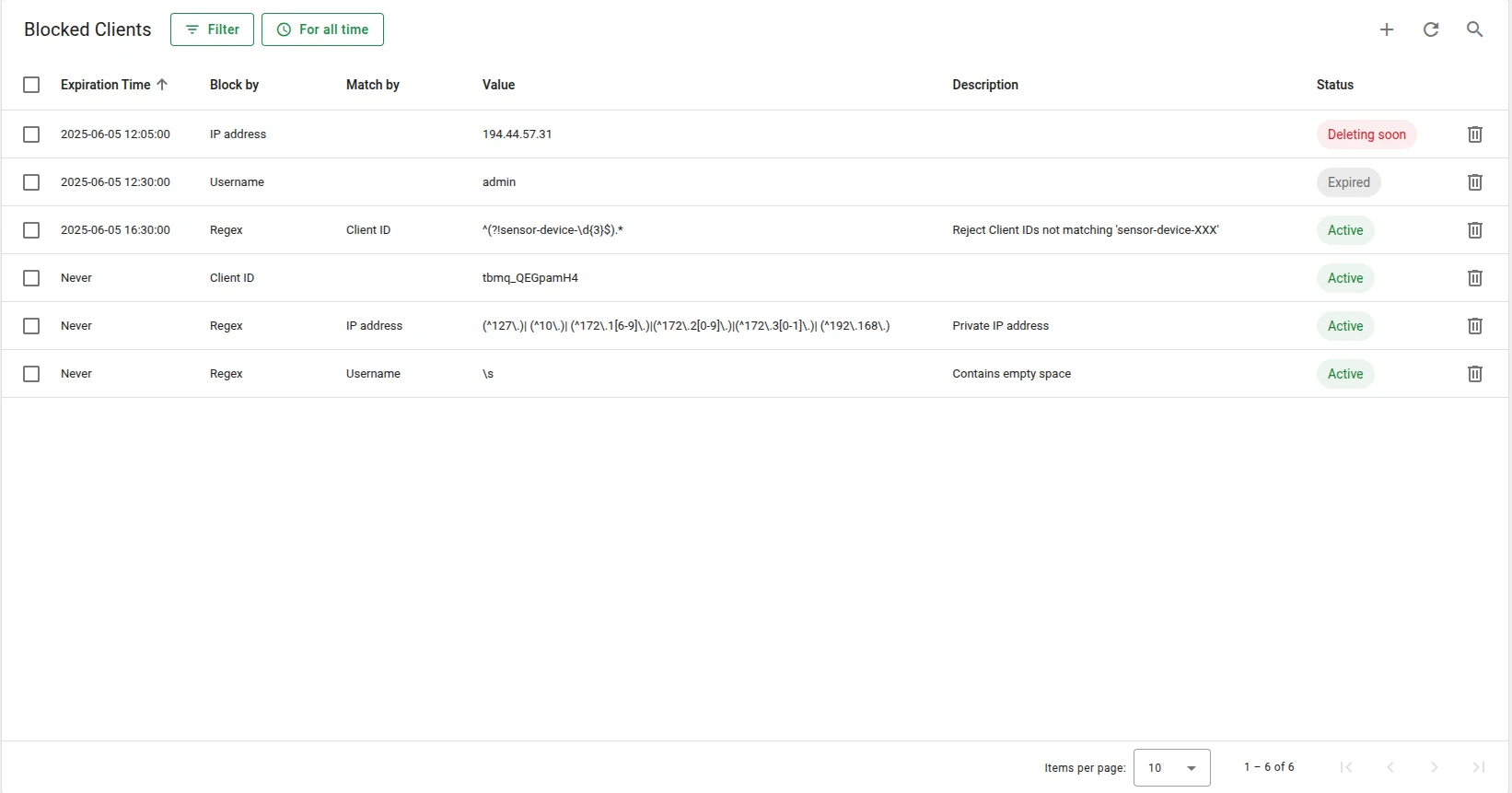

Entry statuses

Status	Description
Active	The entry is valid and enforced.
Expired	The entry is no longer valid but has not yet been cleaned up.
Deleting soon	The entry is expired and more than half of the cleanup grace period has passed. Removal is imminent.

Matching order

During the connection phase, each client is evaluated in the following order:

Exact match on CLIENT_ID
Exact match on USERNAME
Exact match on IP_ADDRESS
Regex-based match (if any exist)

If a match is found and the entry is not expired, the connection is rejected. Blocked client events are also visible in the Unauthorized Clients view.

Automatic cleanup

Expired entries are cleaned up automatically by a background process.

blocked-client:
  cleanup:
    # Interval between cleanup runs, in minutes. Default: 5 minutes
    period: "${BLOCKED_CLIENT_CLEANUP_PERIOD_MINUTES:5}"
    # Time-to-live for expired entries, in minutes.
    # After this period, the expired entry is removed permanently. Default: one week
    ttl: "${BLOCKED_CLIENT_CLEANUP_TTL_MINUTES:10080}"

Cleanup runs only after both the expiration timestamp and the TTL period have passed.

Recommendations

Prefer exact matches over regex. Regex rules are evaluated for every connection; they add overhead that scales with the number of blocked entries. Use them only when CLIENT_ID, USERNAME, or IP_ADDRESS matching is insufficient.
Use authentication as the primary rejection mechanism. Blocked clients should serve as an additional control layer, not the main one.
Keep the list small. A large number of entries, especially regex-based ones, increases memory usage and slows down lookups.
