Integration with ThingsBoard

This guide shows how to integrate TBMQ with ThingsBoard using the ThingsBoard MQTT Integration. This guide uses TBMQ client credentials with type APPLICATION so that ThingsBoard connects as an APPLICATION client, enabling persistent subscriptions with offline message delivery. Read more about client types in the Client types guide.

ThingsBoard MQTT Integration acts as an MQTT client: it subscribes to topics, converts the received data into telemetry and attribute updates, and converts downlink messages to a device-suitable format before pushing them back to TBMQ.

• A running ThingsBoard PE instance
• A running TBMQ instance accessible by the ThingsBoard PE instance
• mosquitto_pub MQTT client to send test messages.

Create TBMQ client credentials to use for connecting the ThingsBoard MQTT Integration to TBMQ.

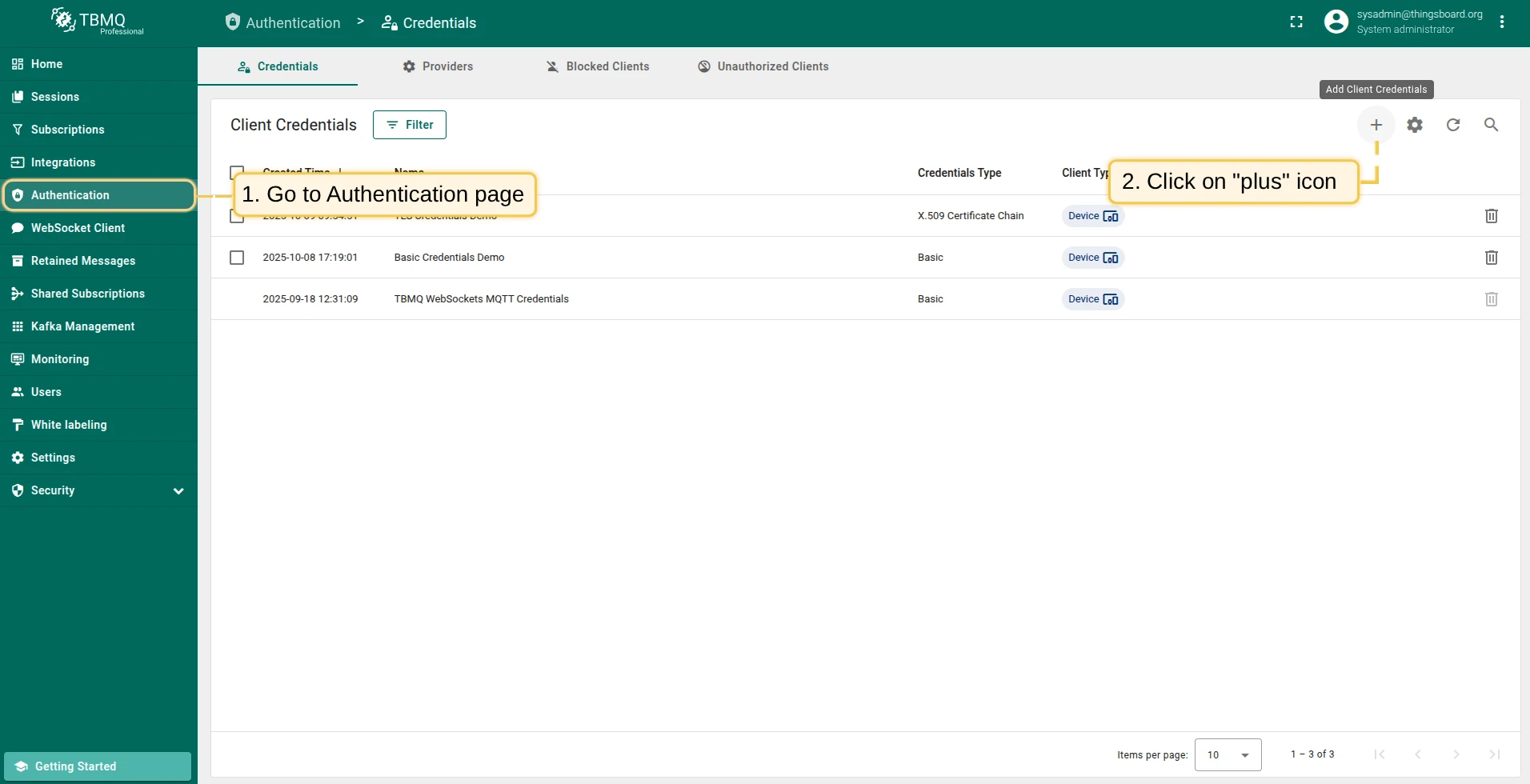

1. In the TBMQ UI, go to Authentication → Credentials and click Add (+).

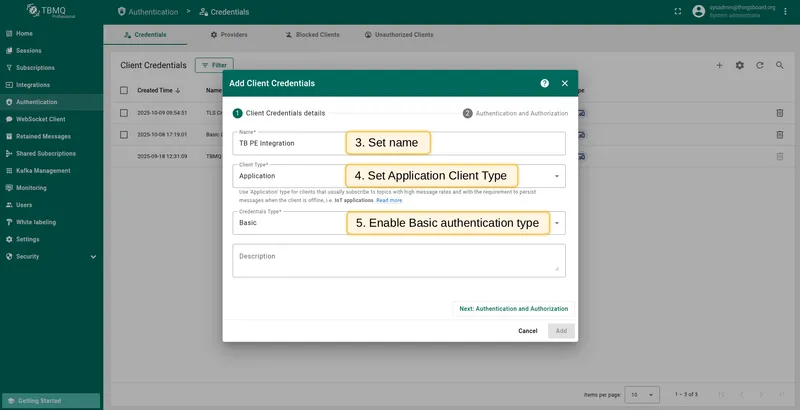

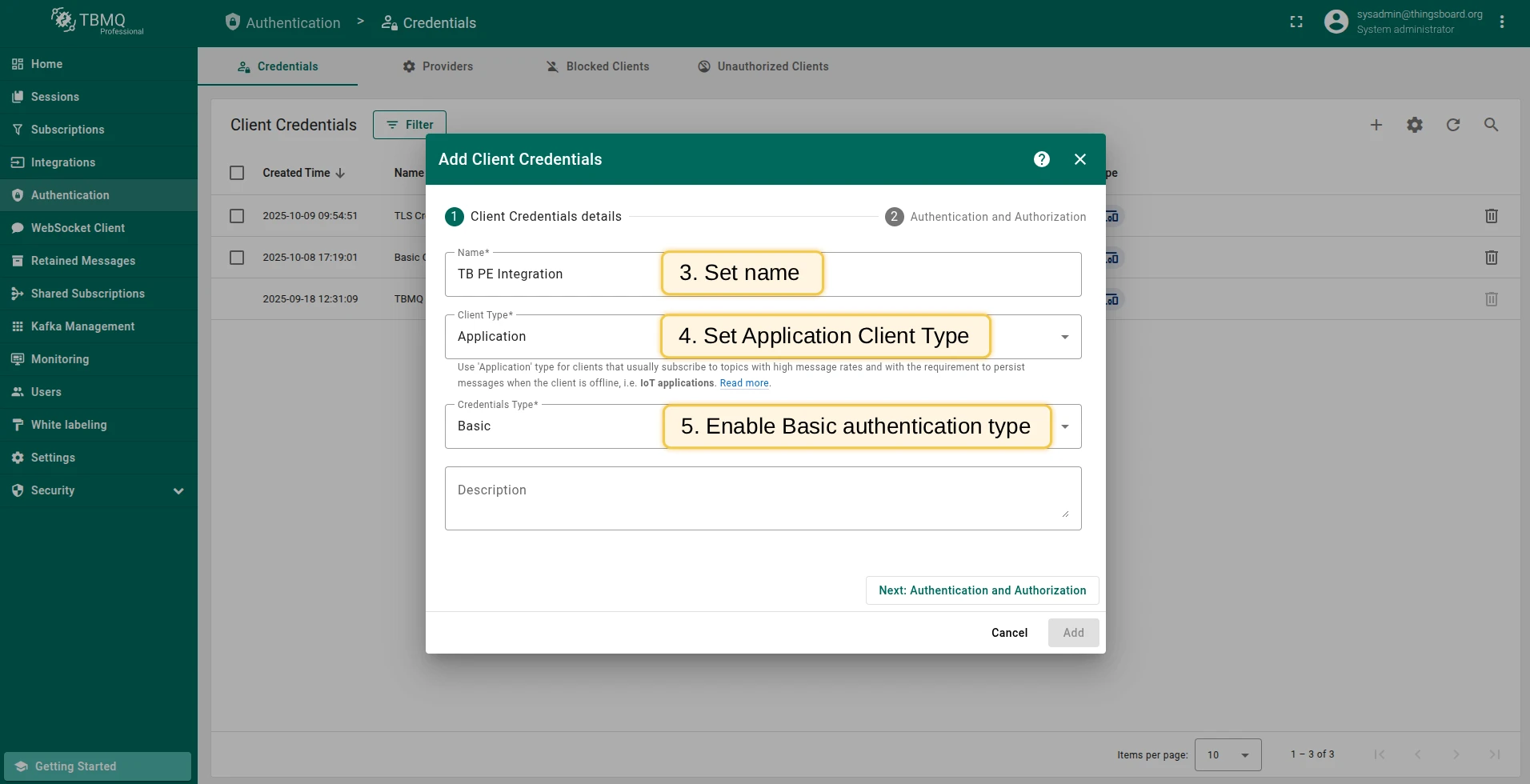

2. Enter a credential name and select Application as the client type.
3. Select Basic as the credentials type.

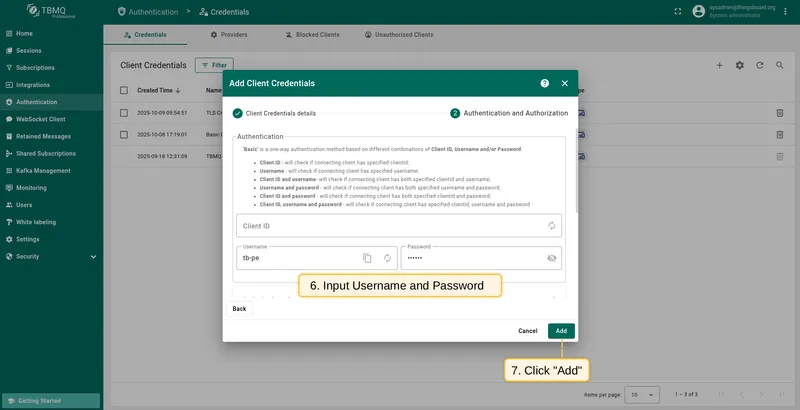

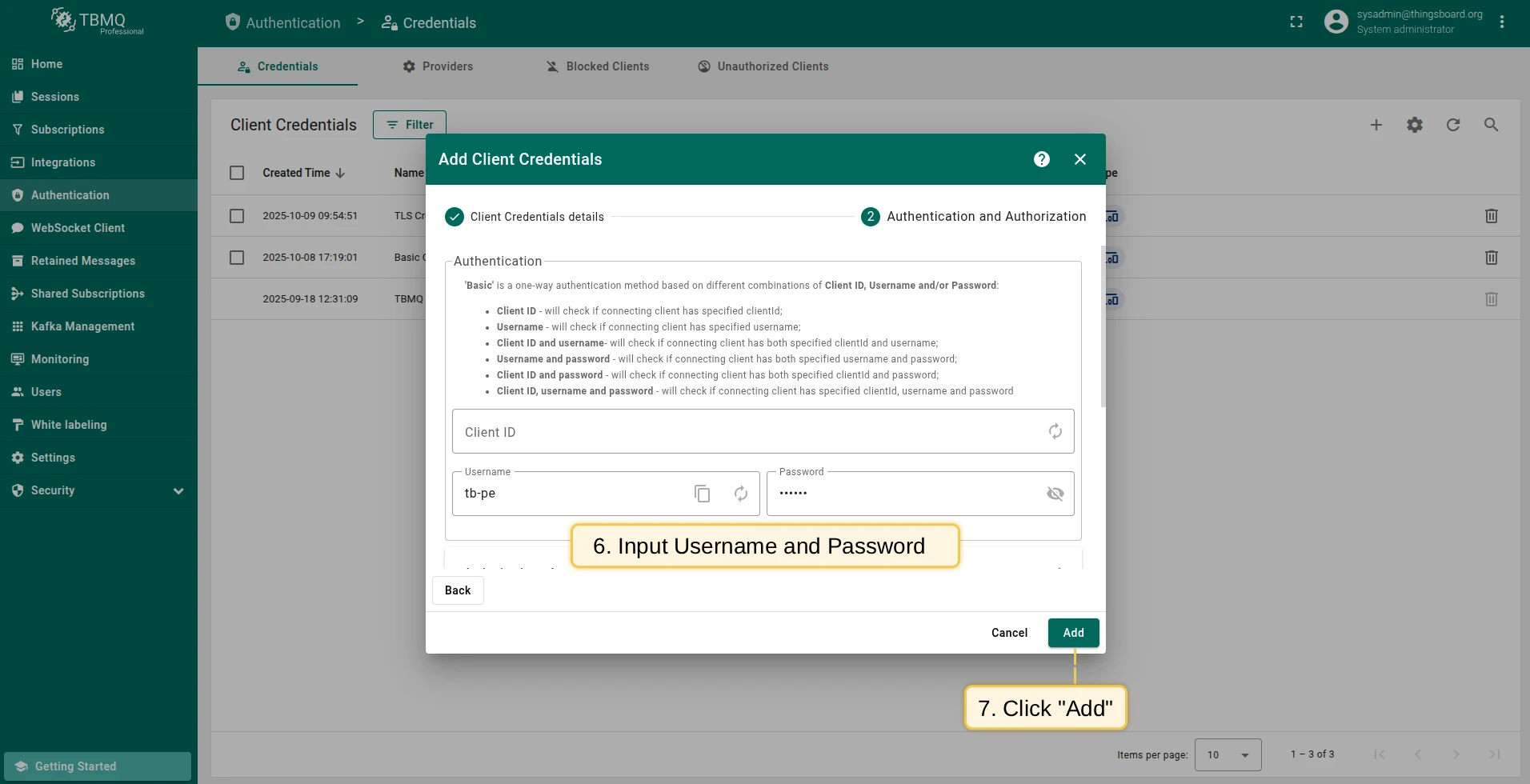

4. Enter a Username and Password (e.g., tb-pe / secret).
5. Click Add.

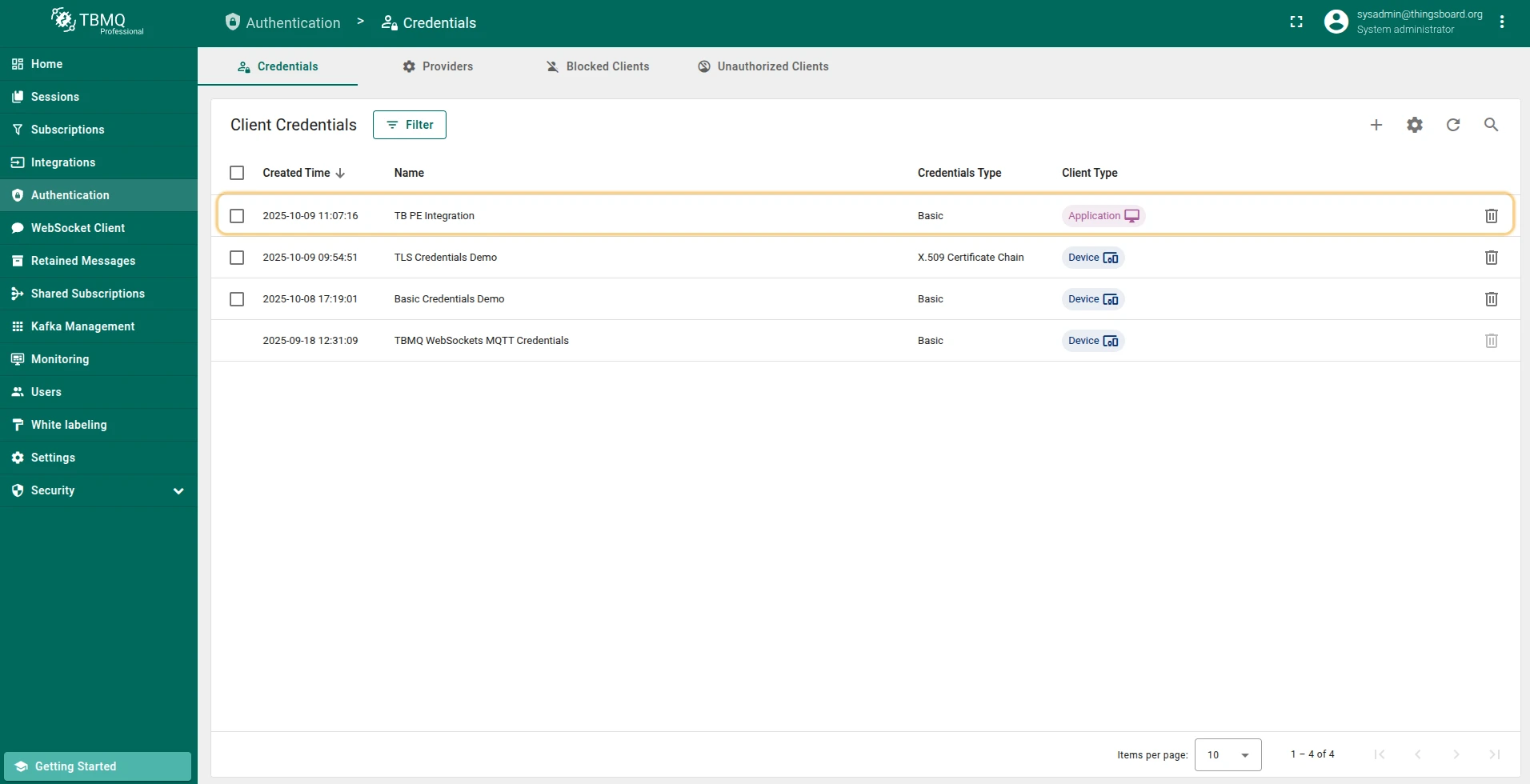

Navigate to "Credentials" tab, click on the "plus" icon in the top right corner of the table. Input client credentials name, select client type. Enable "Basic" authentication type. Input "Username" and "Password" with chosen values. For example, use "tb-pe" value for Username and "secret" for Password fields. Click "Add" to save credentials. New client credential is created.

The uplink converter parses incoming MQTT data and metadata into a format ThingsBoard can consume.

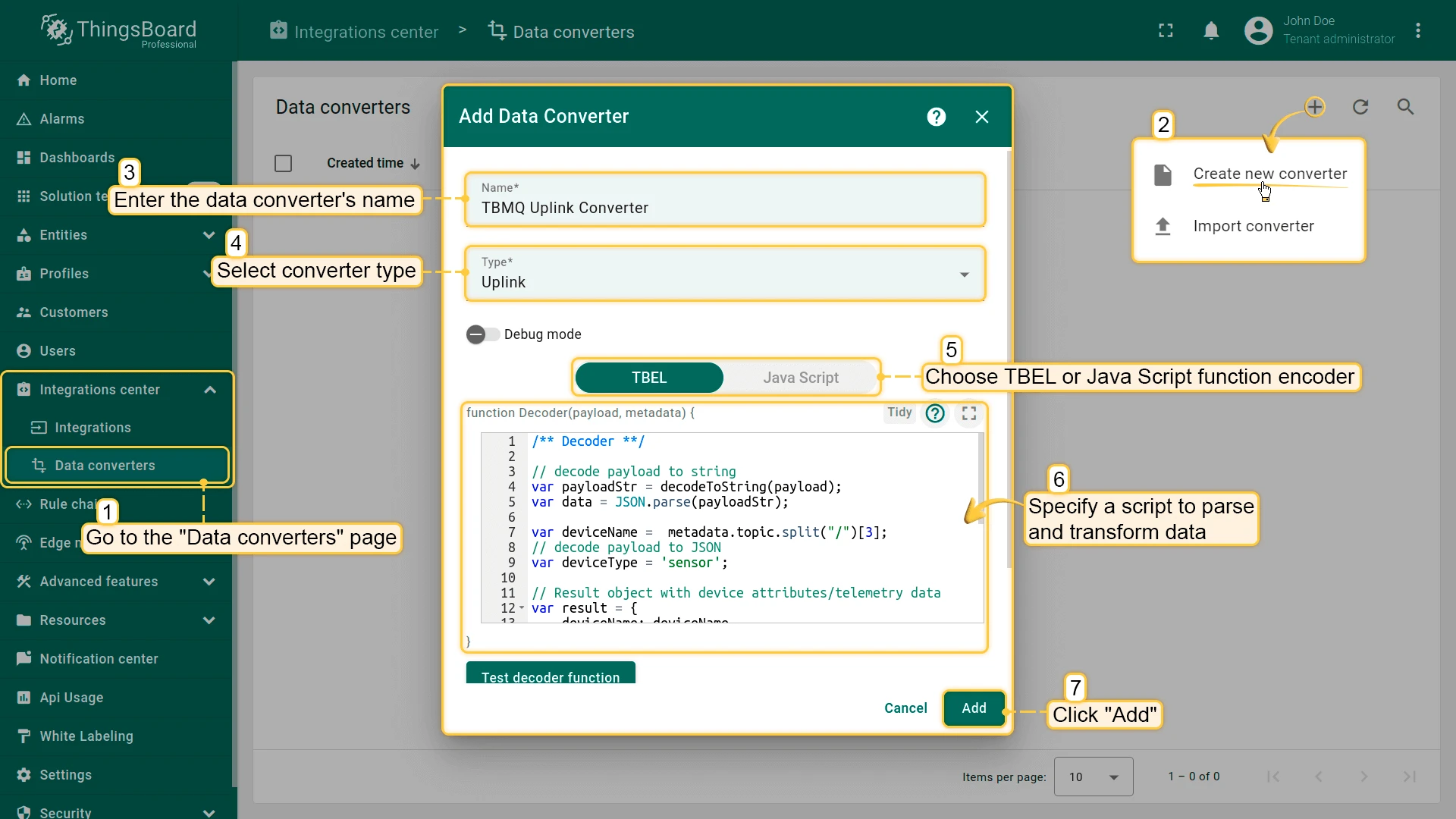

In ThingsBoard, go to Integrations center → Data converters and click Add (+). Name it TBMQ Uplink Converter, select type Uplink, and paste the decoder script below. Click Add.

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);
var data = JSON.parse(payloadStr);

var deviceName = metadata.topic.split("/")[3];
var deviceType = 'sensor';

// Result object with device attributes/telemetry data
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {
        integrationName: metadata['integrationName'],
    },
    telemetry: {
        temperature: data.value,
    }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);
var data = JSON.parse(payloadStr);

var deviceName = metadata.topic.split("/")[3];
var deviceType = 'sensor';

// Result object with device attributes/telemetry data
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {
        integrationName: metadata['integrationName'],
    },
    telemetry: {
        temperature: data.value,
    }
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
    var str = decodeToString(payload);
    var data = JSON.parse(str);
    return data;
}

return result;

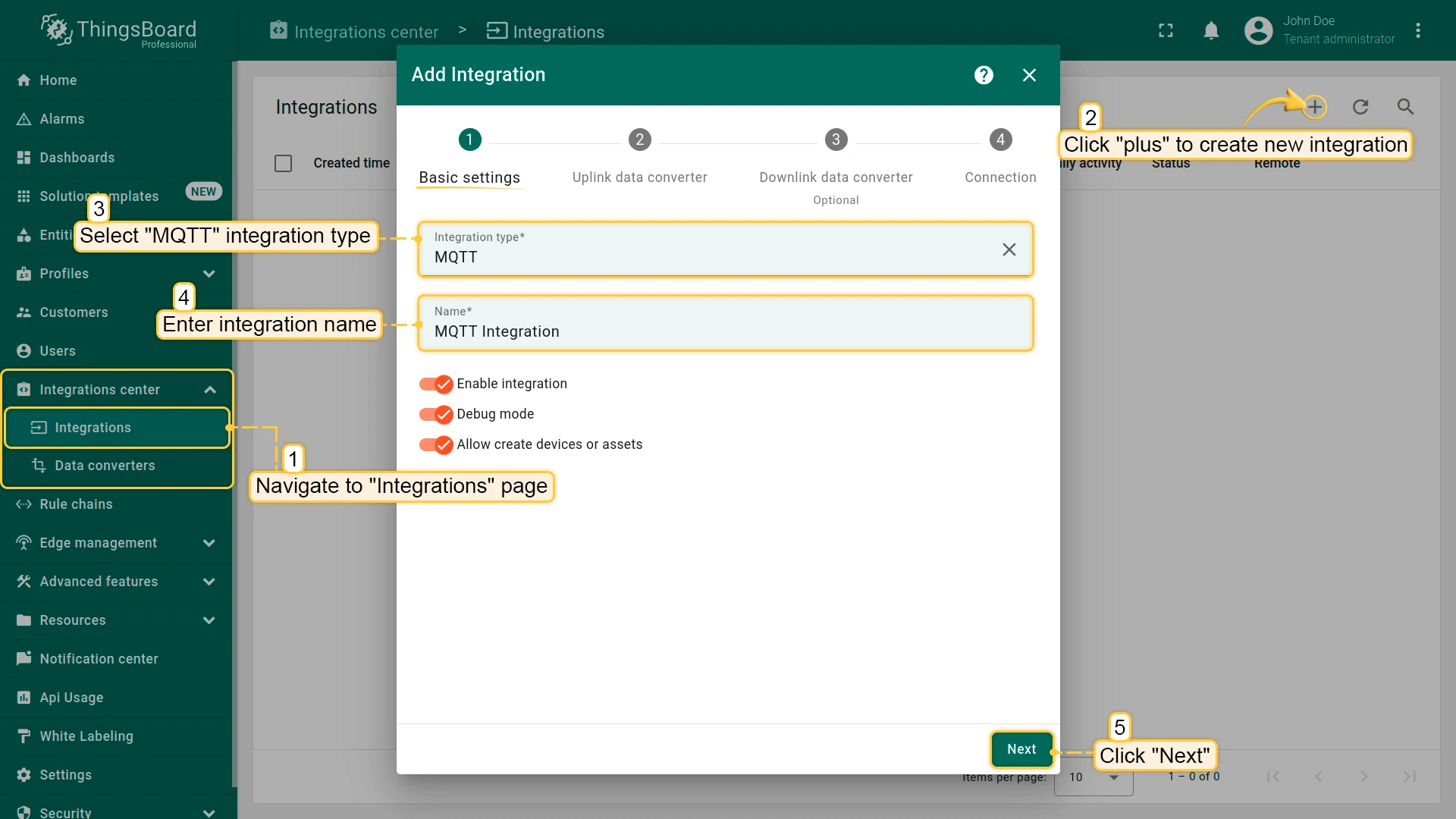

1. Go to Integrations center → Integrations and click Add (+). Name it MQTT Integration and select type MQTT.

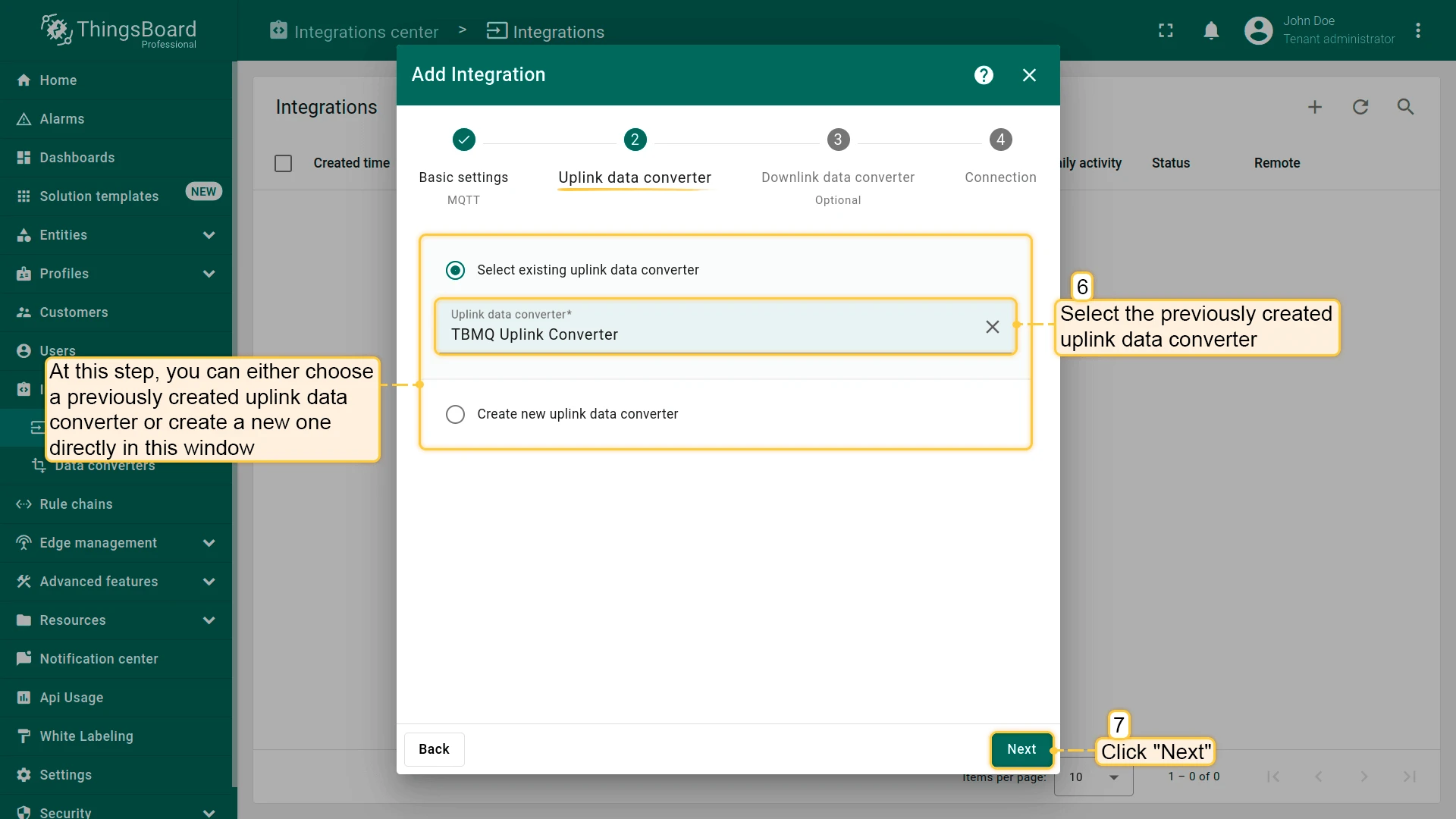

2. Select the uplink converter you just created.

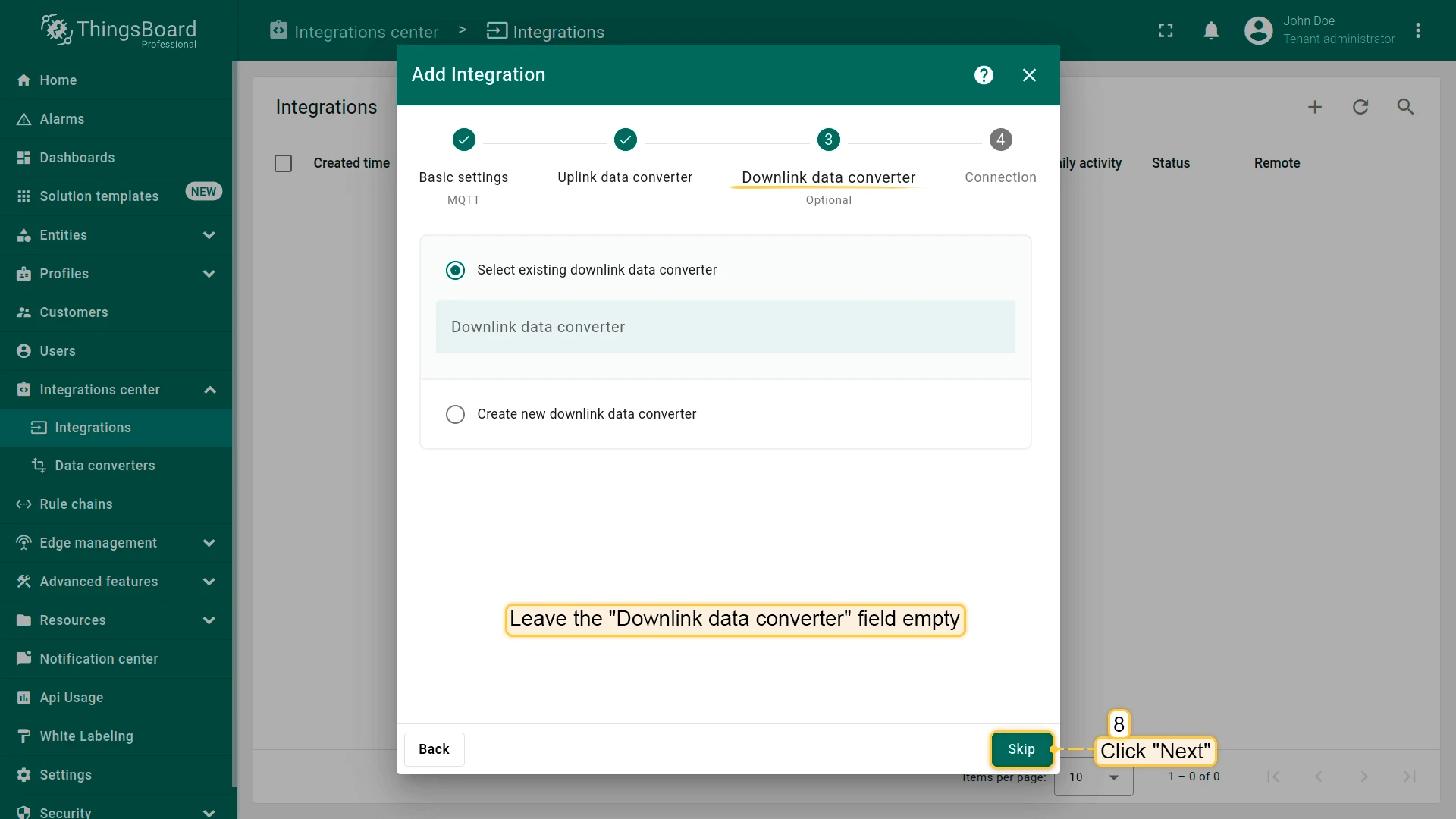

3. Leave the Downlink data converter field empty and click Skip.

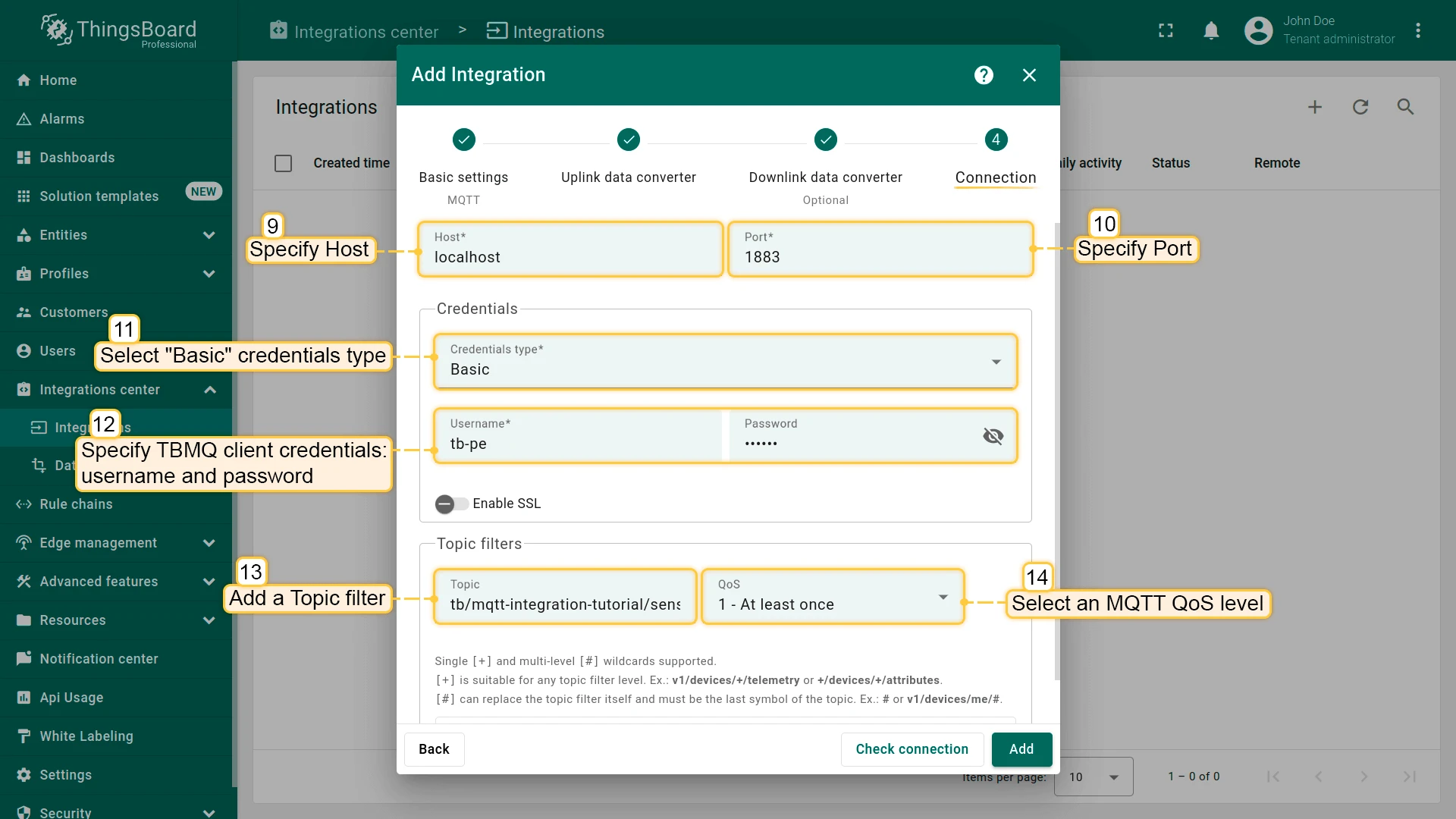

4. Specify the TBMQ Host and Port. Select Basic credentials and enter the TBMQ client credentials. Add topic filter: tb/mqtt-integration-tutorial/sensors/+/temperature and select QoS level 1 or higher.

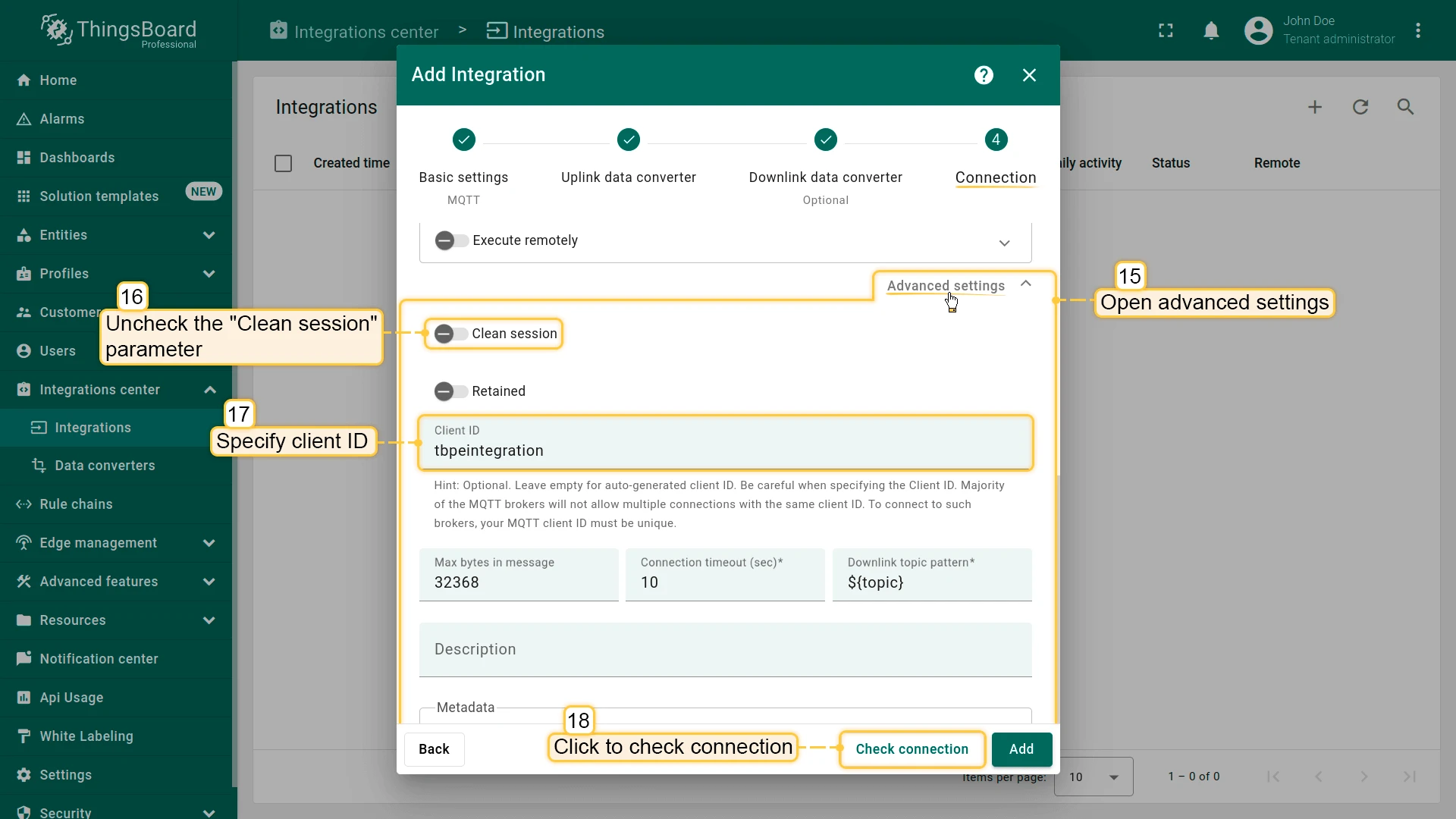

5. Open Advanced settings. Uncheck Clean session and set Client ID to tbpeintegration.

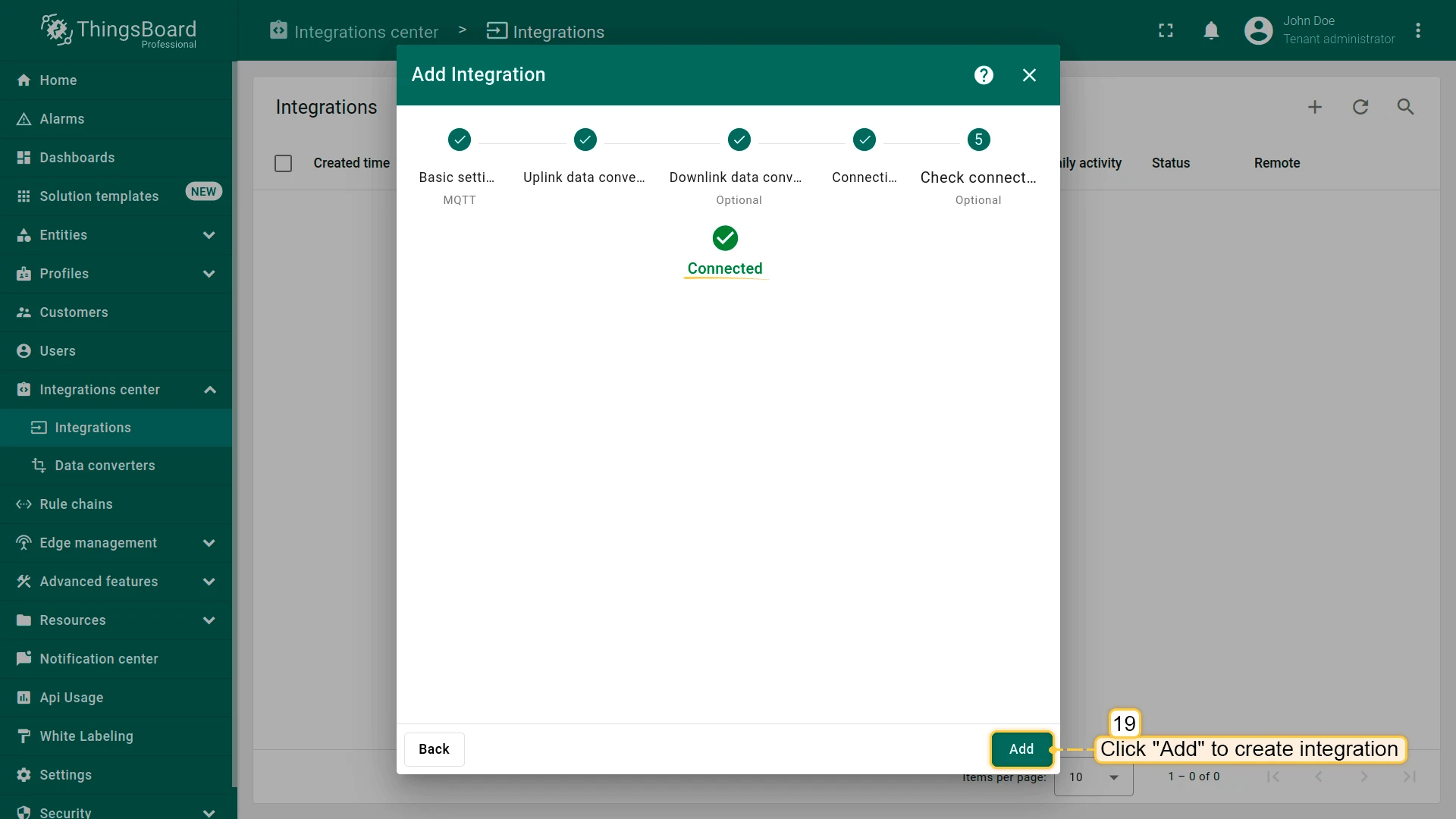

6. (Optional) Click Check connection to verify connectivity. Click Add to create the integration.

Go to the "Integrations center" section -> "Integrations" page and click "plus" icon to add a new integration. Name it "MQTT Integration", select type "MQTT". Add the recently created uplink converter. Leave the "Downlink data converter" field empty. Click "Skip". Specify host and port of TBMQ instance. Select "Basic" credentials type and specify TBMQ client credentials. Add a topic filter: "tb/mqtt-integration-tutorial/sensors/+/temperature" and select an MQTT QoS level higher than 0. Now go to the advanced settings. Uncheck the "Clean session" parameter and specify client ID as "tbpeintegration". [Optional] Click on Check connection button to check connection to TBMQ. Click Add button to create the integration.

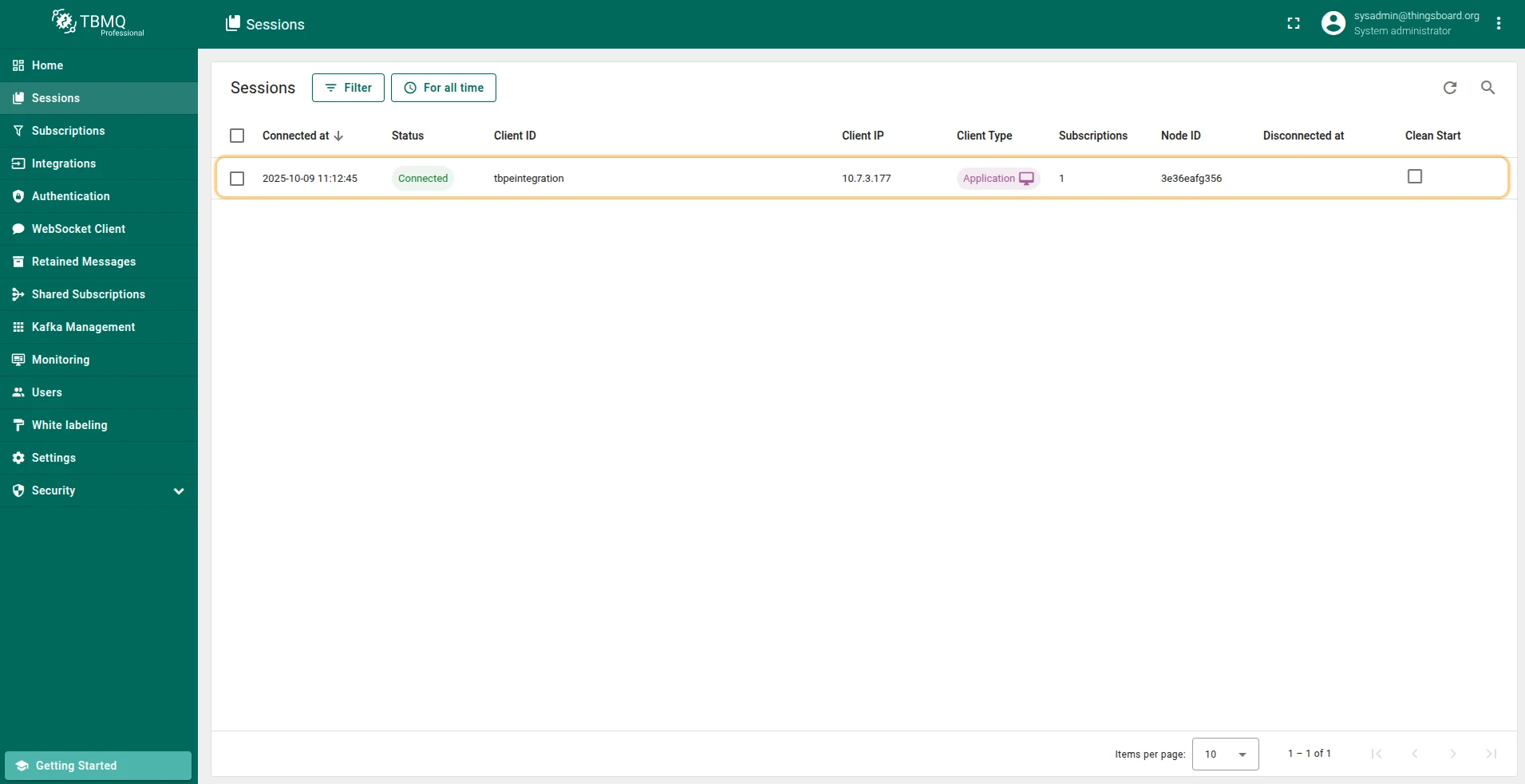

Once the integration is created and the connection is established, go to the Sessions page in the TBMQ UI. You should see a new session with status Connected.

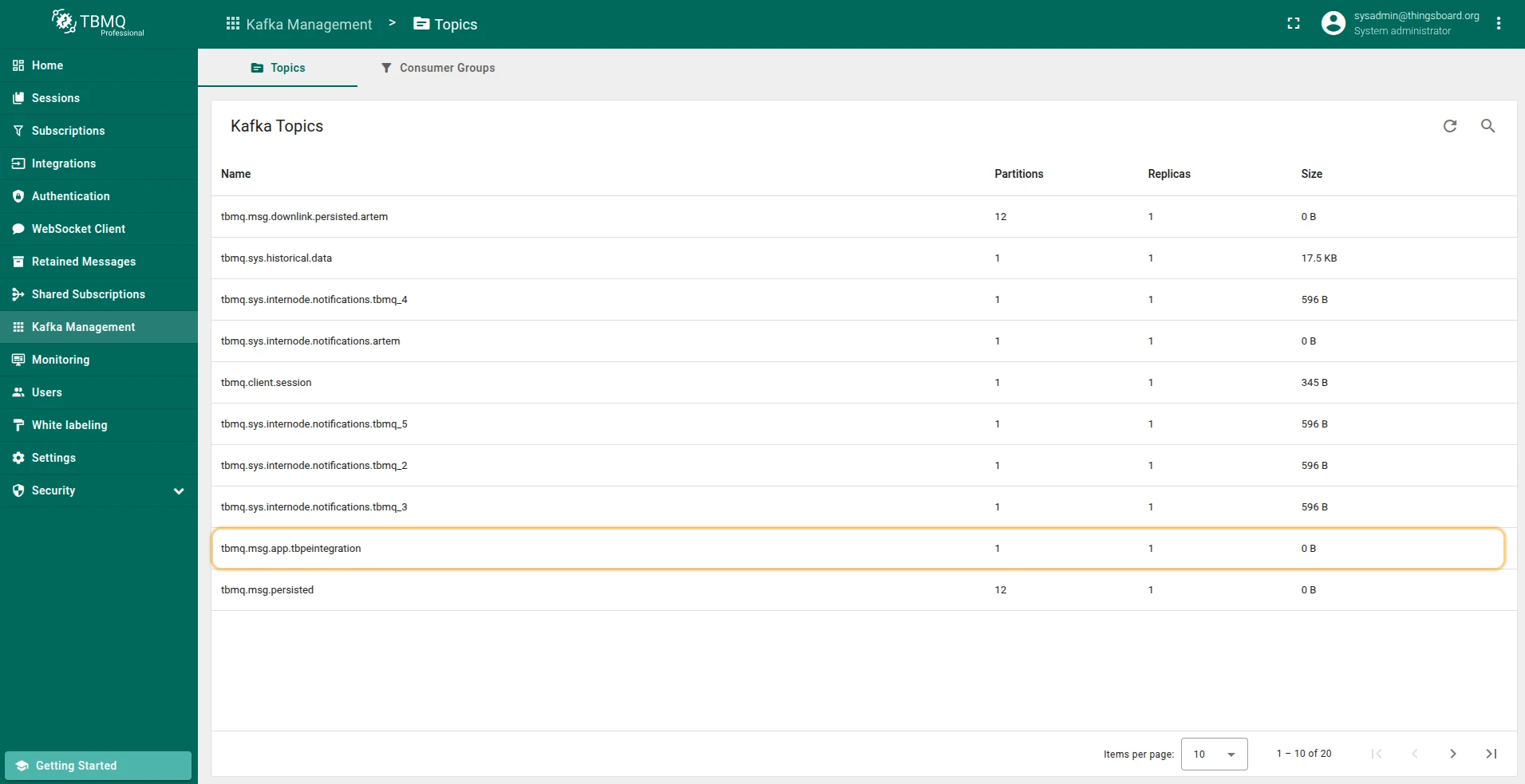

On the Topics page (Kafka Management section), you will see the Kafka topic corresponding to the client ID (tbpeintegration), along with partition count, replication factor, and topic size.

Simulate a device sending a temperature reading to TBMQ. Run the following command, replacing $THINGSBOARD_MQTT_BROKER_HOST_NAME, username, and password with your broker address and credentials:

mosquitto_pub -h $THINGSBOARD_MQTT_BROKER_HOST_NAME -p 1883 -q 1 \
  -t "tb/mqtt-integration-tutorial/sensors/SN-001/temperature" \
  -m '{"value":25.1}' -u "username" -P "password"

For this tutorial example:

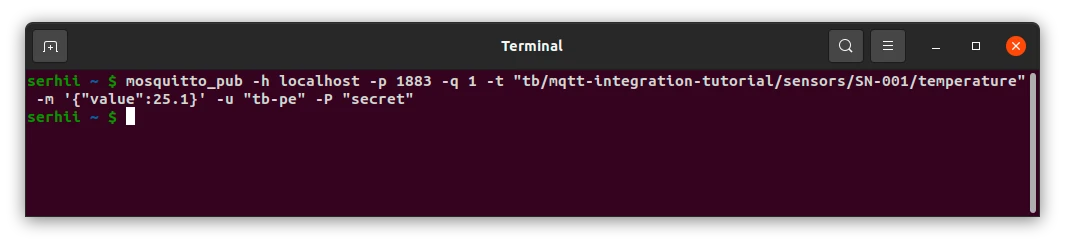

mosquitto_pub -h localhost -p 1883 -q 1 \
  -t "tb/mqtt-integration-tutorial/sensors/SN-001/temperature" \
  -m '{"value":25.1}' -u "tb-pe" -P "secret"

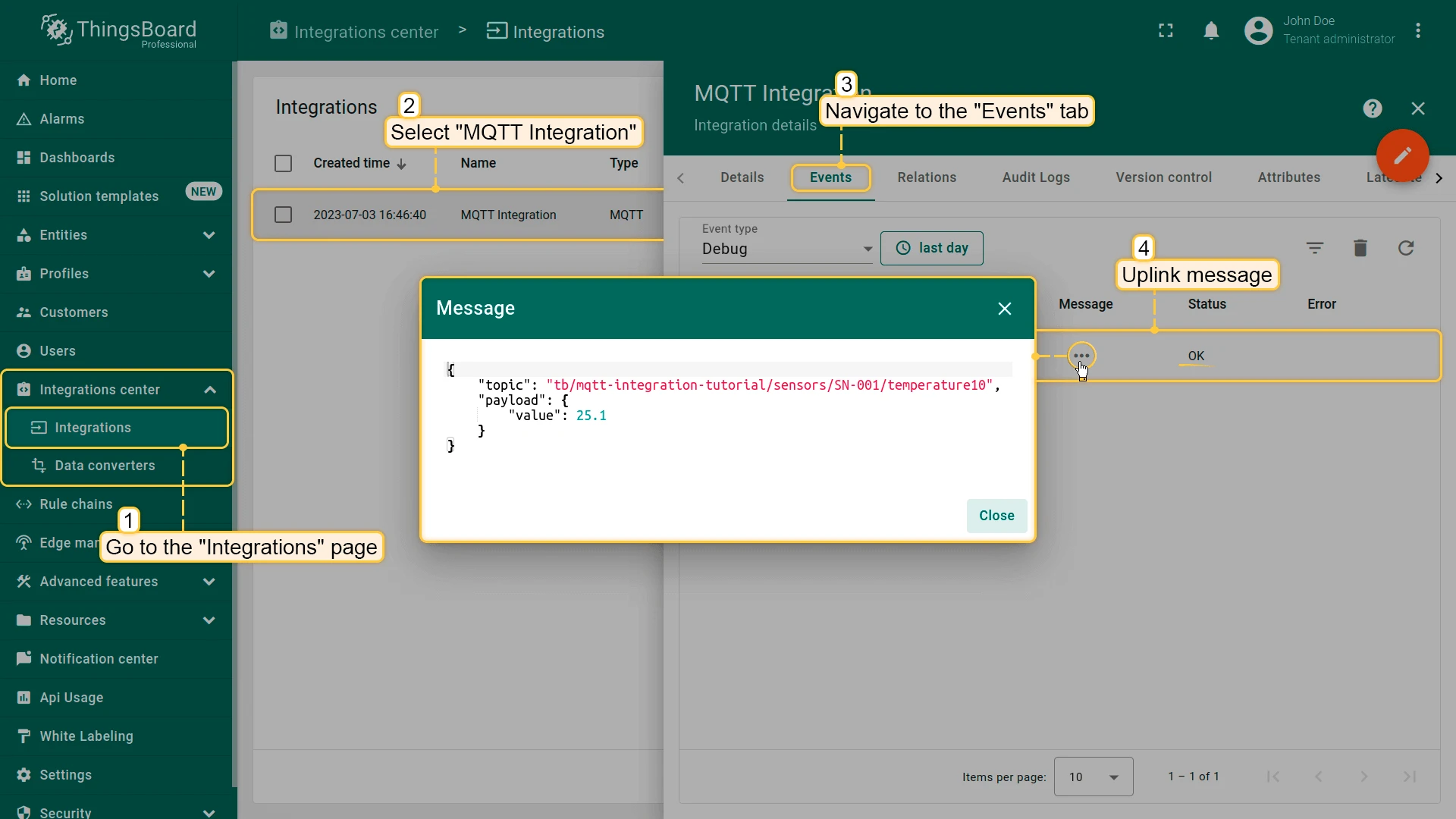

After publishing, open the MQTT Integration in ThingsBoard UI and go to the Events tab. You should see the message consumed by the integration.

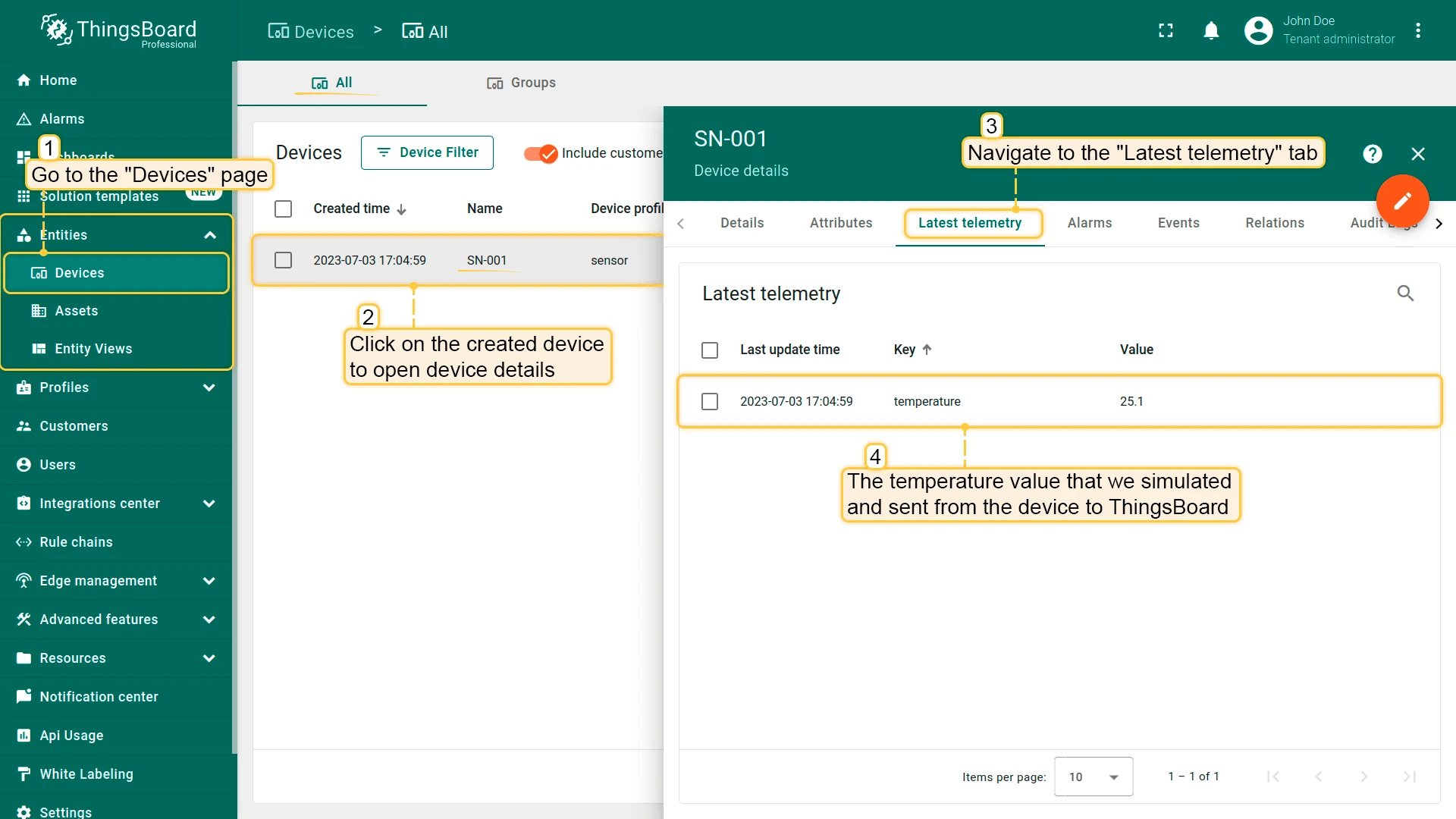

Go to Entities → Devices. You should find a SN-001 device provisioned by the integration. Click the device and open the Latest Telemetry tab — you should see the temperature key with value 25.1.
