REST API

TBMQ exposes a REST API that allows you to manage users, MQTT client credentials, sessions, subscriptions, retained messages, and more. All endpoints require JWT authentication.

Swagger UI

After installing TBMQ, you can explore the REST API using the built-in Swagger UI.

Open the following URL in your browser:

http(s)://YOUR_HOST:PORT/swagger-ui/

For a local installation:

http://localhost:8083/swagger-ui/

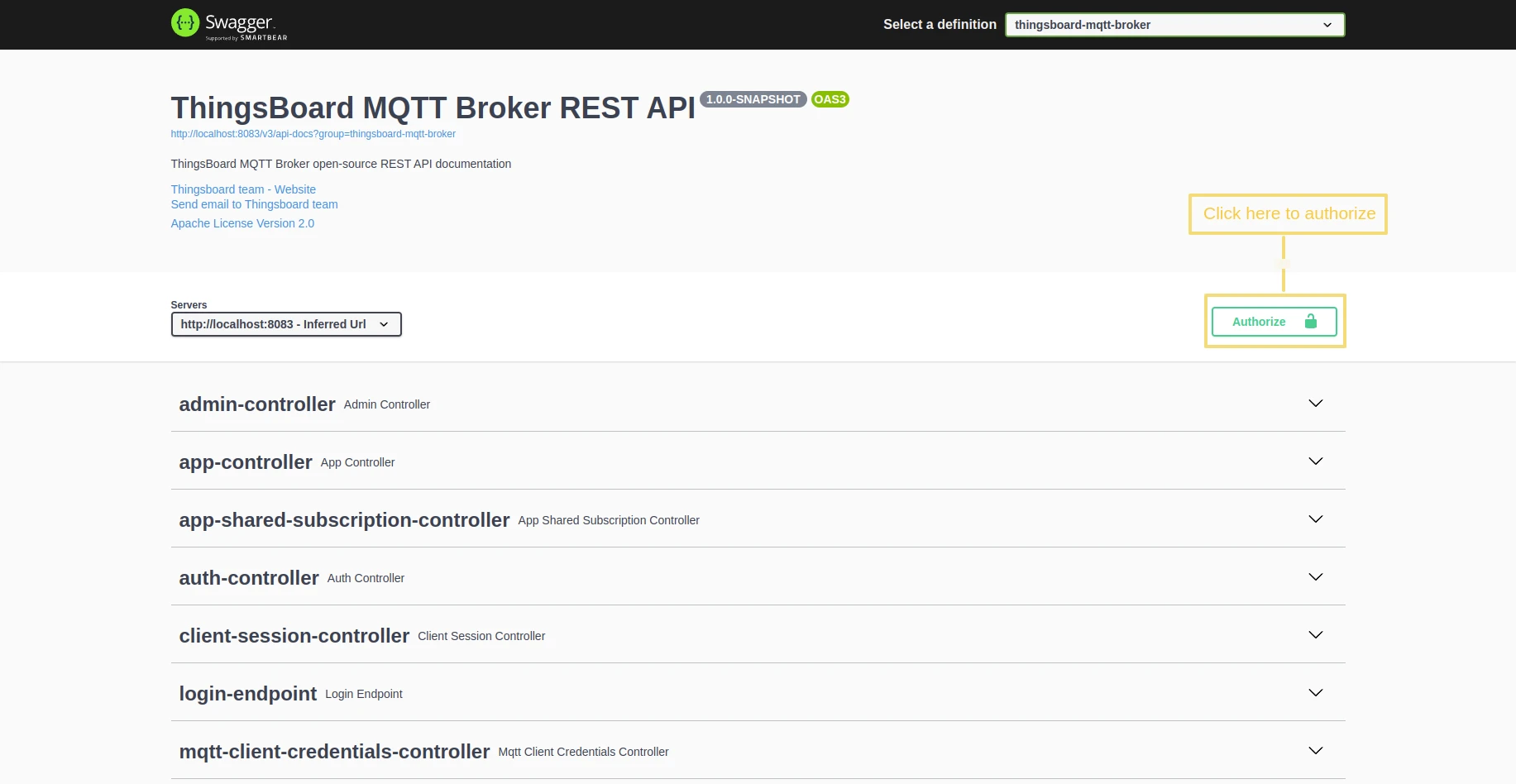

The Swagger UI provides an interactive interface to browse available endpoints, test API calls, and view request/response schemas.

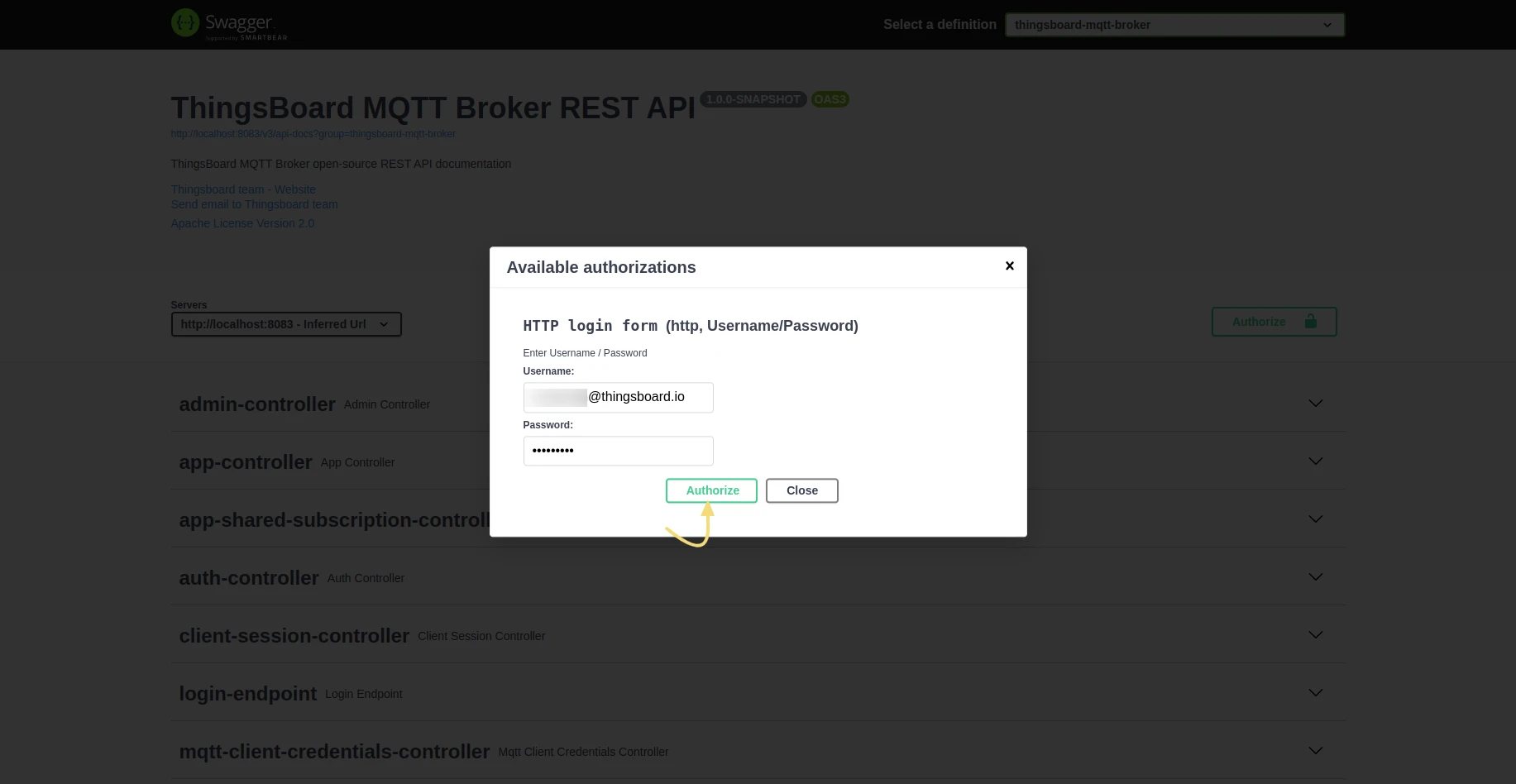

If you are already logged in to the TBMQ management console, your session credentials are used automatically. To authenticate manually or switch users, click the Authorize button in the top-right corner and enter your username and password.

JWT tokens

TBMQ uses JWT (JSON Web Tokens) to authenticate API clients. When you log in, TBMQ returns a short-lived access token and a refresh token.

Use the access token in the X-Authorization header for all API requests. When it expires, use the refresh token to obtain a new access token.

Token expiration is configured via the configuration settings:

Parameter	Default
`JWT_TOKEN_EXPIRATION_TIME`	2.5 hours
`JWT_REFRESH_TOKEN_EXPIRATION_TIME`	1 week

Get an access token:

curl -X POST \
  --header 'Content-Type: application/json' \
  -d '{"username":"[email protected]","password":"sysadmin"}' \
  'http://THINGSBOARD_MQTT_BROKER_URL/api/auth/login'

Response:

{"token":"$YOUR_JWT_TOKEN","refreshToken":"$YOUR_JWT_REFRESH_TOKEN"}

Set the token as an environment variable for use in subsequent requests:

export ACCESS_TOKEN=PLACE_YOUR_TOKEN_HERE

Controllers overview

Controller	Purpose
Admin Controller	View, create, and delete admin users
App Controller	Advanced monitoring and control of broker state
App Shared Subscription Controller	View, create, and delete Application Shared Subscriptions
Auth Controller	View current user info and change password
Client Session Controller	View, disconnect, and clear client sessions
Login Endpoint	Authenticate and obtain JWT token data
MQTT Client Credentials Controller	View, create, and delete MQTT client credentials
Retained Msg Controller	View retained messages and force clean-up
Subscription Controller	View subscriptions and force clean-up
Time Series Controller	Get and delete historical stats data
Unauthorized Client Controller	Get and delete unauthorized clients
WebSocket Connection Controller	Create, get, and delete WebSocket connections
WebSocket Subscription Controller	Create, get, and delete WebSocket subscriptions
