TCP Integration

TCP Integration receives data from devices that send it over a TCP connection and converts the payload into ThingsBoard telemetry and attributes. It also supports downlink: the Edge can send a message back over the same connection.

Prerequisites

A ThingsBoard server with tenant administrator access. The templates are created there.
A ThingsBoard Edge instance connected to the server.
Docker on the machine that will run the TCP integration service. Port 10560 must be open for incoming connections there.
The echo command and netcat (nc) to simulate a device.

The example device SN-002 sends temperature and humidity readings to port 10560. Pick the payload format that matches your device:

SN-002,default,temperature,25.7\r\nSN-002,default,humidity,69

[{"deviceName": "SN-002", "deviceType": "default", "temperature": 25.7, "humidity": 69}]

\x30\x30\x30\x30\x11\x53\x4e\x2d\x30\x30\x32\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x00\x00\x00

Bytes	Hex	Value	Description
0-3	`\x30\x30\x30\x30`	none	Dummy prefix (skipped)
4	`\x11`	17	Payload length in bytes
5-10	`\x53\x4e\x2d\x30\x30\x32`	`SN-002`	Device name
11-17	`\x64\x65\x66\x61\x75\x6c\x74`	`default`	Device type
18-21	`\x32\x35\x2e\x37`	`25.7`	Temperature
22-24	`\x00\x00\x00`	none	Dummy suffix (ignored)

Create converter templates

Converter templates are created on the server. The uplink converter decodes the TCP payload into telemetry and attributes. The downlink converter encodes messages from the rule engine, for example shared attribute updates, into the message sent back to the device.

Uplink converter

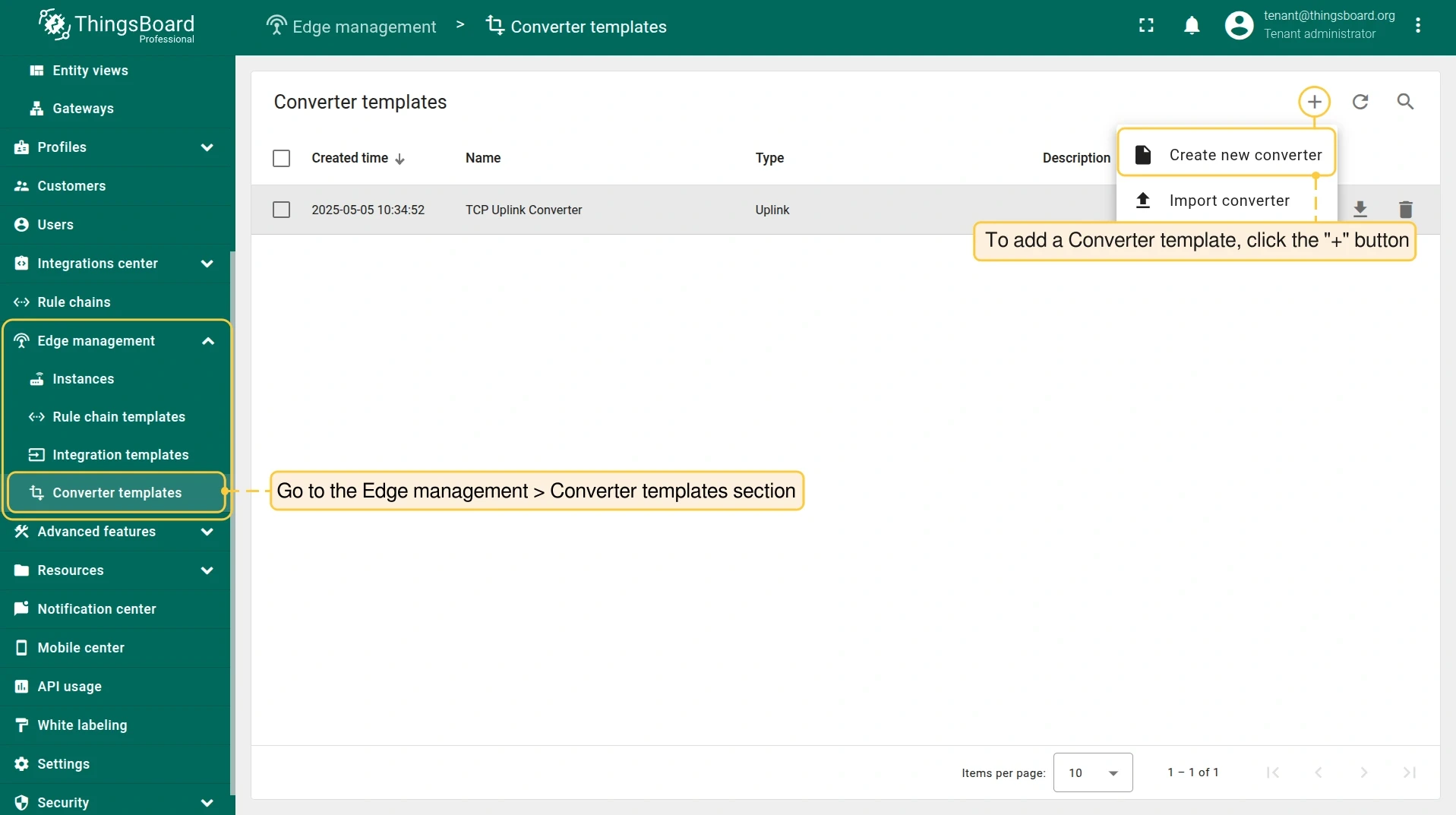

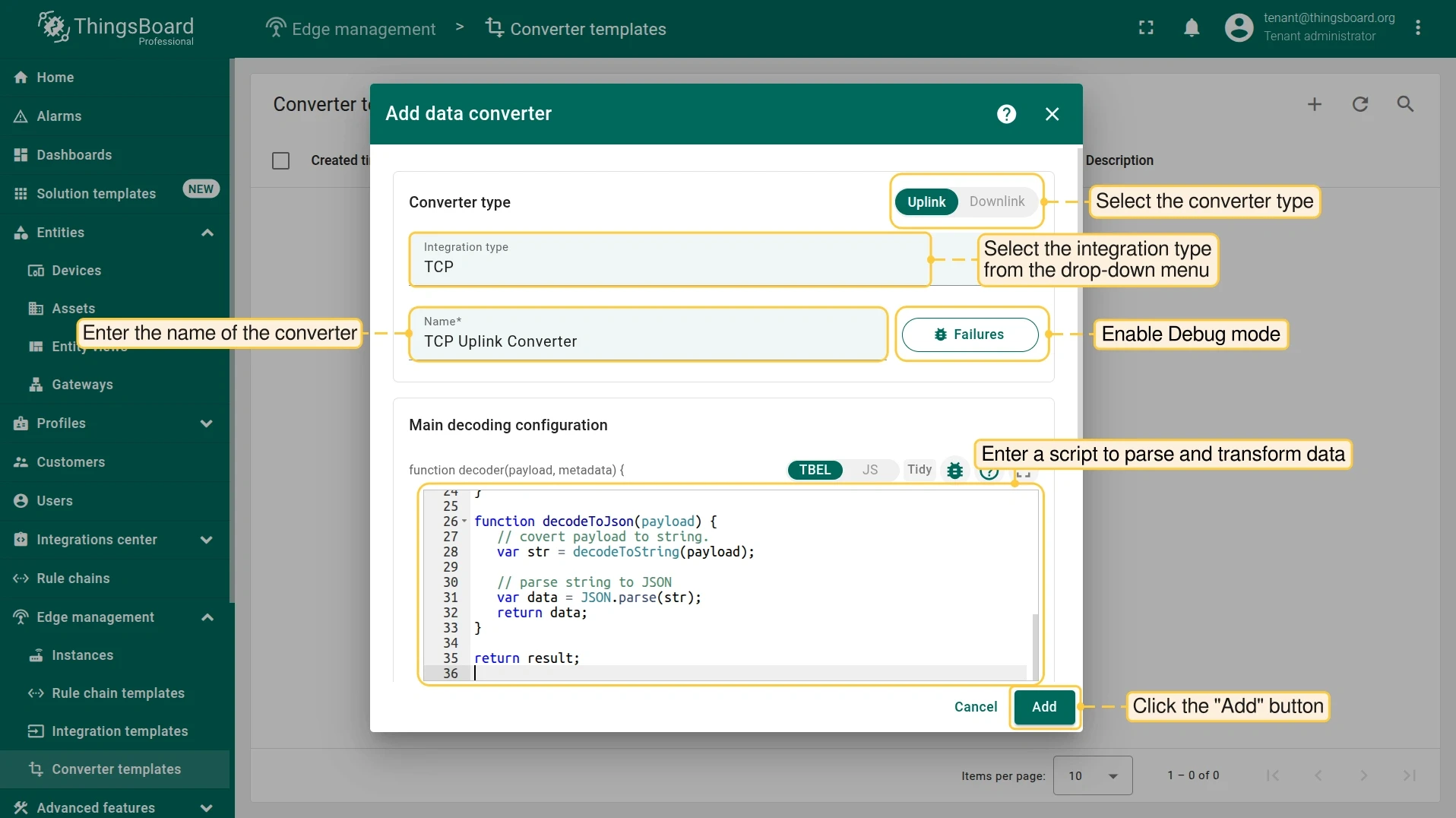

On the server, go to Edge management > Templates and open the Converter tab. Click Add data converter and select Create new converter.
Set Converter type to Uplink, select TCP as the Integration type, and enter the name TCP uplink converter.

In Main decoding configuration, select JS, paste the script for your payload format, and click Add.

/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replace(/\"/g, "").replace(/\s/g, "").split(',');

var telemetryKey = payloadArray[2];
var telemetryValue = payloadArray[3];

var telemetryPayload = {};
telemetryPayload[telemetryKey] = telemetryValue;

var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
};

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

return result;

/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

var result = {
   deviceName: data.deviceName,
   deviceType: data.deviceType,
   attributes: {},
   telemetry: {
       temperature: data.temperature,
       humidity: data.humidity
   }
};

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
   var str = decodeToString(payload);
   return JSON.parse(str);
}

return result;

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

var deviceName = payloadStr.substring(0, 6);
var deviceType = payloadStr.substring(6, 13);

var result = {
   deviceName: deviceName,
   deviceType: deviceType,
   attributes: {},
   telemetry: {
       temperature: parseFloat(payloadStr.substring(13, 17))
   }
};

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

return result;

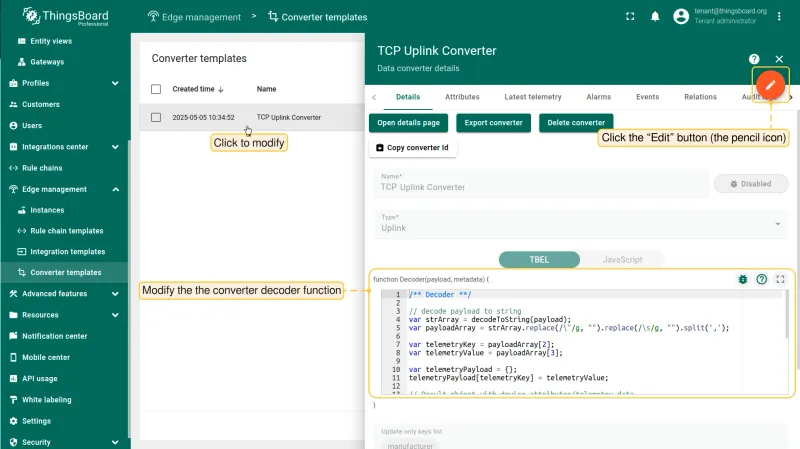

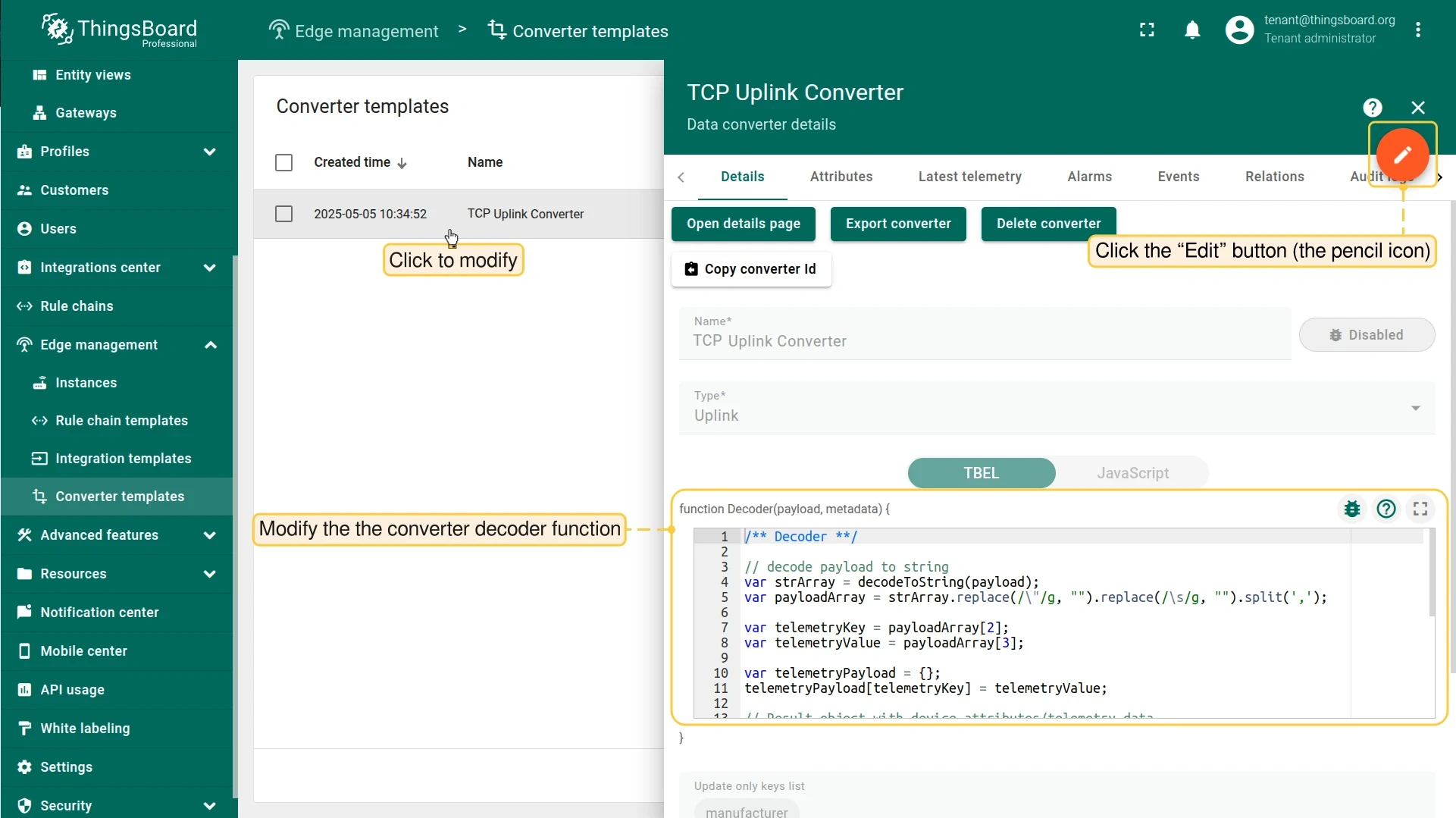

To change a converter later, open it on the Converter tab, click the pencil icon, edit the script, and click the checkmark icon. The change is pushed to every Edge that uses it.

Downlink converter

On the Converter tab, click Add data converter and select Create new converter.

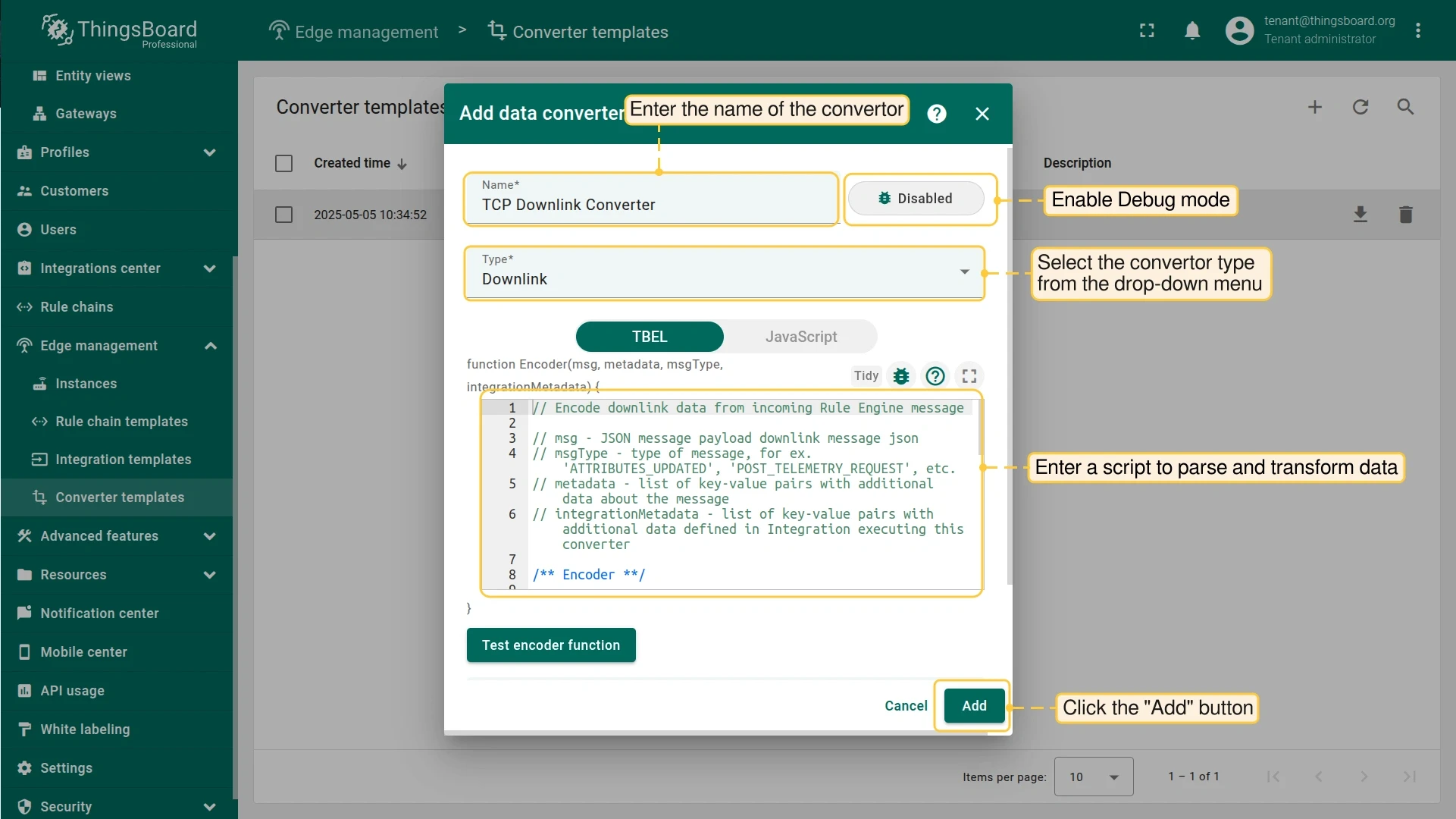

Set Converter type to Downlink, select TCP as the Integration type, and enter the name TCP downlink converter.

In Main encoding configuration, select JS, paste the following script, and click Add:

// Encode downlink data from incoming Rule Engine message

// msg - JSON message payload
// msgType - e.g. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST'
// metadata - key/value pairs with message metadata
// integrationMetadata - key/value pairs defined in the Integration

var result = {
    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "JSON",

    // downlink data
    data: JSON.stringify(msg),

    // Optional metadata object presented in key/value format
    metadata: {}
};

return result;

Create integration template

On the server, go to Edge management > Templates, open the Integration tab, and click Add integration.

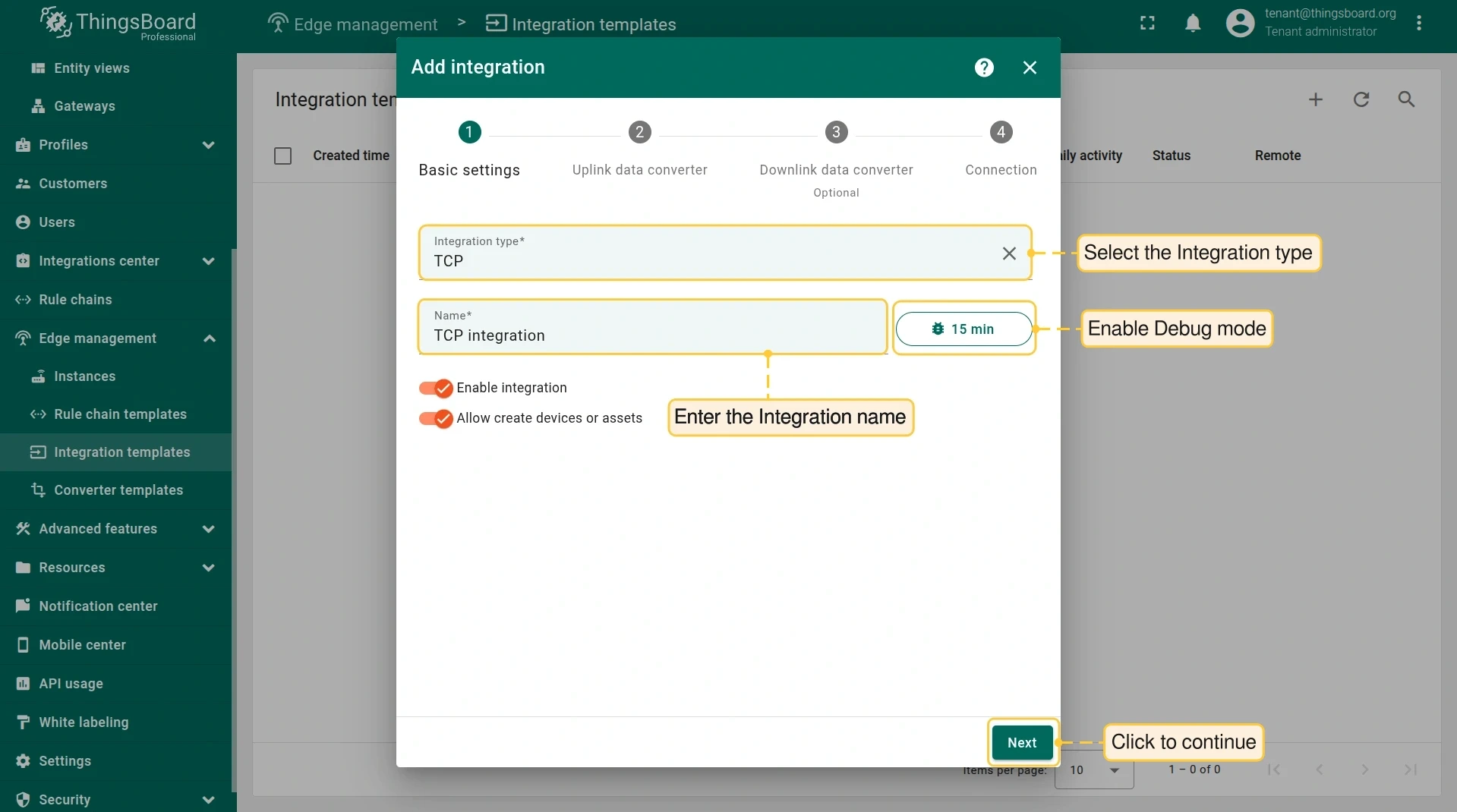

On the Basic settings step, select TCP as the Integration type. Keep the name TCP integration or enter your own. Click Next.

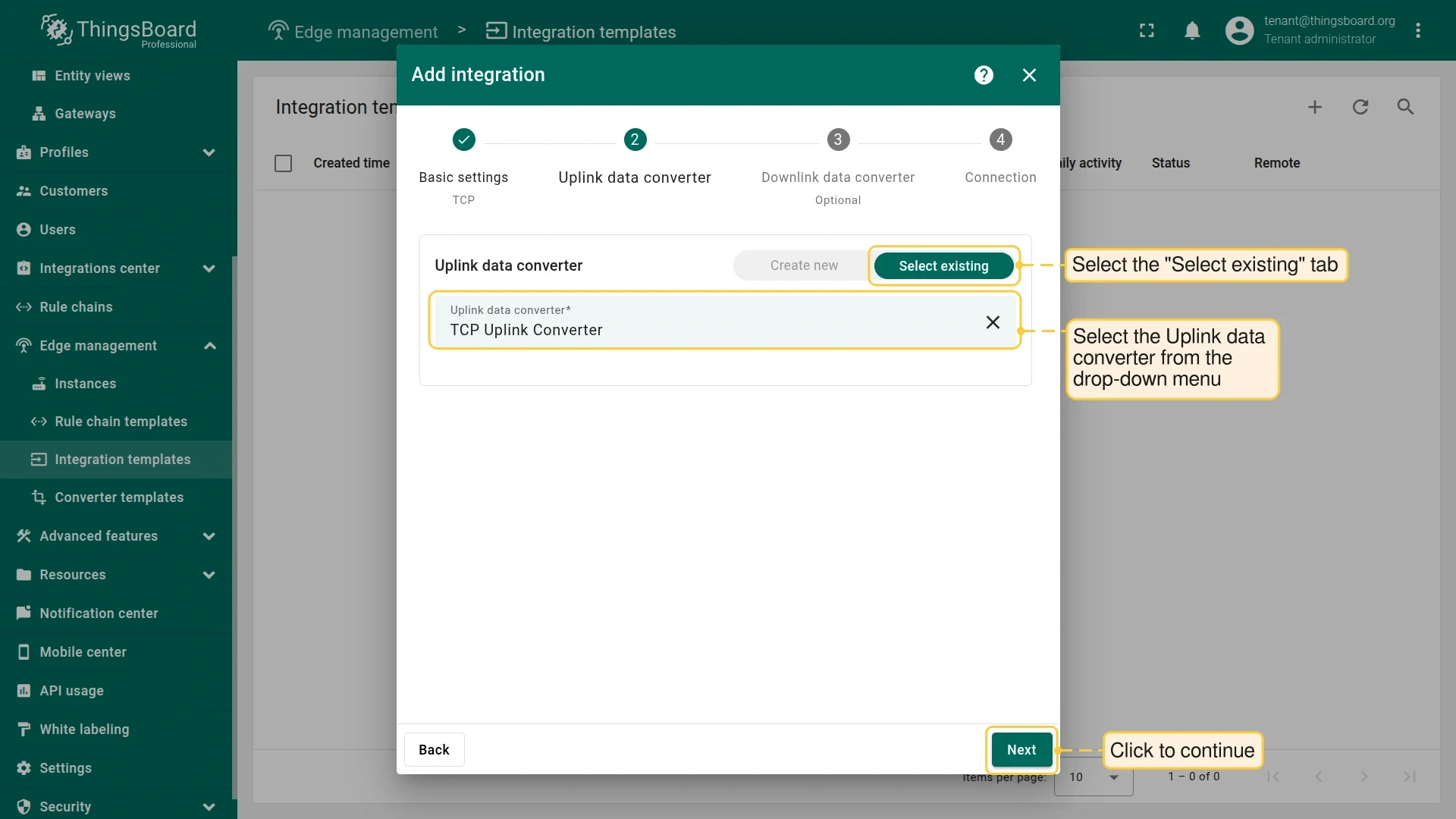

On the Uplink data converter step, select Select existing, choose TCP uplink converter, and click Next.

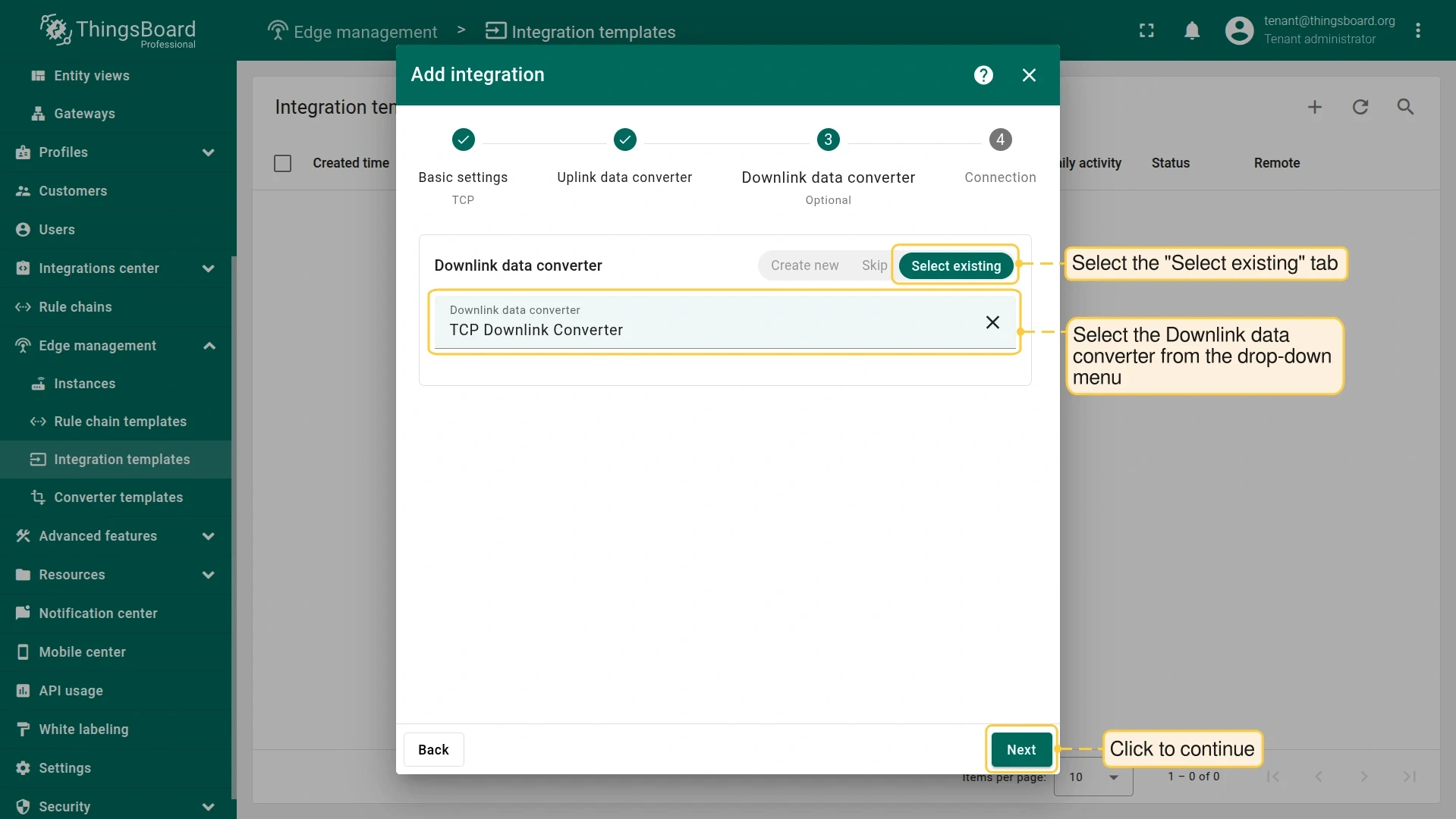

On the Downlink data converter step, select Select existing, choose TCP downlink converter, and click Next.

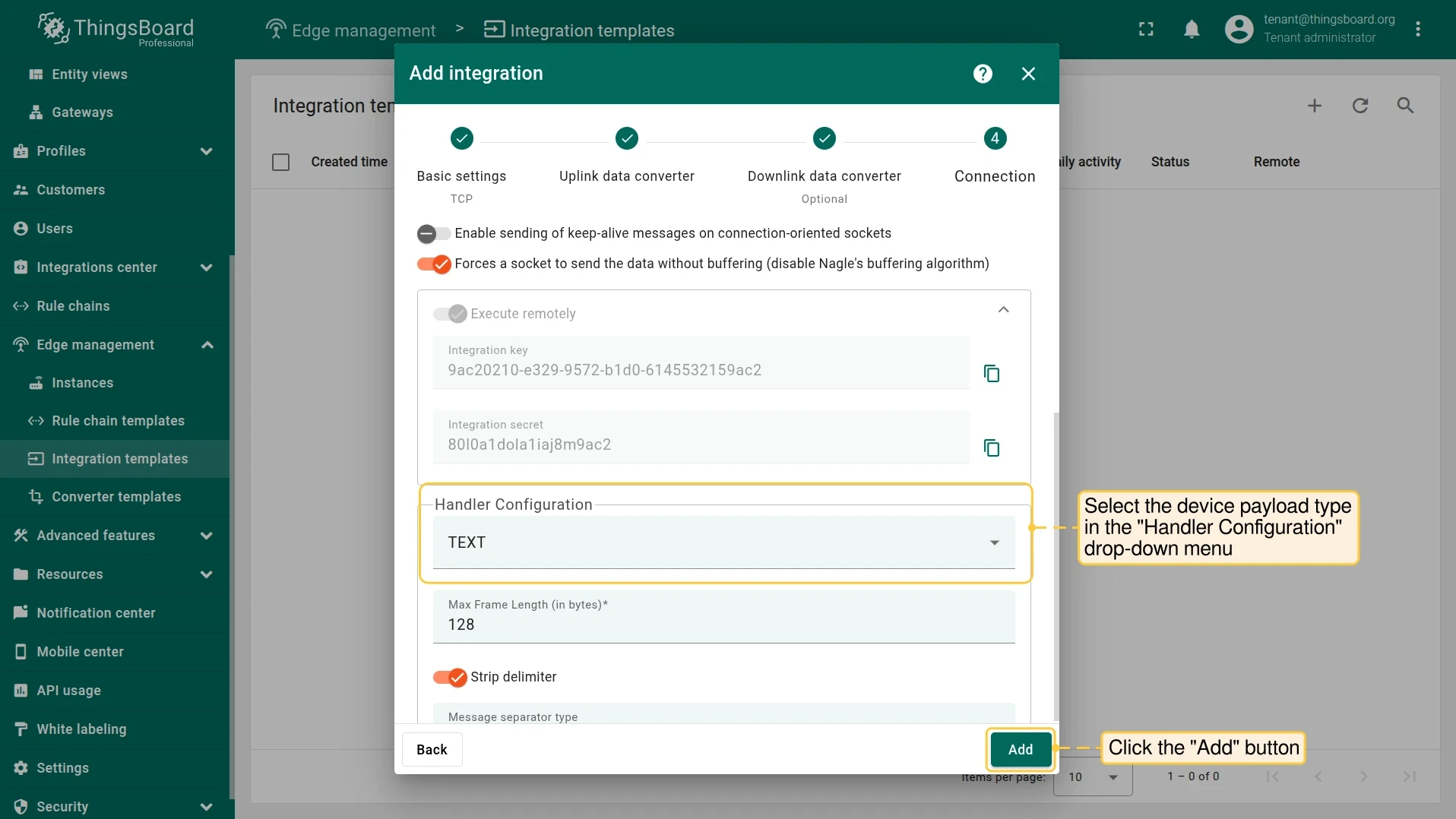

On the Connection step, keep Port at 10560. Under Handler Configuration, select the handler for your payload format and fill in its fields:

Field	Value
Handler Configuration	TEXT
Max Frame Length (in bytes)	`128`
Strip delimiter	enabled (removes the newline from the payload)
Message separator type	System line separator

Field	Value
Handler Configuration	JSON

Field	Value
Handler Configuration	BINARY (the default)
Max Frame Length (in bytes)	`128`
Length Field Offset	`4` (the length byte `\x11` is at position 4, after the four dummy bytes)
Length Field Length	`1` (one byte holds the length)
Length Adjustment (the compensation value to add to the value of the length field)	`0`
Number of first bytes to strip out from the decoded frame	`5` (the four dummy bytes plus the length byte)

Execute remotely is enabled and cannot be turned off, because TCP Integration runs only as a remote service. Copy the Integration key and Integration secret shown under it. You need them to start the service.
Click Add.

The other socket settings on the Connection step keep their defaults:

Setting	Description
Max number of pending connects on the socket	Queue length for incoming connection requests. New connections are refused when the queue is full.
Size of the buffer for inbound socket (in KB)	Socket receive buffer size.
Size of the buffer for outbound socket (in KB)	Socket send buffer size.
Enable sending of keep-alive messages on connection-oriented sockets	Sends periodic keep-alive probes to check that the connection is still alive.
Forces a socket to send the data without buffering (disable Nagle’s buffering algorithm)	Sends data immediately instead of buffering it.

Assign the integration to the Edge

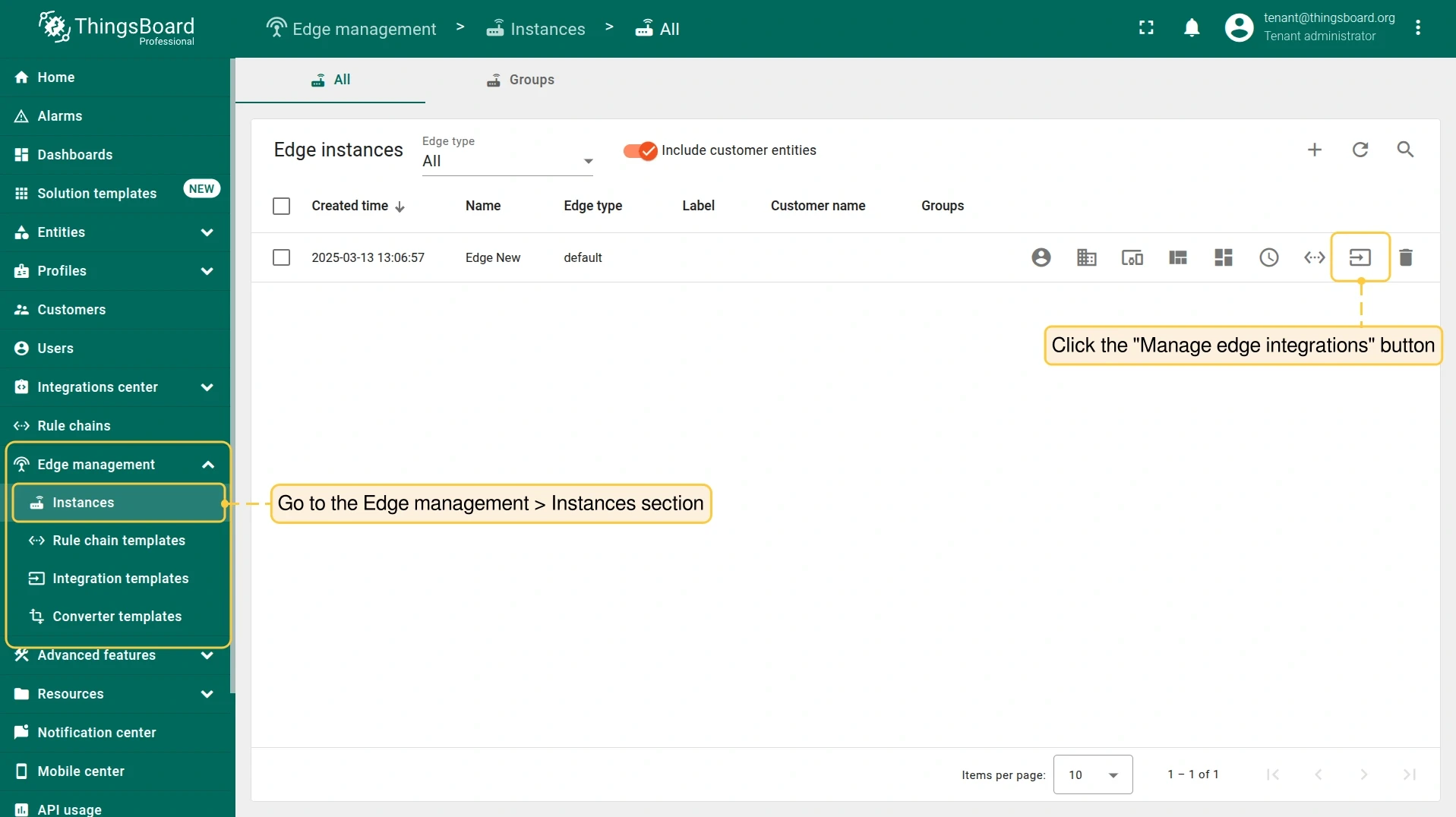

On the server, go to Edge management > Edges and click the Edge. On the Details tab, click Manage integrations.

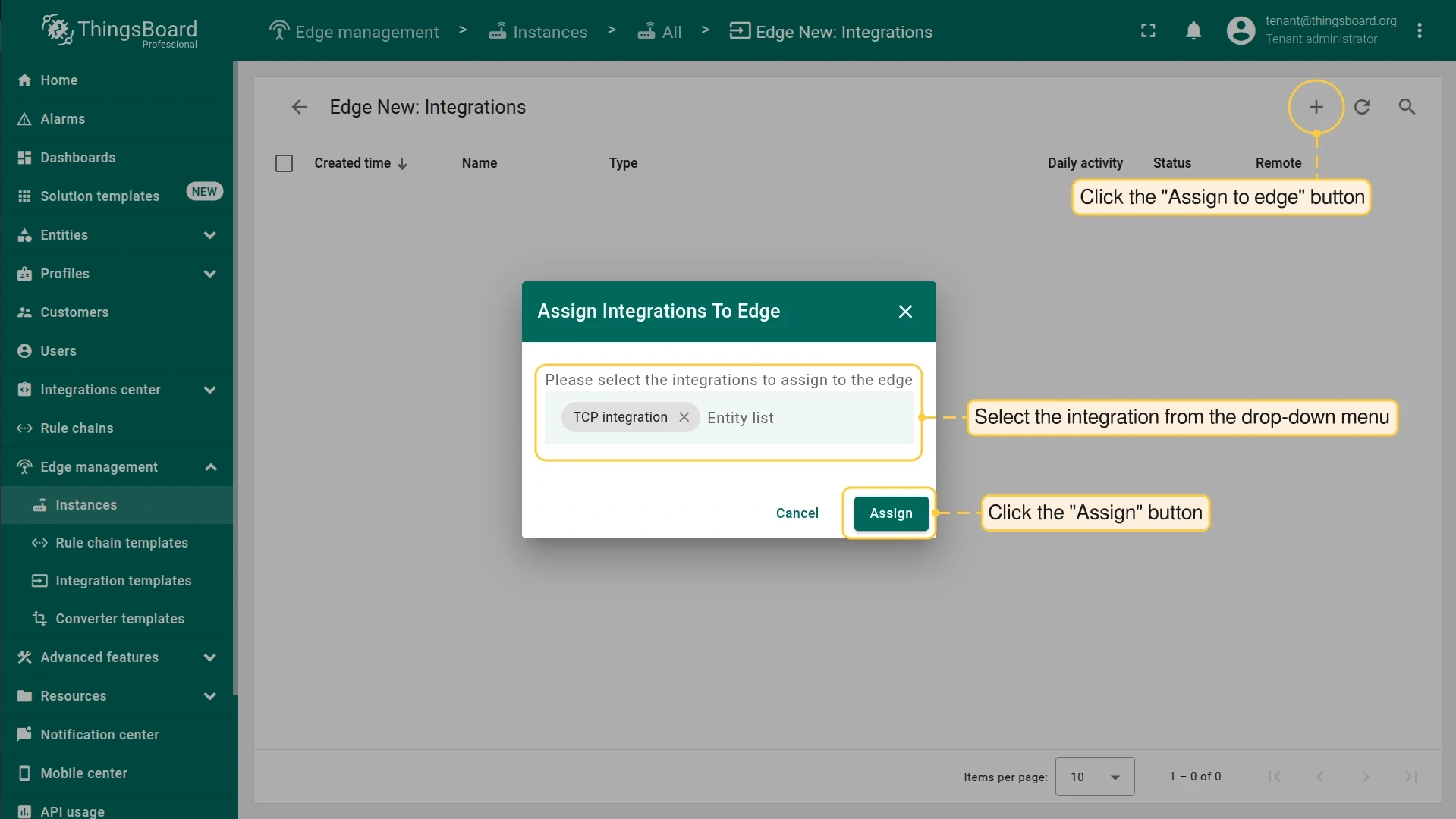

Click Assign to edge (+), select TCP integration, and click Assign.

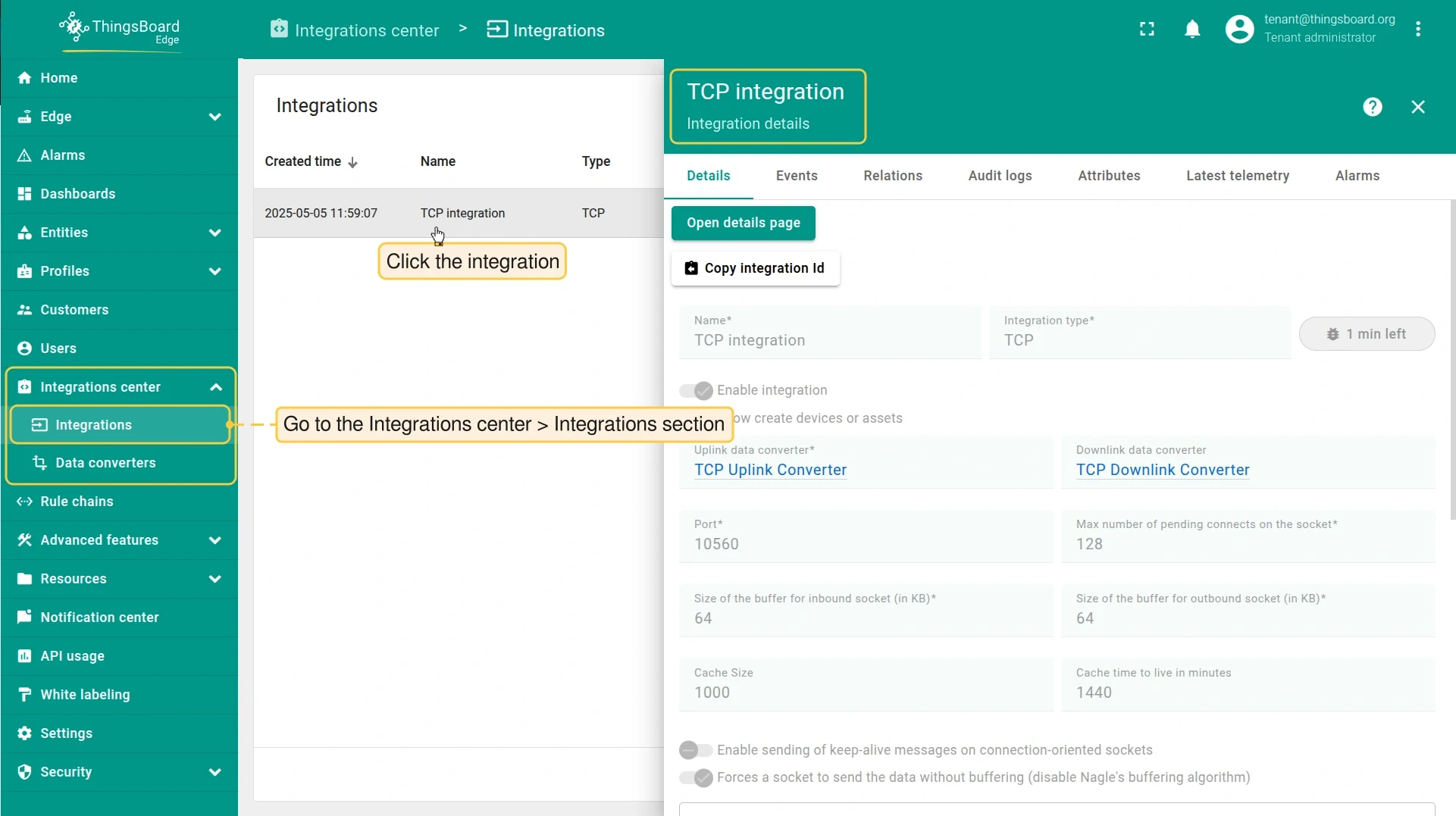

Log in to the Edge and go to Integrations > Integrations. The TCP integration is listed there.

Install and run the remote TCP integration

The remote service connects to the Edge through the integration RPC port, 9090 by default (INTEGRATIONS_RPC_PORT in tb-edge.yml), and identifies itself with the Integration key and Integration secret of the template. See also Remote integrations.

Docker (Linux / Mac)

Pull the image:

docker pull thingsboard/tb-tcp-udp-integration:4.4.0.2

Create a directory for the logs:

mkdir -p ~/.tb-pe-tcp-udp-integration-logs && sudo chown -R 799:799 ~/.tb-pe-tcp-udp-integration-logs

Start the service. Replace the placeholders with your values:

docker run -it -p 10560:10560 \
  -v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration \
  -e "RPC_HOST=mytbedge" \
  -e "RPC_PORT=9090" \
  -e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY" \
  -e "INTEGRATION_SECRET=YOUR_SECRET" \
  --name my-tb-pe-tcp-udp-integration \
  --network NETWORK_NAME \
  --restart always \
  thingsboard/tb-tcp-udp-integration:4.4.0.2

Parameter	Description
`mytbedge`	Hostname of the Edge service
`9090`	Integration RPC port of the Edge
`-p 10560:10560`	Publishes port 10560 of the container on the host
`YOUR_ROUTING_KEY`	Integration key of the template
`YOUR_SECRET`	Integration secret of the template
`NETWORK_NAME`	Docker network of the Edge container. Find it with `docker network ls`.

To detach from the container without stopping it, press Ctrl+p then Ctrl+q. Useful commands:

docker attach my-tb-pe-tcp-udp-integration  # reattach to the logs
docker stop my-tb-pe-tcp-udp-integration
docker start my-tb-pe-tcp-udp-integration

Once the service is running, it listens on port 10560.

Send an uplink message

Send a test message with echo and nc. Pick the command for your payload format:

One message:

echo -e 'SN-002,default,temperature,25.7' | nc -q0 127.0.0.1 10560

Several messages in one connection, separated by a newline:

echo -e 'SN-002,default,temperature,25.7\nSN-002,default,humidity,69' | nc -q1 -w1 127.0.0.1 10560

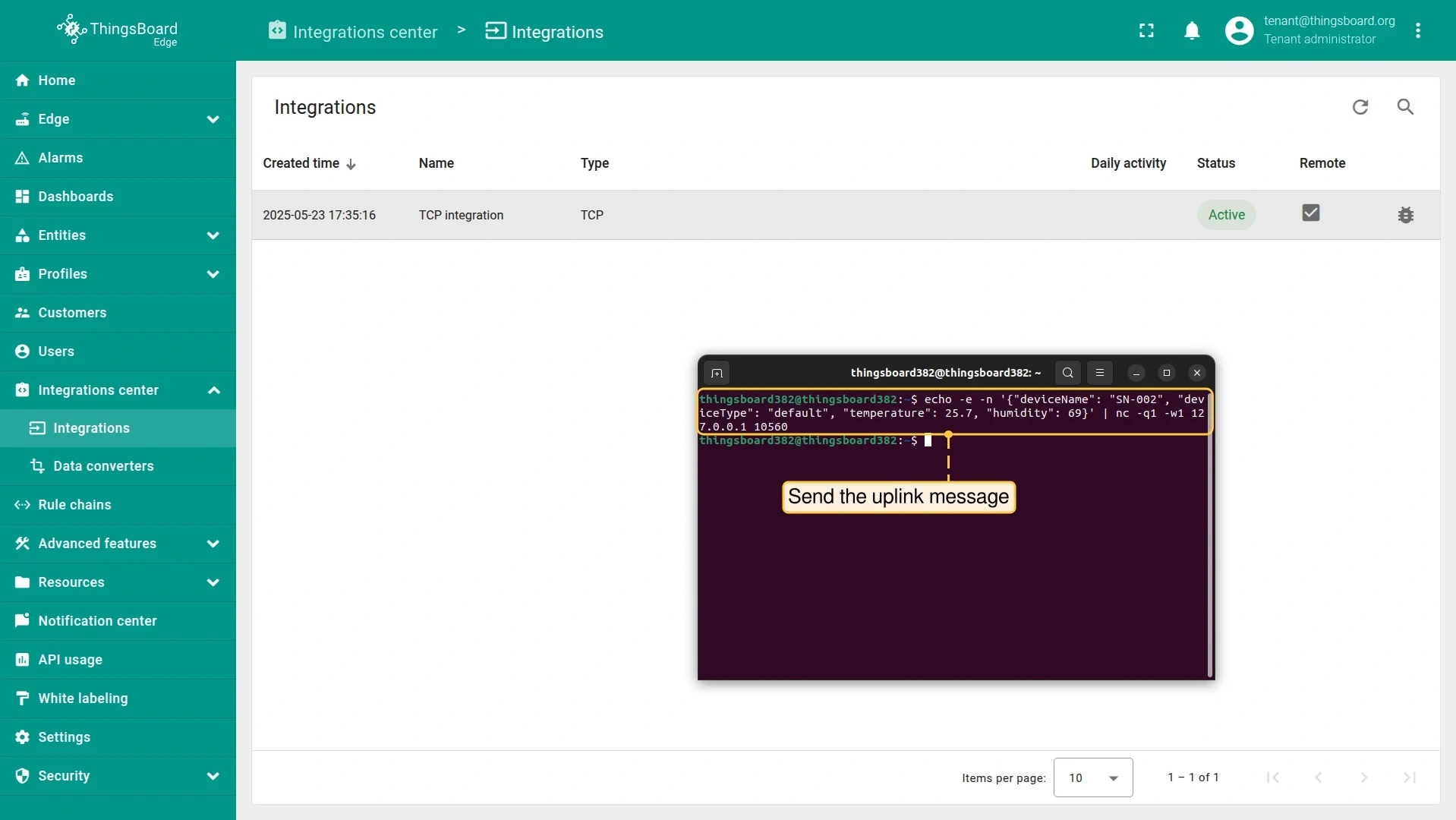

echo -e -n '{"deviceName": "SN-002", "deviceType": "default", "temperature": 25.7, "humidity": 69}' | nc -q1 -w1 127.0.0.1 10560

echo -e -n '\x30\x30\x30\x30\x11\x53\x4e\x2d\x30\x30\x32\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x00\x00\x00' | nc -q1 -w1 127.0.0.1 10560

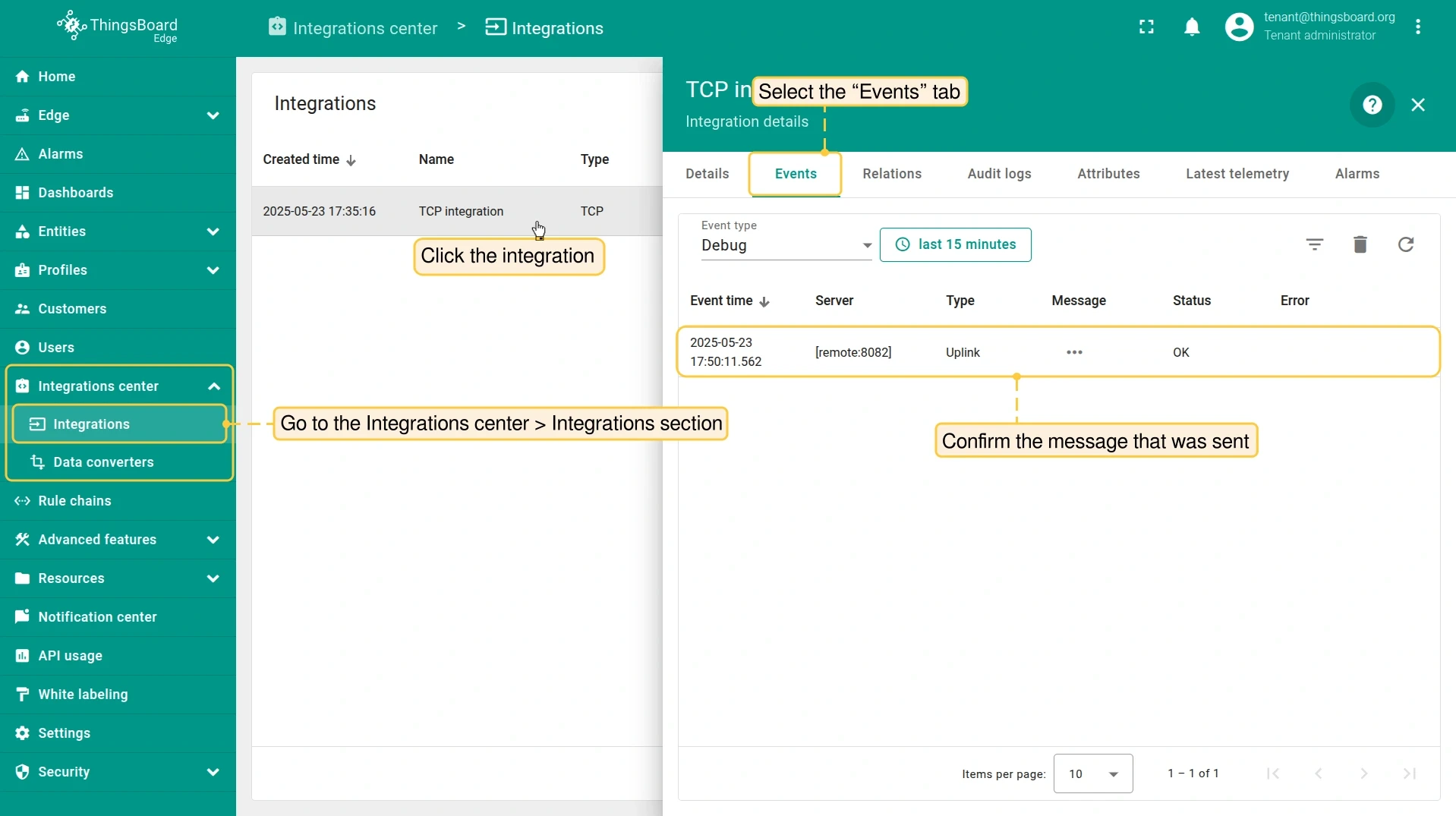

On the Edge, go to Integrations > Integrations, open the TCP integration, and select the Events tab. An Uplink event with status OK appears.

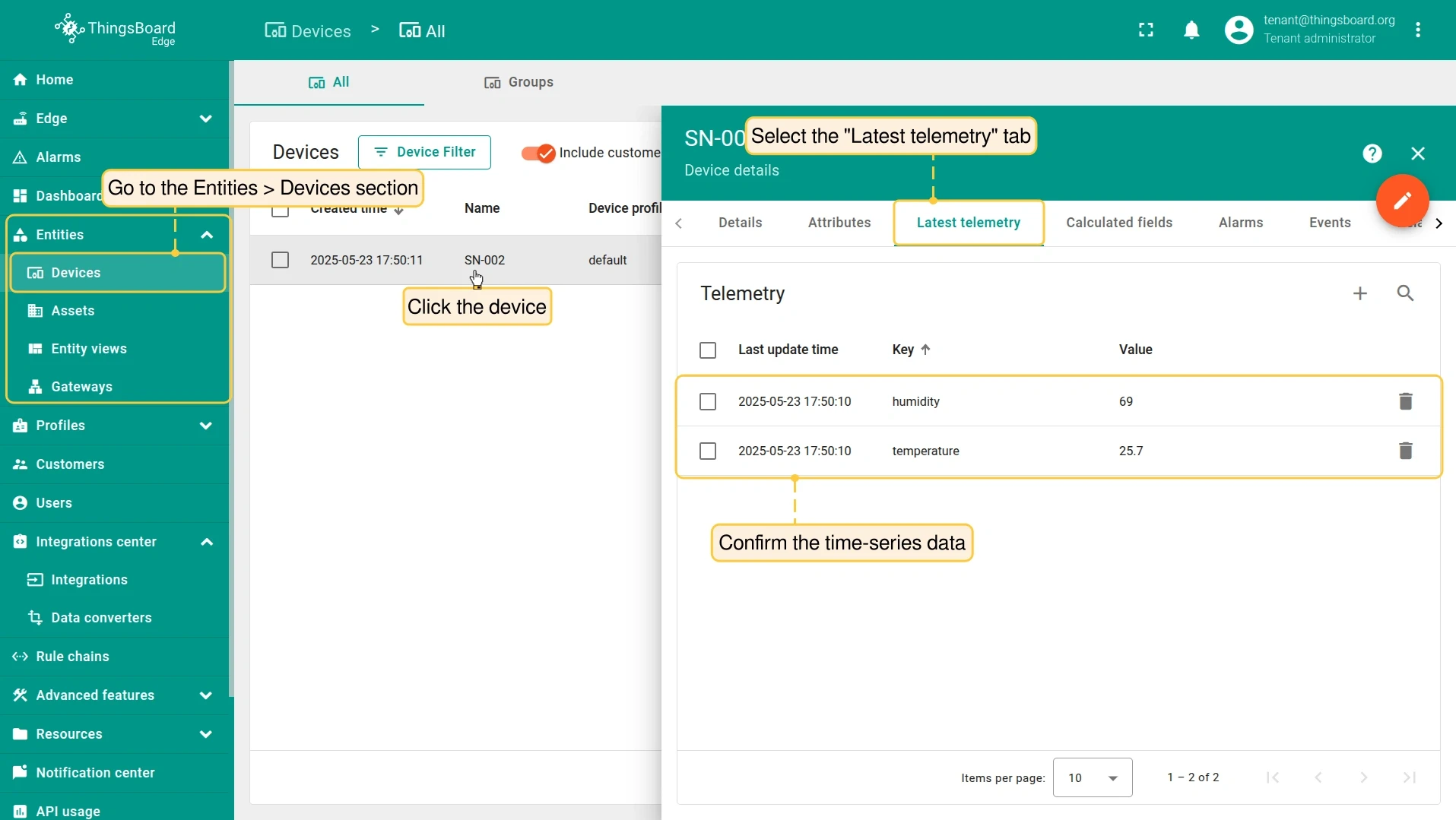

The device SN-002 is created automatically. On the Edge, go to Devices & assets > Devices, open it, and select the Latest telemetry tab to see the received values.

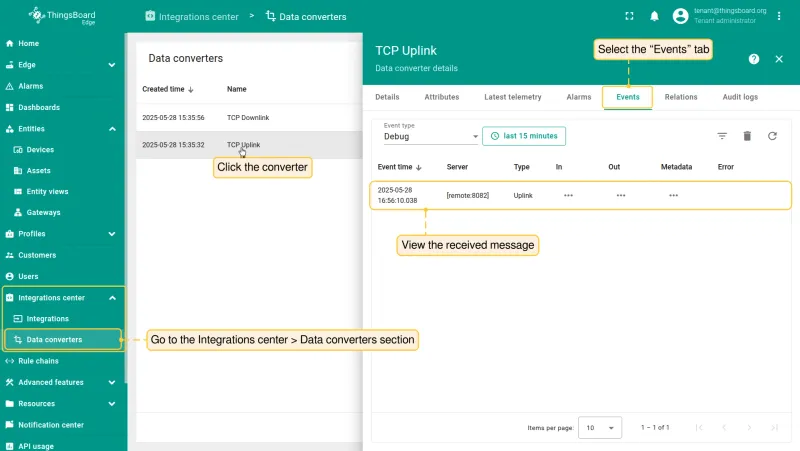

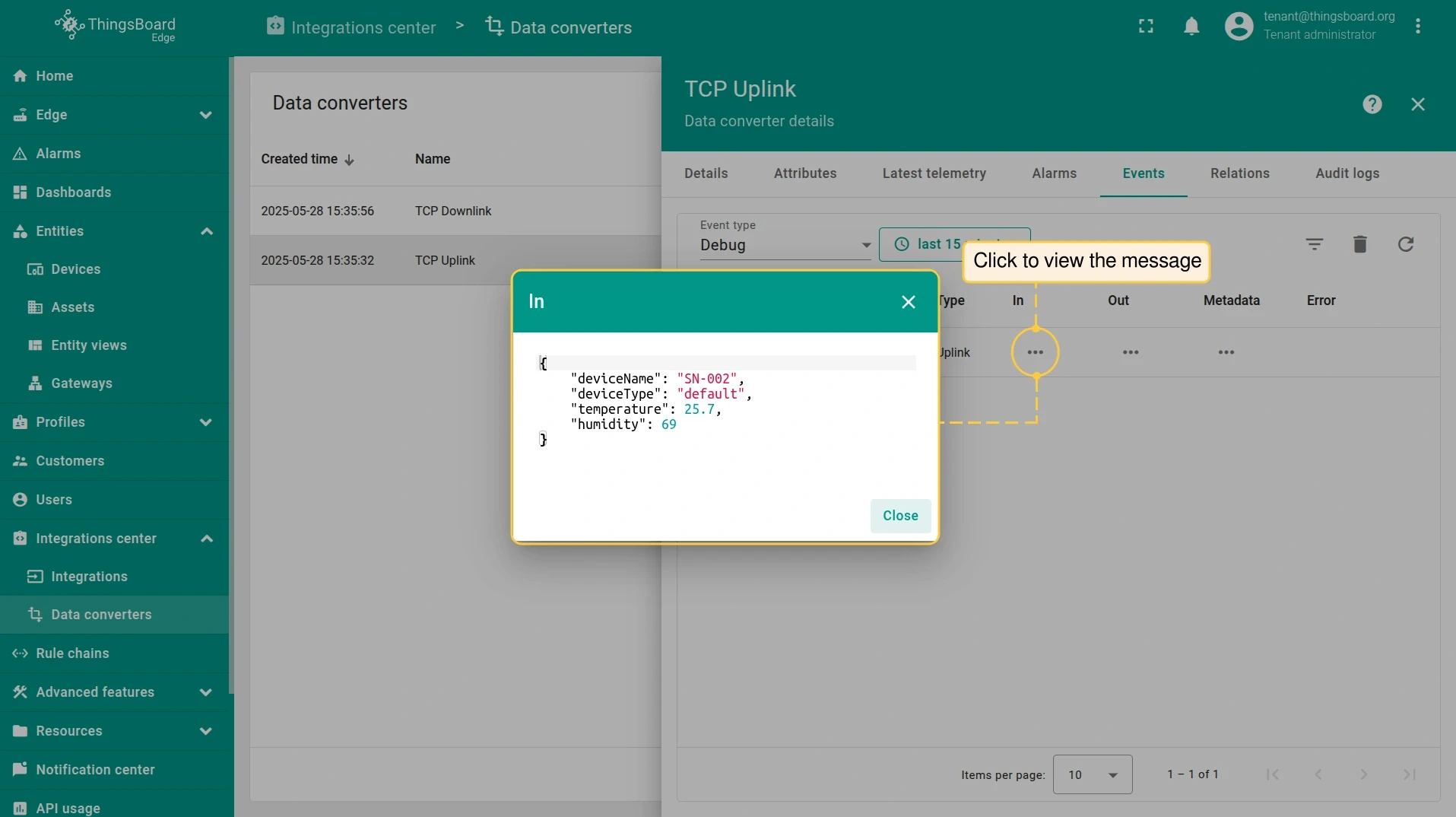

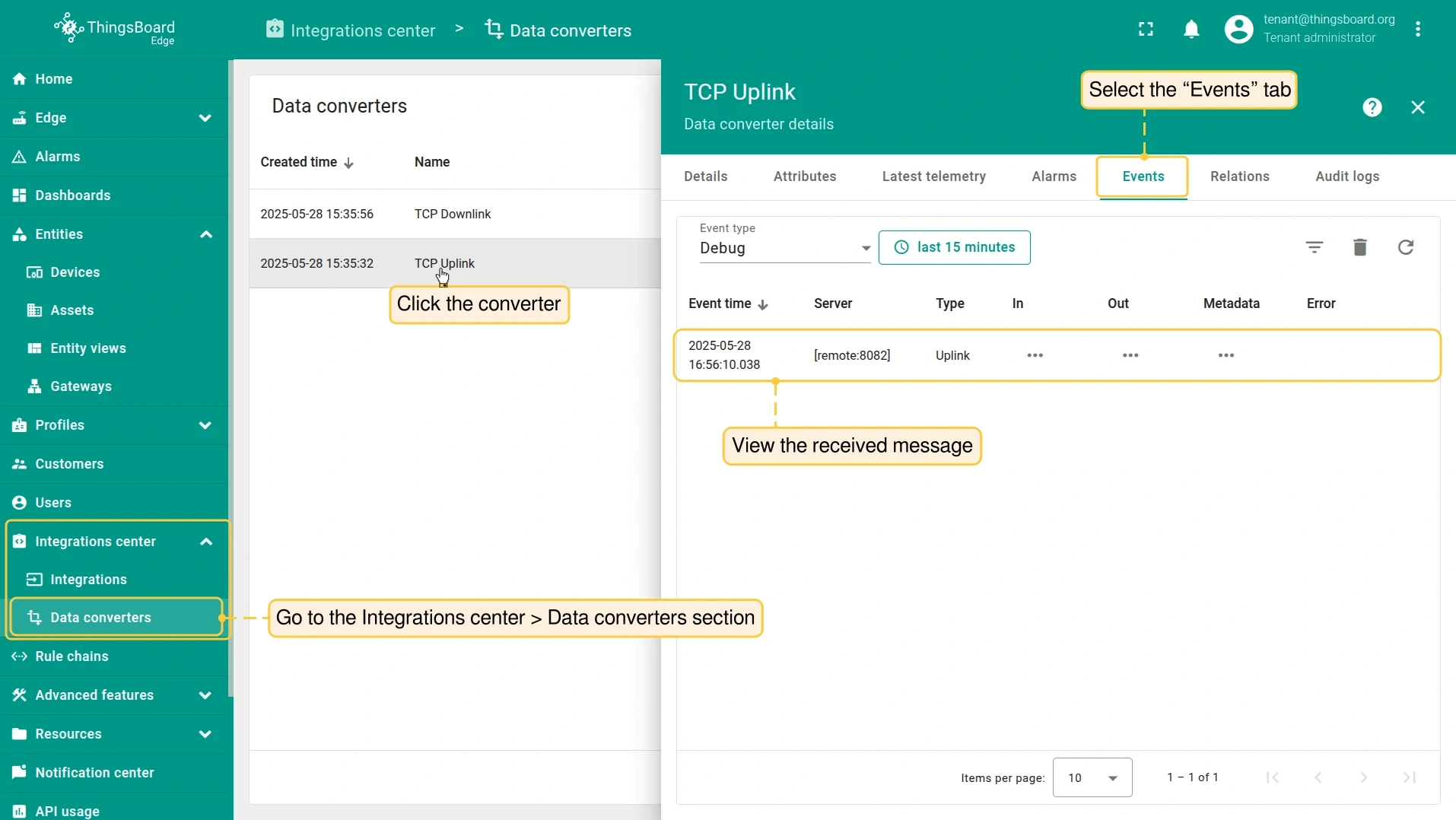

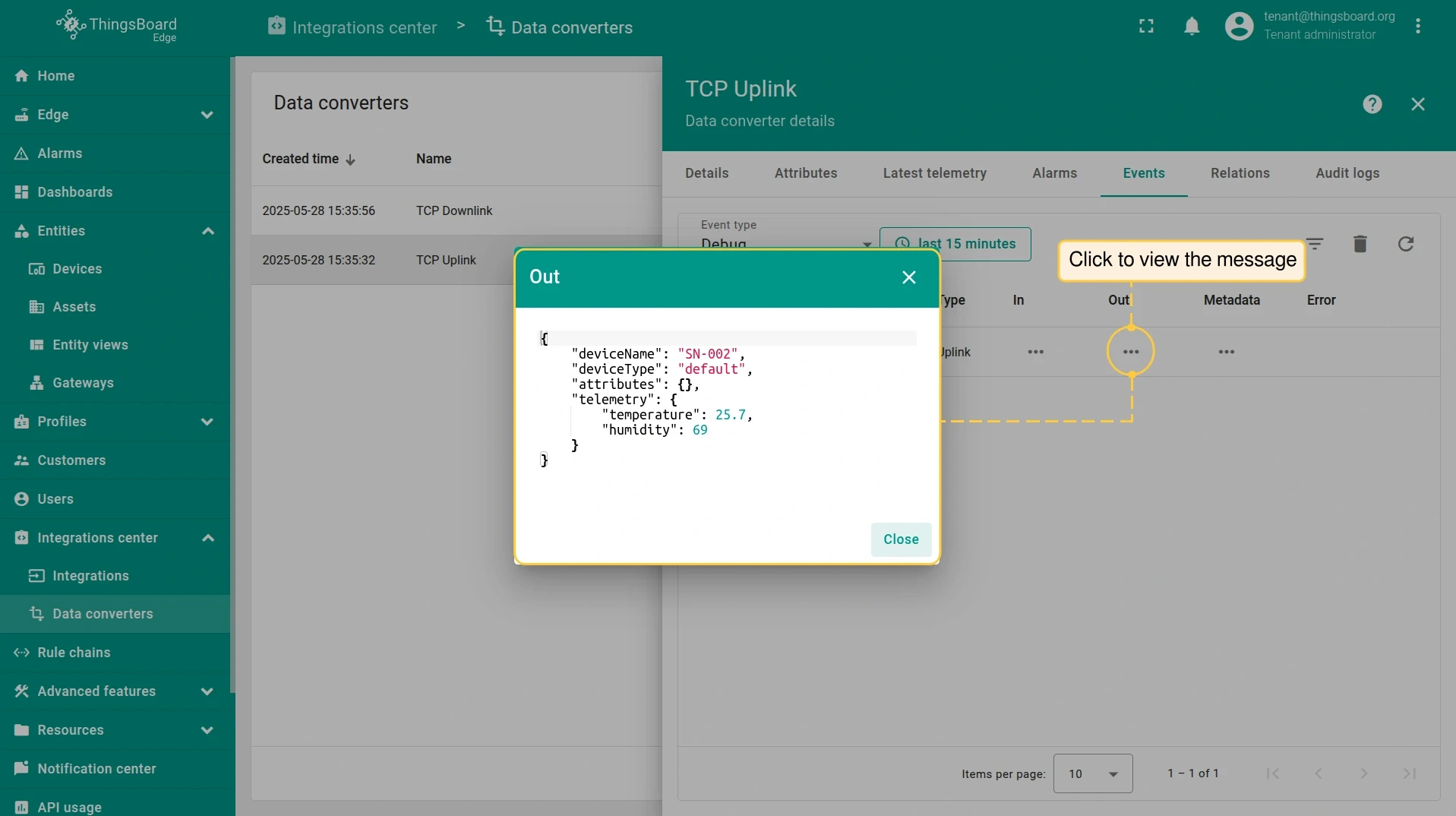

To see how the converter processed the message, go to Integrations > Data converters, open TCP uplink converter, and select the Events tab. Click the three dots in the In column to see the raw payload, or in the Out column to see the decoded result.

Configure the rule chain for downlinks

To send messages from the rule engine to the integration, add an integration downlink node to the root rule chain of the Edge.

On the Edge, go to Data processing > Rule chains and open Edge Root Rule Chain.

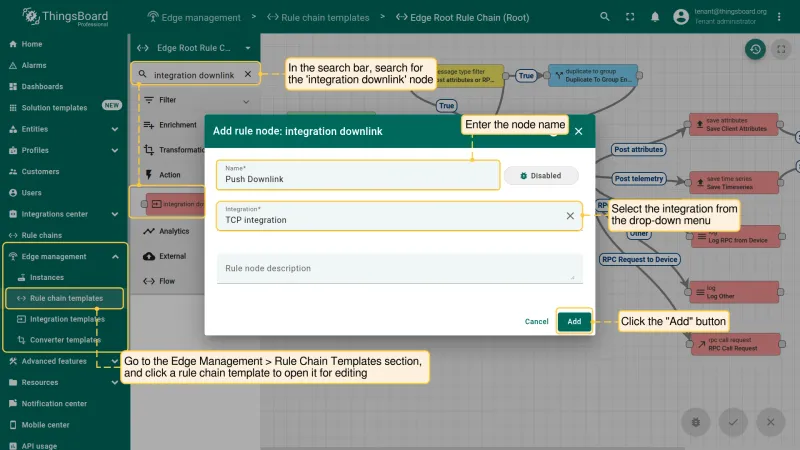

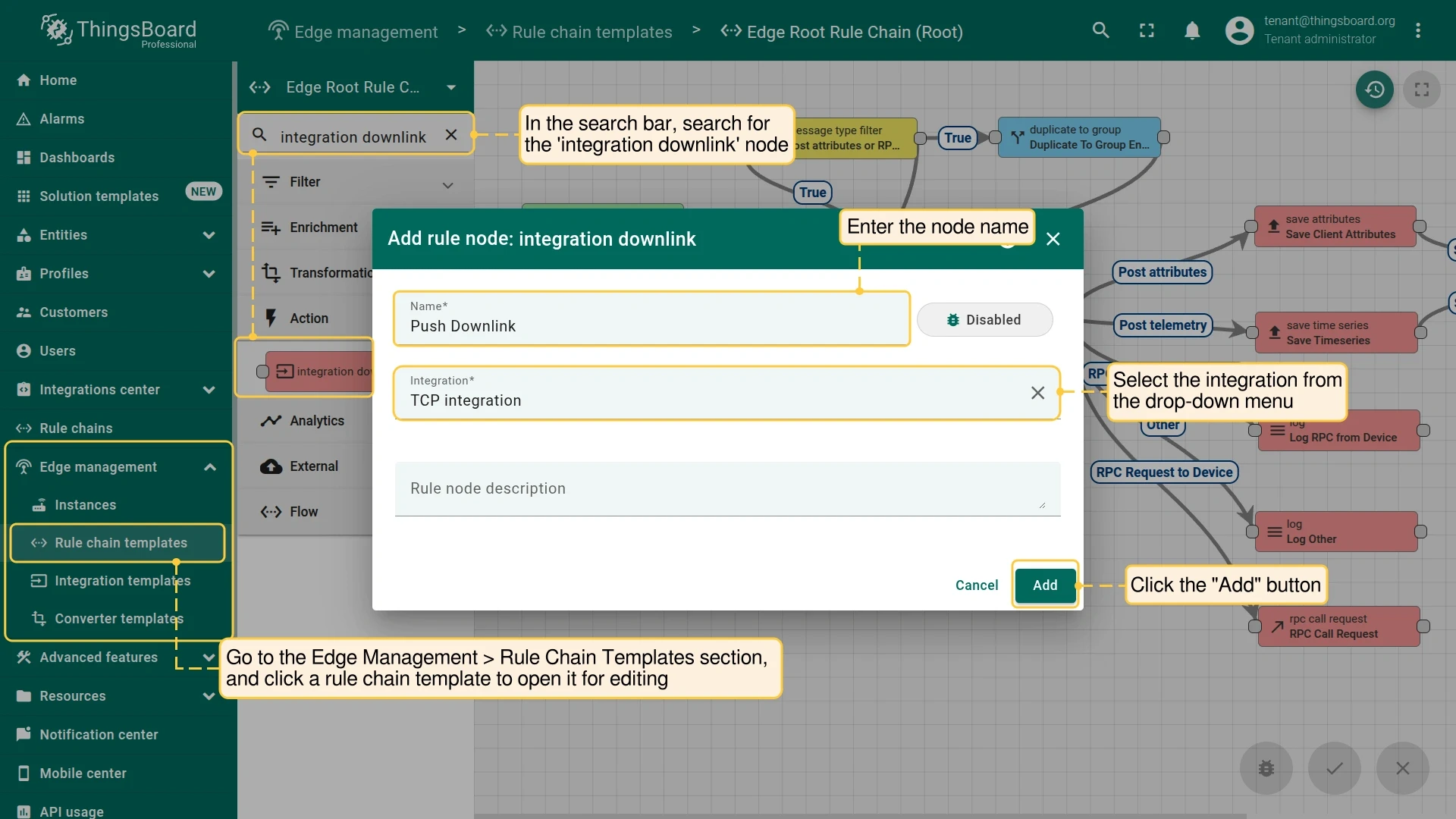

In the node search field, type integration downlink and drag the integration downlink node onto the canvas.
Enter a name, select TCP integration in the Integration field, and click Add.

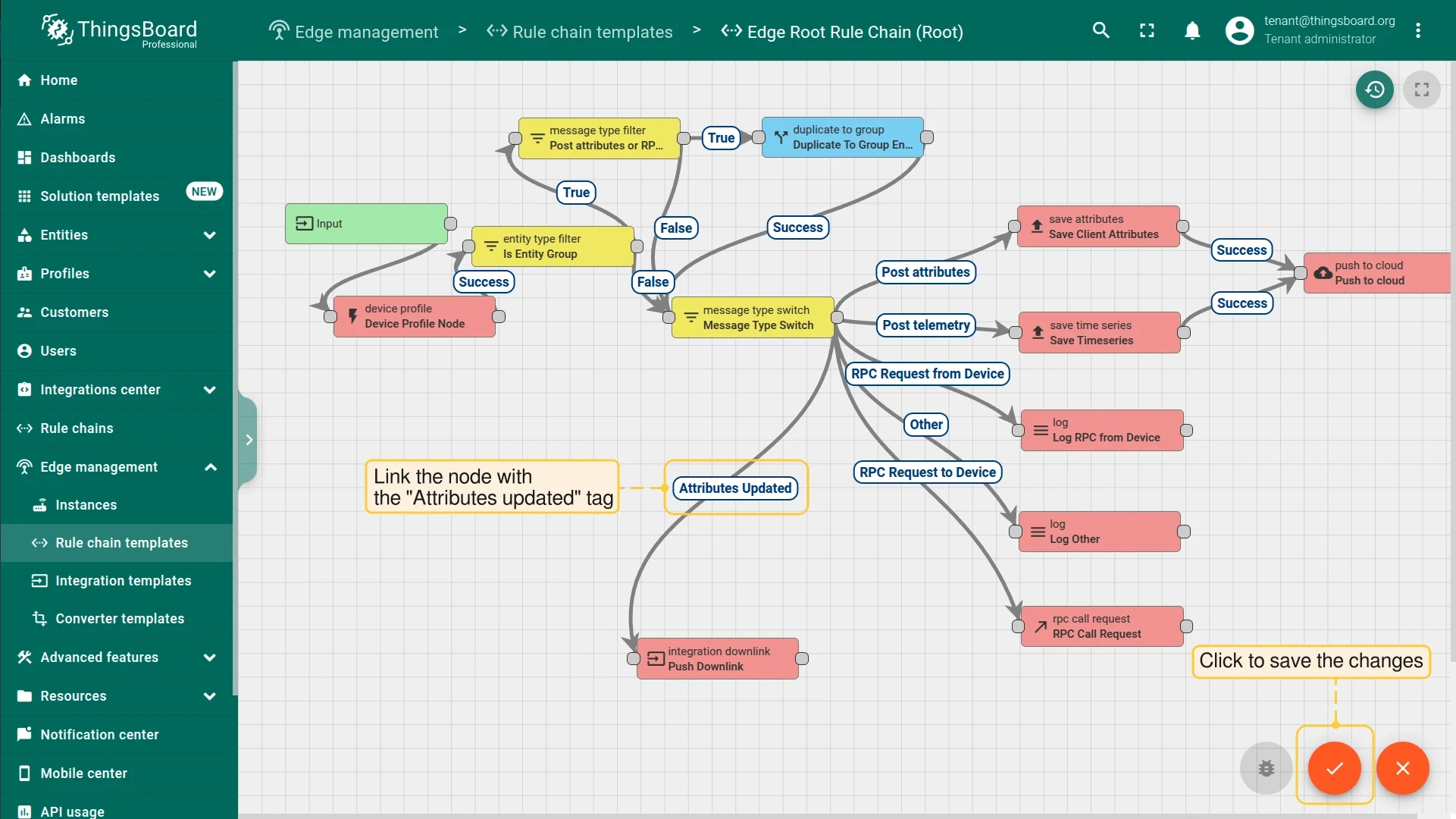

Connect the message type switch node to the new node and select the Attributes Updated link label.
Click the checkmark icon to save the rule chain.

Send a downlink message

The integration sends the downlink over an open TCP connection of the device. In the test below, nc keeps the connection open and prints the response.

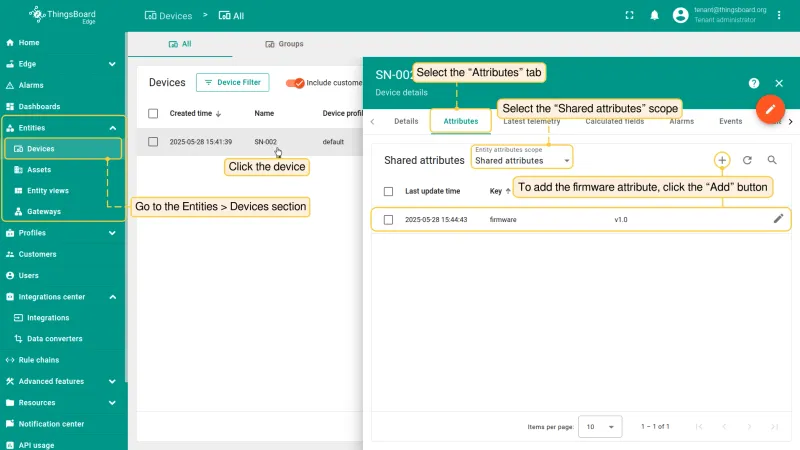

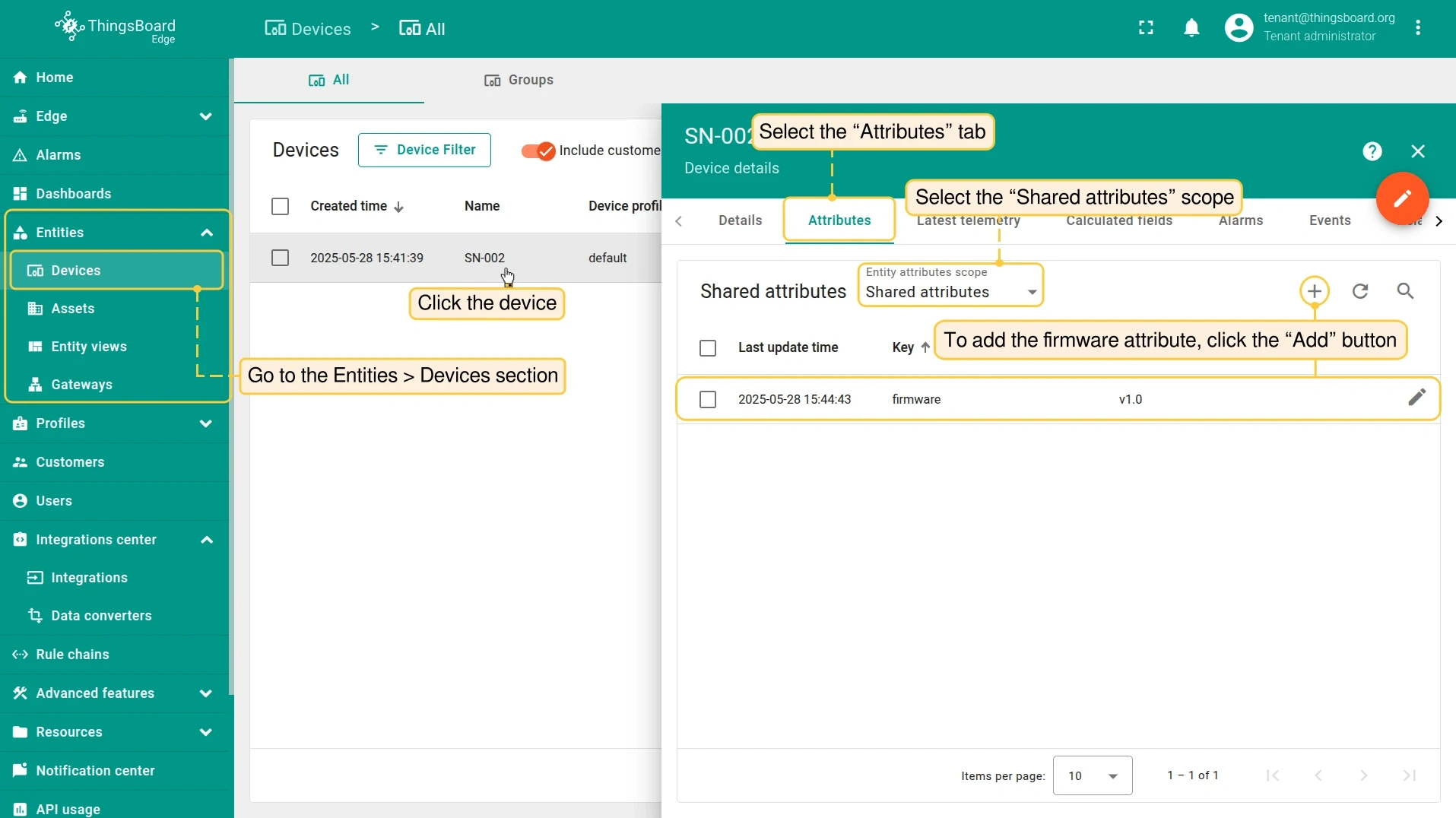

On the Edge, go to Devices & assets > Devices, open SN-002, and select the Attributes tab. Select the Shared attributes scope, click +, enter the key firmware and the value v1.0, and click Add.

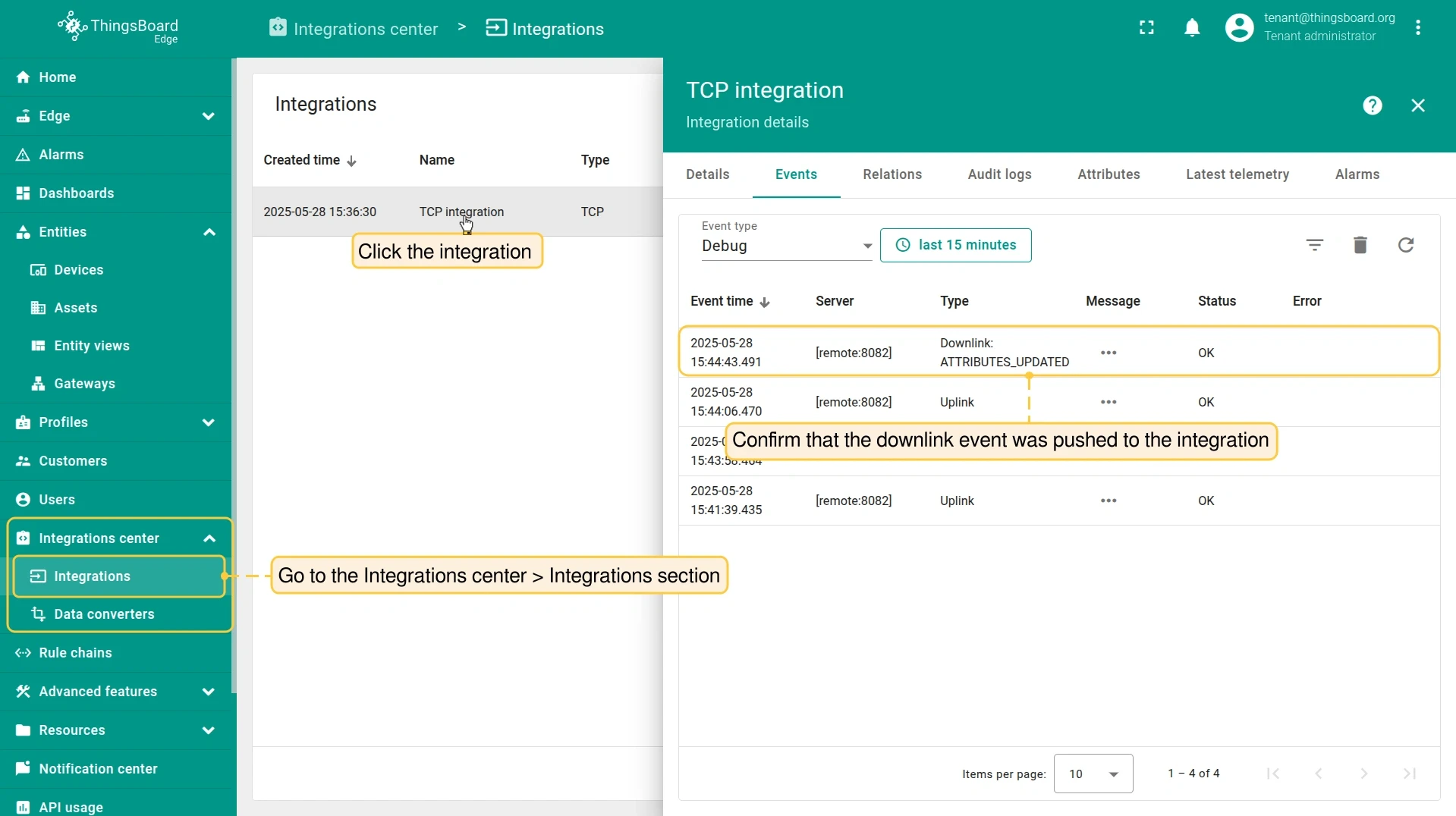

Open the Events tab of the integration. A Downlink event with status OK appears.

Send an uplink message again, this time keeping the connection open (without -q0):

echo -e 'SN-002,default,temperature,25.7' | nc 127.0.0.1 10560

Several messages:

echo -e 'SN-002,default,temperature,25.7\nSN-002,default,humidity,69' | nc -w60 127.0.0.1 10560

echo -e -n '{"deviceName": "SN-002", "deviceType": "default", "temperature": 25.7, "humidity": 69}' | nc -w60 127.0.0.1 10560

echo -e -n '\x30\x30\x30\x30\x11\x53\x4e\x2d\x30\x30\x32\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x00\x00\x00' | nc -w60 127.0.0.1 10560

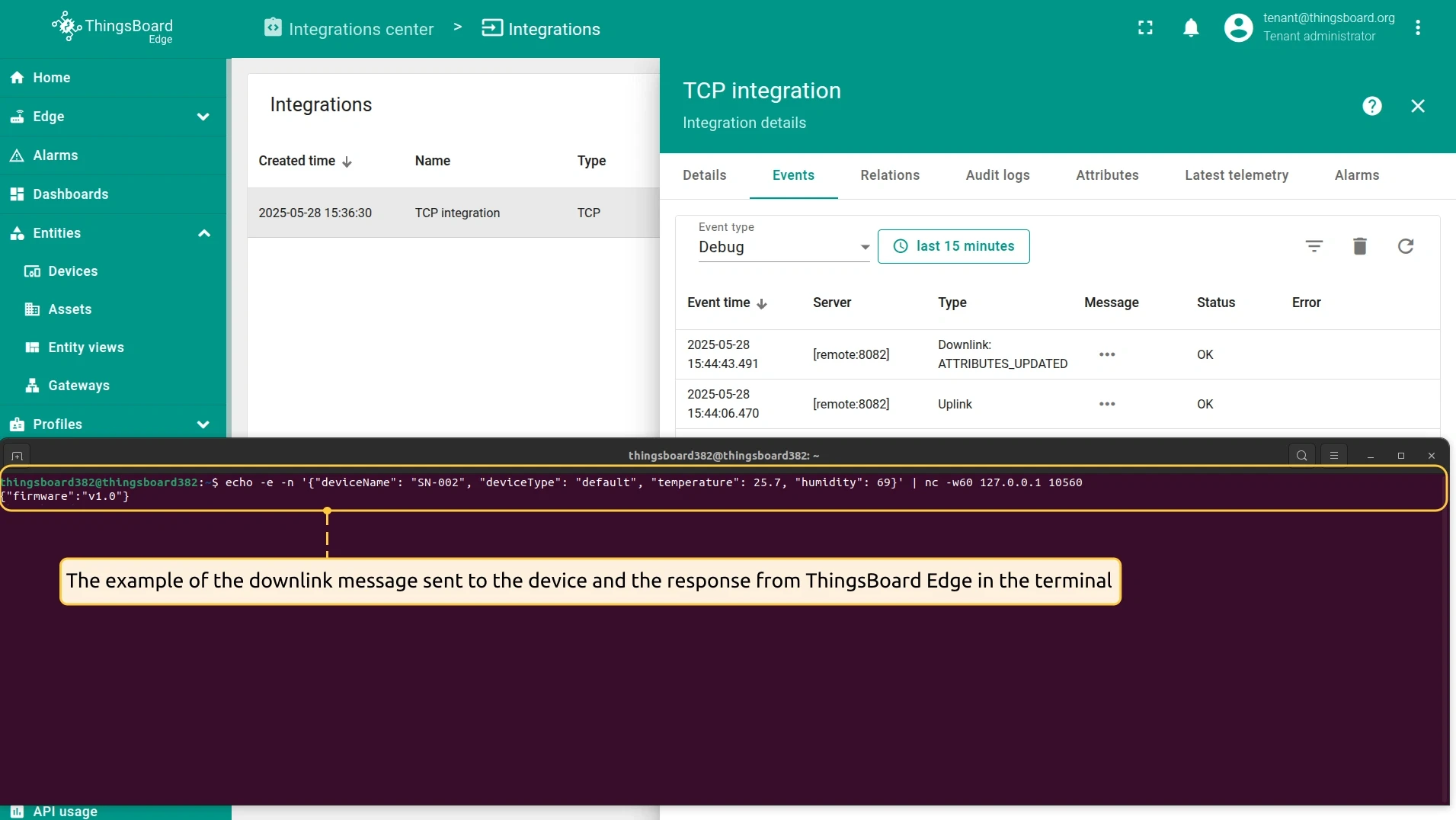

The terminal prints the response from the Edge:

{"firmware":"v1.0"}
