Installing ThingsBoard PE from AWS Marketplace

This guide walks you through installing ThingsBoard Professional Edition from AWS Marketplace using the BYOL (Bring Your Own License) model. You get the license directly from ThingsBoard, Inc, and purchase the server instances and infrastructure from AWS.

Prerequisites

Active Amazon AWS account

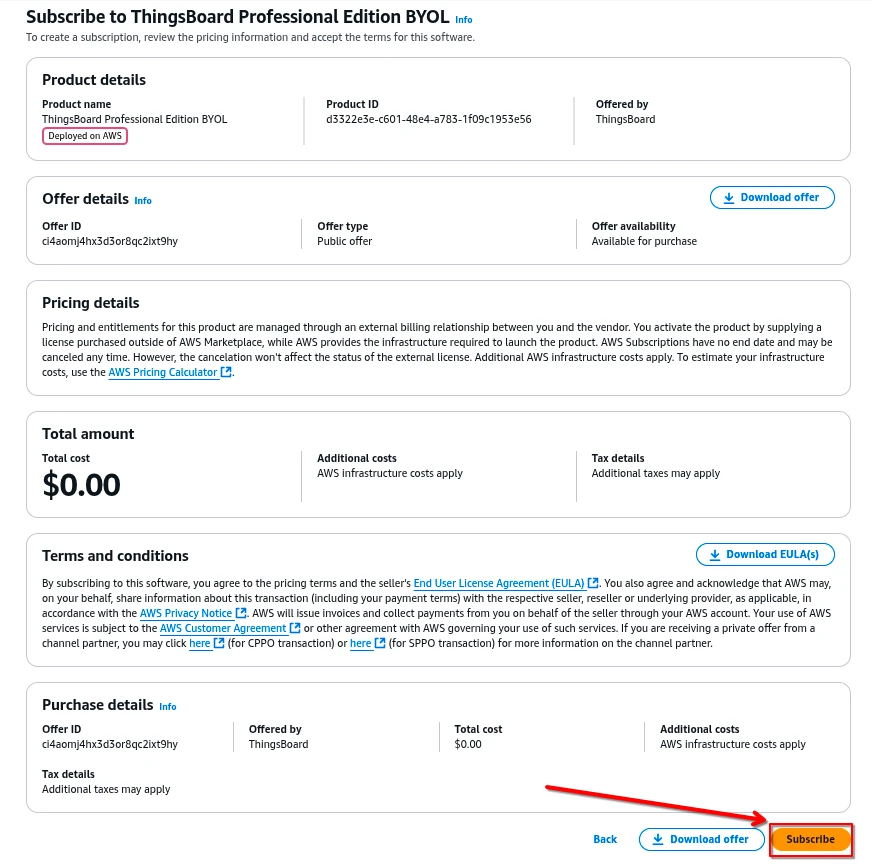

Navigate to the ThingsBoard Professional Edition BYOL product page on AWS Marketplace and click View purchase options.

Before completing your subscription, review:

Product details — BYOL model means a valid ThingsBoard license must be purchased separately to activate the software.
Pricing details — The software subscription cost is $0.00. AWS infrastructure usage charges apply separately.
Terms and conditions — By subscribing, you agree to the End User License Agreement (EULA) and the AWS Customer Agreement.

Click Subscribe to proceed.

Step 2. Launch ThingsBoard PE instance

After subscribing, click Launch your software.

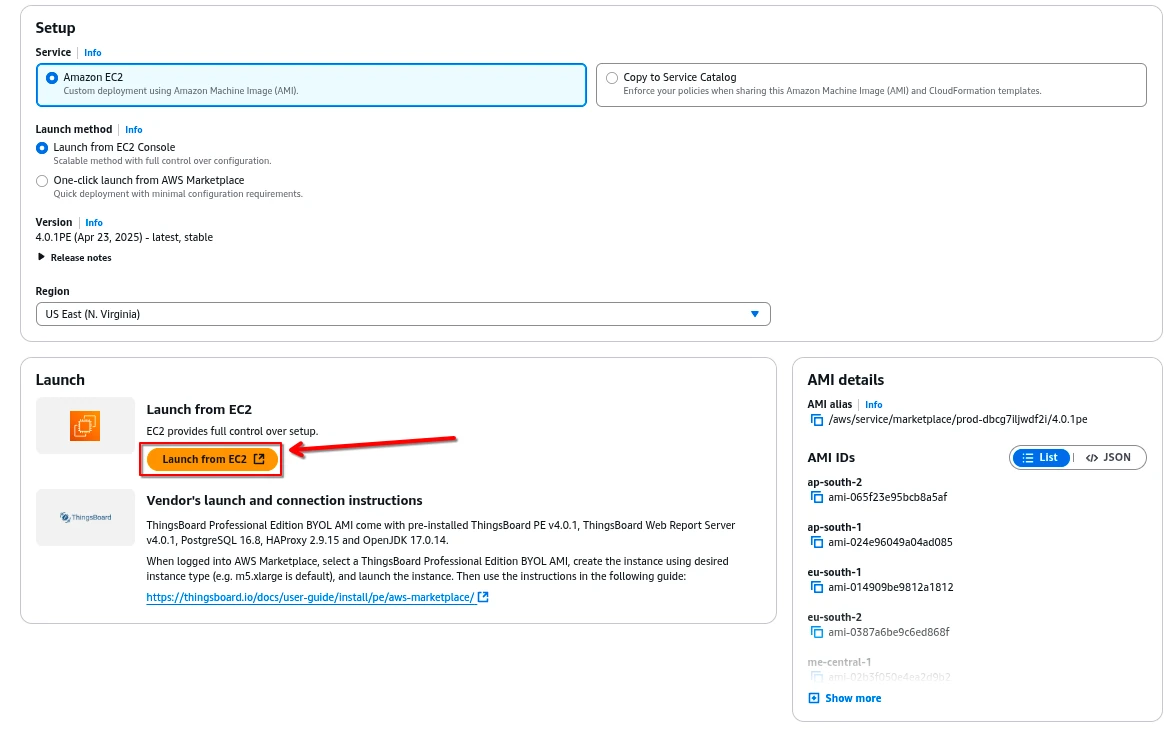

2.1 Setup configuration

Configure the deployment options:

Service — Select Amazon EC2 for on-demand scalability and full control over your instance.
Launch method — Select Launch from EC2 Console.
Region — Choose your preferred AWS region.

Click Launch from EC2 to continue.

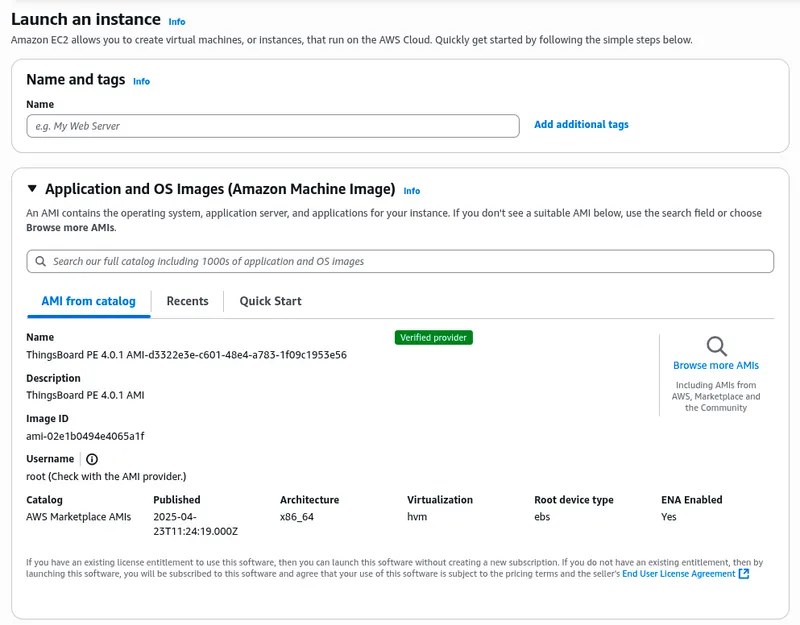

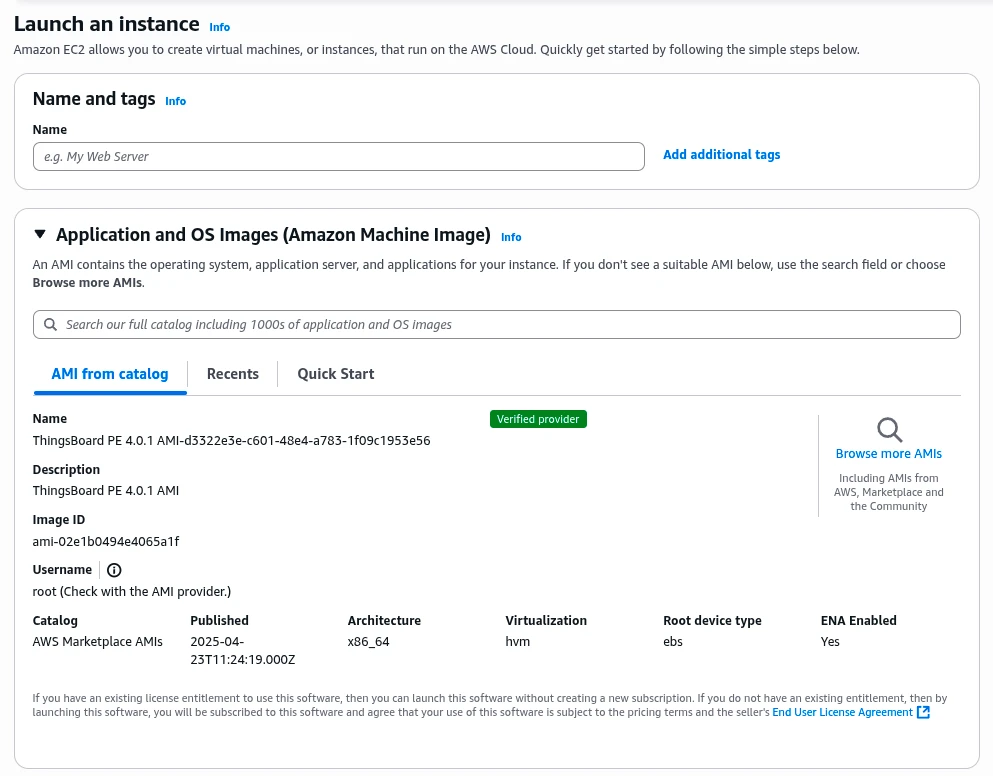

2.2 Name and AMI

Assign a name to your instance and verify the correct ThingsBoard Professional Edition (BYOL) AMI is selected.

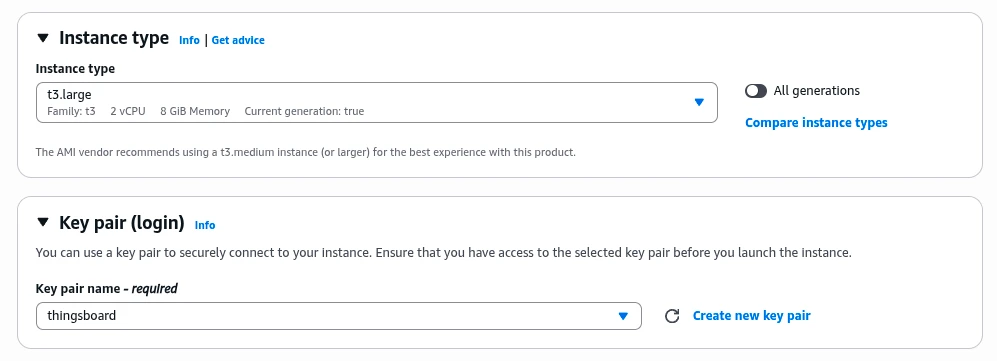

2.3 Instance type and key pair

Select an EC2 instance type and key pair.

Instance type and key pair configuration

Select an existing Key Pair or create a new one. Make sure you have access to the key file — you will need it to connect via SSH.

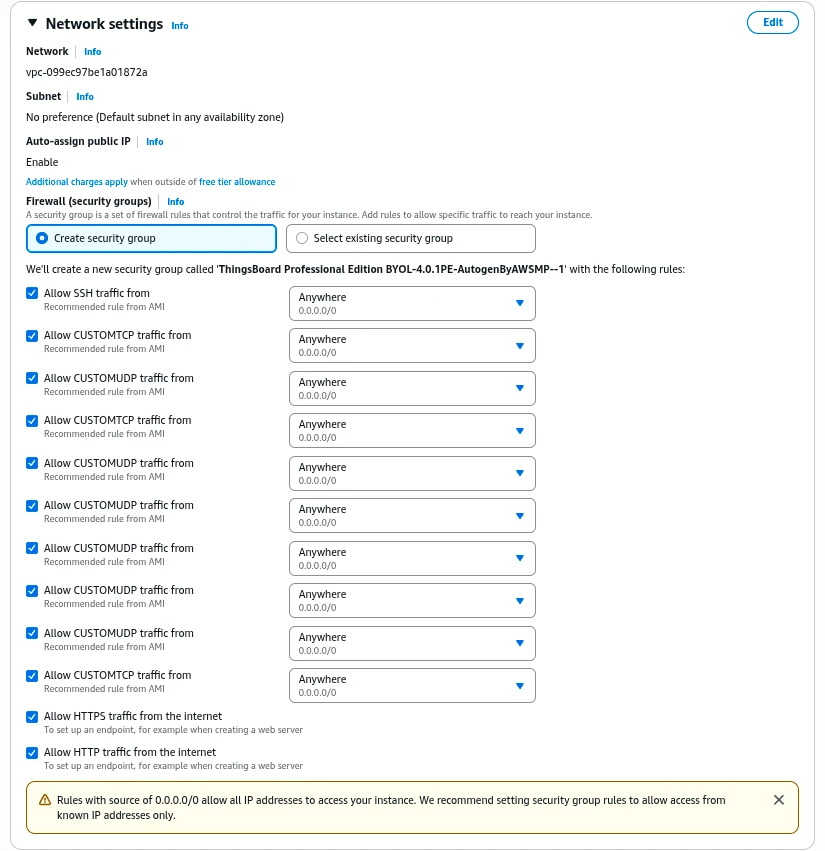

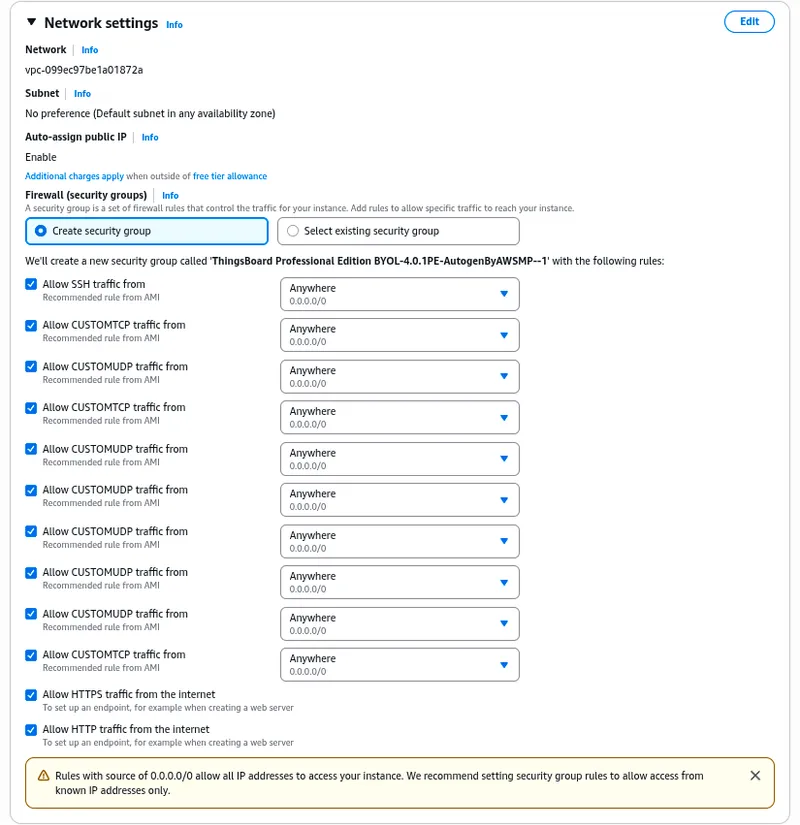

2.4 Configure security group

We recommend using the Create security group option. If you use an existing security group, ensure it allows inbound traffic on these ports:

Port	Protocol	Description
8080	TCP	HTTP access to ThingsBoard web interface
1883	TCP	MQTT protocol
8883	TCP	MQTT over SSL
7070	TCP	Edge RPC service
9090	TCP	Remote Integration service
5683–5688	UDP	CoAP and LwM2M protocols

2.5 Storage configuration

Specify storage options for the instance. The default configuration uses 20 GiB of gp2 storage.

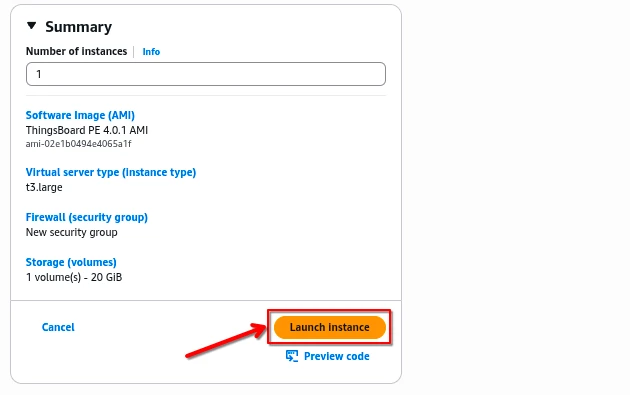

2.6 Launch instance

Review the settings in the Summary panel and click Launch instance.

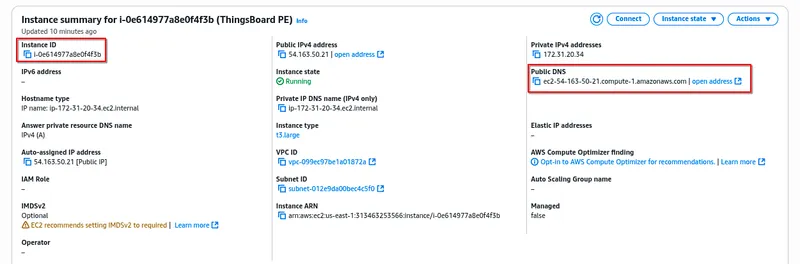

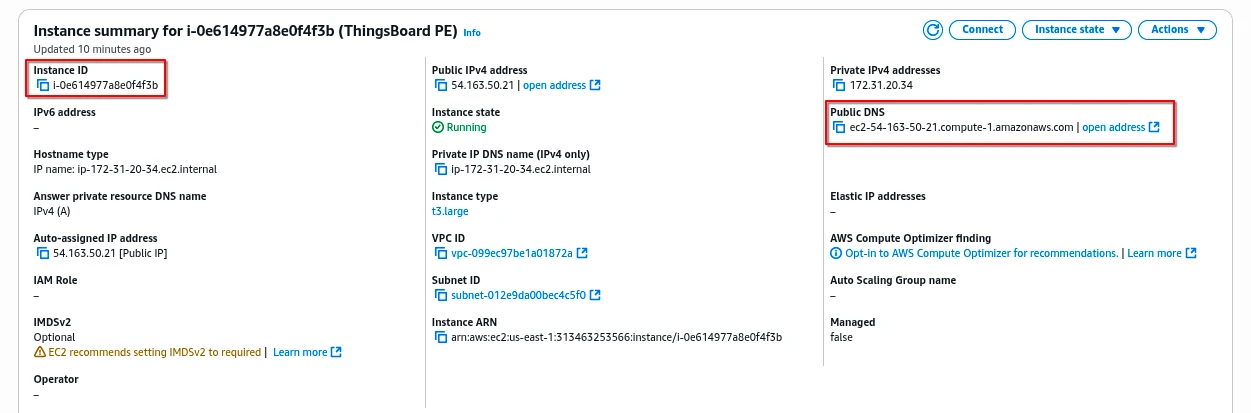

2.7 Obtain your Public IP and Instance ID

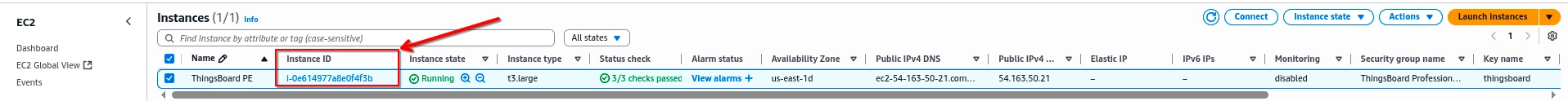

Wait until the instance state changes to Running and all status checks pass. Go to the EC2 Instances page and click the Instance ID to view the Instance Summary.

Save the Public DNS name (e.g. ec2-54-163-50-21.compute-1.amazonaws.com) and the Instance ID (e.g. i-0e614977a8e0f4f3b). You will need them in the next steps.

Step 3. Obtain your license secret

Register on the ThingsBoard License Portal to get your license. See How to get a pay-as-you-go subscription or How to get a perpetual license for details.

Save your license secret — you will need it in the next step.

Step 4. Configure your license secret

4.1 Connect to your instance via SSH

Use the official AWS guides:

You will need the instance Public DNS name from Step 2.7 and the key file from Step 2.3.

4.2 Add your license secret

Open the configuration file:

sudo nano /etc/thingsboard/conf/thingsboard.conf

Locate the license configuration block and uncomment the export statement. Replace YOUR_LICENSE_SECRET_HERE with your actual license secret:

# License secret obtained from ThingsBoard License Portal (https://license.thingsboard.io)
# UNCOMMENT NEXT LINE AND PUT YOUR LICENSE SECRET:
export TB_LICENSE_SECRET=YOUR_LICENSE_SECRET_HERE

Step 5. Launch ThingsBoard service

sudo service thingsboard start

Step 6. Connect to ThingsBoard UI

Open http://PUBLIC_DNS_NAME/login in your browser.

Use the following default credentials:

Login: [email protected]
Password: your Instance ID from Step 2.7 (e.g. i-0e614977a8e0f4f3b)

Post-installation steps

Configure HTTPS

Assign a valid DNS record to your instance’s external IP address.
Connect to your instance via SSH (see Step 4.1).

Run the following commands, replacing the domain and email with your own:

sudo certbot-certonly --domain smth.yourcompany.com --email [email protected]
sudo haproxy-refresh

FAQ

What is the Total Cost of Ownership (TCO)?

Cost Component	Description
ThingsBoard License fee	See pricing
AWS EC2 instance price	Compare at ec2instances.info
Additional EC2 costs	Network traffic, disk space, optional services (e.g. CloudWatch)

Example A: Maker Subscription (t3.medium, 20 GB disk)

Component	Monthly Cost (USD)
ThingsBoard PE Maker subscription	$10.00
EC2 t3.medium (1 month)	$30.37
20 GB EBS volume	$2.00
Total	≈ $42.40

Example B: Prototype Subscription (m5.large, 100 GB disk)

Component	Monthly Cost (USD)
ThingsBoard PE Prototype subscription	$99.00
EC2 m5.large (1 month)	$70.08
100 GB EBS volume	$10.00
Total	≈ $179.00

How to enable HTTPS? See Post-installation steps.

How do I configure my ThingsBoard PE instance? See Configuration guide.

How do I get software updates? You will receive email notifications about new versions with a link to the Upgrade Instructions.

How do I backup my database? Refer to the PostgreSQL backup documentation.

How do I upgrade my instance type?

Stop the ThingsBoard service:
Terminal window
```
sudo service thingsboard stop
```
Stop the EC2 instance from the AWS Console: Instance state → Stop instance.
Change the instance type: Actions → Instance settings → Change instance type.
Start the instance from the AWS Console.

Where are the ThingsBoard logs? Logs are stored in /var/log/thingsboard.

How do I get professional support? Review ThingsBoard support plans.
