LORIOT Integration

The LORIOT integration connects ThingsBoard to a LORIOT LoRaWAN Network Server: it receives uplink messages from LoRaWAN devices, decodes them via an uplink converter, and pushes telemetry and attributes to the platform. In the reverse direction, it encodes Rule Engine messages via a downlink converter and delivers them to devices through the LORIOT API.

1. Go to the LORIOT website and choose a service package (e.g. Community Public Network Server).

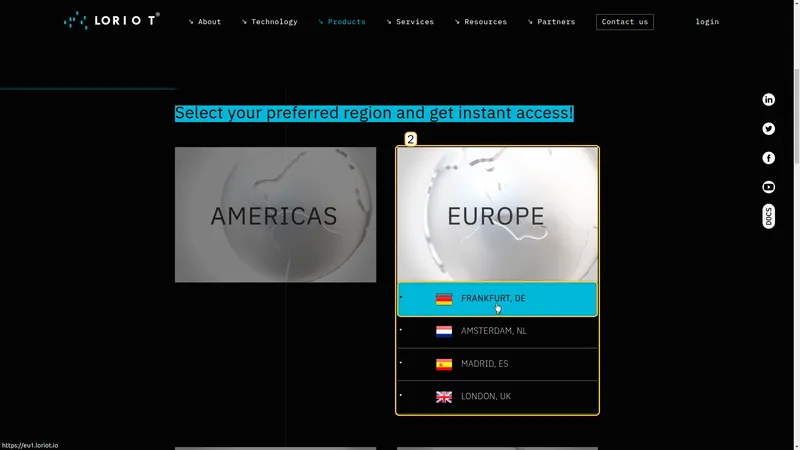

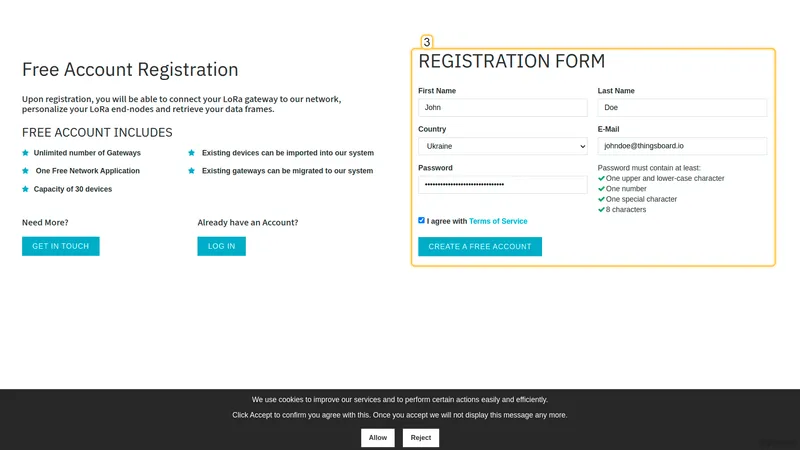

2. Pick your preferred region and country, then complete the registration and log in.

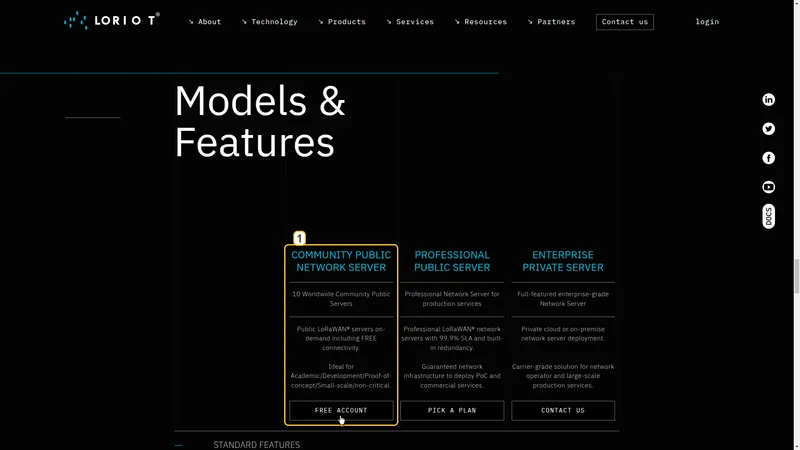

Select a service package on the LORIOT website Choose your preferred region Complete the registration form LORIOT dashboard after successful login

The uplink converter decodes the incoming LORIOT message and maps it to the ThingsBoard data model. For the full decoder function reference, see Uplink data converter.

From ThingsBoard 4.0, you can map message fields to attributes or telemetry directly in the UI — no scripting needed for structured JSON payloads. For binary payloads, add a decoder script in the same wizard, as this tutorial demonstrates.

If your device is in the built-in catalog, use the Library tab — see Library — a built-in catalog of ready-to-use decoder functions for over 100 devices.

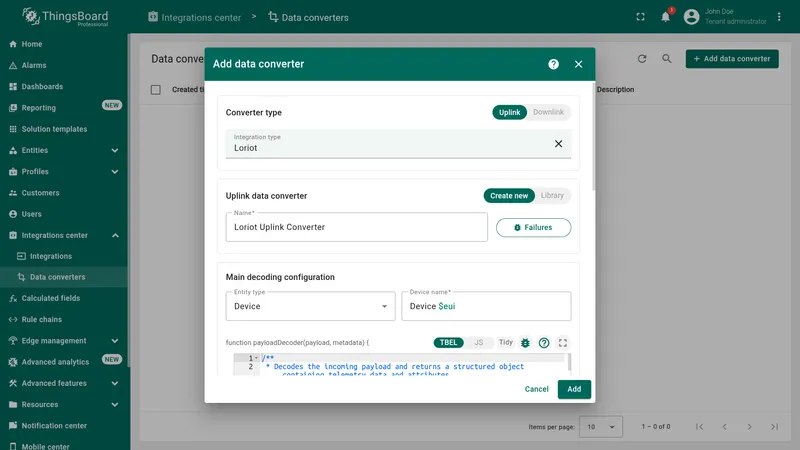

1. Go to Integrations center ⇾ Data converters.
2. Click + Add data converter ⇾ Create new converter.
3. Set Converter type to Uplink (default).
4. Select Integration type: Loriot.
5. Enter a converter name: Loriot Uplink Converter.

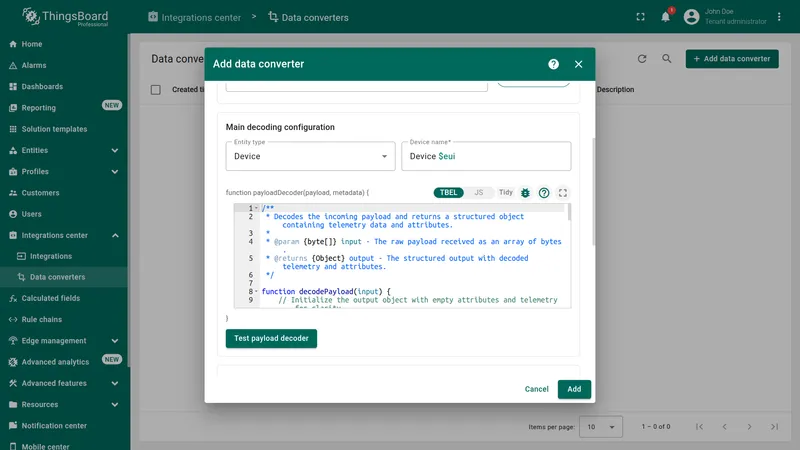

6. The Main decoding configuration section specifies:
   • A naming template for automatic device creation — Device $eui — change this if you prefer a different naming scheme.
   • Paste the decoder function below, or leave the default for unmodified LORIOT fields.

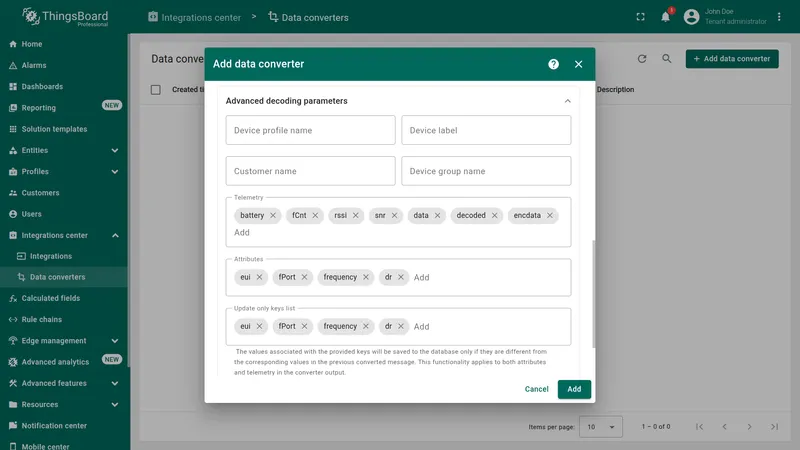

7. Review Advanced decoding parameters — pre-populated for LORIOT. Adjust the telemetry and attribute key lists if needed; see Advanced decoding parameters for details.

8. Click Add.

/**
 * Decodes the incoming payload and returns a structured object containing telemetry data and attributes.
 *
 * @param {byte[]} input - The raw payload received as an array of bytes.
 * @returns {Object} output - The structured output with decoded telemetry and attributes.
 */

function decodePayload(input) {
    // Initialize the output object with empty attributes and telemetry for clarity.
    var result = { attributes: {}, telemetry: {}};

    // Decode serial number (SN) from the first 4 bytes of the payload.
    // Press '?' icon in the top right corner to learn more about built in helper functions and capabilities.
    result.attributes.sn = parseBytesToInt(input, 0, 4);

    // Extract the timestamp from metadata (represented in milliseconds).
    var timestamp = metadata.ts; // ts from the incoming message.

    // Initialize an object to store decoded key/value telemetry data.
    var values = {};

    // Decode battery level from the 5th byte of the payload.
    values.battery = parseBytesToInt(input, 4, 1);

    // Decode temperature from the 6th and 7th bytes of the payload (divided by 100).
    values.temperature = parseBytesToInt(input, 5, 2) / 100.0;

    // Decode saturation from the 8th byte of the payload.
    values.saturation = parseBytesToInt(input, 7, 1);

    // Combine the timestamp with values and add it to the telemetry.
    result.telemetry = {
        ts: timestamp,
        values: values
    };

    // Return the fully constructed output object.
    return result;
    // Same logic, less code:
    // return {
    //     attributes: {
    //         sn: parseBytesToInt(input, 0, 4)
    //     },
    //     telemetry: {
    //         ts: metadata.ts,
    //         values: {
    //             battery: parseBytesToInt(input, 4, 1),
    //             temperature: parseBytesToInt(input, 5, 2) / 100.0,
    //             saturation: parseBytesToInt(input, 7, 1)
    //         }
    //     }
    // };
}

var result = decodePayload(payload);
// Uncomment this code block to overwrite values set in the main configuration window. Useful if you extract device/asset/customer/group names from the payload;
// result.type = 'DEVICE'; // Entity type allows you to choose type of created entity. Can be 'DEVICE' or 'ASSET'.
// result.name = 'Temperature Sensor'; // Device or asset name (the value must be unique)
// result.profile = 'IndustrialSensorProfile'; // Device or asset profile name.
// result.customer = 'MyCustomer'; // If customer is not null - created entity will be assigned to customer with such name.
// result.group = 'SensorsGroup'; // If group is not null - created entity will be added to the entity group with such name.

// Return the final result object.
return result;

/**
 * Decodes the incoming payload and returns a structured object containing telemetry data and attributes.
 *
 * @param {number[]} input - The raw payload received as an array of bytes.
 * @returns {Object} output - The structured output with decoded telemetry and attributes.
 */

function decodePayload(input) {
    // Initialize the output object with empty attributes and telemetry for clarity.
    var result = { attributes: {}, telemetry: {}};

    // Decode serial number (SN) from the first 4 bytes of the payload.
    result.attributes.sn = parseBytesToInt(input, 0, 4);

    // Extract the timestamp from metadata (represented in milliseconds).
    var timestamp = metadata.ts; // ts from the incoming message.

    // Initialize an object to store decoded key/value telemetry data.
    var values = {};

    // Decode battery level from the 5th byte of the payload.
    values.battery = parseBytesToInt(input, 4, 1);

    // Decode temperature from the 6th and 7th bytes of the payload (divided by 100).
    values.temperature = parseBytesToInt(input, 5, 2) / 100.0;

    // Decode saturation from the 8th byte of the payload.
    values.saturation = parseBytesToInt(input, 7, 1);

    // Combine the timestamp with values and add it to the telemetry.
    result.telemetry = {
        ts: timestamp,
        values: values
    };

    // Return the fully constructed output object.
    return result;
}

var result = decodePayload(payload);
// Uncomment this code block to overwrite values set in the main configuration window. Useful if you extract device/asset/customer/group names from the payload;
// result.type = 'DEVICE'; // Entity type allows you to choose type of created entity. Can be 'DEVICE' or 'ASSET'.
// result.name = 'Temperature Sensor'; // Device or asset name (the value must be unique)
// result.profile = 'IndustrialSensorProfile'; // Device or asset profile name.
// result.customer = 'MyCustomer'; // If customer is not null - created entity will be assigned to customer with such name.
// result.group = 'SensorsGroup'; // If group is not null - created entity will be added to the entity group with such name.

// Return the final result object.
return result;

/**
 * Converts a slice of bytes from an array into an integer (big-endian).
 *
 * @param {number[]} input - The array of bytes.
 * @param {number} offset - The starting index.
 * @param {number} length - The number of bytes to convert.
 * @returns {number} - The resulting integer.
 */
function parseBytesToInt(input, offset, length) {
    var result = 0;
    for (var i = offset; i < offset + length; i++) {
        result = (result << 8) | (input[i] & 0xFF);
    }
    return result;
}

Understanding the decoder:

payload is the raw LoRaWAN payload bytes — ThingsBoard decodes the base64 data field from the LORIOT message automatically. parseBytesToInt(input, offset, length) reads length bytes starting at offset and returns a big-endian integer — a TBEL built-in; manually defined at the bottom of the JS tab. metadata.ts is the message timestamp in ms, falling back to current server time if unavailable.

The example decoder expects an 8-byte payload with this layout:

Device name and profile come from the Main decoding configuration section. Uncomment result.name, result.profile, etc. to override them from payload content instead.

To adapt this converter to your device:

• Match your payload structure — update the byte offsets, lengths, and field names in decodePayload to match your device’s binary protocol. Refer to your device’s payload specification.
• Add or remove fields — add more parseBytesToInt calls (or parseBytesToFloat, string extraction, etc.) for additional sensors; remove entries your device doesn’t transmit.
• Override device metadata from the payload — uncomment and populate result.name, result.profile, result.group, or result.customer to derive device identity from payload content rather than the converter UI configuration.

Set integration type to Loriot, enter the converter name, and configure the entity type and name pattern in Main decoding configuration Paste the TBEL decoder function and click Test payload decoder to validate before saving Advanced decoding parameters: telemetry and attribute keys are pre-populated for LORIOT — adjust to match your device fields, then click Add

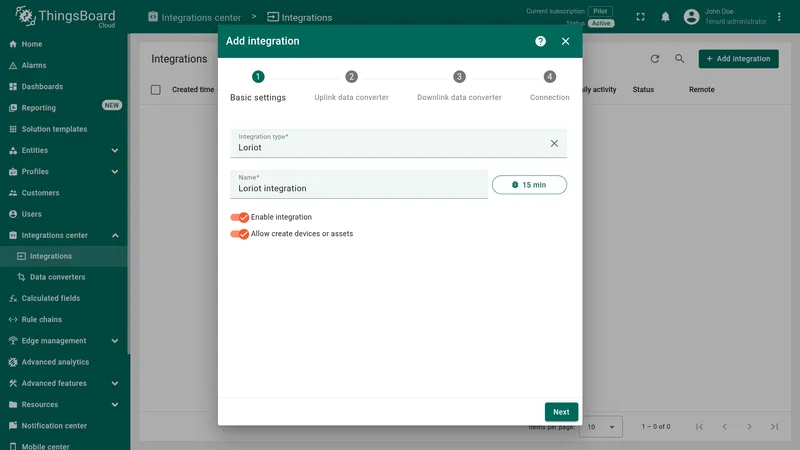

1. Go to Integrations center ⇾ Integrations and click + Add integration.
2. Basic settings:
   • Set Integration type to Loriot.
   • Optionally enable Debug mode to track events and errors during development.
   • Click Next.

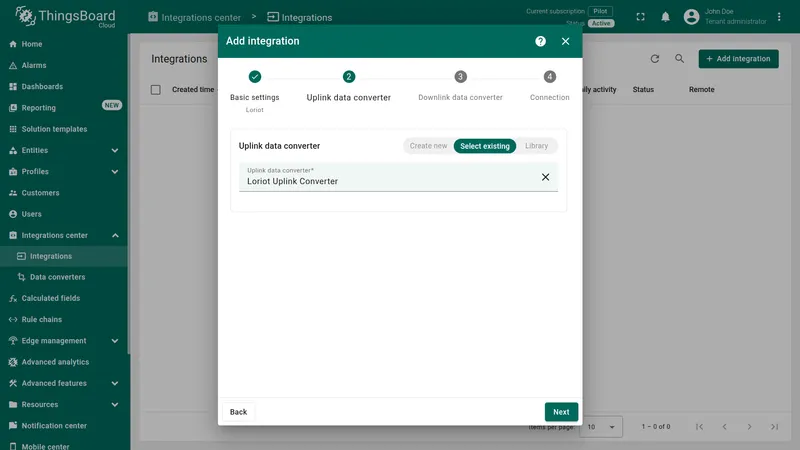

3. Uplink data converter:
   • Click Select existing and choose the previously created Loriot Uplink Converter from the list.
   • Click Next.
4. Downlink data converter:
   • Click Skip — the downlink converter is only needed for sending commands to devices and can be added later.

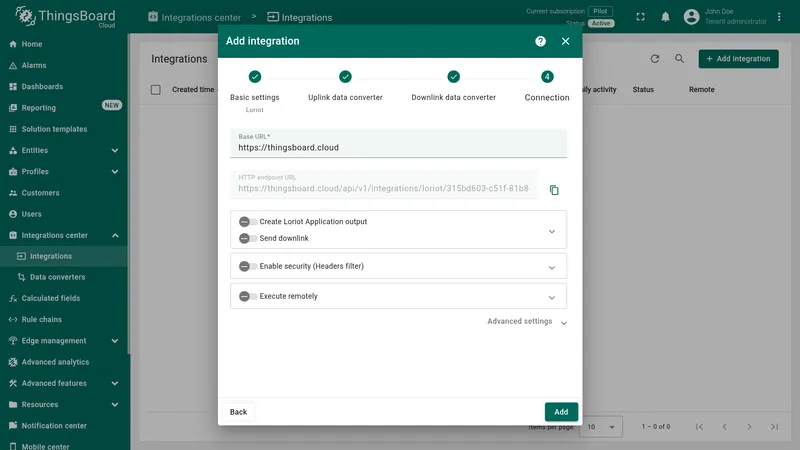

5. Connection:

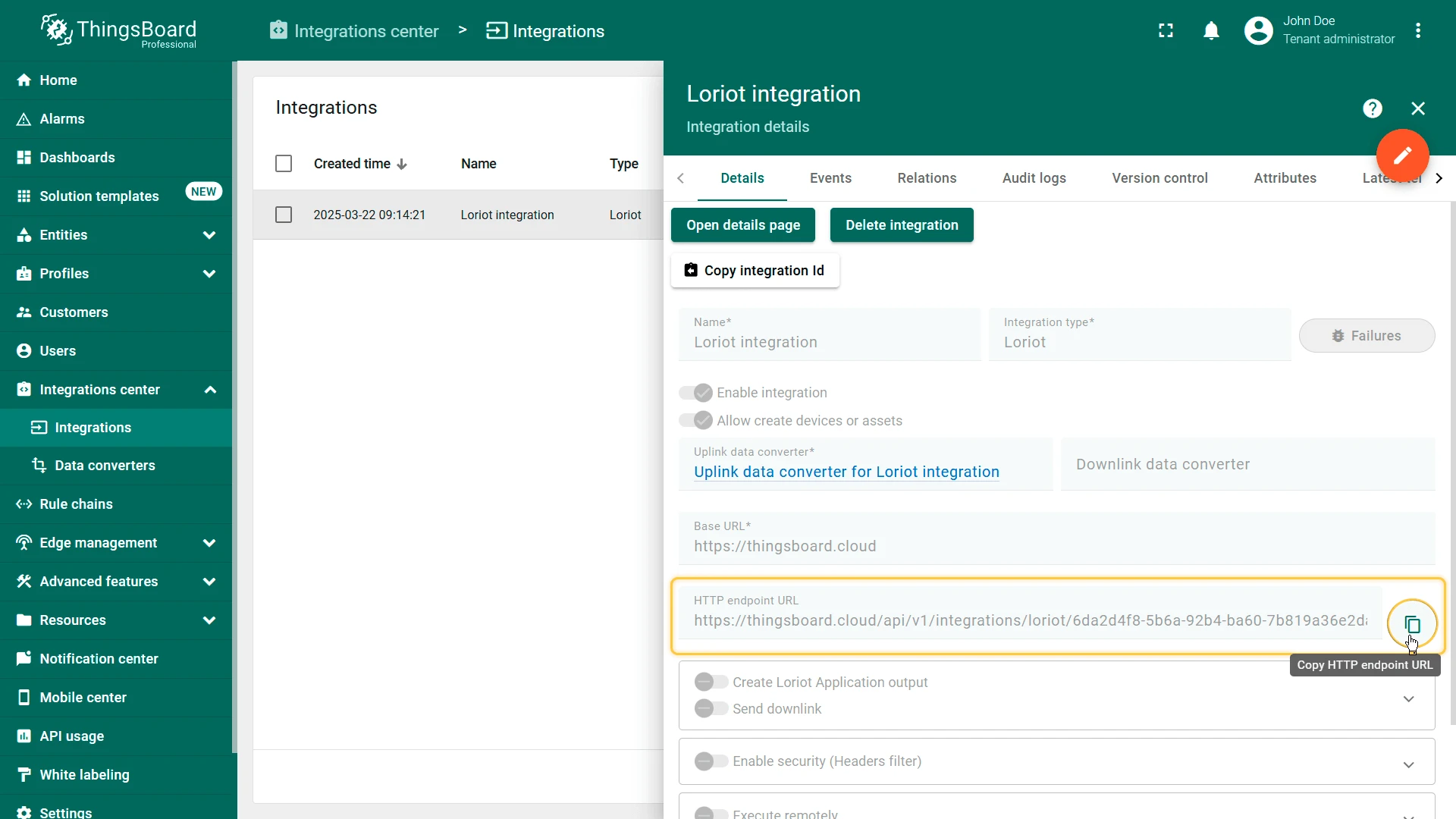

   • Copy the HTTP endpoint URL — you will need it when configuring LORIOT.
   • Click Add to complete the integration.
   See Connection settings for a full description of each parameter.

Go to Integrations center → Integrations and click + Add integration. Set Integration type to Loriot and click Next Click Select existing, choose Loriot Uplink Converter, and click Next Click Skip — the downlink converter can be added later Copy the HTTP endpoint URL for LORIOT, then click Add

Base URL

The base address of the ThingsBoard server, used to construct the HTTP endpoint URL. For ThingsBoard Cloud, this is https://thingsboard.cloud.

HTTP endpoint URL

Auto-generated endpoint for this integration. Paste this URL into the LORIOT HTTP Push output configuration so that LORIOT forwards device uplink messages to ThingsBoard.

Create Loriot Application output

When enabled, ThingsBoard uses the LORIOT API to register itself as an HTTP Push output in your LORIOT application automatically — no manual configuration in the LORIOT UI is required. Enabling this toggle reveals:

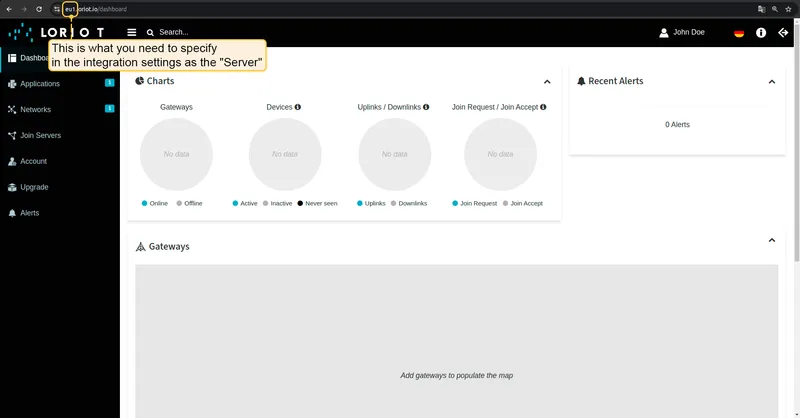

• Server — the LORIOT server subdomain (e.g. eu1); see Finding server and application ID
• Domain — the LORIOT domain (default: loriot.io)

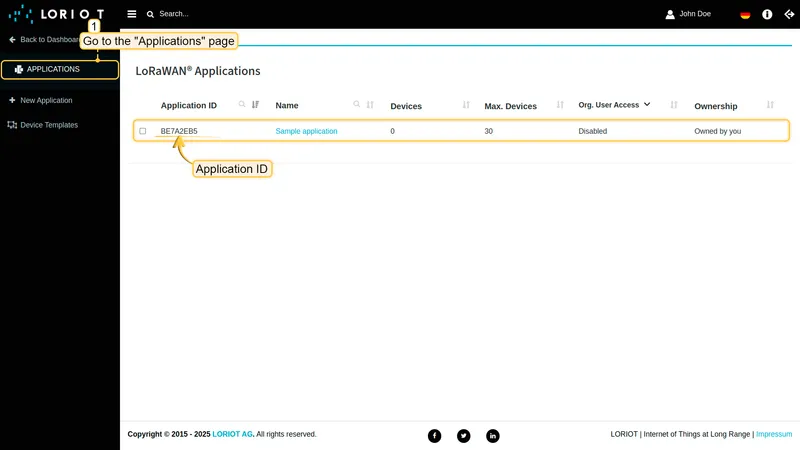

• Application ID — the LORIOT application ID
• Credentials type — authentication method for the LORIOT API; Basic reveals Email and Password fields for your LORIOT account

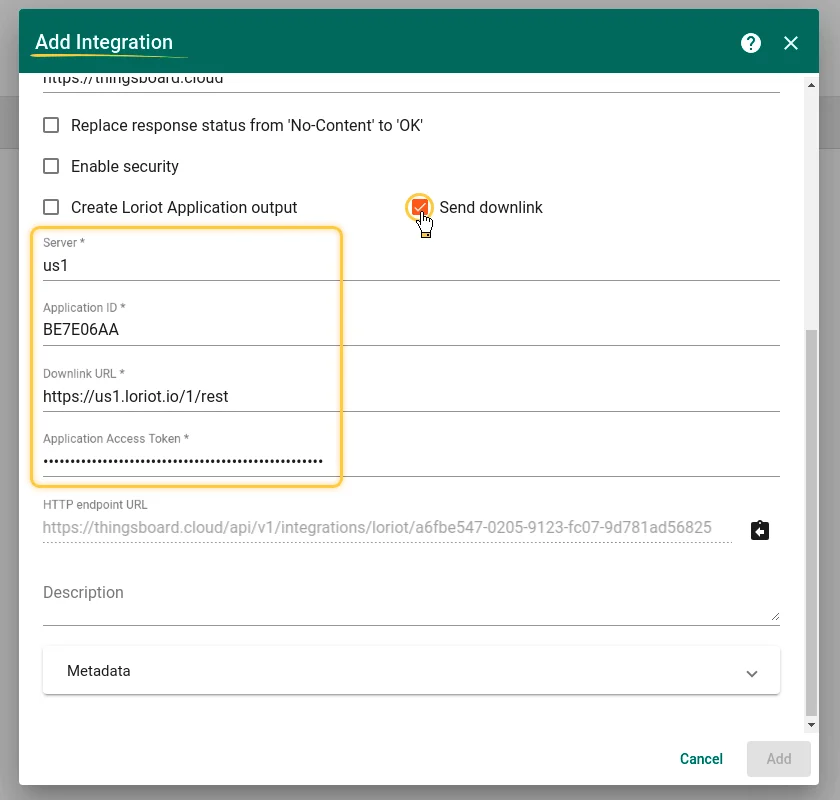

Send downlink

When enabled, ThingsBoard can send downlink commands to LORIOT devices via the LORIOT API. Enabling this toggle reveals additional fields:

• Downlink URL — auto-populated from Server and Domain (e.g. https://eu1.loriot.io/1/rest); override only if your setup uses a custom endpoint
• Application Access Token — LORIOT API token used to authenticate downlink requests; generate this in the Access Tokens section of your LORIOT application

Enable security (Headers filter)

Enable to restrict incoming requests to those carrying a specific HTTP header with a matching value. Click Add to define one or more Header / Value pairs. Requests missing any listed header or carrying an incorrect value are rejected. See Enable security for setup steps including the matching LORIOT HTTP Push configuration.

Execute remotely

When enabled, ThingsBoard generates an Integration key and Integration secret that allow the integration to run as a separate process outside the ThingsBoard cluster — useful when the integration must reach services not accessible from the ThingsBoard server.

Advanced settings

• Replace response status from ‘No Content’ to ‘OK’ — when checked, ThingsBoard responds with HTTP 200 instead of 204; use this if LORIOT treats a 204 response as an error
• Description — optional text description for this integration
• Metadata — key-value pairs injected into every uplink message as integrationMetadata in converter scripts

To receive uplinks, ThingsBoard must be registered as an HTTP output in your LORIOT application. Choose one of the two methods below — both result in the same data flow.

• Option A: HTTP Push (recommended)
• Option B: Automatic setup

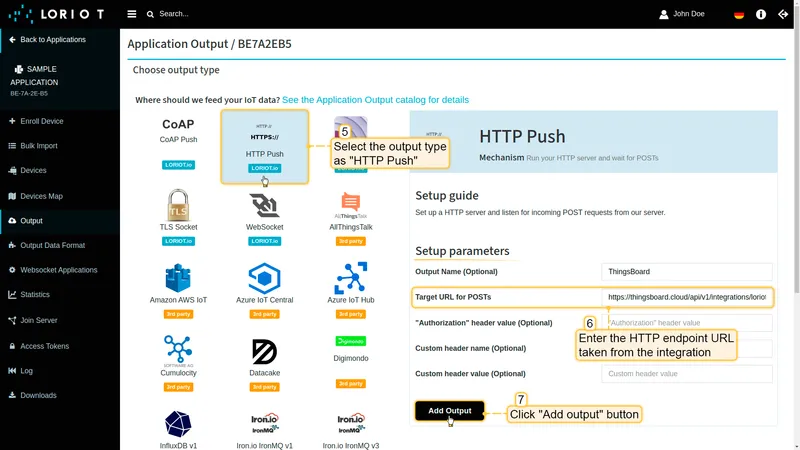

Manually create an HTTP Push output in the LORIOT UI. No LORIOT credentials are stored in ThingsBoard.

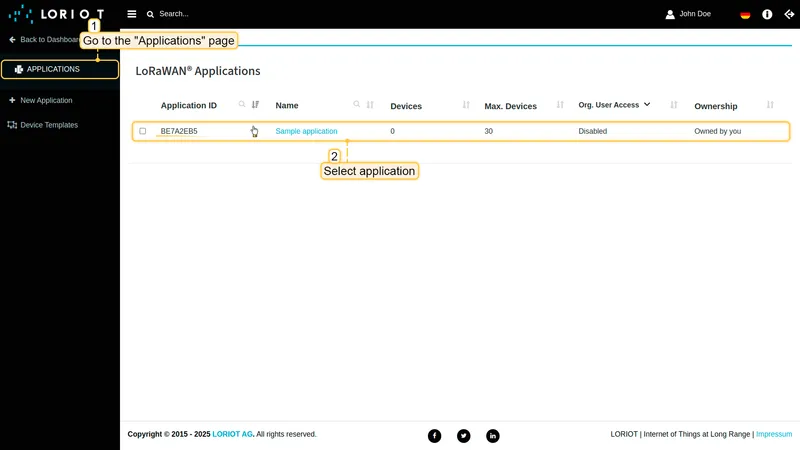

1. In the LORIOT UI, go to Applications and open your application.

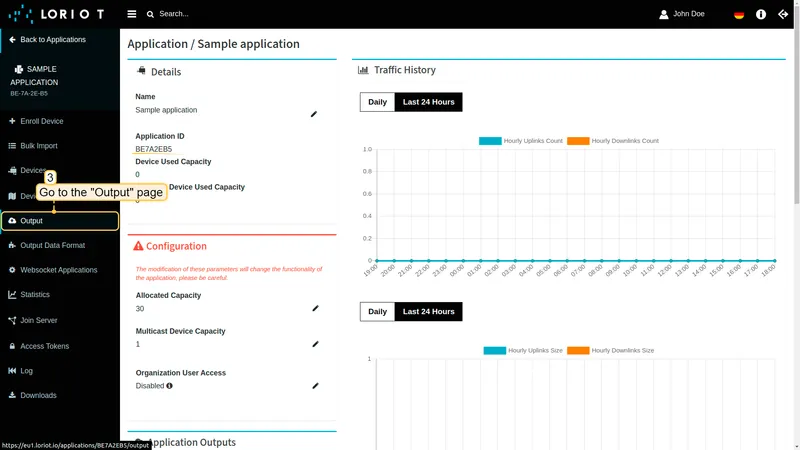

2. In the left sidebar, click Output.

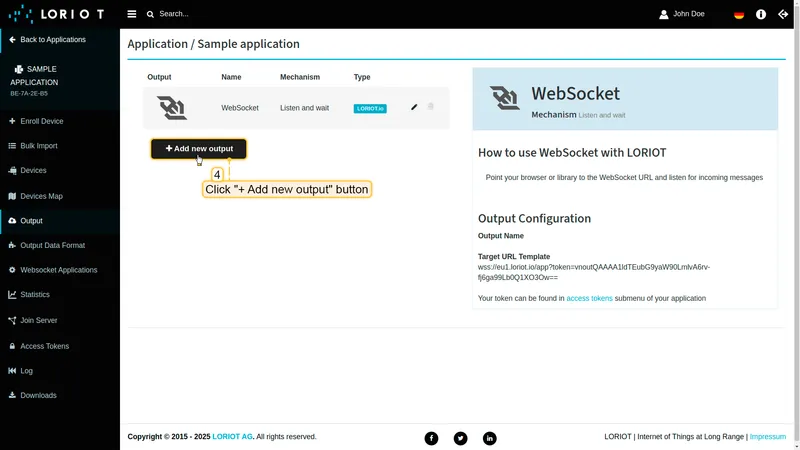

3. Click + Add new output.
4. Select HTTP Push as the output type.
5. Paste the HTTP endpoint URL copied from the integration Connection step into the Target URL for POSTs field.

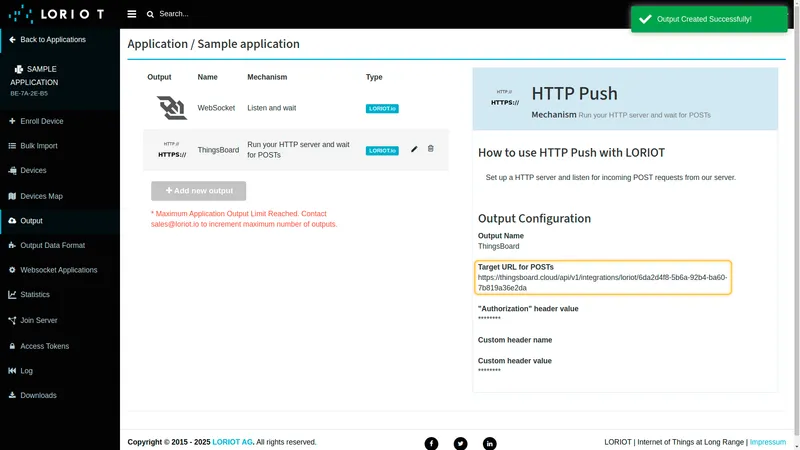

6. Click Add Output.

Go to Applications (1) and click your application to open it (2) Click Output in the left sidebar (3) Click + Add new output (4) Select HTTP Push (5), paste the ThingsBoard HTTP endpoint URL in Target URL for POSTs (6), and click Add Output (7) HTTP Push output created — LORIOT will now forward uplinks to ThingsBoard

To reject requests that don’t include specific HTTP headers, enable Enable security (Headers filter) in the integration settings.

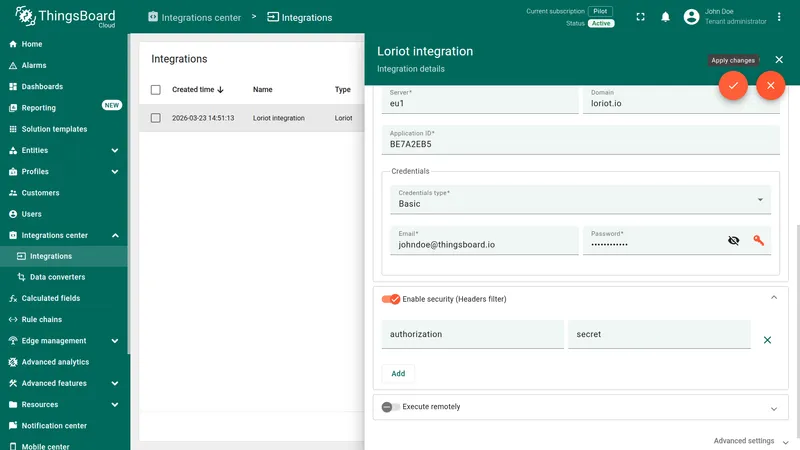

1. Open the Loriot integration, click the edit (pencil) icon, and enable Enable security (Headers filter).
2. Click Add and enter a Header name and Value (e.g. authorization / secret).
3. Click Apply changes.

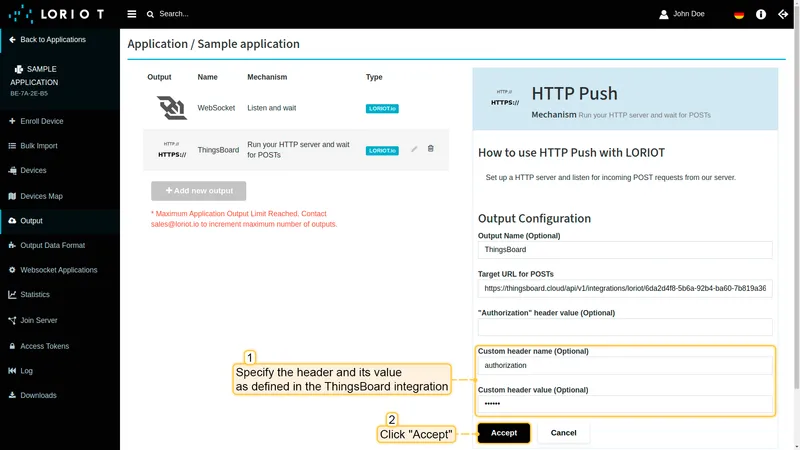

4. In the LORIOT HTTP Push output configuration, enter the same values in Custom header name and Custom header value, then click Accept.

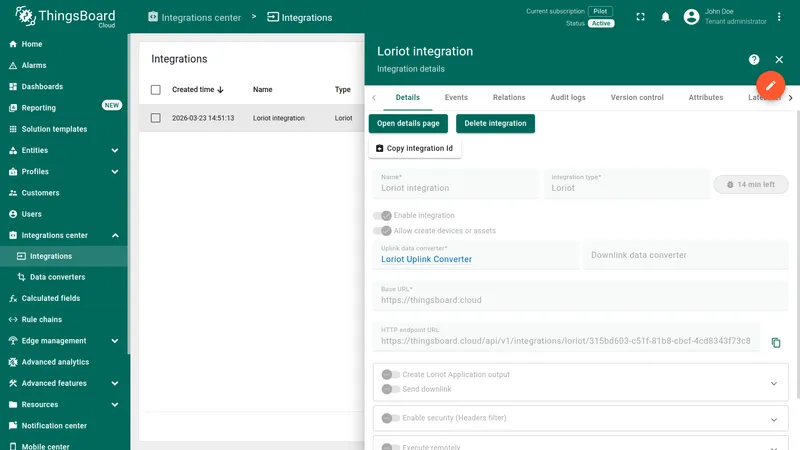

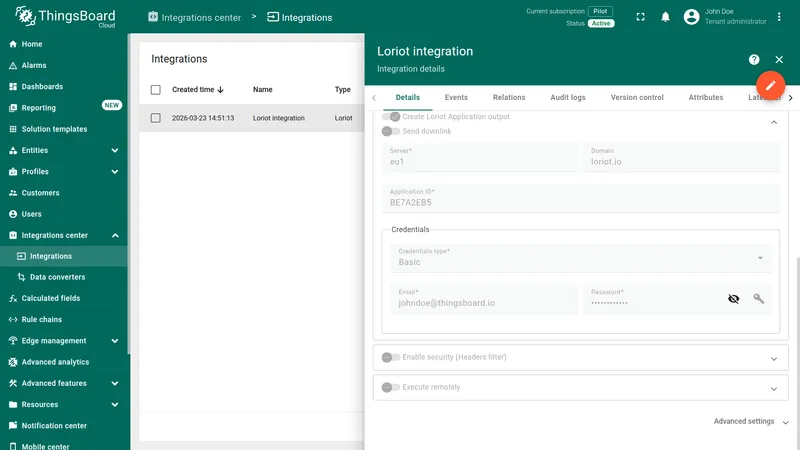

Integration details — Enable security (Headers filter) is off by default; click the edit icon to modify Enable security (Headers filter), add the header name (e.g. authorization) and value; the Create Loriot Application output credentials are also visible in this view — click Apply changes when done In the LORIOT HTTP Push output, enter the same header name and value in Custom header name and Custom header value, then click Accept

When a device sends an uplink message via LORIOT, ThingsBoard automatically creates the device and stores its telemetry. If you do not have a physical device sending data, you can emulate a device message by sending an HTTP request directly to the ThingsBoard endpoint using curl — bypassing LORIOT entirely. This is useful to verify that the integration and uplink converter are configured correctly before connecting real hardware. To send a test uplink, you need the HTTP endpoint URL from the integration details.

Go to Integrations center ⇾ Integrations, open the Loriot integration, and copy the HTTP endpoint URL.

Replace $HTTP_ENDPOINT_URL with the copied URL and run:

Without security:

curl -v -X POST \
  -H "Content-Type: application/json" \
  -d '{"EUI":"BE7A000000000552","data":"00BC614E5F092950","port":1,"cmd":"rx","dr":"SF12 BW125 4/5","snr":1.2,"ack":"false","freq":868500000,"fcnt":1,"rssi":-130,"ts":1613745998000}' \
  "$HTTP_ENDPOINT_URL"

With security:

curl -v -X POST \
  -H "Content-Type: application/json" \
  -H "$HEADER:$VALUE" \
  -d '{"EUI":"BE7A000000000552","data":"00BC614E5F092950","port":1,"cmd":"rx","dr":"SF12 BW125 4/5","snr":1.2,"ack":"false","freq":868500000,"fcnt":1,"rssi":-130,"ts":1613745998000}' \
  "$HTTP_ENDPOINT_URL"

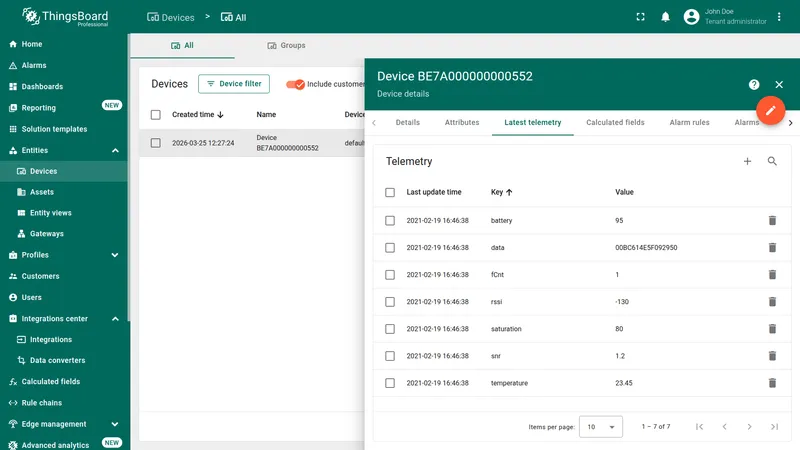

Once an uplink is received, a new device named Device BE7A000000000552 (matching the EUI field from the payload) appears in Entities ⇾ Devices:

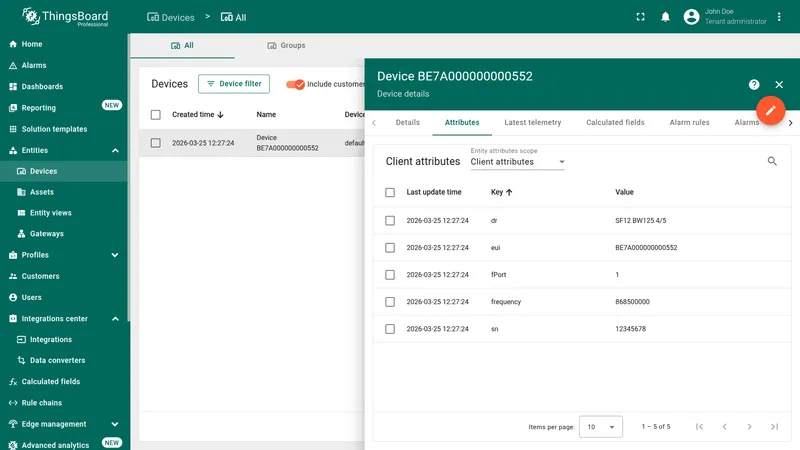

Go to Entities → Devices (1) — the device is auto-created on the first uplink (2); open it and check the Attributes tab (3) — dr, eui, fPort, and frequency are stored as client attributes Latest telemetry tab — raw LORIOT fields: data, fCnt, rssi, snr

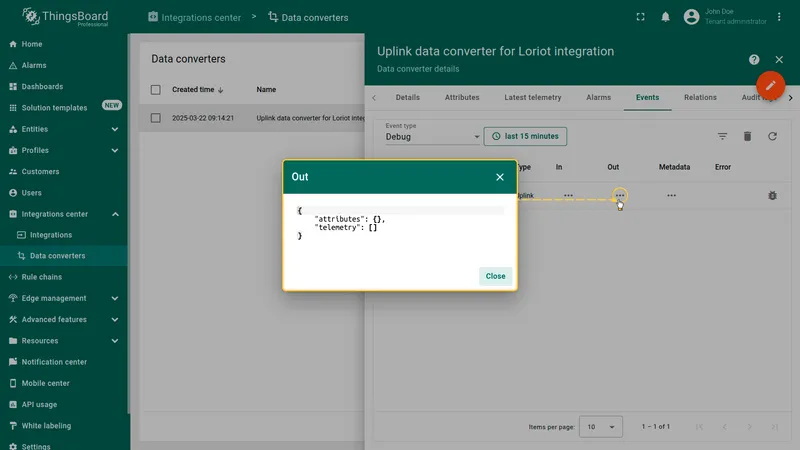

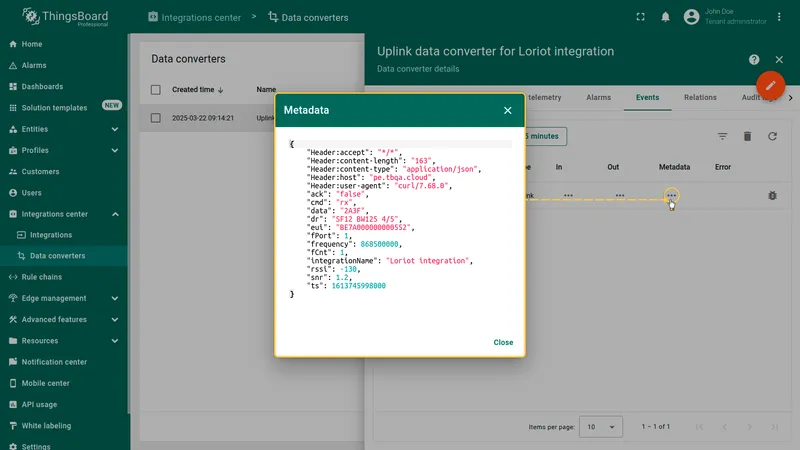

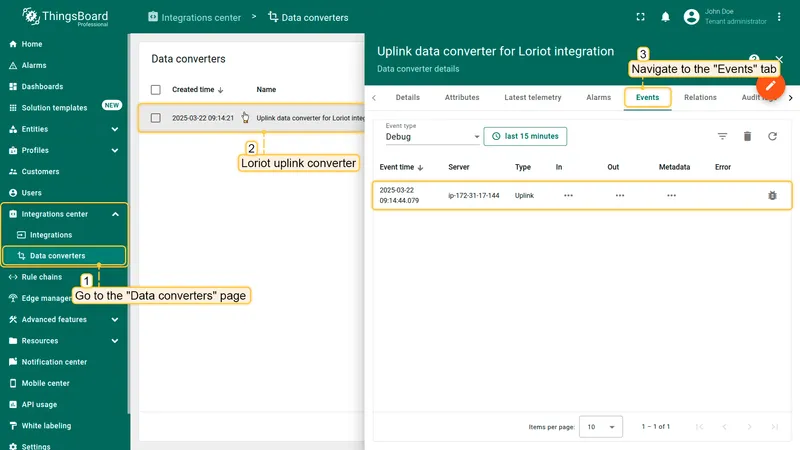

Go to Integrations center ⇾ Data converters, click the Loriot uplink converter, and open the Events tab — In shows the raw incoming payload bytes, Out shows the decoded result, Metadata shows all LORIOT message fields passed alongside the payload:

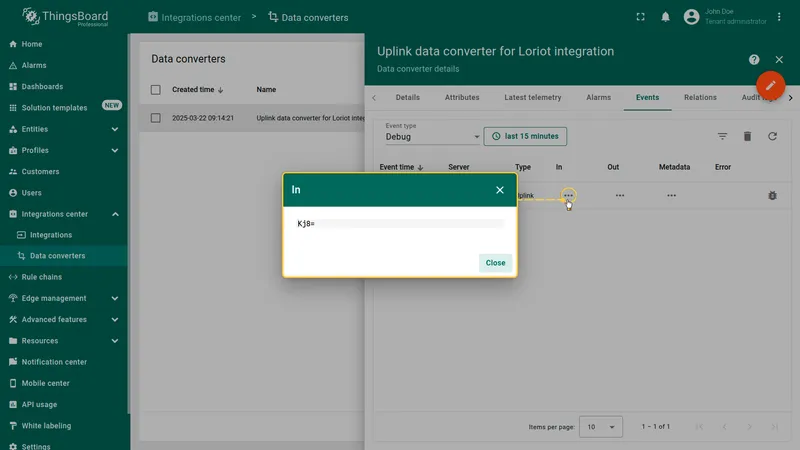

Go to Data converters (1), open the Loriot uplink converter (2), and navigate to the Events tab (3) — one Uplink event listed In — raw payload bytes passed to the decoder Out — decoded result with attributes and telemetry Metadata — HTTP request headers and all LORIOT message fields (EUI, cmd, data, fPort, rssi, snr, ts, etc.)

The downlink converter encodes ThingsBoard Rule Engine messages into LORIOT-compatible payloads. For the full encoder function reference, see Downlink data converter.

The encoder result must include two metadata fields required by the LORIOT API:

• EUI — the device EUI (see below)
• port — the LoRaWAN port (1–223)

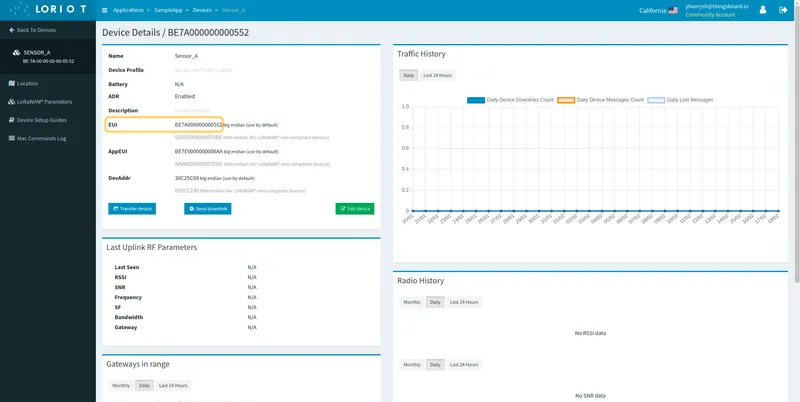

To find the device EUI, go to the Devices section of your LORIOT application and open the device.

Go to the Devices section of your LORIOT application and click the device to open its details The device EUI is shown in the device details — copy it for use in the encoder metadata

1. Go to Integrations center ⇾ Data converters.
2. Click + Add data converter ⇾ Create new converter.
3. Enter a name: Loriot Downlink Converter, and set Type to Downlink.
4. Paste the encoder function below and click Add.

// Encode downlink data from incoming Rule Engine message
// msg        - JSON message payload
// msgType    - message type, e.g. 'ATTRIBUTES_UPDATED'
// metadata   - key-value pairs with additional message data
var result = {
    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",
    // downlink data
    data: msg.firmware,
    // metadata must include EUI and port
    metadata: {
        "EUI": metadata.deviceName,
        "port": 1
    }
};
return result;

// Encode downlink data from incoming Rule Engine message
// msg        - JSON message payload
// msgType    - message type, e.g. 'ATTRIBUTES_UPDATED'
// metadata   - key-value pairs with additional message data
var result = {
    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",
    // downlink data
    data: msg.firmware,
    // metadata must include EUI and port
    metadata: {
        "EUI": metadata.deviceName,
        "port": 1
    }
};
return result;

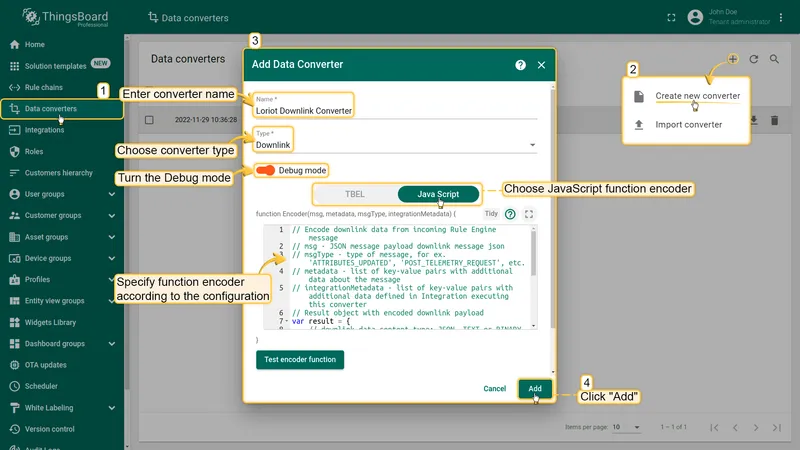

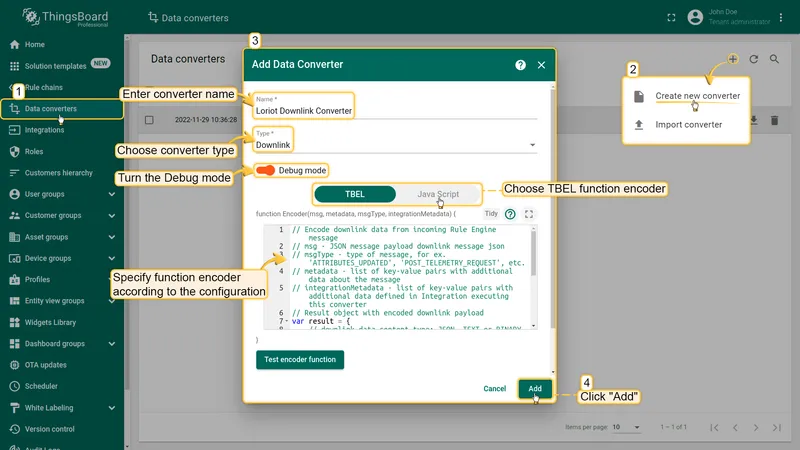

Go to Data converters (1), click + Add data converter → Create new converter (2): enter the name, set Type to Downlink, select TBEL (3), paste the encoder function, and click Add (4) To use JavaScript instead of TBEL: select the Java Script tab (3), paste the encoder function, and click Add (4)

After creating the converter, open the Loriot integration, click the edit icon, select Loriot Downlink Converter in the Downlink data converter field, and click Apply changes.

To send messages from ThingsBoard to LORIOT devices, enable Send downlink in the integration settings and provide the LORIOT API credentials.

1. Open the Loriot integration and click the edit icon.
2. Enable Send downlink and fill in the required fields:
   • Server — the LORIOT server subdomain (e.g. us1); see Finding server and application ID.
   • Application ID — the Application ID from your LORIOT project.
   • Downlink URL — auto-populated from Server/Application ID (e.g. https://us1.loriot.io/1/rest); override if your setup uses a custom endpoint.
   • Application Access Token — generate this in the Access Tokens section of your LORIOT application and paste it here.
3. Click Apply changes.

To trigger a downlink when a shared attribute changes, add an Integration Downlink node to the Root Rule Chain:

1. Open Rule Chains ⇾ Root Rule Chain and click the edit icon.
2. Add an Integration Downlink action node and connect it to the Message Type Switch node via the Attributes Updated relation.
3. Save the rule chain.

1. Go to Entities ⇾ Devices and open the device (e.g. Device BE7A000000000552).
2. Open the Attributes tab, switch to Shared attributes, and click +.
3. Enter key firmware and a value (e.g. 01052020.v1.1), then click Add.

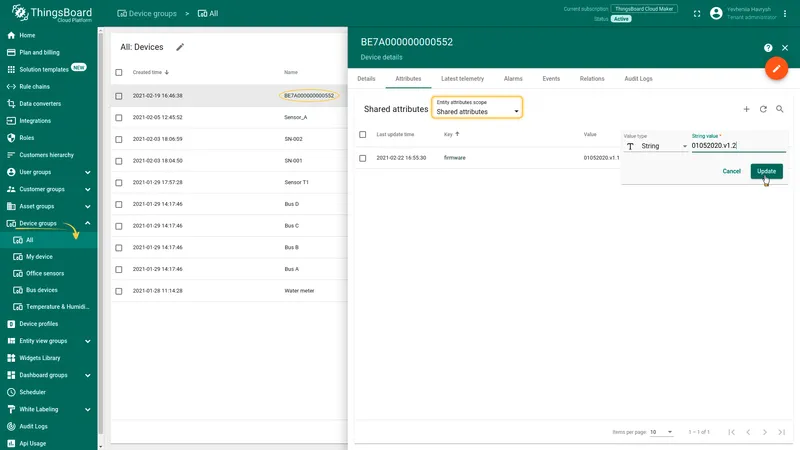

4. Click the edit icon next to the attribute, change the value (e.g. to 01052020.v1.2), and click Update.

Open the device Shared attributes and add the firmware key with an initial value Edit the firmware value (e.g. 01052020.v1.2) and click Update — this triggers the downlink

Go to Integrations center ⇾ Data converters, click the Loriot Downlink Converter, and open the Events tab — In shows the incoming attribute update, Out shows the encoded payload sent to LORIOT:

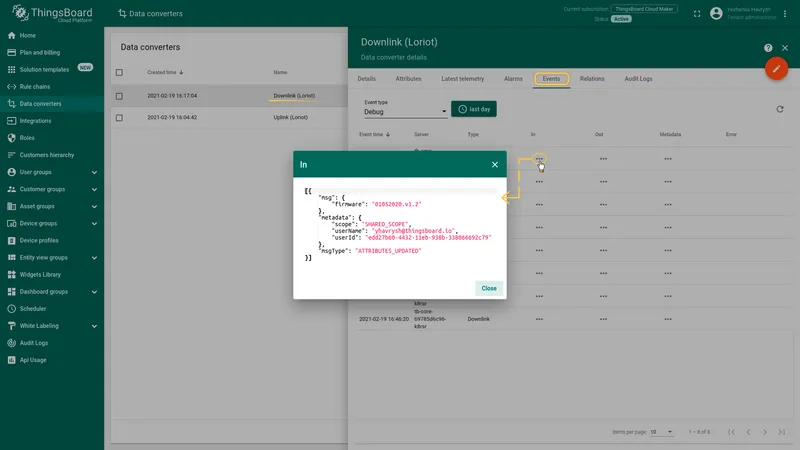

In — the incoming ATTRIBUTES_UPDATED message with the new firmware value and device metadata Out — encoded downlink payload: contentType TEXT, data contains the firmware value, metadata includes EUI and port

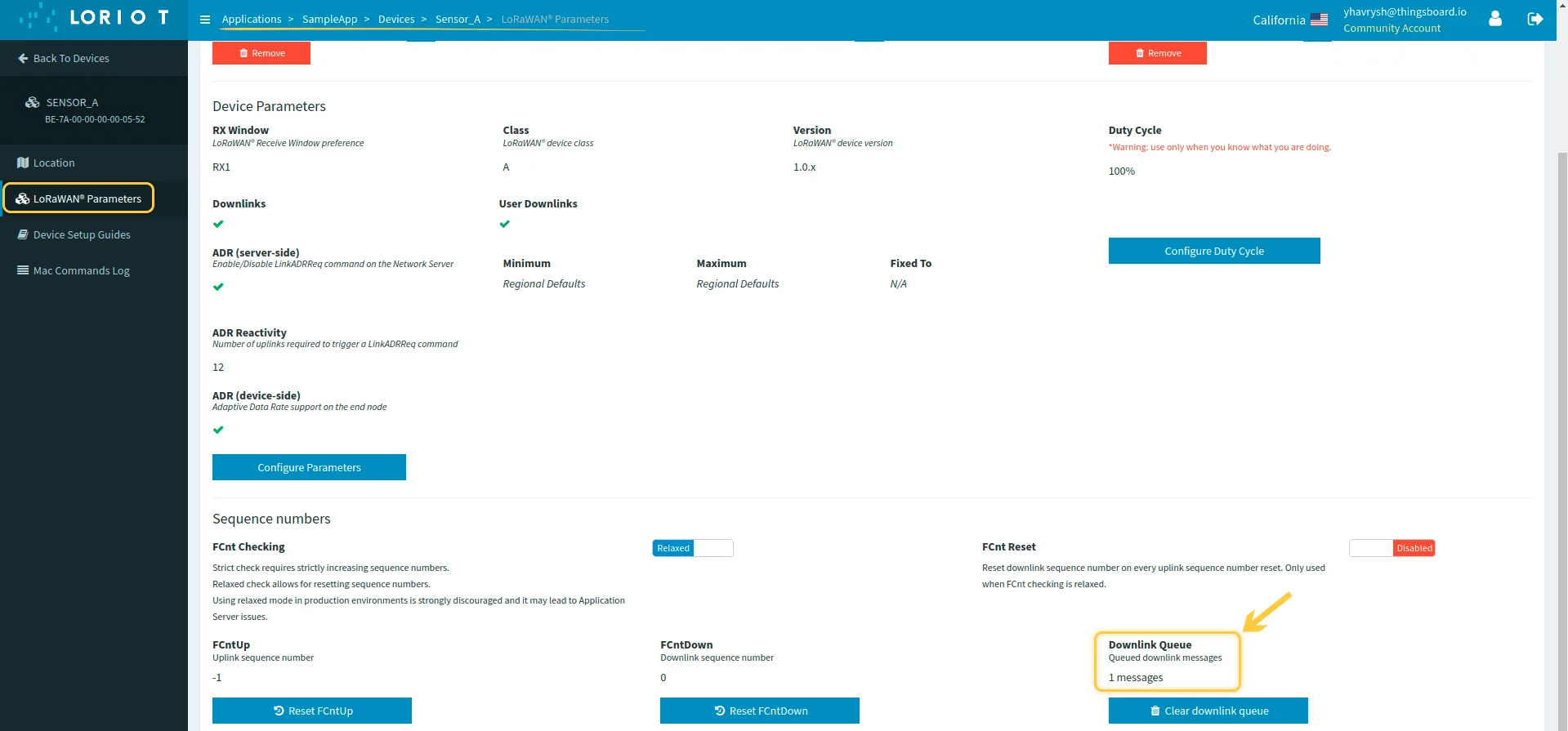

To confirm the message reached LORIOT, open the device in the LORIOT UI, go to LoRaWAN Parameters, and check the Downlink Queue at the bottom of the page.

• Integration Overview
• Uplink Converters
• Downlink Converters
• Rule Engine
• ThingsBoard Expression Language (TBEL)
