Self-Registration
Self-registration allows a tenant to configure a sign-up page so that customers can create their own accounts, log in with predefined permissions, and immediately start using the platform. The configuration is accessible from Security > Self registration.
Prerequisites
Section titled “Prerequisites”Before configuring self-registration, ensure the following:
| Prerequisite | Details |
|---|---|
| ThingsBoard PE instance | A running instance accessible via a public IP address. See installation options |
| Domain name | A valid DNS record pointing to your instance (e.g., iot.mycompany.com). See Domains |
| HTTPS | TLS/SSL configured for your domain (e.g., via Let’s Encrypt). See HTTPS (TLS) configuration |
| reCAPTCHA | A site key and secret from the Google reCAPTCHA admin console. Supports v2 Checkbox and v3 |
| Mail server | Outgoing SMTP configured so activation emails can be sent. See mail settings |
Self-registration settings

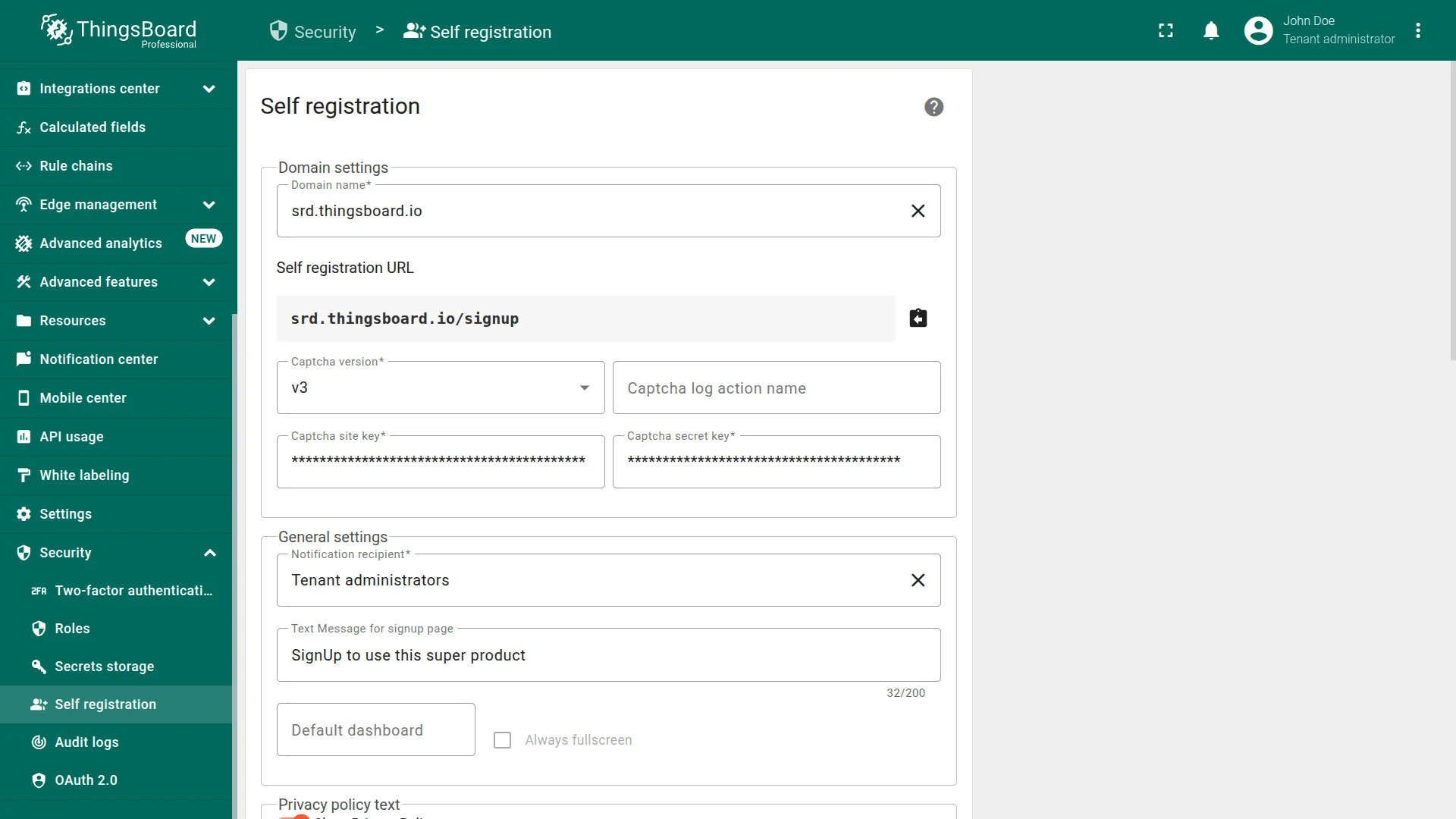

Section titled “Self-registration settings”Navigate to Security > Self registration. The form is divided into several sections:
Domain settings
Section titled “Domain settings”| Setting | Description |
|---|---|
| Domain name | The domain users will use to access the sign-up page. Click Create new to register a new domain |
| Self registration URL | Auto-generated URL for the sign-up page based on the selected domain |
CAPTCHA settings
Section titled “CAPTCHA settings”| Setting | Description |
|---|---|
| Captcha version | Choose between v2 Checkbox (user clicks “I’m not a robot”) or v3 (score-based, invisible) |
| Captcha site key | Public site key from the Google reCAPTCHA admin console |
| Captcha secret key | Secret key from the Google reCAPTCHA admin console |
| Captcha log action name | (v3 only) Action name used for reCAPTCHA analytics |
General settings
Section titled “General settings”| Setting | Description |
|---|---|
| Notification recipient | Who receives notifications about new registrations. Select an existing recipient or click Create new to define one. See notification system for details on configuring recipients |
| Text message for signup page | Custom welcome text displayed on the sign-up form (up to 200 characters) |
| Default dashboard | The dashboard shown to the user after login |
| Always fullscreen | When enabled, the default dashboard opens in fullscreen mode |
Privacy policy and Terms of Use
Section titled “Privacy policy and Terms of Use”| Setting | Description |
|---|---|
| Show Privacy Policy | Toggle to display a privacy policy on the sign-up form. Use the rich text editor to compose the content |
| Show Terms of Use | Toggle to display terms of use on the sign-up form. Use the rich text editor to compose the content |
User group roles
Section titled “User group roles”The User group roles table defines what permissions self-registered users receive. Each entry specifies:
| Column | Description |
|---|---|
| Role name | The role assigned to the user |
| Role type | Generic (entity-level permissions) or Group (access to a specific entity group) |
| Group type | The entity group type the role applies to (for Group roles) |
| Group name | The specific entity group (for Group roles) |
Click + to add a role assignment. For example:
- A Generic “Customer Administrator” role — gives the user full control over entities within their customer scope
- A Group “Read-Only” role scoped to a “Shared Dashboards” group — gives read-only access to specific dashboards
Configure self-registration
Section titled “Configure self-registration”-
Navigate to Security > Self registration.
-
Select or create a domain name for the sign-up page.
-

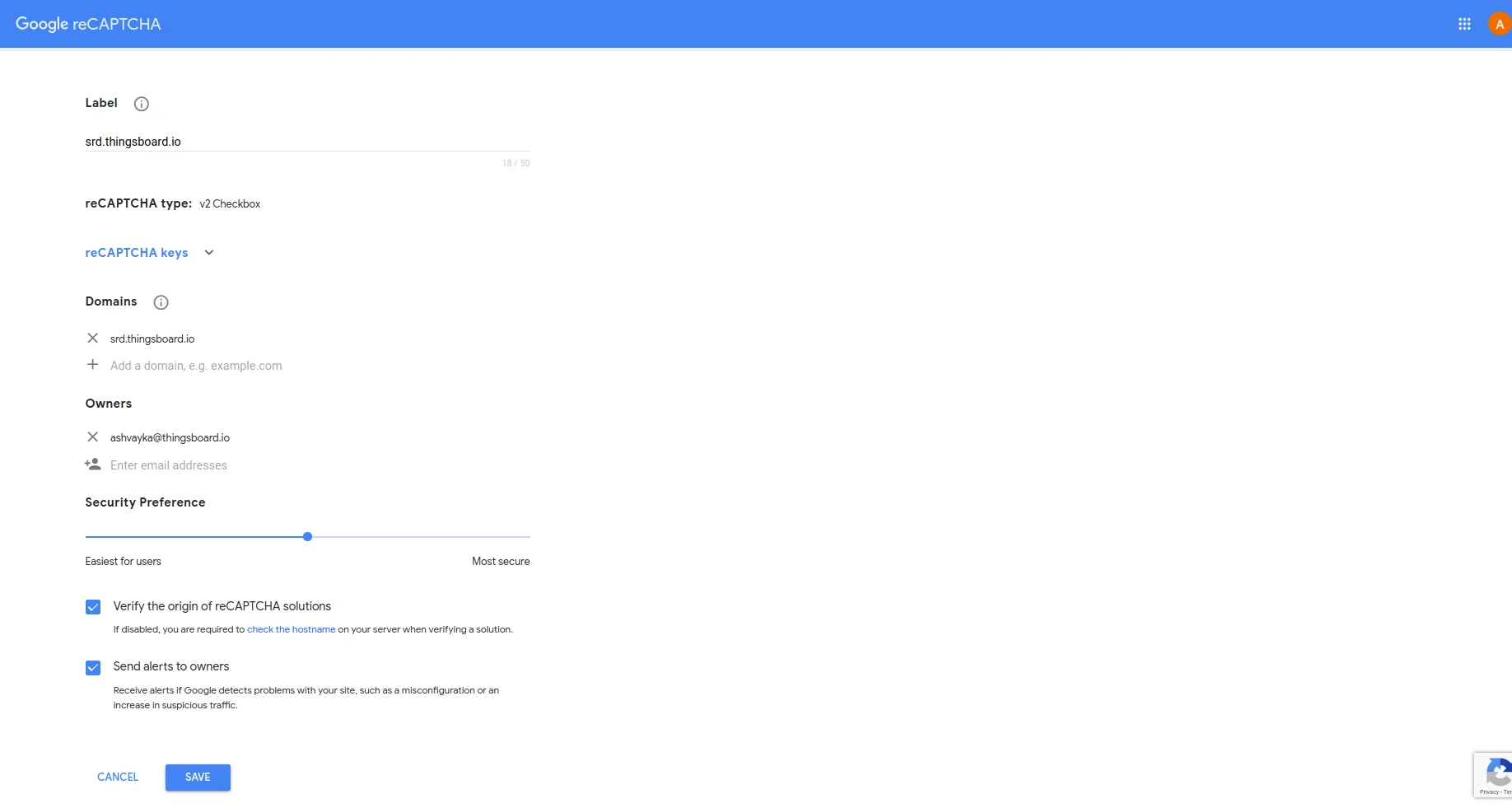

Configure CAPTCHA — choose the version (v2 Checkbox or v3) and enter your site key and secret key from the Google reCAPTCHA admin console.
-
Set the notification recipient for new registration alerts.
-
Optionally set a welcome text, default dashboard, and enable Always fullscreen.
-
Configure Privacy Policy and/or Terms of Use text if needed.
-
Add user group roles to define the permissions for self-registered users.
-
Click Save.

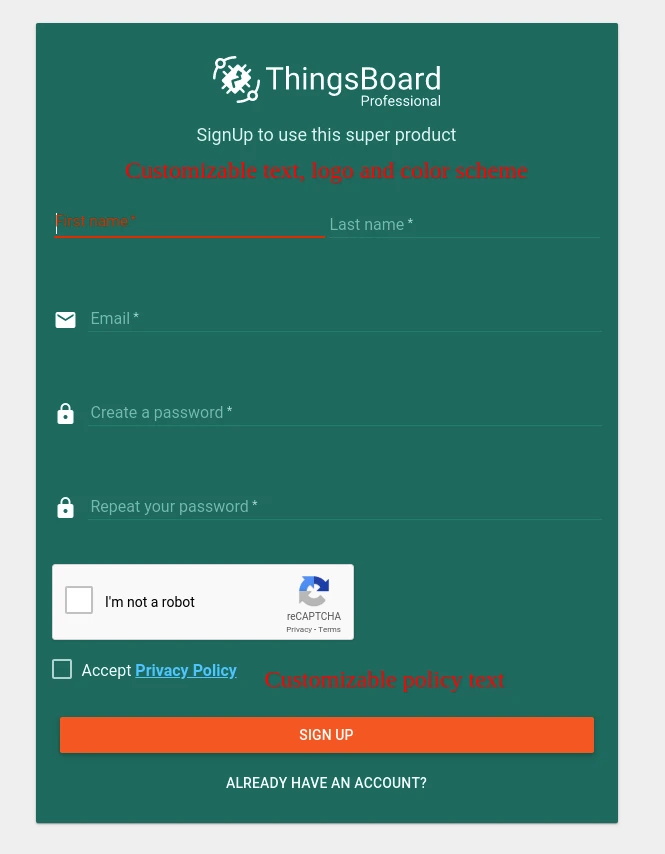

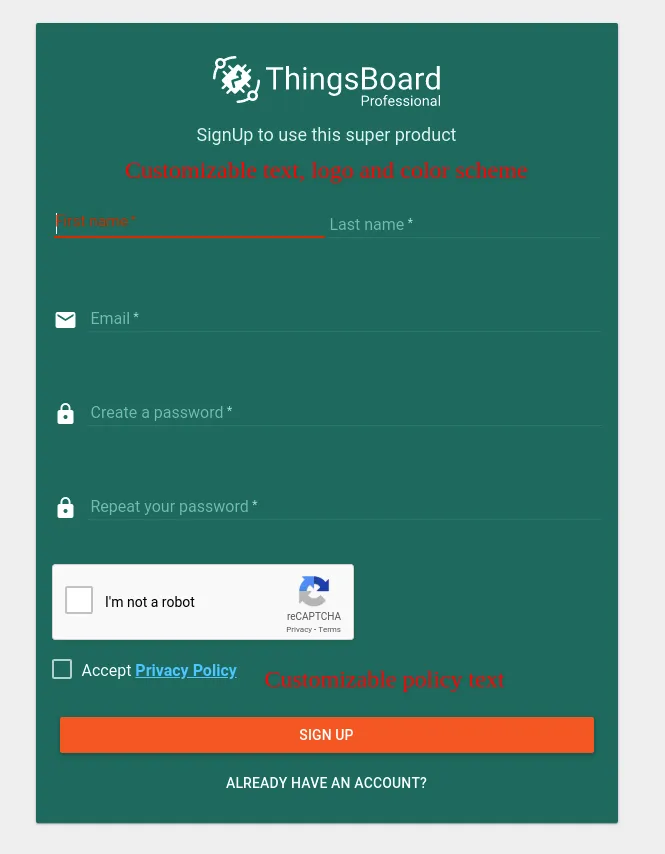

After saving, navigate to the self-registration URL to verify that the sign-up form works correctly. New users who register will be isolated within their own customer scope and can manage only their own devices and assets.
Example: self-registration with a shared dashboard
Section titled “Example: self-registration with a shared dashboard”A common use case is allowing customers to self-register and immediately see a device management dashboard.
-
Create user roles. Navigate to Roles and create a “Customer Administrator” generic role that allows all operations within the customer scope. Optionally create a “Read-Only” group role for shared dashboard access.
-

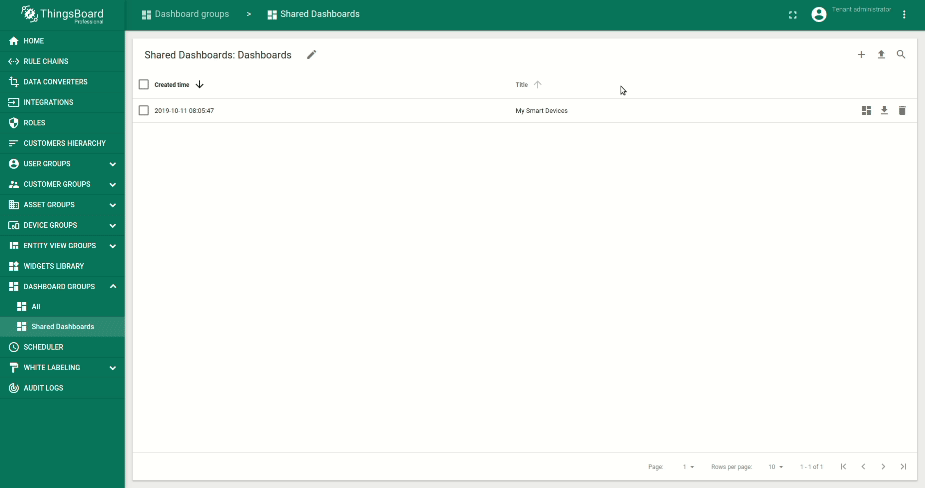

Prepare a shared dashboard. Create or import a dashboard (e.g., a device list with add/edit/remove capabilities) and place it in a dashboard group such as “Shared Dashboards”.
-
Configure self-registration. Set the domain, CAPTCHA, and add both roles — the “Customer Administrator” generic role and the “Read-Only” group role scoped to the “Shared Dashboards” group. Select the shared dashboard as the default and enable Always fullscreen.
-
Save and test by registering a new account through the sign-up form.
