Time Window

The Time window defines the temporal scope and aggregation rules applied to time-series telemetry displayed on dashboards.

Time window parameters can be configured at:

Dashboard level — global time window applied to all supported widgets.
Widget level — local override for a specific widget.

Video tutorial

Watch this short video to learn how to configure Time Window settings, switch between Realtime and History modes, and adjust aggregation and grouping intervals.

Configuration levels

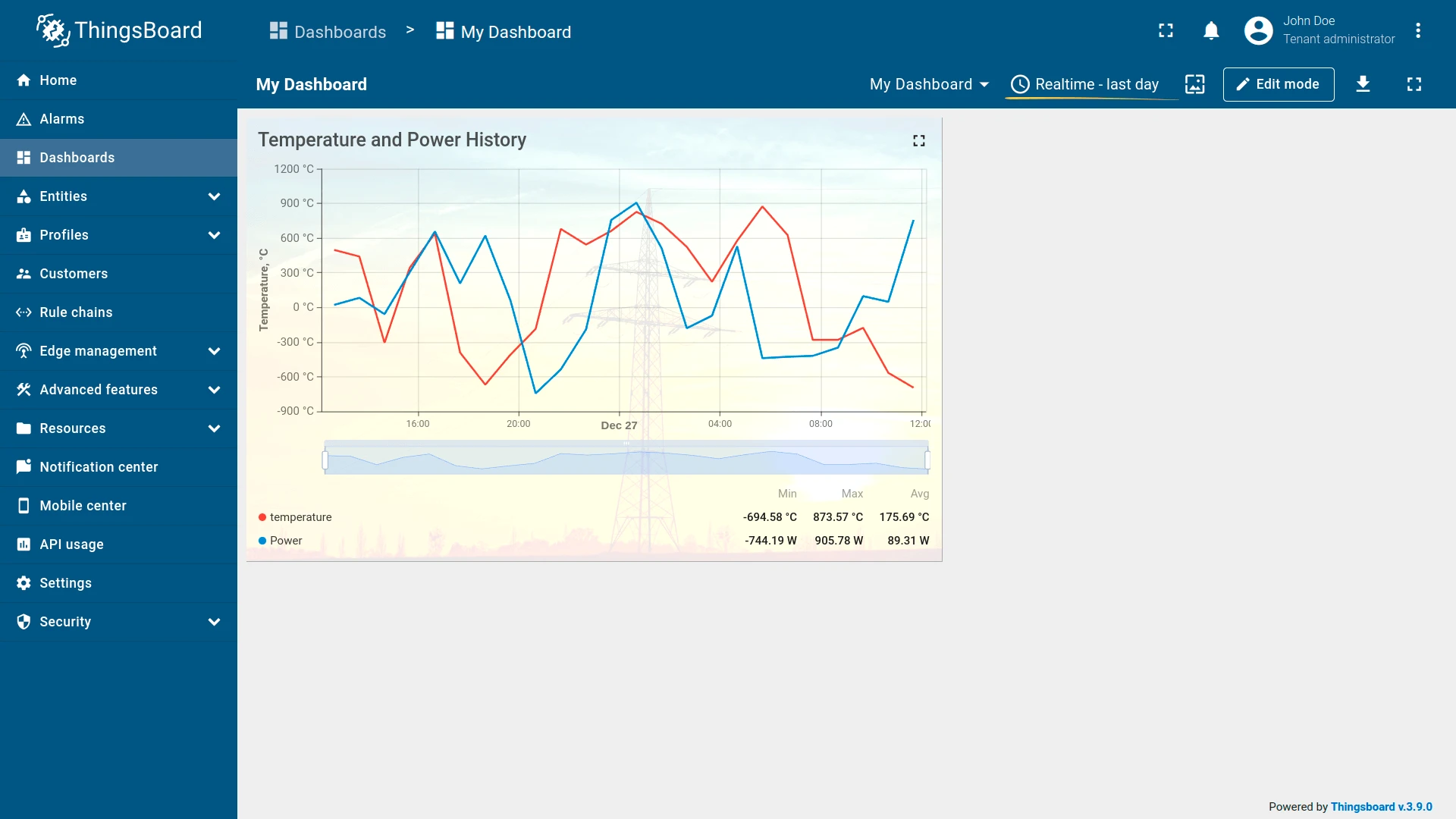

Dashboard time window

The dashboard time window is configured in edit mode via the Edit time window dialog and saved as part of the dashboard configuration.

Changes made in view mode are temporary and reset to the last saved configuration after page reload or reopening the dashboard.

Each time-series widget can use either the dashboard time window or its own configuration.

To configure a custom time window, enable Use widget time window in the widget settings.

Widget-level configuration allows:

Defining a custom time window
Independent aggregation and grouping interval settings

When a widget-level time window is enabled, the widget ignores the dashboard-level configuration.

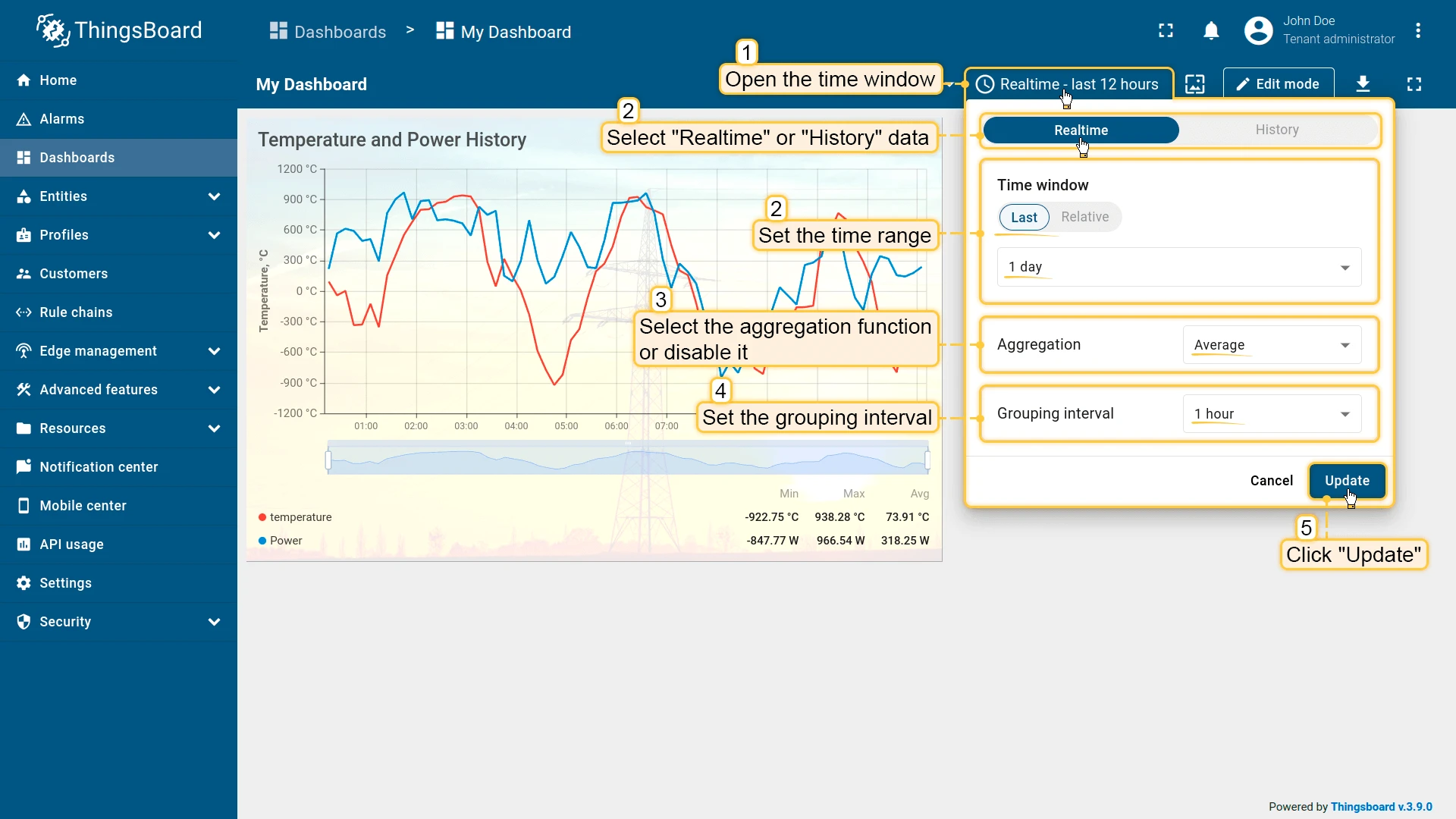

Mode selection

The time window dialog supports two data retrieval modes:

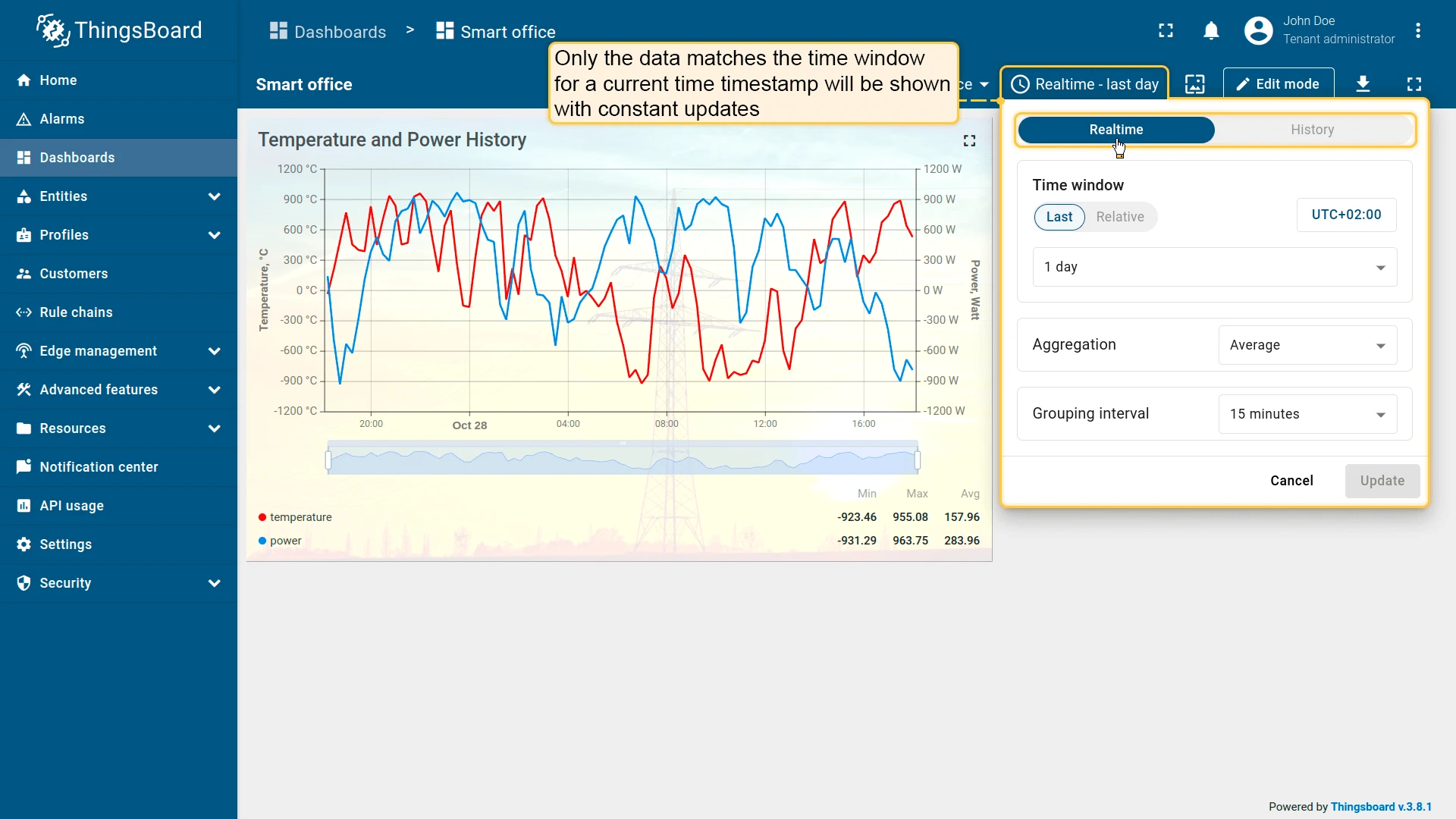

Real-time — widgets continuously receive updates from the server for the current time range.

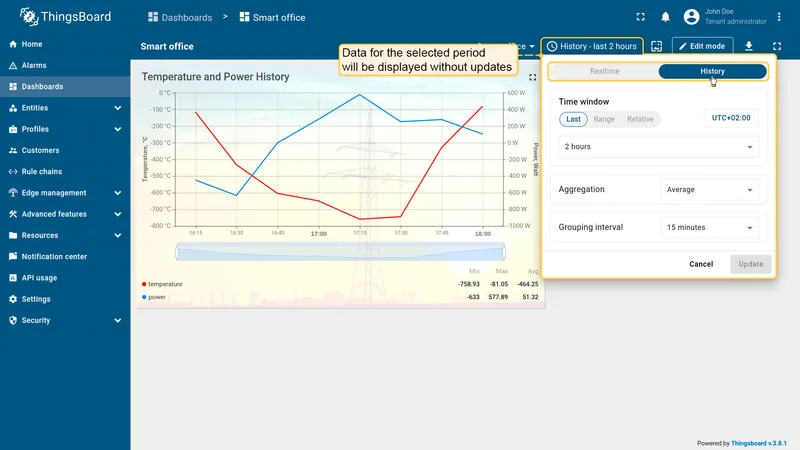

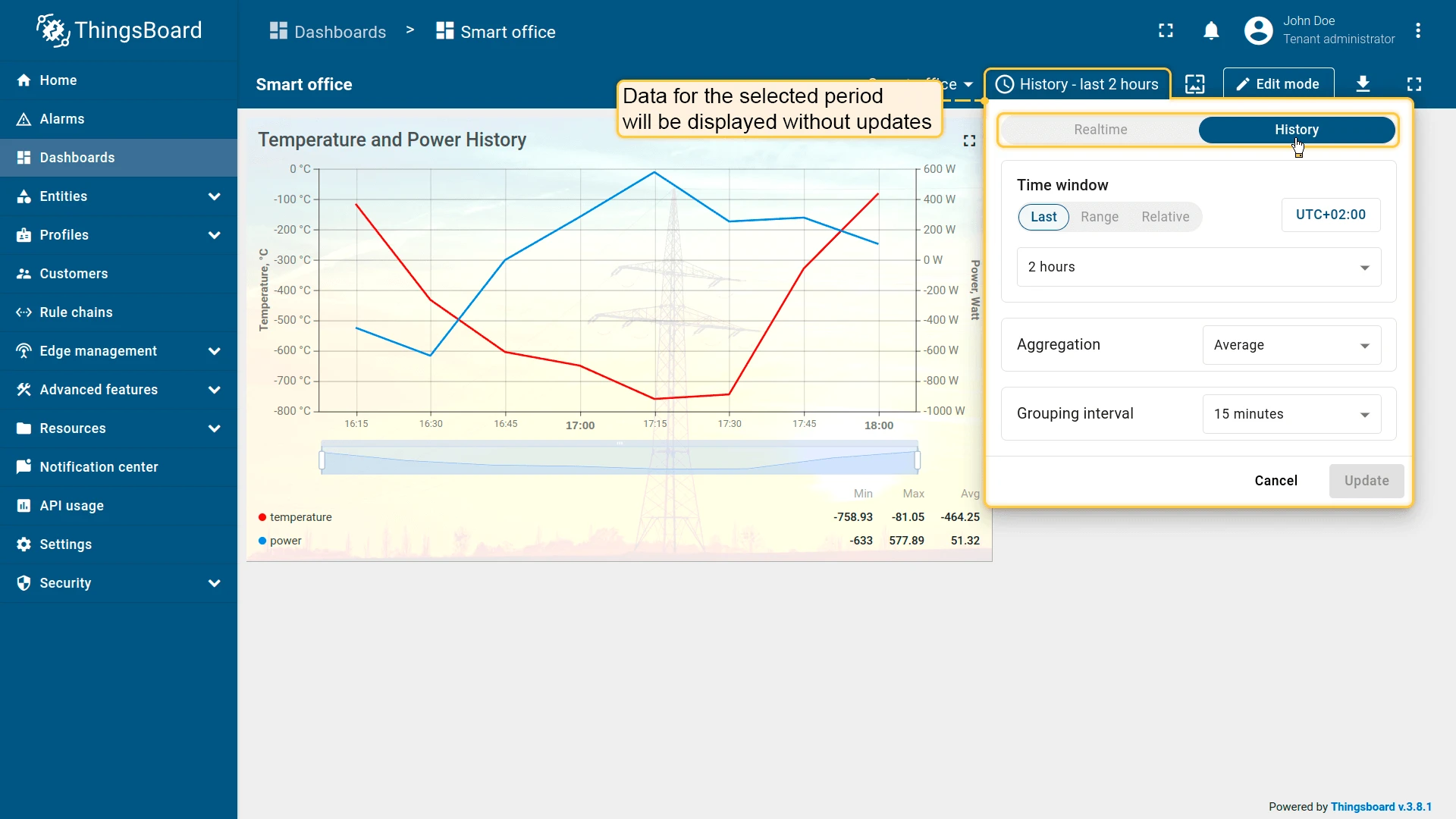

History — widgets load data once for a fixed period; no live updates.

Interval types

Type	Description	Mode Availability	Behavior	Example
Last	Rolling interval counted backward from the current time.	Realtime, History	In Realtime mode, continuously shifts forward. In History mode, fixed period ending at current time.	Last 5 minutes, Last 1 hour

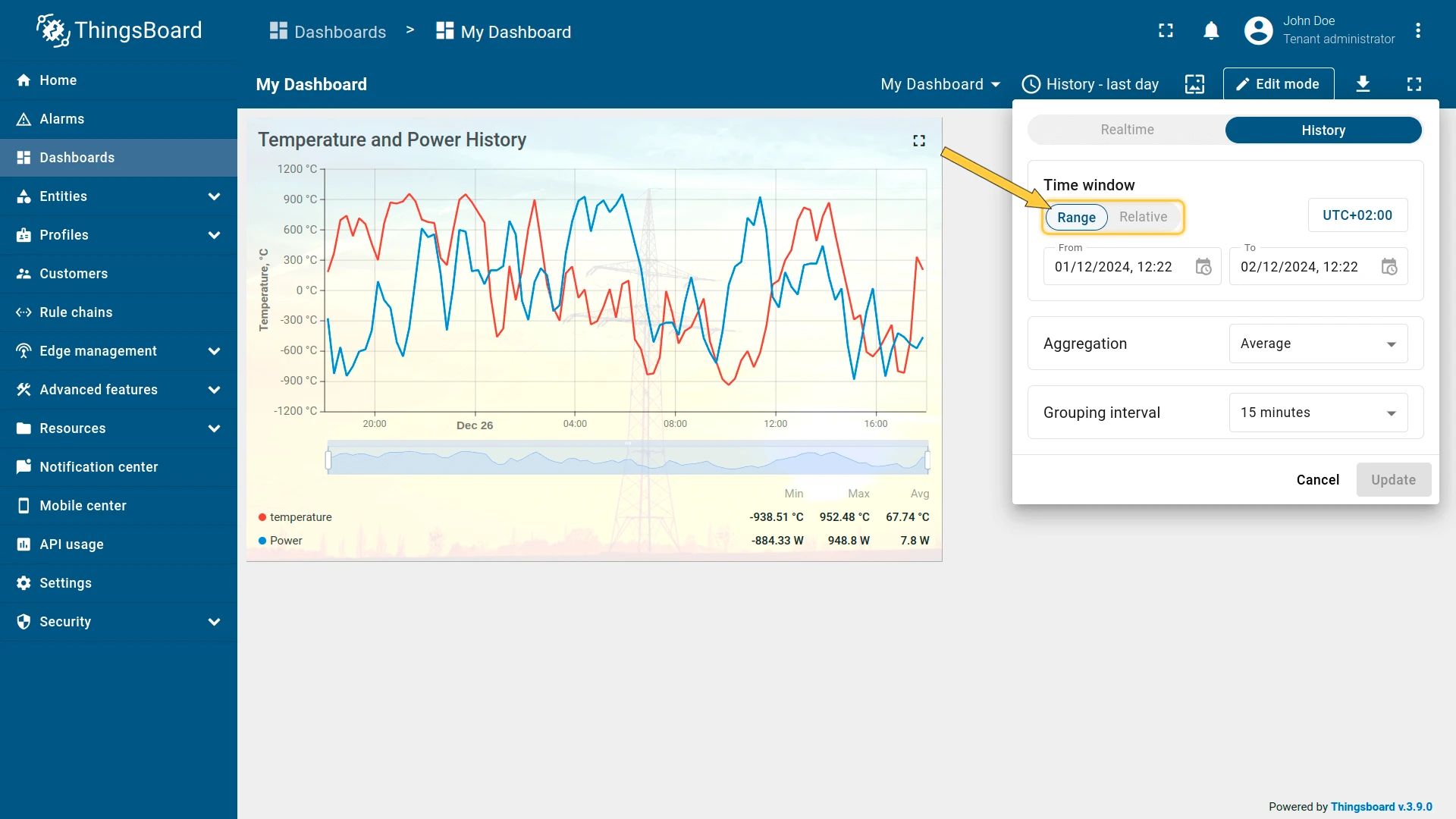

Range	Explicit start and end timestamps.	History only	Fixed interval. Does not update automatically.	2026-03-01 08:00 – 2026-03-01 12:00

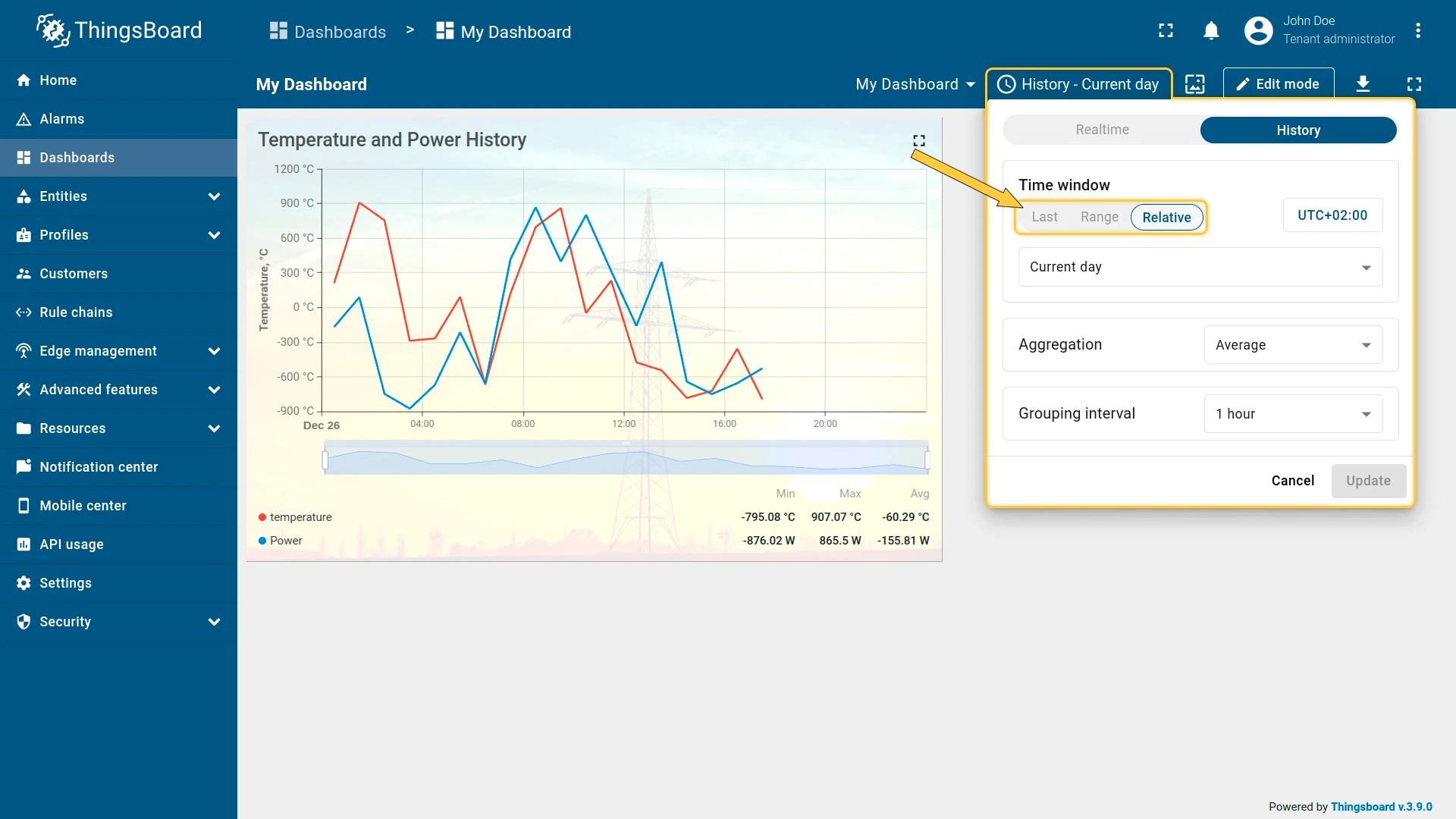

Relative	Calendar-aligned interval.	Realtime, History	Aligned to calendar boundaries.	Current day, Previous month

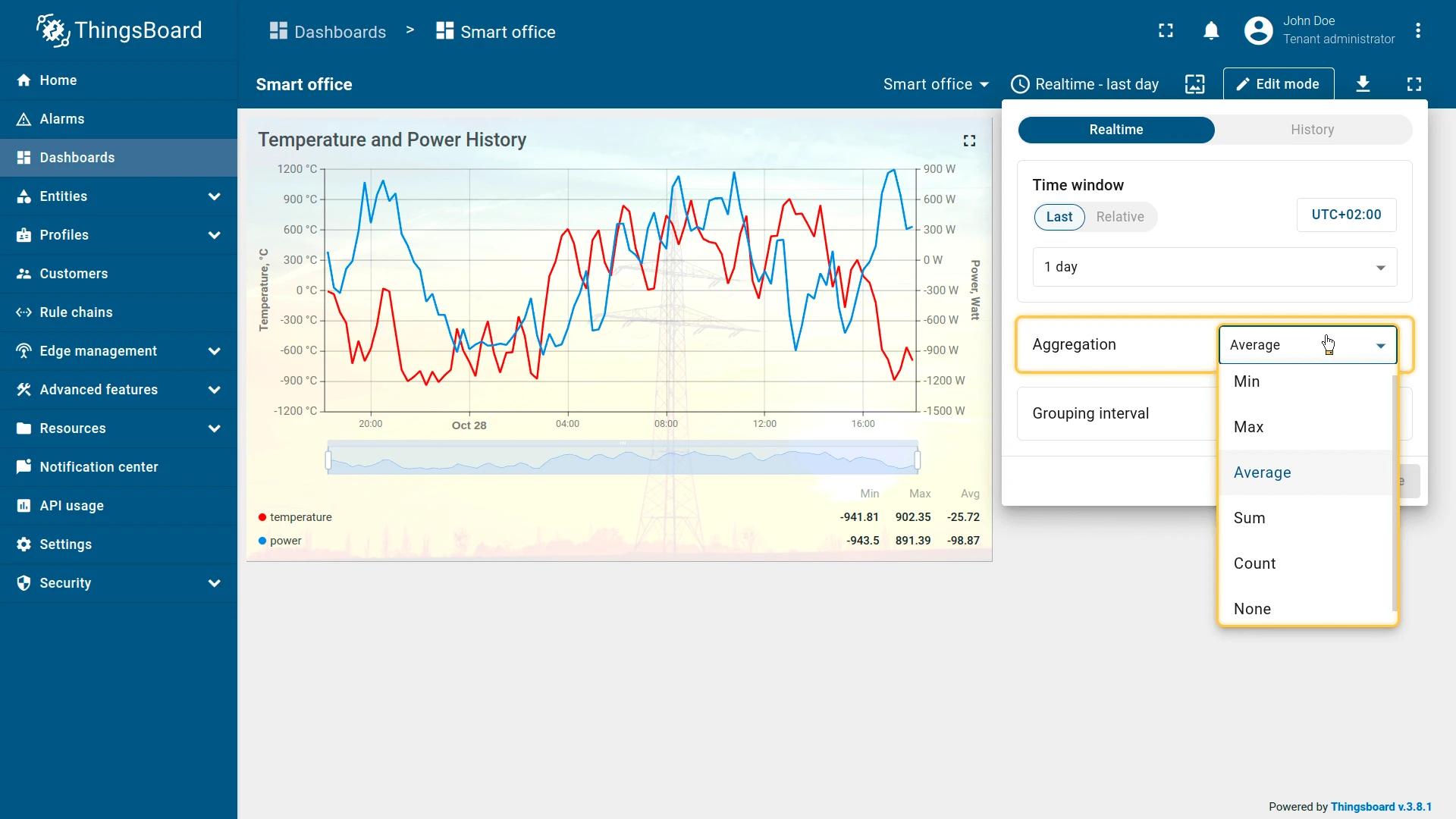

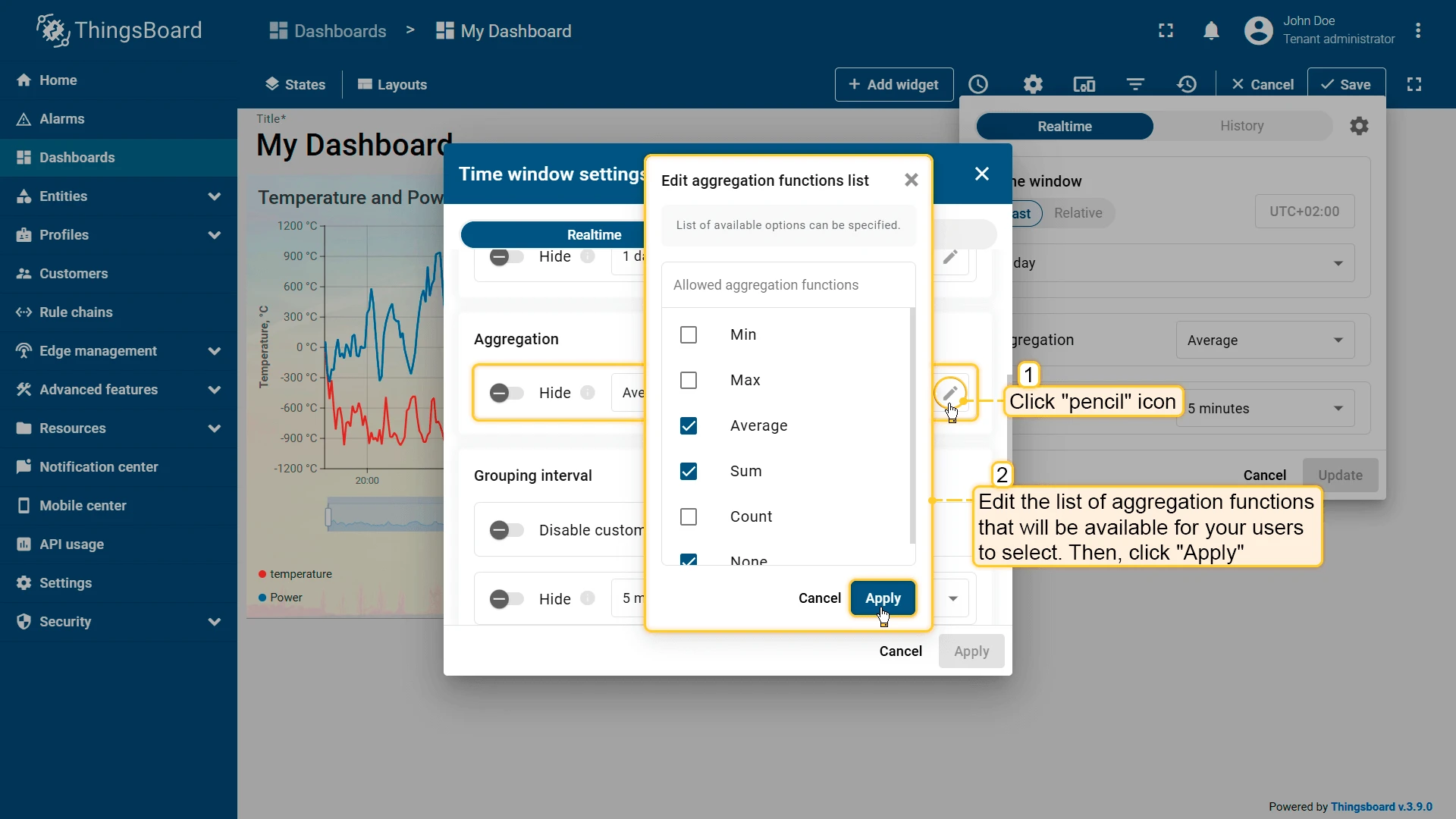

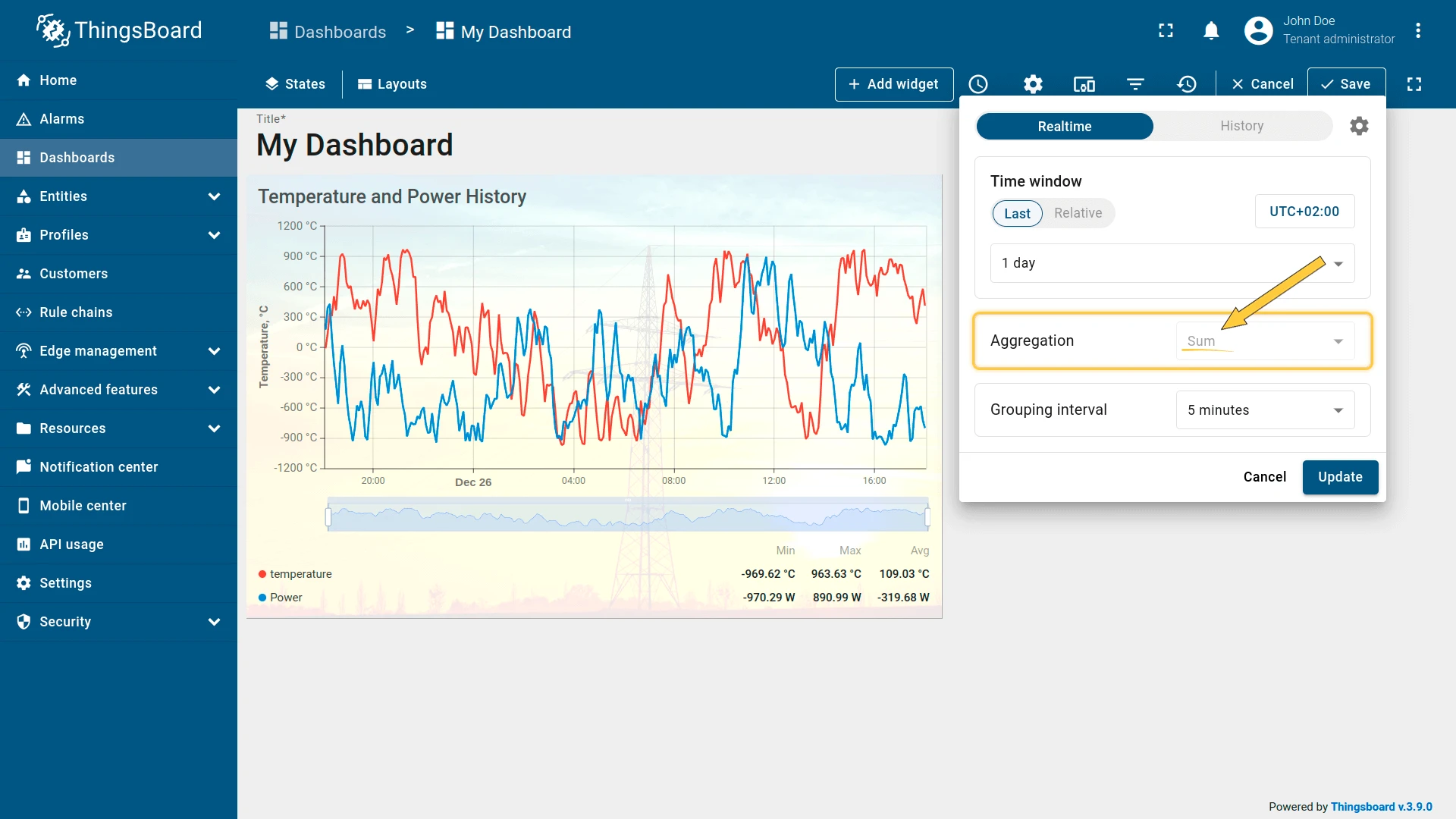

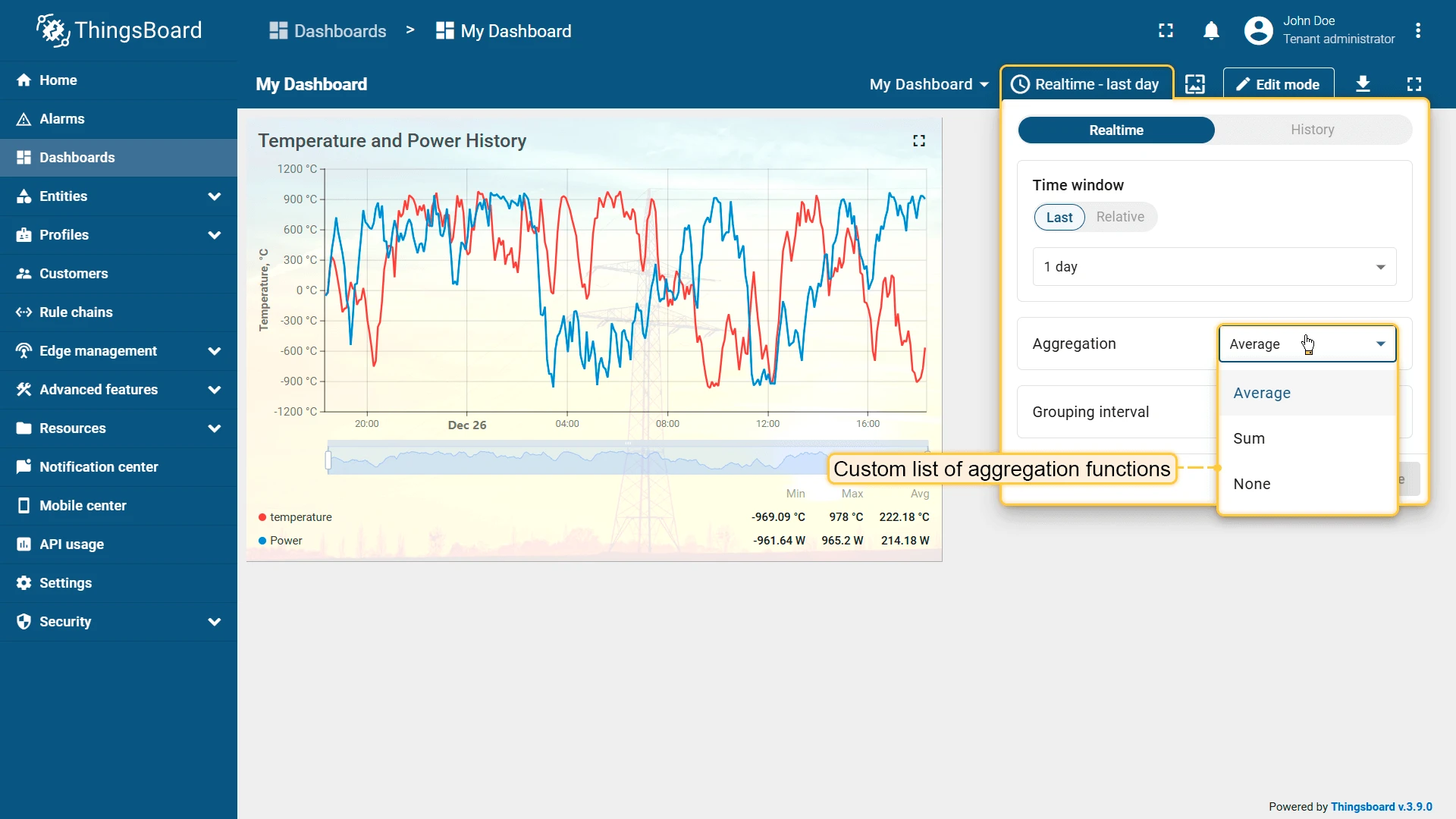

Aggregation

Defines how telemetry values are processed within grouping intervals.

Function	Description
None	Raw telemetry values
Min	Minimum value per interval
Max	Maximum value per interval
Average	Arithmetic mean
Sum	Sum of values
Count	Number of records

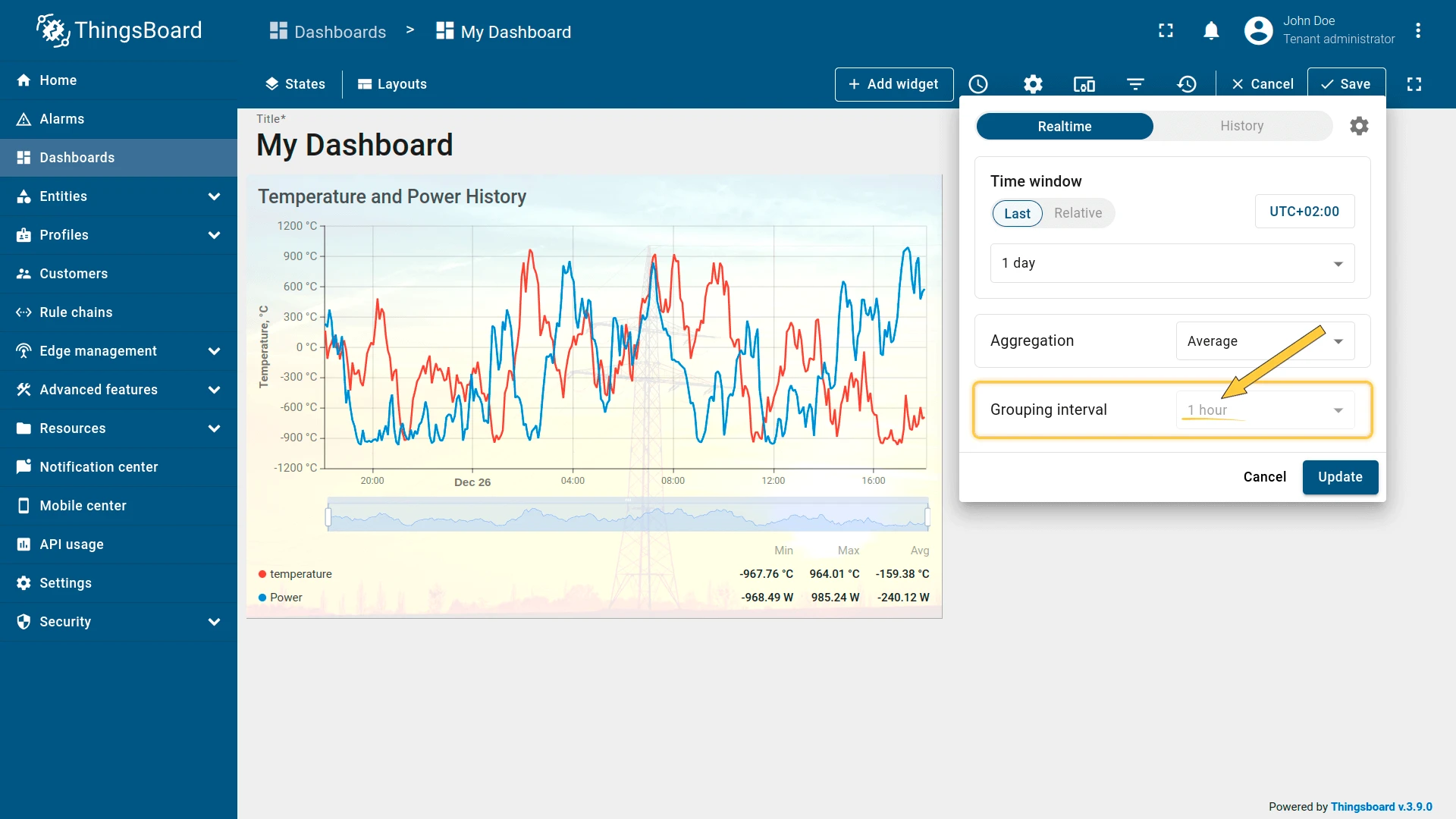

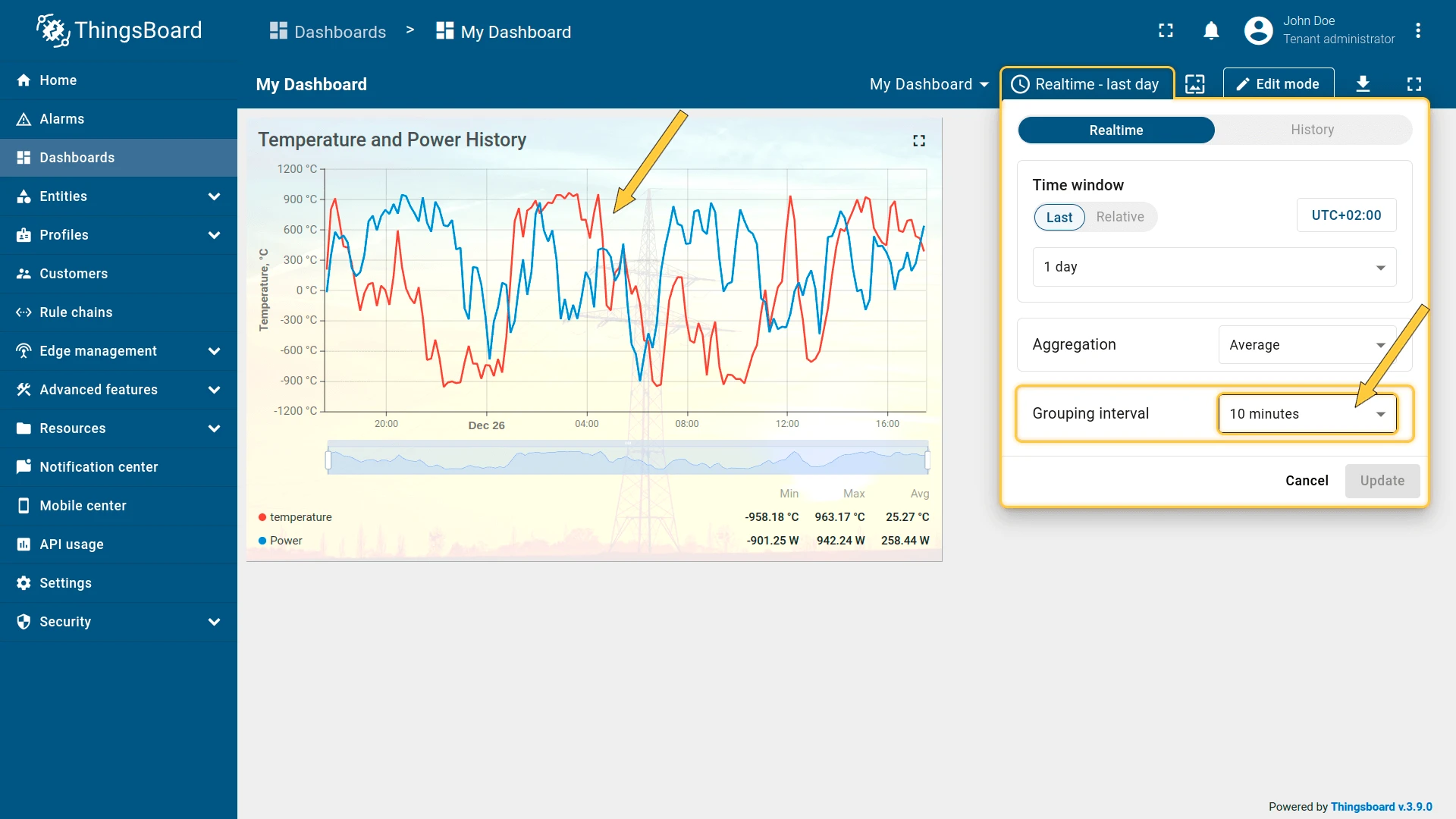

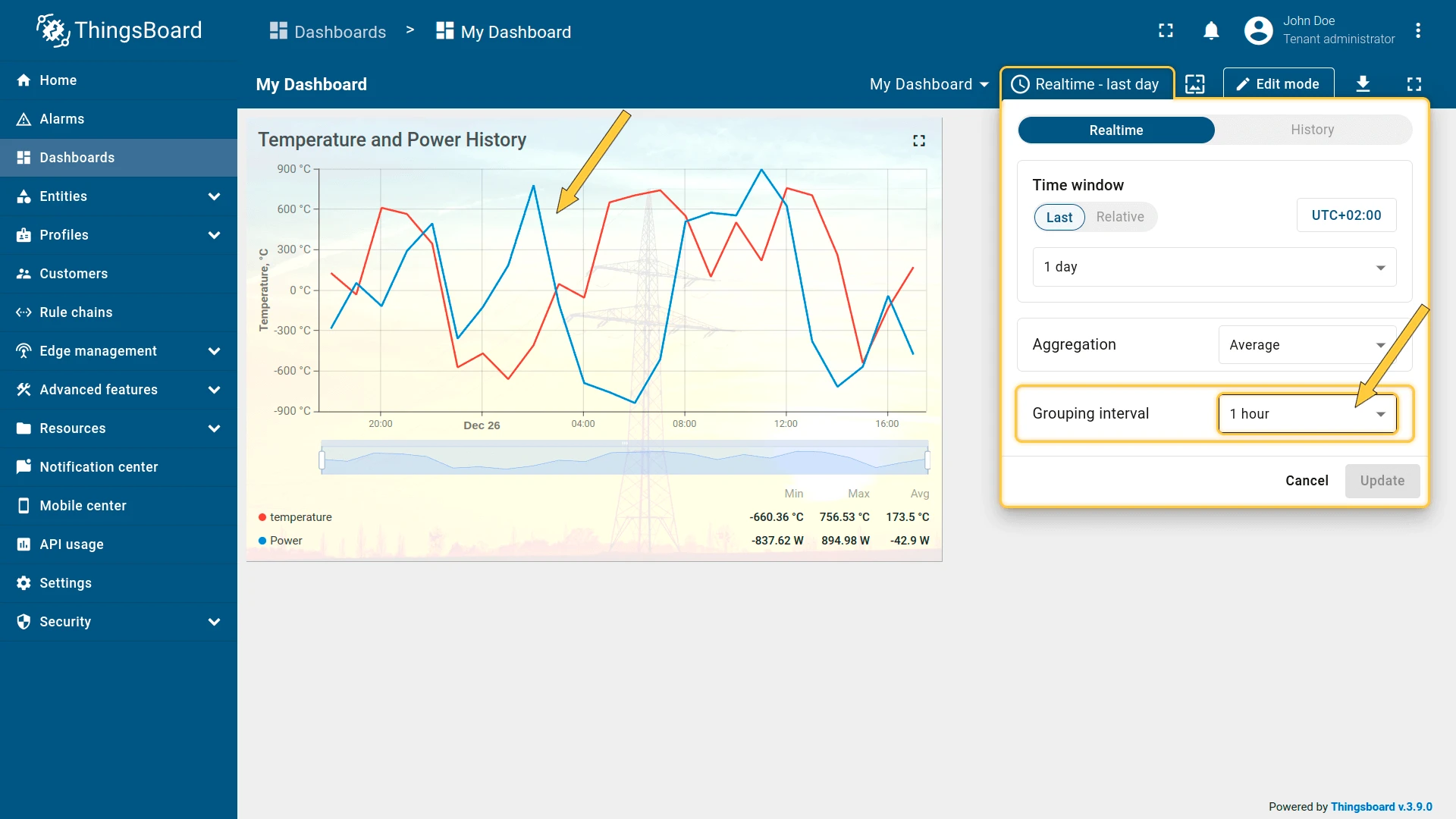

Grouping interval

Defines the size of time buckets used for aggregation. Each bucket produces one aggregated value.

Example: with a time window of Last 1 hour, a grouping interval of 10 minutes, and Average aggregation — the widget receives 6 aggregated values (one per 10-minute bucket).

Smaller intervals ⇾ higher granularity, more data points.
Larger intervals ⇾ smoother trends, reduced load.

The grouping interval may be automatically calculated based on the selected window and widget resolution, or explicitly defined in widget configuration.

Max values

Defines the maximum number of telemetry points returned.

Example:

Max values = 50000

Purpose:

Prevent excessive data retrieval
Protect browser performance
Limit memory usage

Especially important when Aggregation = None.

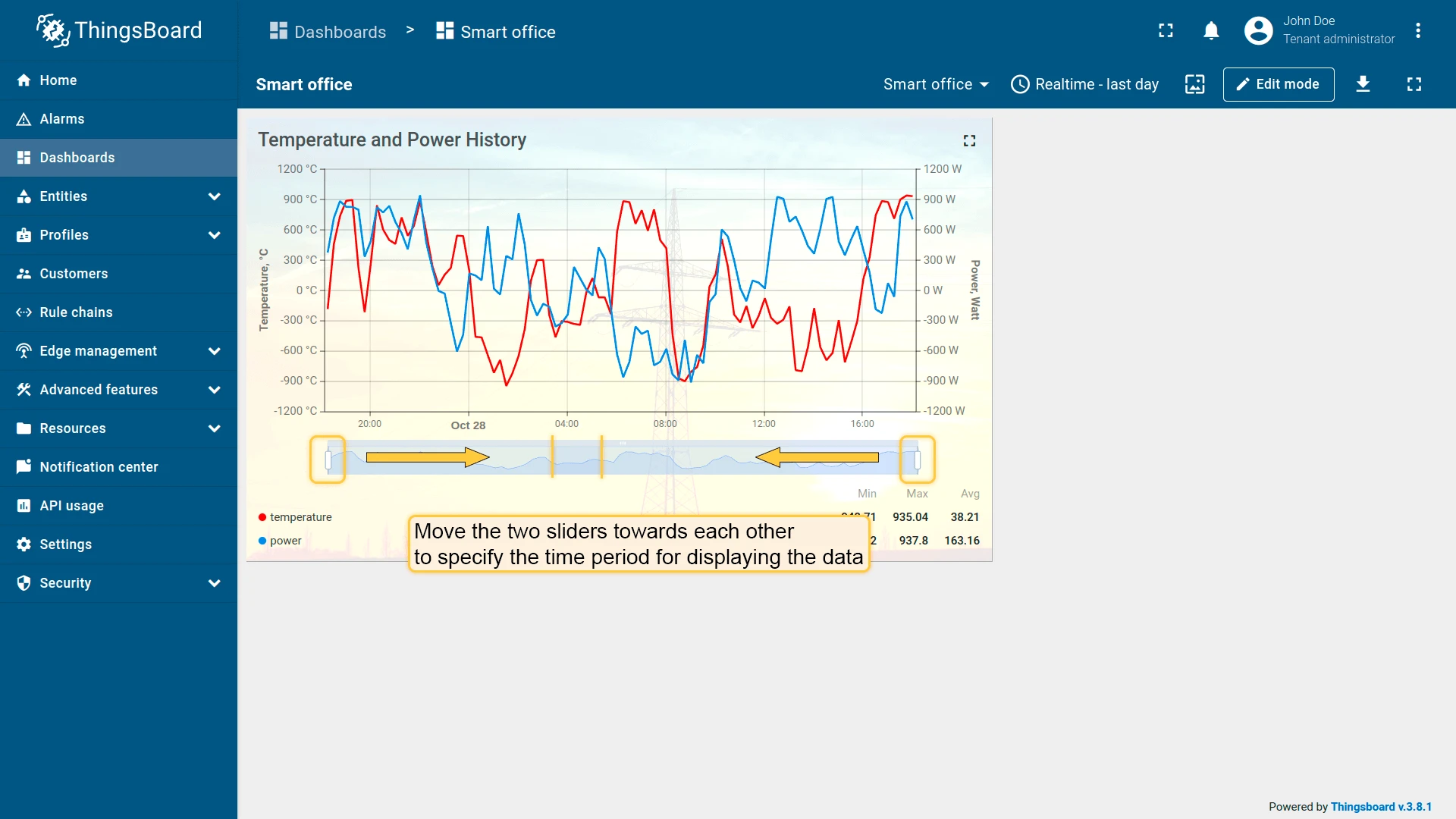

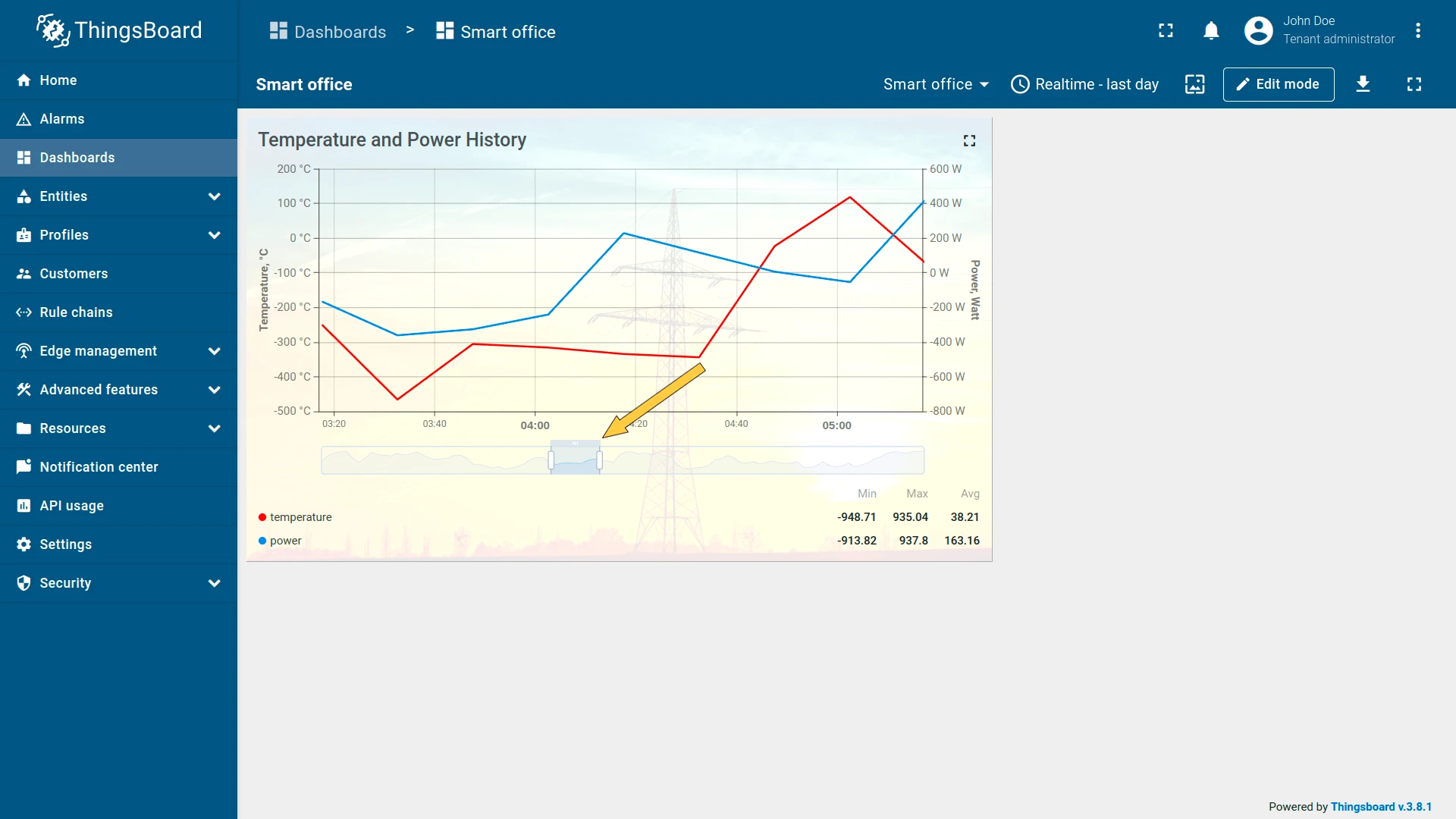

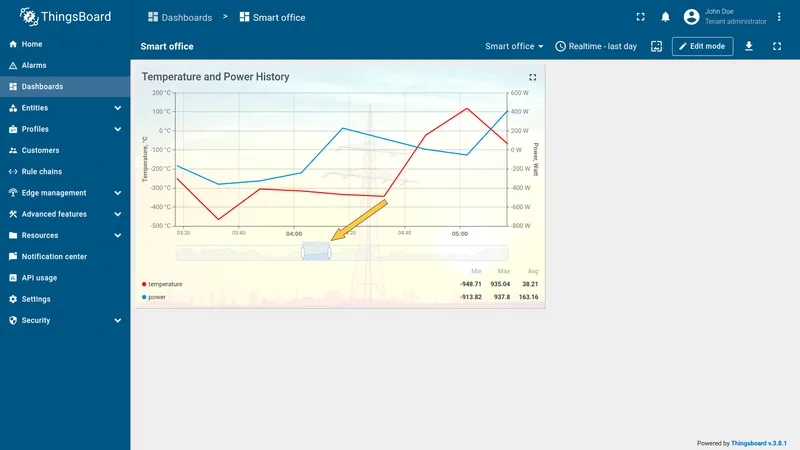

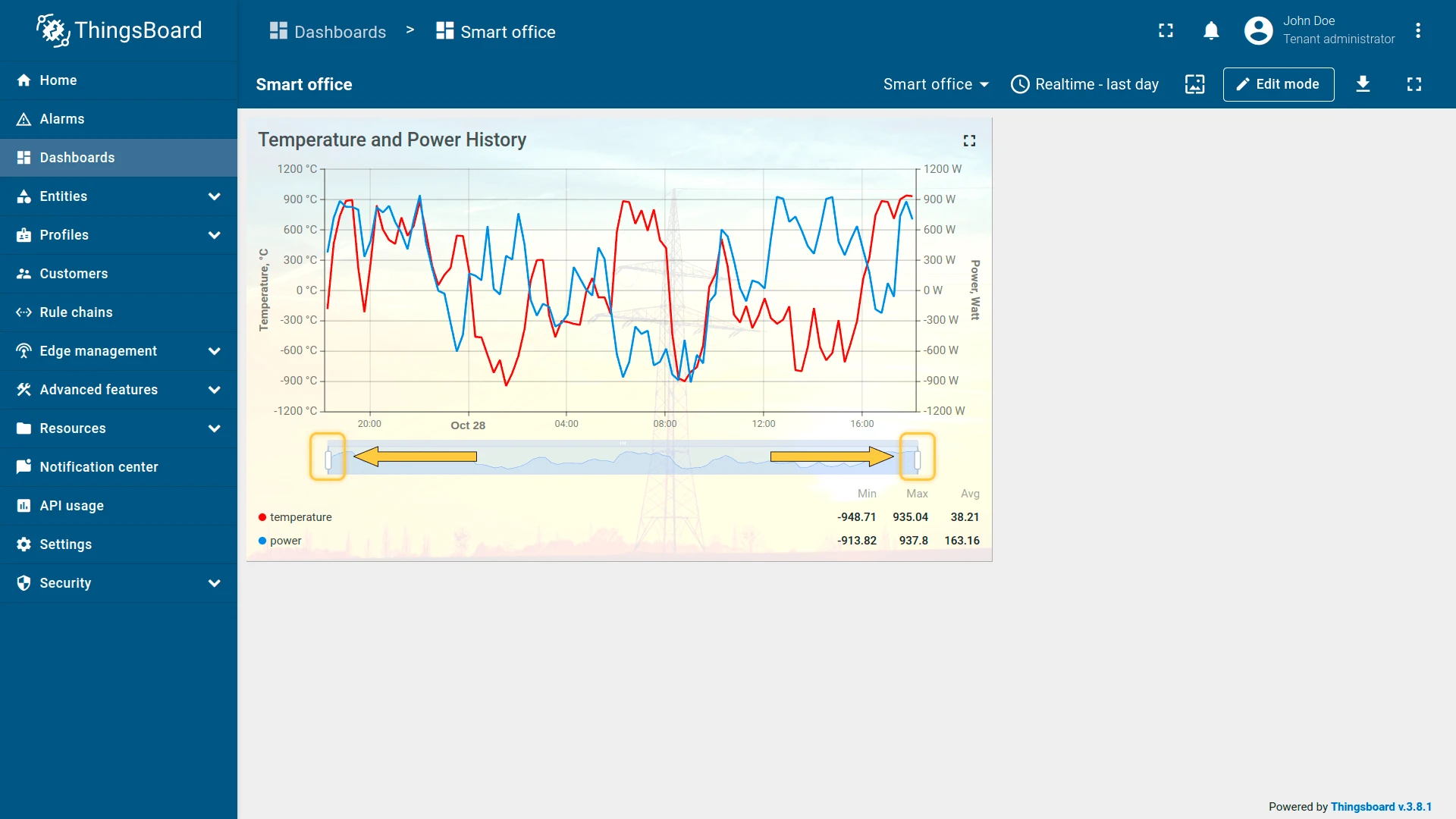

Zoom

Drag the sliders to narrow the visible time range; return them to their default position to zoom out.

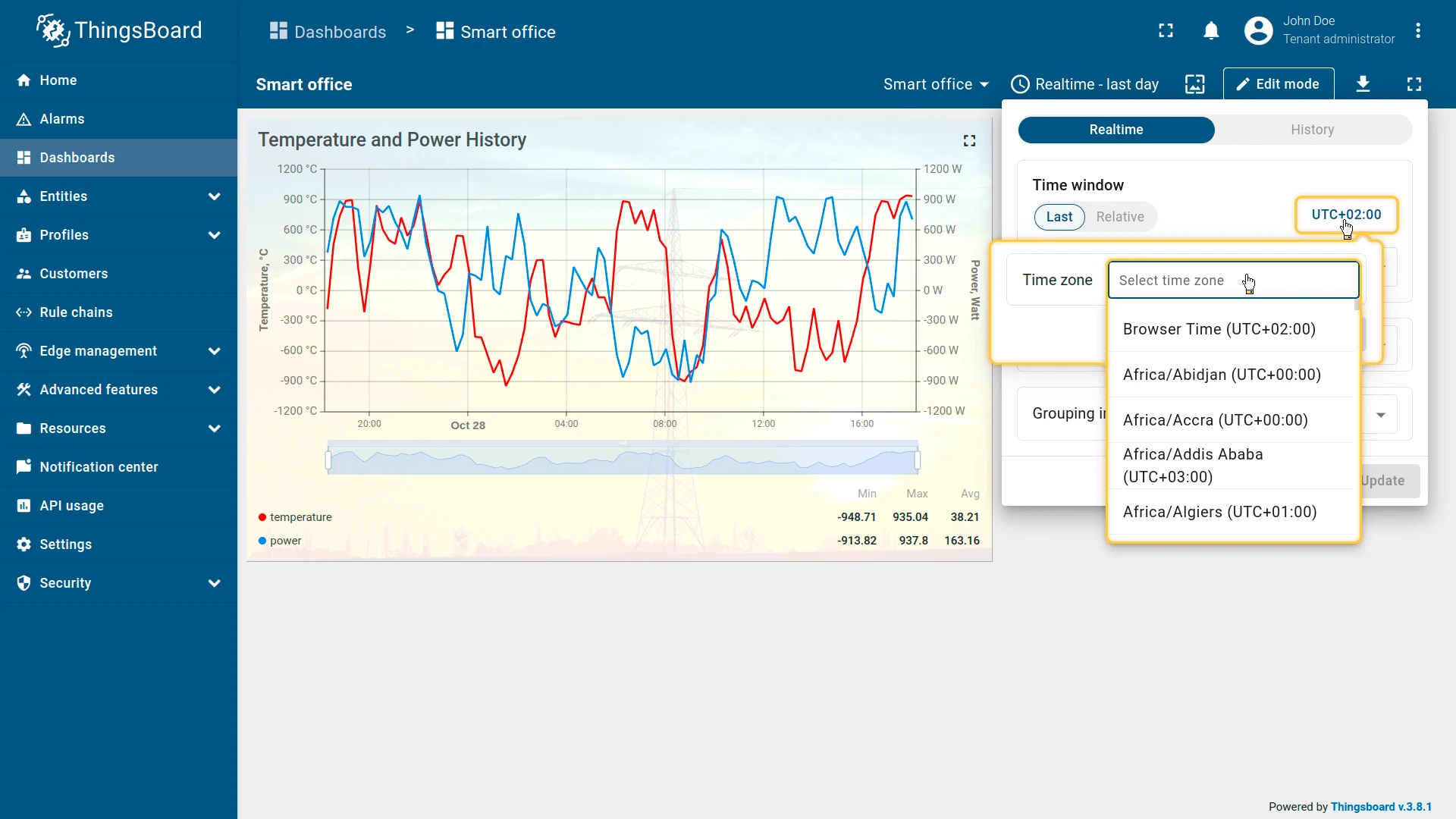

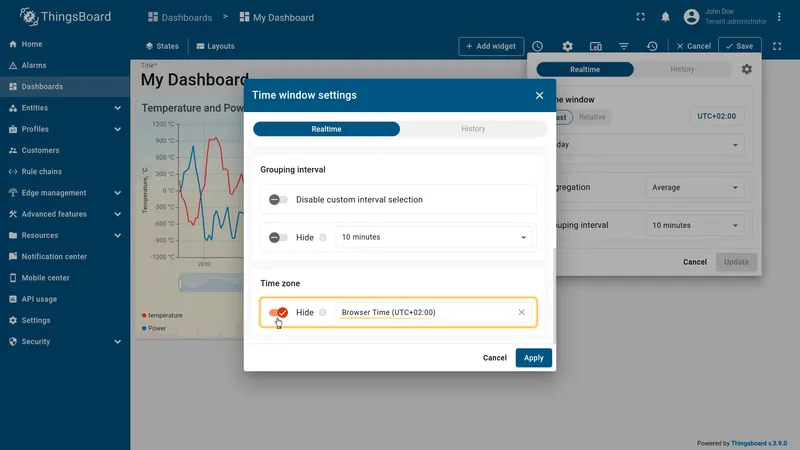

Time zone

Defaults to the browser time zone; can be changed to any specific time zone.

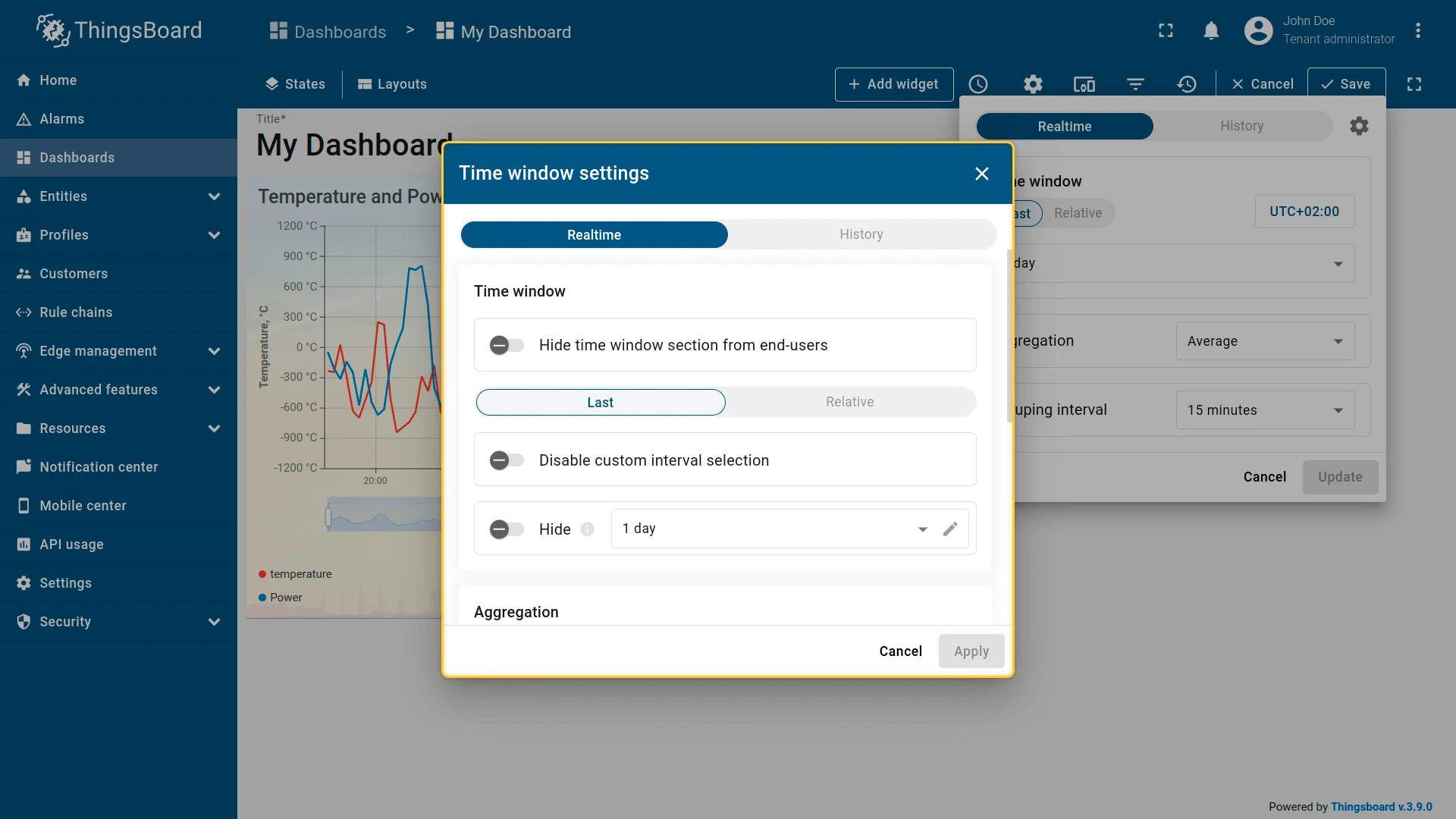

Time window settings

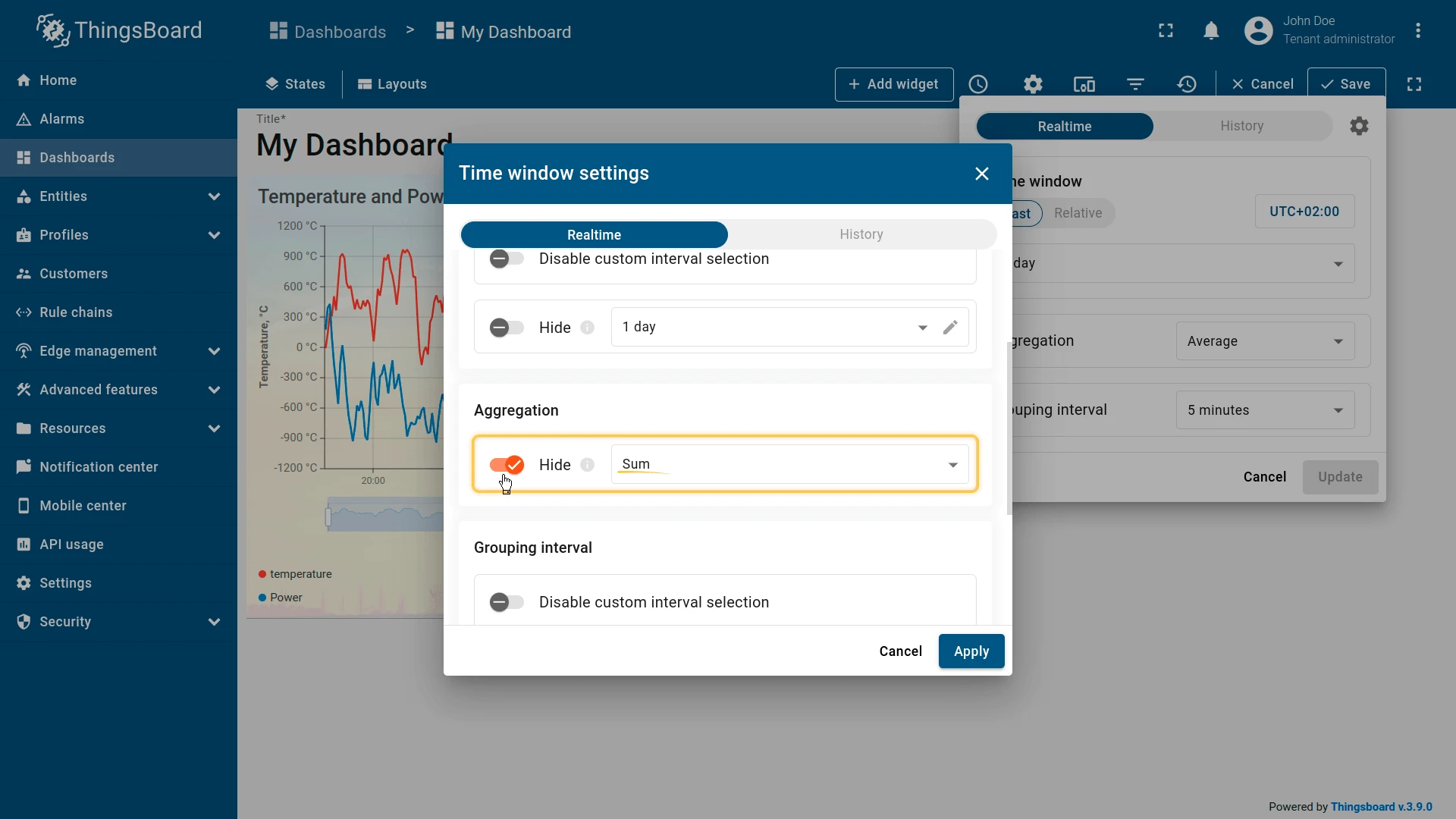

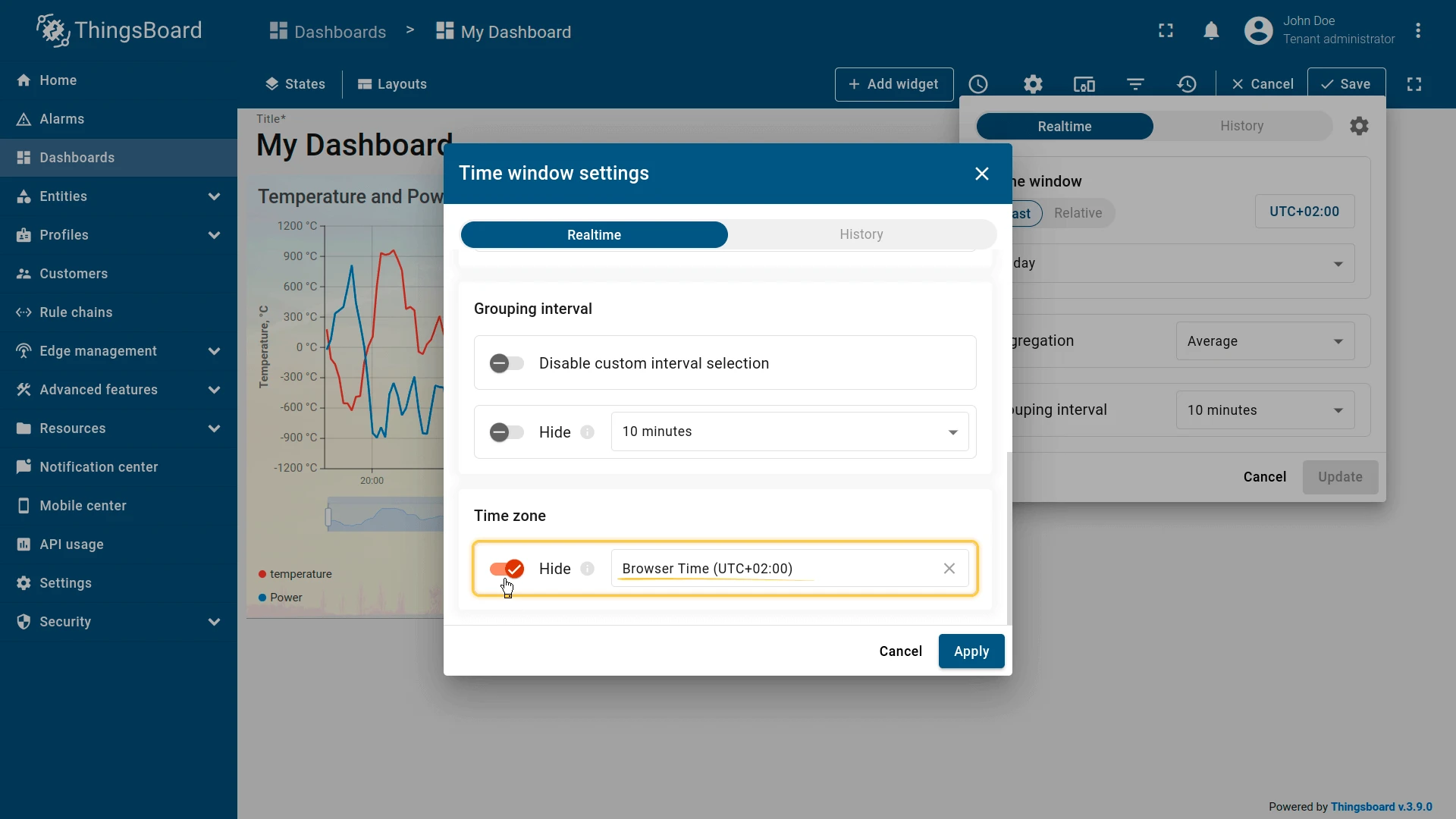

You can control which time window controls are visible to end users.

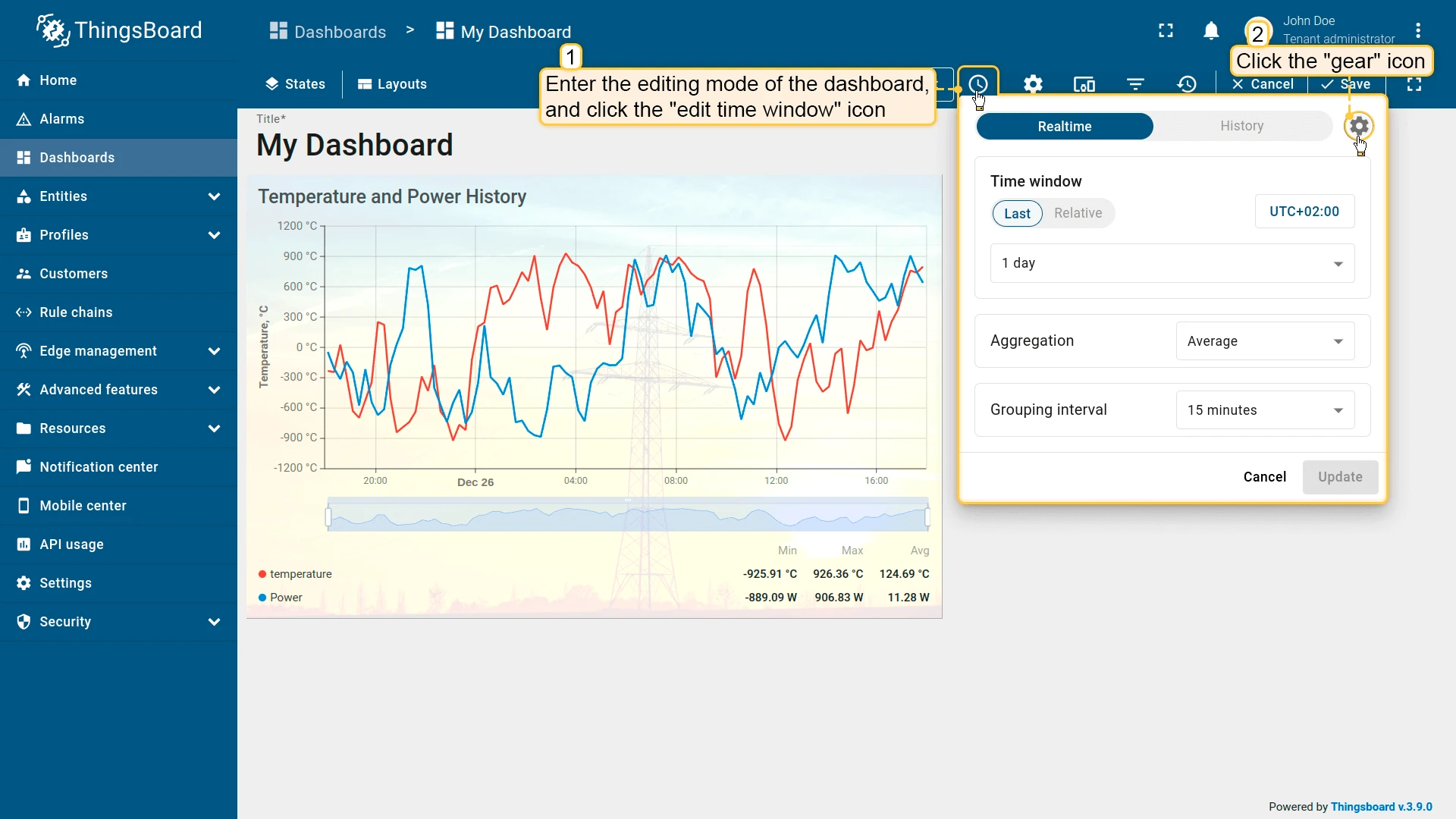

In dashboard edit mode, open the Edit time window dialog and click the gear icon.

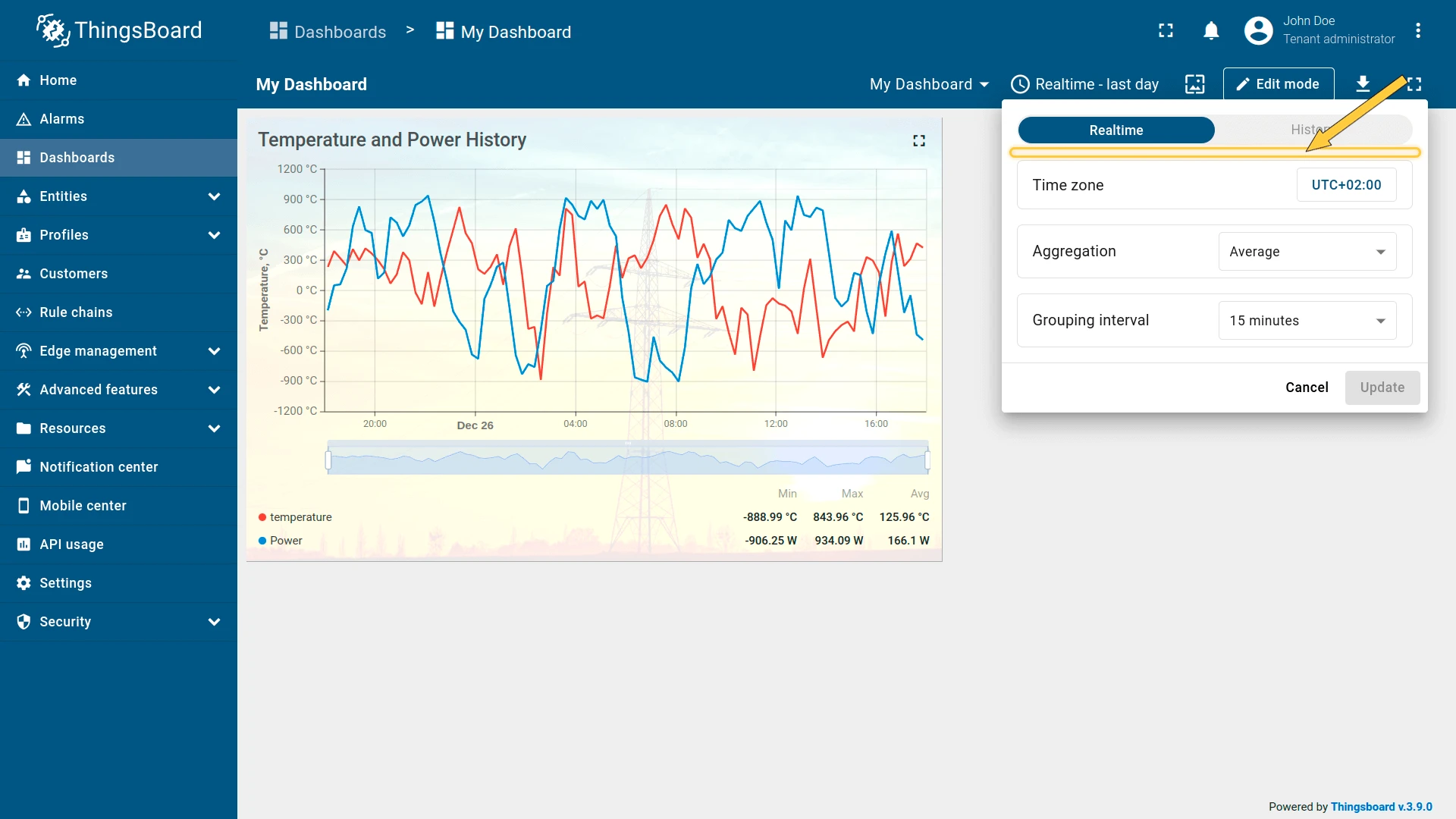

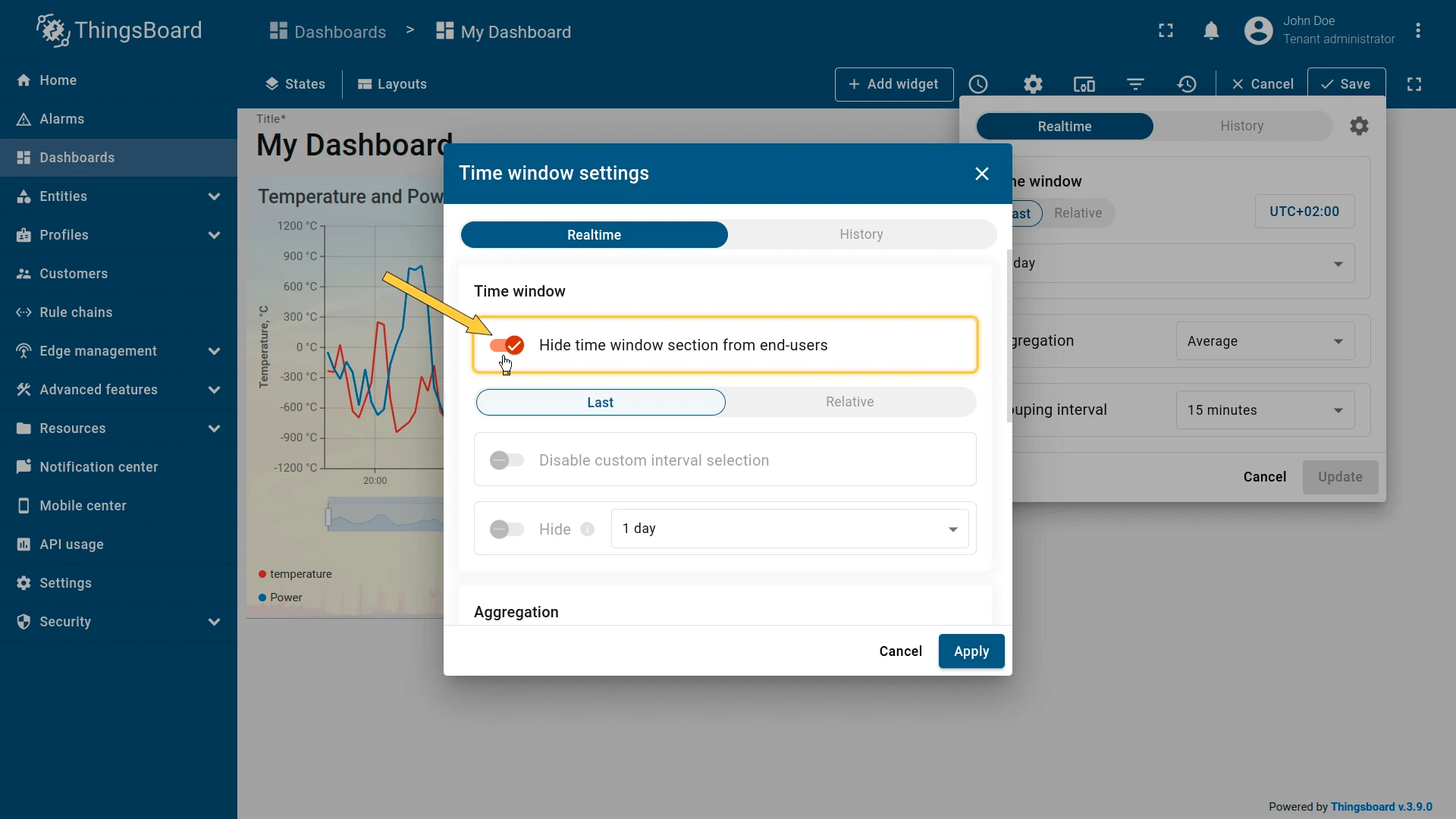

Hide the time window section

Users will not be able to change the set time interval.

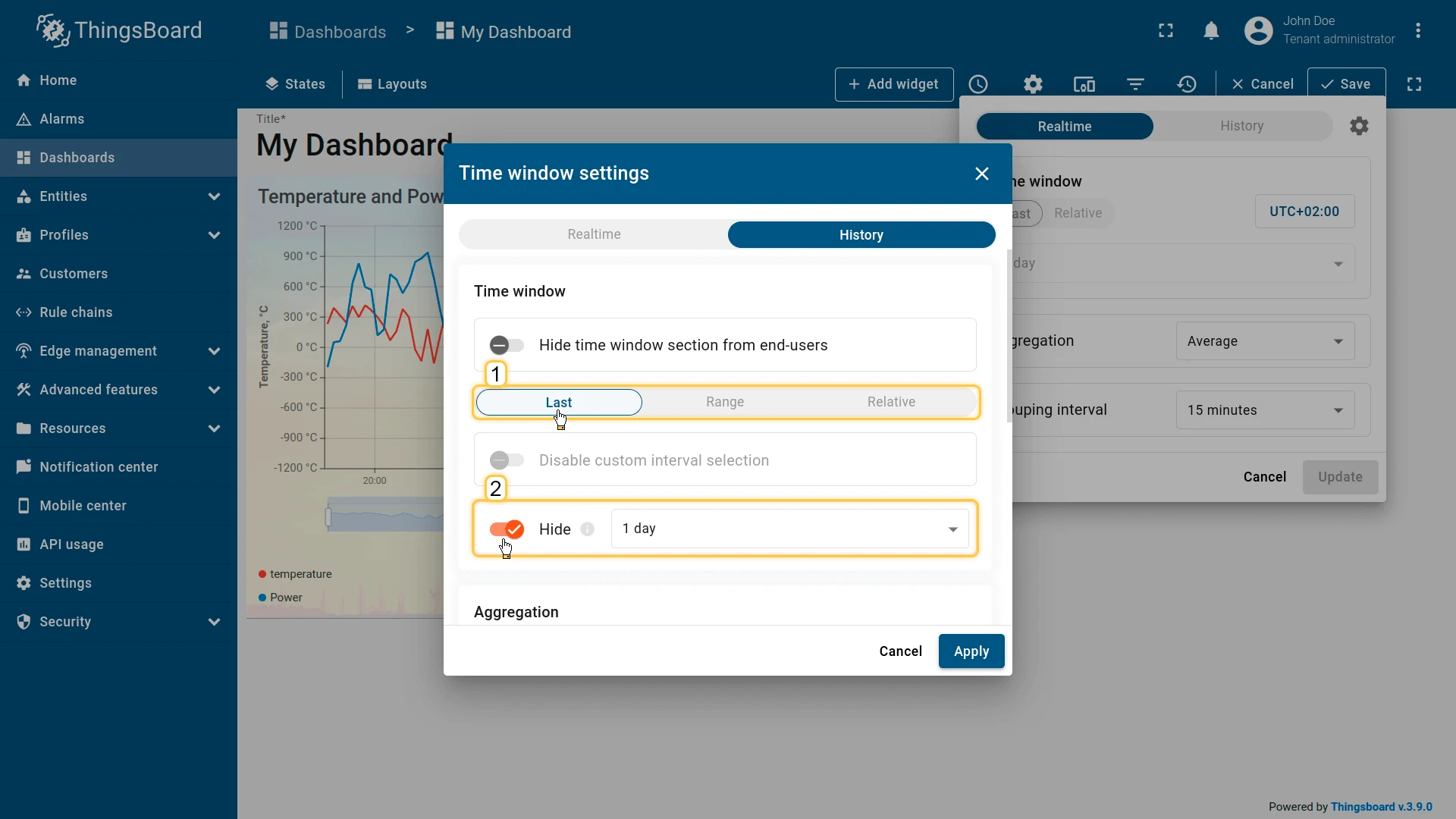

Hide or restrict interval types

To hide a specific interval type, select its tab (Last, Range, or Relative) in the settings dialog and enable Hide for that interval.

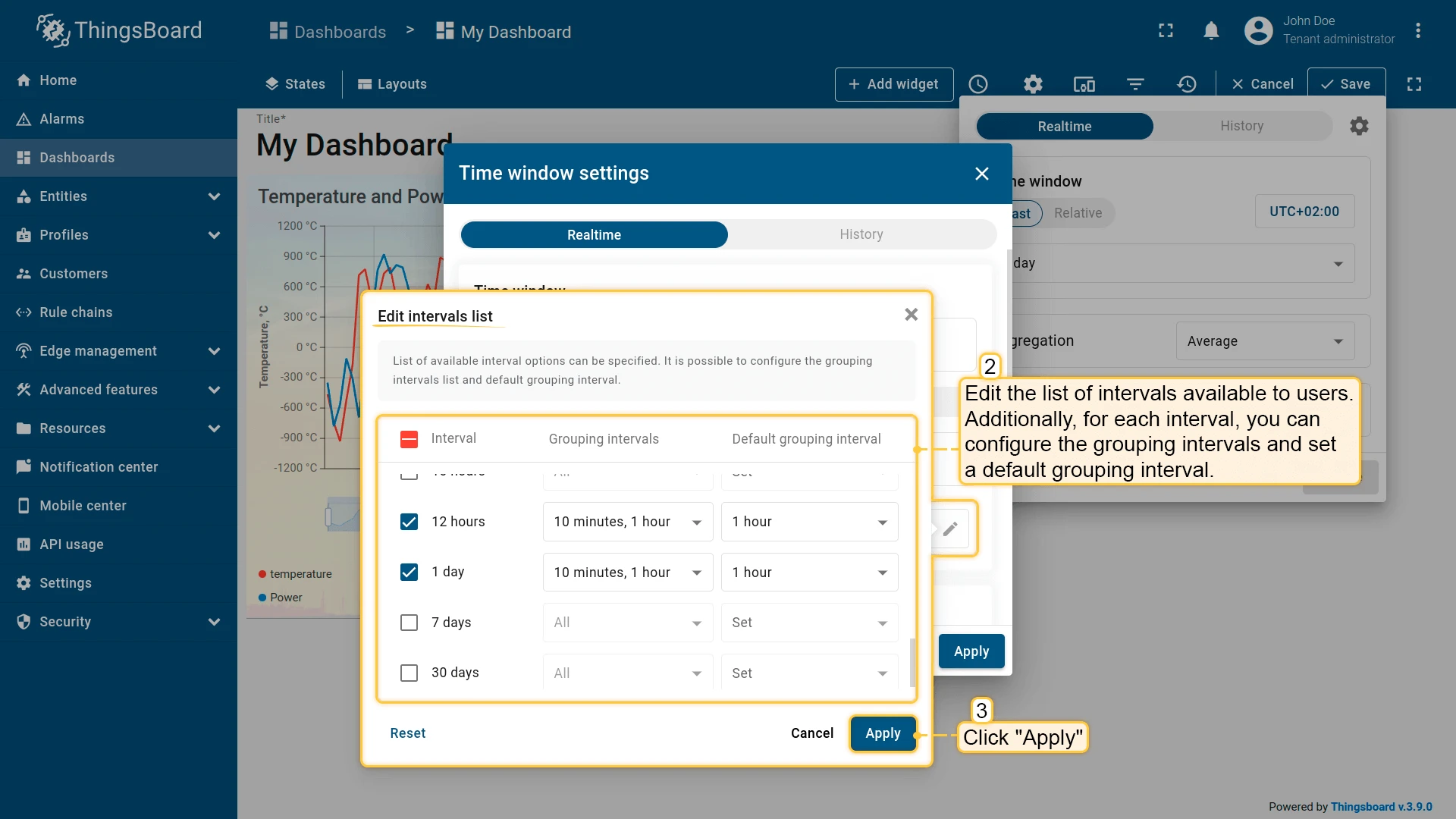

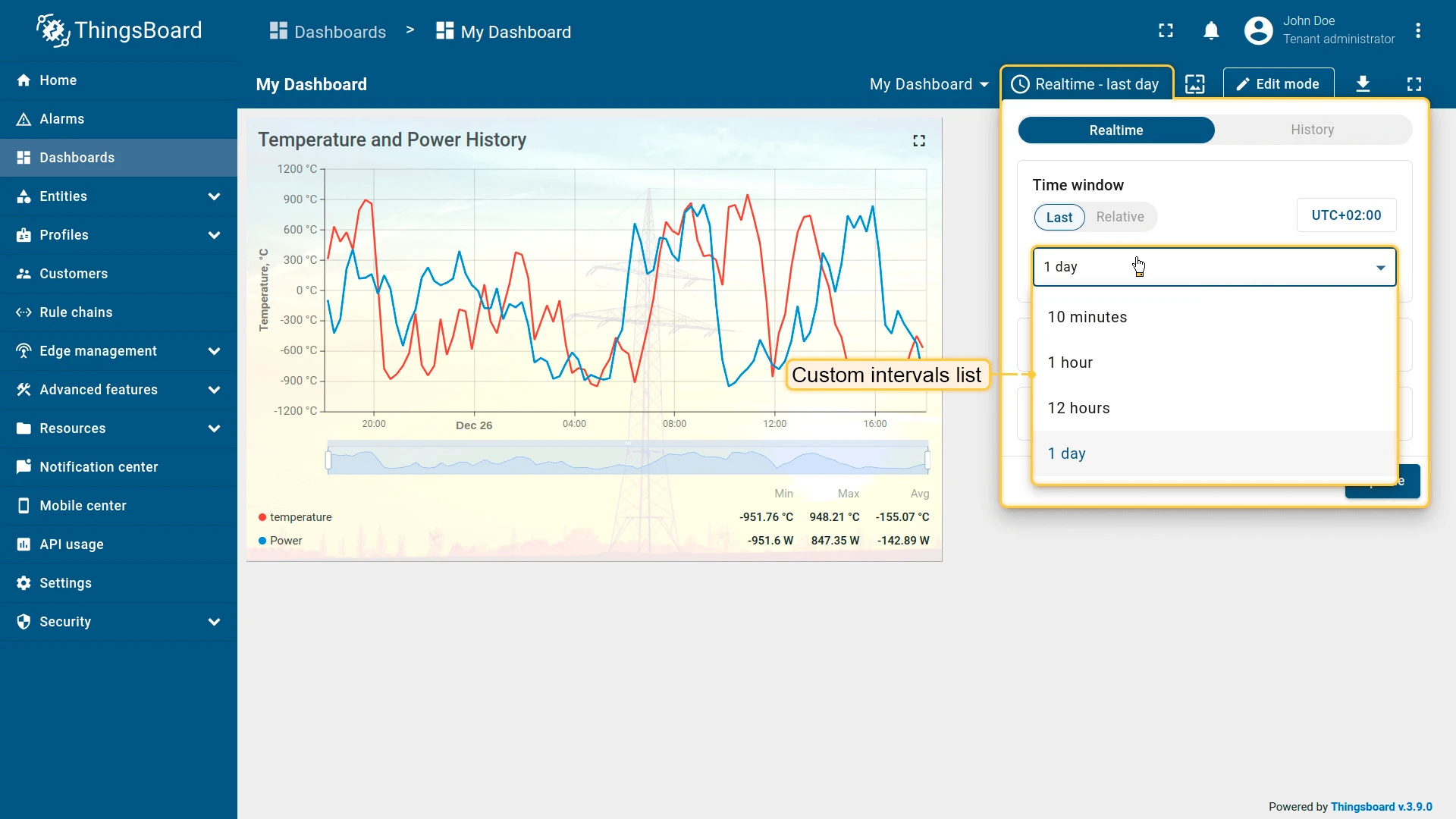

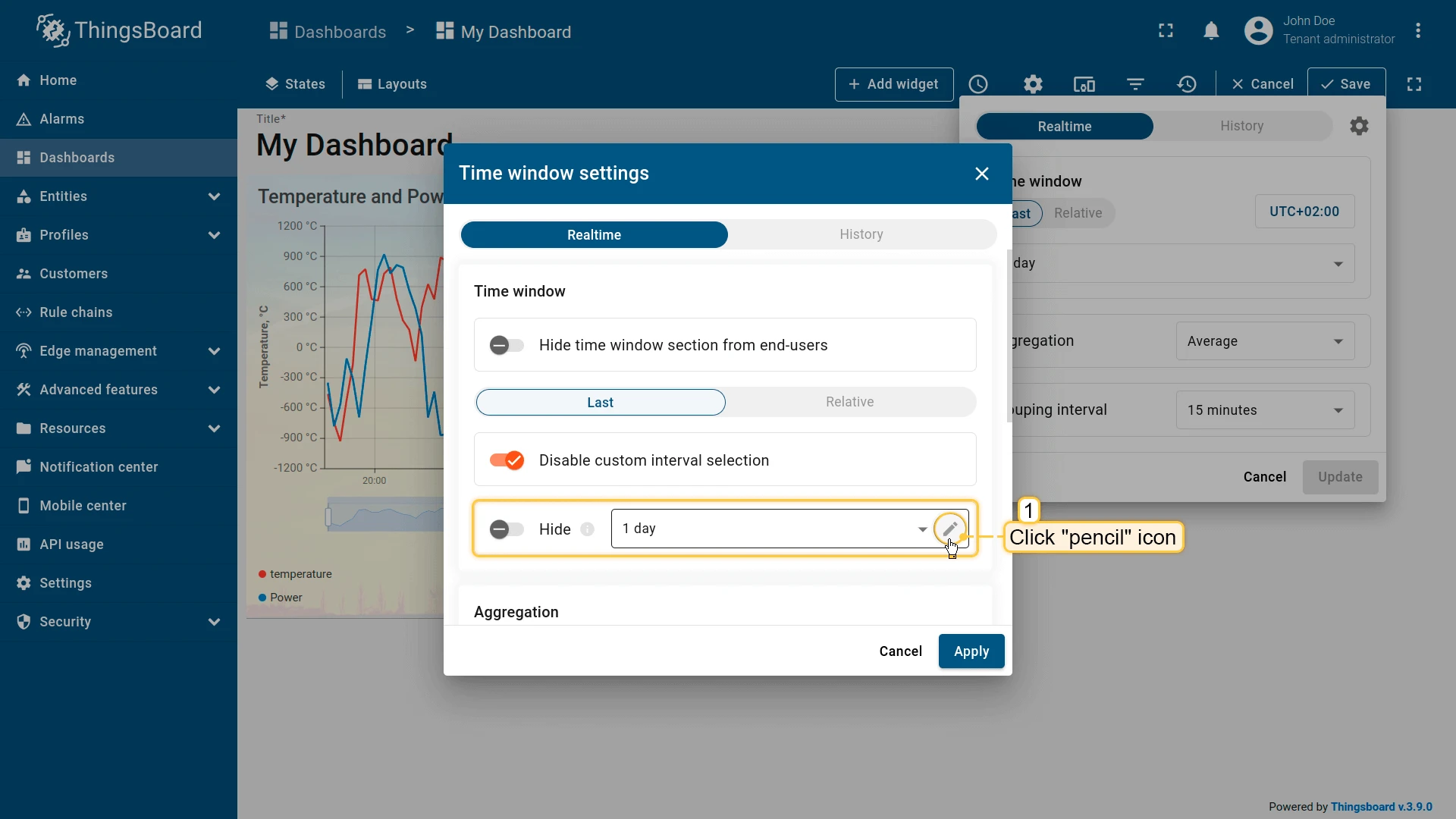

To restrict the available intervals and configure the default grouping interval per option, enable Disable custom interval selection and click the pencil icon.
