Power Button

• Single-click ON/OFF control for any device or entity.
• Reads current device state on load from an attribute, telemetry value, or RPC call.
• Sends RPC commands, attribute updates, or telemetry writes independently for ON and OFF actions.
• Multiple layout variants: Default, Simplified, Outlined, and icon-only modes.
• Can be disabled automatically based on device data, alarms, or dashboard state.

1. Open the dashboard in edit mode. Click Add widget in the top toolbar, or click the Add new widget icon in the center of an empty dashboard.
2. In the widget bundle selection dialog, find and click Buttons.
3. Select the Power button widget.
4. Configure the datasource, behavior, and appearance, then click Add.

All settings in this section use Basic mode — a quick-start configuration covering the essentials. For finer widget controls like card style, card buttons, title, and tooltip, switch to the Advanced tab.

Select the datasource for the widget:

• Device — a specific device; the button reads attribute and telemetry data from this device to determine its state.
• Entity alias — a set of entities matched by an entity alias; use this when the target device is selected dynamically at runtime.

The Behavior section defines how the widget reads the device’s ON/OFF state on load, what action fires when the user presses ON, what action fires when the user presses OFF, and when the button disables. Configure each sub-section as needed; Disabled state is optional.

Determines whether the button shows as ON or OFF when the dashboard loads. Select one action type from the list below.

• Do nothing

  The state is set manually. No live data needed.

  Parameter	Description
  Value	Set to On to always show the button as on, or Off to always show it as off.

• Execute RPC

  Calls a device RPC method to read the current state.

  Parameter	Description
  Method	The RPC method name to call, like getState.
  Condition (None)	ON when the RPC result equals the value you specify.
  Condition (Function)	ON when your f(data) function returns true.
  RPC request timeout (ms)	How long to wait for a device response before timing out.
  RPC request persistent	When enabled, the RPC command is stored and retried until the device comes online.
  Persistent polling interval (ms)	How often to re-poll the device for state updates.

• Get attribute

  Reads a device or entity attribute to determine the current state.

  Parameter	Description
  Attribute scope	Where the attribute is stored: Any, Client, Server, or Shared.
  Attribute key	The attribute name to read, like powerState.
  Condition (None)	ON when the attribute equals the value you specify.
  Condition (Function)	ON when your f(data) function returns true.

• Get time series

  Reads the latest telemetry value to determine the current state.

  Parameter	Description
  Time series key	The telemetry key to monitor, like state or power.
  Condition (None)	ON when the telemetry value equals the value you specify.
  Condition (Function)	ON when your f(data) function returns true.

• Get alarm status

  Sets the button to ON when a matching alarm is currently active on the entity.

  Parameter	Description
  Alarm severity	Which severity levels trigger the ON state: Critical, Major, Minor, Warning, or Indeterminate.
  Alarm types	Any alarm, or a specific alarm type.

• Get dashboard state id

  Sets the button based on the currently open dashboard state; use this when button state should reflect navigation context.

  Parameter	Description
  Condition (None)	ON when the current state name matches the text you enter.
  Condition (Function)	ON when your f(data) function returns true.

• Get dashboard state object

  Sets the button based on the full dashboard state context; use this when you need to check multiple state parameters at once.

  Parameter	Description
  Condition (Function only)	Write a f(data) function that returns true to set the button to ON.

Defines the action executed when the user presses the button to turn ON. Select one action type from the list below.

• Execute RPC

  Sends an RPC command to the device when turned on.

  Parameter	Description
  Method	The RPC method name, like setState.
  Parameters	Constant — a fixed value like true, "ON", or {"state": 1}; Function — a JS function that returns the payload; None — no parameters sent.
  RPC request timeout (ms)	How long to wait for a device response before timing out.
  RPC request persistent	When enabled, the RPC command is stored and retried until the device comes online.

• Set attribute

  Updates a device attribute when turned on.

  Parameter	Description
  Attribute scope	Server or Shared.
  Attribute key	The attribute to update, like powerState.
  Value	Constant — a fixed value like true or "ON"; Function — a JS function that returns the value.

• Add time series

  Writes a time-series record when turned on.

  Parameter	Description
  Time series key	The telemetry key to write to, like state.
  Value	Constant — a fixed value; Function — a JS function that returns the value.

Defines the action executed when the user presses the button to turn OFF. Configure this as the reverse of Power ‘On’. Select one action type from the list below.

• Execute RPC

  Sends an RPC command to the device when turned off.

  Parameter	Description
  Method	The RPC method name, like setState.
  Parameters	Constant — a fixed value like false, "OFF", or {"state": 0}; Function — a JS function that returns the payload; None — no parameters sent.
  RPC request timeout (ms)	How long to wait for a device response before timing out.
  RPC request persistent	When enabled, the RPC command is stored and retried until the device comes online.

• Set attribute

  Updates a device attribute when turned off.

  Parameter	Description
  Attribute scope	Server or Shared.
  Attribute key	The attribute to update, like powerState.
  Value	Constant — a fixed value like false or "OFF"; Function — a JS function that returns the value.

• Add time series

  Writes a time-series record when turned off.

  Parameter	Description
  Time series key	The telemetry key to write to, like state.
  Value	Constant — a fixed value; Function — a JS function that returns the value.

The Disabled state makes the button non-interactive when a configured condition is met, preventing clicks in unsafe or invalid situations.

• Do nothing

  Set the disabled state manually. No live data needed.

  Parameter	Description
  Value	Set to True to always disable the button, or False to always keep it enabled.

• Execute RPC

  Disable the button based on a device RPC response, like checking availability before allowing control.

  Parameter	Description
  Method	The RPC method to call, like getAvailability.
  Condition (None)	Disabled when the RPC result equals the value you specify.
  Condition (Function)	Disabled when your f(data) function returns true.

• Get attribute

  Disable the button based on a device attribute, like an online status or a locked flag.

  Parameter	Description
  Attribute scope	Where the attribute is stored: Any, Client, Server, or Shared.
  Attribute key	The attribute name to read, like online or locked.
  Condition (None)	Disabled when the attribute equals the value you specify (String, Integer, Double, Boolean, or JSON).
  Condition (Function)	Disabled when your f(data) function returns true.

• Get time series

  Disable the button based on the latest telemetry value, like an operational mode or availability reading.

  Parameter	Description
  Time series key	The telemetry key to monitor, like availability or state.
  Condition (None)	Disabled when the telemetry value equals the value you specify.
  Condition (Function)	Disabled when your f(data) function returns true.

• Get alarm status

  Disable the button while a specific alarm is active, like blocking control while a Critical alarm is open.

  Parameter	Description
  Alarm severity	Critical, Major, Minor, Warning, or Indeterminate.
  Alarm types	Any alarm, or a specific alarm type.

• Get dashboard state id

  Disable the button based on the currently open dashboard state; use this to prevent actions in read-only or restricted views.

  Parameter	Description
  Condition (None)	Disabled when the current state name matches the text you enter.
  Condition (Function)	Disabled when your f(data) function returns true.

• Get dashboard state object

  Disable the button using the full dashboard state context; use this when you need to check multiple state parameters at once.

  Parameter	Description
  Condition (Function only)	Write a f(data) function that returns true to disable the button.

Controls the button’s visual style, label, and colors for each state.

Setting	Description
Layout	Button design variant: Default, Simplified, Outlined — each also available as a Volume variant (raised effect) and an Icon variant (icon only, no text label).
Title	Text label displayed above the button.
Card icon	Icon shown next to the title.
Button icon ‘On’	Icon shown on the button in ON state.
Button icon ‘Off’	Icon shown on the button in OFF state.
Power ‘On’ colors	Main — button fill color in ON state; Background — surrounding area color.
Power ‘Off’ colors	Main — button fill color in OFF state; Background — surrounding area color.
Disabled colors	Main — button fill color when disabled; Background — surrounding area color.

Setting	Description
Background	Card background color or image.
Show card buttons	Fullscreen — expand the widget to fullscreen mode.
Card border radius	Roundness of card corners.
Card padding	Spacing between the widget content and the card border.

The Power button widget supports the Widget header button action — adds a button to the widget header that triggers a configured action when clicked.

Scenario: A Ventilation Relay device subscribes to shared attribute updates from ThingsBoard. When the shared attribute value changes, the device automatically adjusts its physical relay state. The goal is a Power button that reads the current powerState value on load, displays ON or OFF accordingly, and updates the attribute when the user presses the button.

Prerequisites:

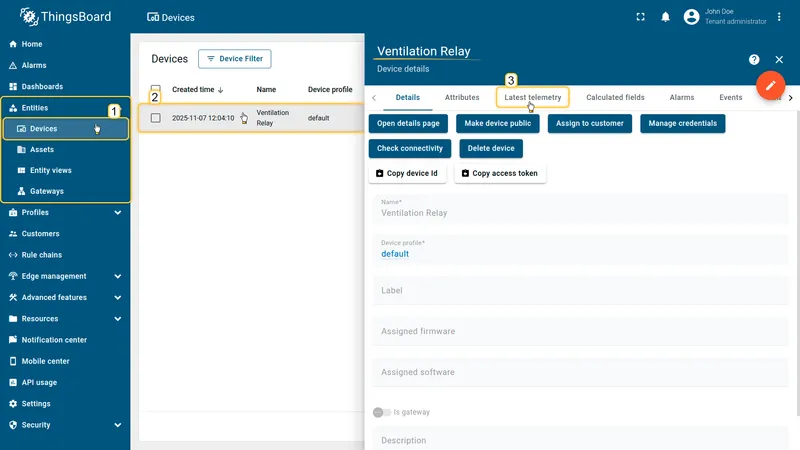

• Create a device named Ventilation Relay.

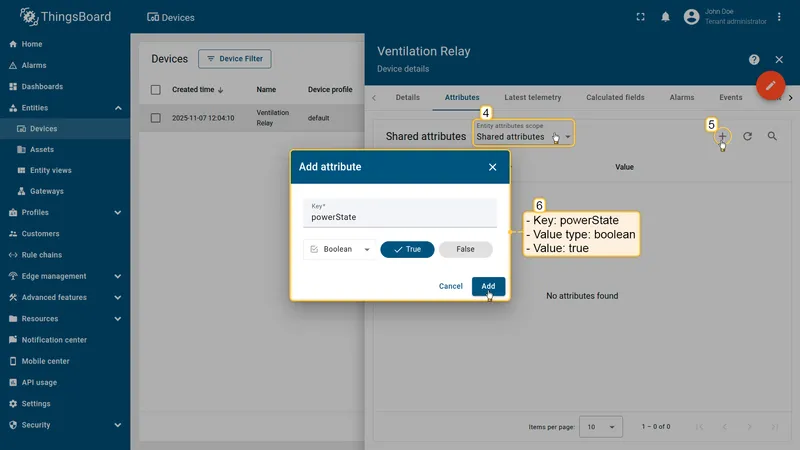

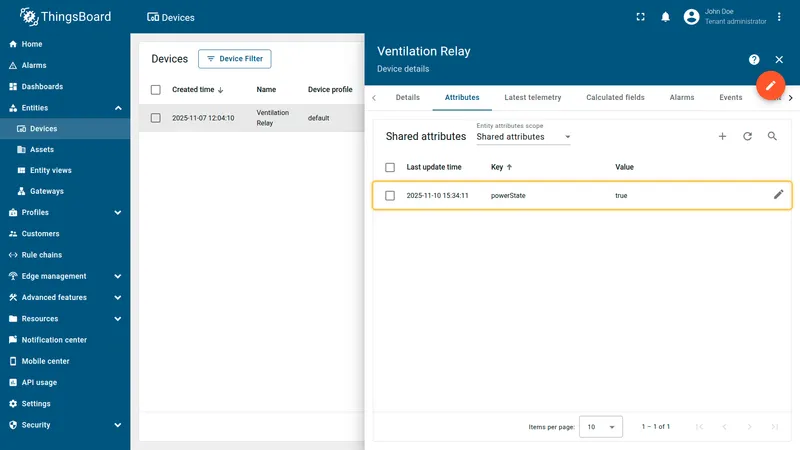

• Add a shared attribute: Key — powerState, Data type — Boolean, Value — true.

Step 1. Add the widget. Open your dashboard in edit mode, click Add widget, select the Buttons bundle, then choose Power button.

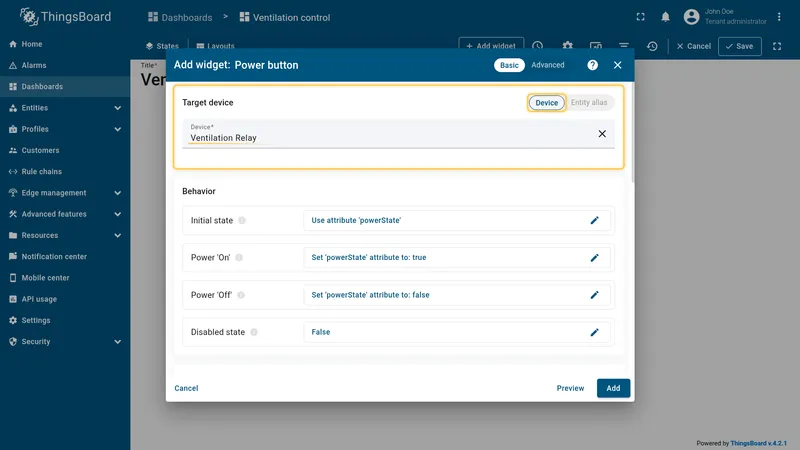

Step 2. Configure the datasource. Set Target device to Ventilation Relay.

Step 3. Configure behavior.

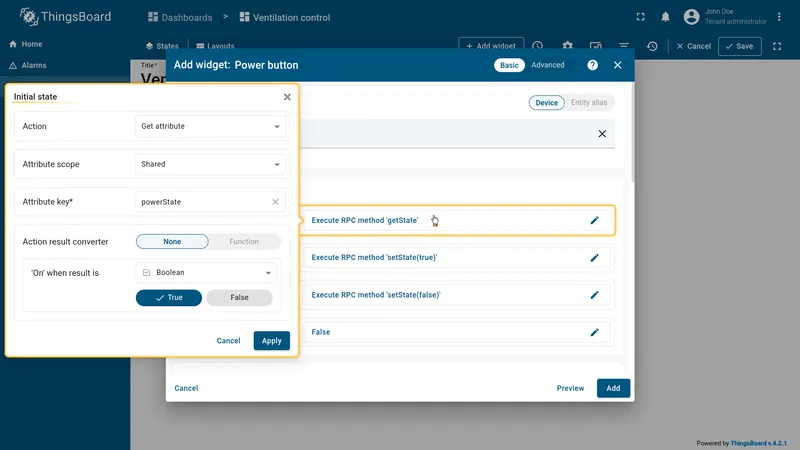

Initial state: Get attribute — Scope: Shared, Key: powerState, Condition: None — ON when result is true (Boolean).

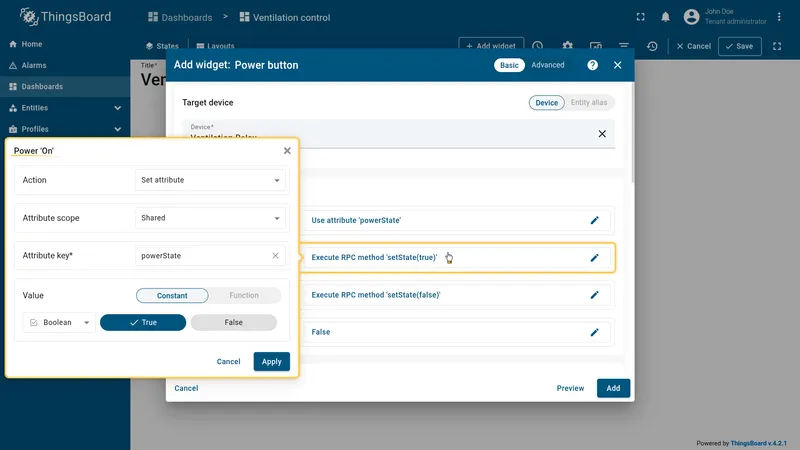

Power ‘On’ action: Set attribute — Scope: Shared, Key: powerState, Value: Constant — true (Boolean).

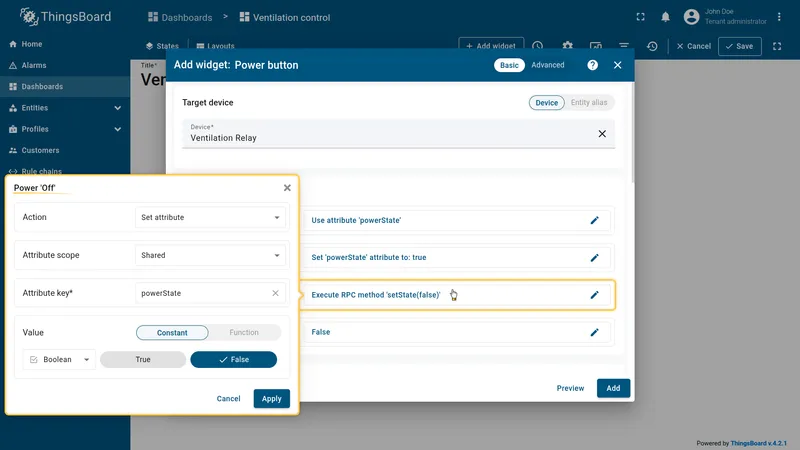

Power ‘Off’ action: Set attribute — Scope: Shared, Key: powerState, Value: Constant — false (Boolean).

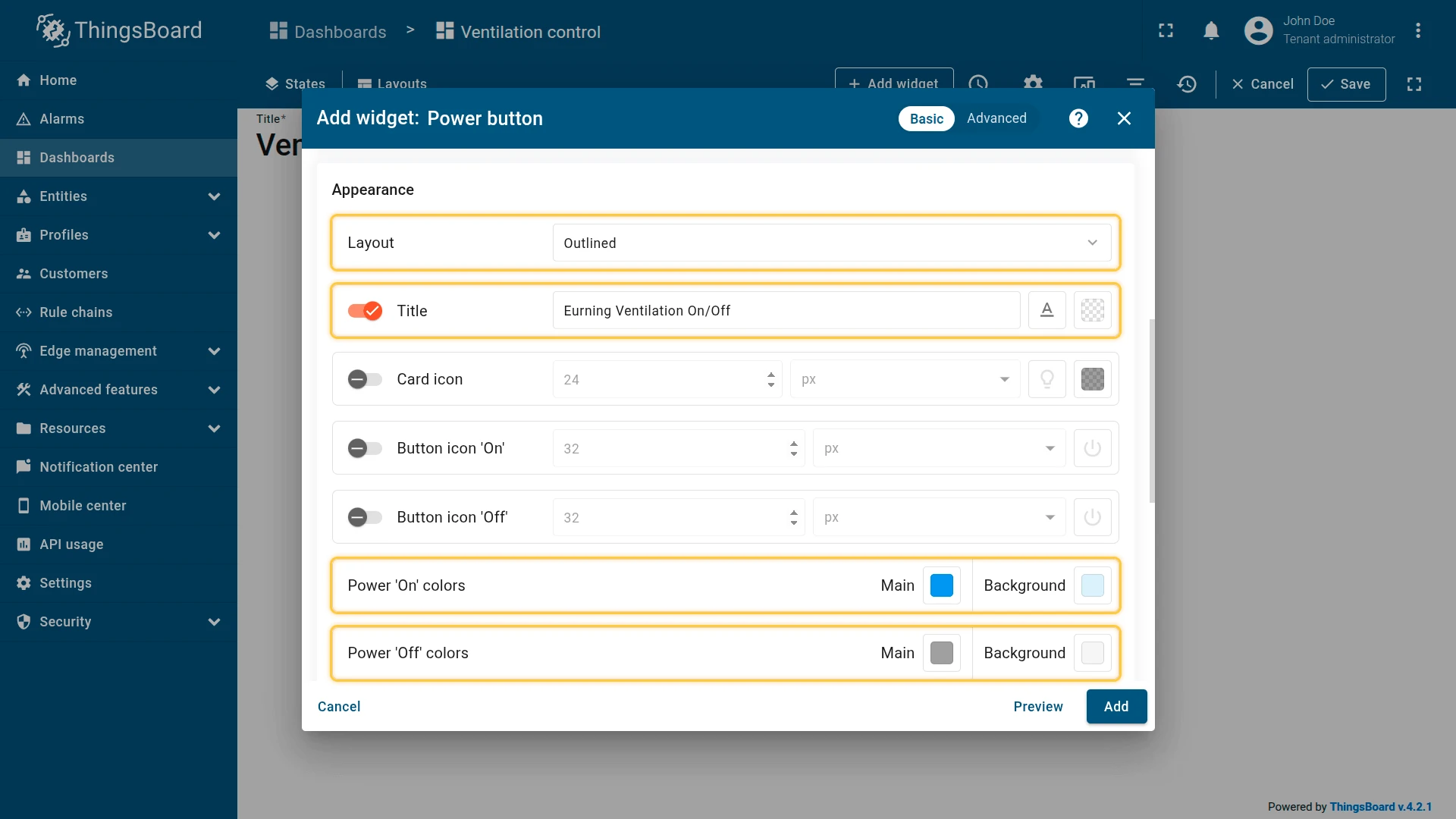

Step 4. Configure appearance.

• Layout: Outlined
• Title: Turning Ventilation On/Off
• Power ‘On’ colors: Main #2196F3, Background #E3F2FD
• Power ‘Off’ colors: Main #9E9E9E, Background #F5F5F5

Step 5. Save. Click Add, resize and reposition as needed, then click Save on the dashboard toolbar.

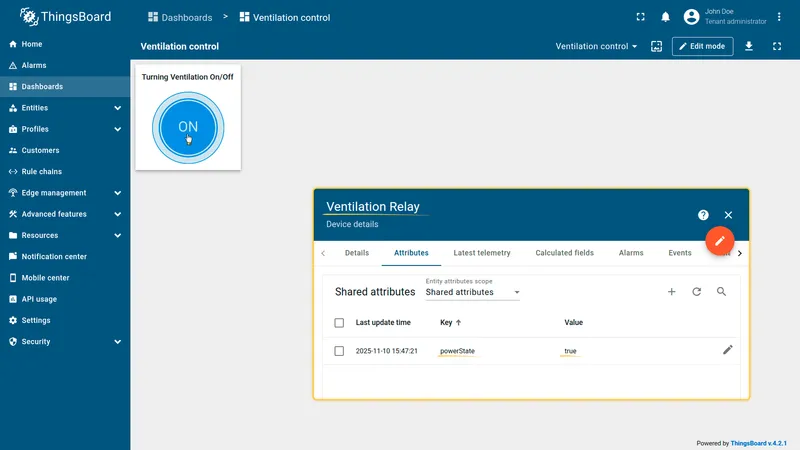

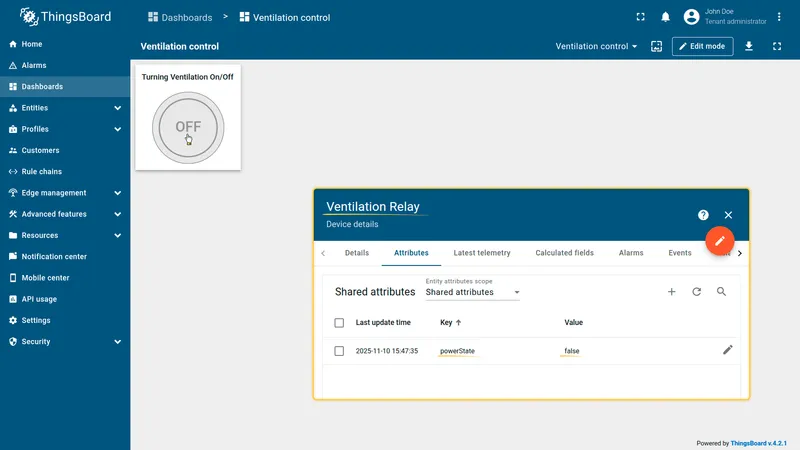

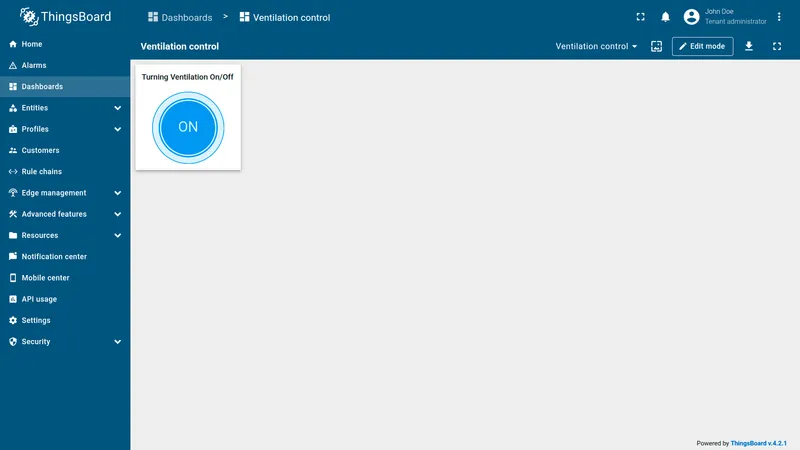

Result: The widget reads powerState from Ventilation Relay. powerState = true — button appears blue (ON); powerState = false — button appears gray (OFF). Pressing the button writes the new value to powerState, and the device adjusts its physical relay state.

Button Does Not Reflect Device State

Cause	Solution
Incorrect attribute key	Verify the key matches the device attribute exactly. Key names are case-sensitive.
Wrong attribute scope	Match the scope to the actual attribute type (Client / Server / Shared).
No attribute on device	Open Devices → Attributes and confirm the key exists with a value.
RPC call fails	Check device connectivity and verify the RPC handler on the device firmware.

Button Click Has No Effect

Cause	Solution
Device offline	Verify device connectivity and transport configuration.
Wrong action type	Confirm the ON/OFF action matches how the device receives commands (RPC vs. attribute vs. time series).
RPC timeout	Increase RPC request timeout in the behavior settings.

Button Is Stuck in Disabled State

Cause	Solution
Disabled condition always evaluates to true	Review the Disabled state configuration — check the action type and result converter logic.
Unexpected attribute or telemetry value	Open Devices → Attributes or Latest telemetry to inspect the actual value.
