CoAP Integration

CoAP Integration connects ThingsBoard to devices that use the CoAP protocol. It exposes a CoAP endpoint, receives device payloads, and transforms them into ThingsBoard telemetry and attributes via an uplink converter.

Prerequisites

In this tutorial, device SN-001 sends temperature and humidity readings to the CoAP Integration at coap://localhost.

The integration accepts three payload types:

SN-001,default,temperature,25.7,humidity,69

{
  "deviceName": "SN-001",
  "deviceType": "default",
  "temperature": 25.7,
  "humidity": 69
}

Hex string:

\x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39

Byte layout:

Bytes	Hex	Value
0–5	`\x53\x4e\x2d\x30\x30\x31`	Device name: `SN-001`
6–12	`\x64\x65\x66\x61\x75\x6c\x74`	Device type: `default`
13–16	`\x32\x35\x2e\x37`	Temperature: `25.7`
17–18	`\x36\x39`	Humidity: `69`

ThingsBoard integration setup

Create an uplink converter

CoAP uses a generic uplink converter. The decoder function receives the raw CoAP message body as a payload byte array. It must return an object with at least deviceName and deviceType. Optionally, it can include telemetry (time-series measurements) and attributes (device properties) as flat key-value maps.

Unlike HTTP or MQTT integrations, CoAP provides no transport-level metadata — device identity must come entirely from the payload itself.

Go to Integrations center ⇾ Data converters.
Click + Add data converter ⇾ Create new converter.
Set Converter type to Uplink (default).
Select integration type from the dropdown — CoAP.
Enter a converter name: CoAP Uplink Converter.
Paste the decoder function from the tab below.

Select the tab matching your payload type:

TBEL (Recommended)
JavaScript

/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replaceAll("\"", "").split(',');

var telemetryPayload = {};
for (var i = 2; i < payloadArray.length; i = i + 2) {
    var telemetryKey = payloadArray[i];
    var telemetryValue = parseFloat(payloadArray[i + 1]);
    telemetryPayload[telemetryKey] = telemetryValue;
}

// Result object with device attributes/telemetry data
var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;

/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replace(/\"/g, "").replace(/\s/g, "").replace(/\\n/g, "").split(',');

var telemetryPayload = {};
for (var i = 2; i < payloadArray.length; i = i + 2) {
    var telemetryKey = payloadArray[i];
    var telemetryValue = parseFloat(payloadArray[i + 1]);
    telemetryPayload[telemetryKey] = telemetryValue;
}

// Result object with device attributes/telemetry data
var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

return result;

The decoder expects a comma-separated string where position 0 is the device name, position 1 is the device type, and positions 2–N are alternating telemetry key/value pairs: deviceName,deviceType,key1,value1,key2,value2,...

To adapt this converter to your device:

Change the separator by replacing split(',') with your delimiter (e.g. split(';') or split('|')).
If the device name or type is at a different position, adjust the payloadArray[0] / payloadArray[1] index.
If telemetry keys are fixed rather than embedded in the payload, replace the loop with explicit assignments: telemetryPayload['temperature'] = parseFloat(payloadArray[2]);.
To extract attributes instead of telemetry, move fields from the telemetry map to the attributes map.

TBEL (Recommended)
JavaScript

/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

// Result object with device attributes/telemetry data
var result = {
    deviceName: data.deviceName,
    deviceType: data.deviceType,
    attributes: {},
    telemetry: {
        temperature: data.temperature,
        humidity: data.humidity
    }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;

/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

// Result object with device attributes/telemetry data
var result = {
    deviceName: data.deviceName,
    deviceType: data.deviceType,
    attributes: {},
    telemetry: {
        temperature: data.temperature,
        humidity: data.humidity
    }
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
    var str = decodeToString(payload);
    var data = JSON.parse(str);
    return data;
}

return result;

The decoder parses the payload as a JSON object and maps fields directly to deviceName, deviceType, and telemetry keys.

To adapt this converter to your device:

Replace data.deviceName / data.deviceType with the actual field names your device sends (e.g. data.id, data.model).
Add or remove telemetry fields to match your sensor output: pressure: data.pressure, co2: data.co2.
Move fields to attributes if they represent device properties rather than time-series data (e.g. firmware: data.fw).

TBEL (Recommended)
JavaScript

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

var deviceName = payloadStr.substring(0, 6);
var deviceType = payloadStr.substring(6, 13);

// Result object with device attributes/telemetry data
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {},
    telemetry: {
        temperature: parseFloat(payloadStr.substring(13, 17)),
        humidity: parseFloat(payloadStr.substring(17, 19))
    }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;

/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

var deviceName = payloadStr.substring(0, 6);
var deviceType = payloadStr.substring(6, 13);

// Result object with device attributes/telemetry data
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {},
    telemetry: {
        temperature: parseFloat(payloadStr.substring(13, 17)),
        humidity: parseFloat(payloadStr.substring(17, 19))
    }
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
    var str = decodeToString(payload);
    var data = JSON.parse(str);
    return data;
}

return result;

The decoder converts the raw bytes to a string and reads device identity and sensor values from fixed byte offsets. This approach is typical for compact, bandwidth-constrained binary protocols.

To adapt this converter to your device:

Adjust the substring(start, end) offsets to match your device’s byte layout.
For integer fields stored as raw bytes (not ASCII digits), use parseBytesToInt(payload, offset, length, bigEndian) instead of parseFloat(payloadStr.substring(...)). For example: temperature: parseBytesToInt(payload, 13, 2, true) / 100.0.
If the device name or type is fixed rather than embedded in the payload, replace the substring calls with string literals.
Add more telemetry fields by reading additional byte ranges and adding them to the telemetry map.

Optionally, click Test payload decoder to validate.
Click Add.

Create the integration

Go to Integrations center ⇾ Integrations and click + Add integration.

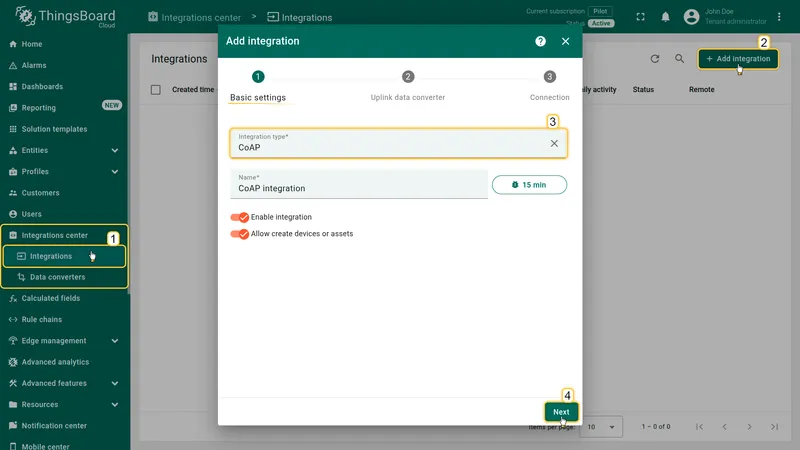

Basic settings:
- Set Integration type to CoAP.
- Enable integration and Allow create devices or assets are on by default.
- Click Next.

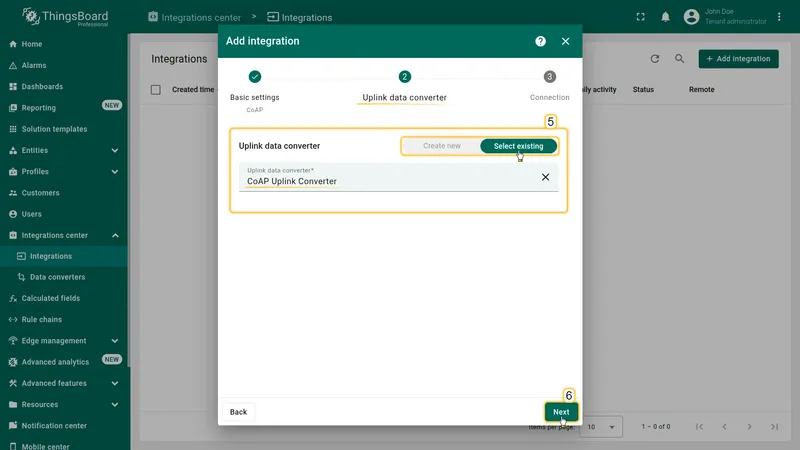

Uplink data converter:
- Select existing — choose a previously created CoAP Uplink Converter from the list.
- Click Next.

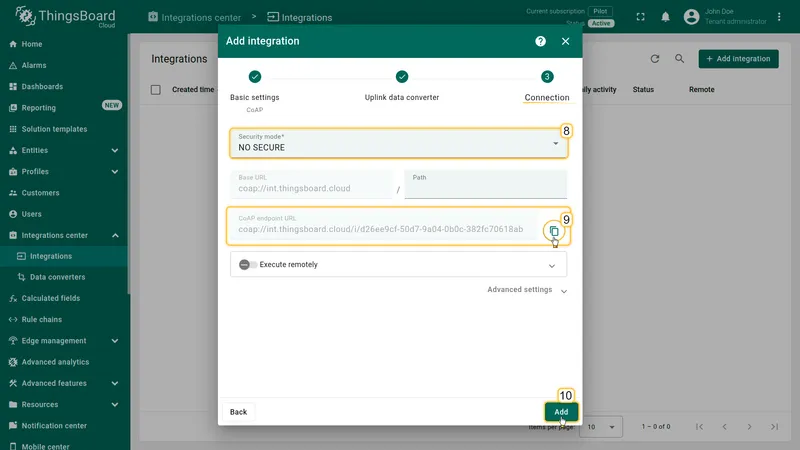

Connection:
- Security mode: NO SECURE
- Copy the auto-generated CoAP endpoint URL — you will use it to send test messages.
Read more about each parameter in connection settings.
Click Add.

Connection settings

Security mode

Defines the transport security for the CoAP connection:

Mode	Description
NO SECURE (default)	Plain CoAP over UDP — no encryption
DTLS	CoAP over DTLS 1.2 — encrypted
MIXED	Both plain and DTLS endpoints active simultaneously

Both CON (Confirmable) and NON (Non-Confirmable) CoAP message types are supported in all modes. ThingsBoard acknowledges CON messages automatically.

For DTLS and MIXED modes, enable DTLS support in thingsboard.yml or set the following environment variables:

# Enable/disable DTLS 1.2 support
export COAP_DTLS_ENABLED=true
# Default CoAP DTLS bind port
export COAP_DTLS_BIND_PORT=5484
# Path to the key store that holds the SSL certificate
export COAP_DTLS_KEY_STORE=coapserver.jks
# Password used to access the key store
export COAP_DTLS_KEY_STORE_PASSWORD=server_ks_password
# Password used to access the key
export COAP_DTLS_KEY_PASSWORD=server_key_password
# Key alias
export COAP_DTLS_KEY_ALIAS=serveralias
# Skip certificate validity check for client certificates
export TB_COAP_X509_DTLS_SKIP_VALIDITY_CHECK_FOR_CLIENT_CERT=false

Base URL

The base address of the ThingsBoard CoAP endpoint.

Example: coap://int.my.thingsboard

Path

Optional URL path appended to the base URL.

Example: coap://int.my.thingsboard/my-path

CoAP endpoint URL

Auto-generated from the Base URL and the path /i/$INTEGRATION_ROUTING_KEY. The /i/ prefix is a fixed segment that routes incoming CoAP messages to the integration; the routing key (UUID) is assigned at creation time. Devices must POST to this URL.

Execute remotely

When enabled, ThingsBoard generates an Integration key and Integration secret. These credentials allow the integration to run as a separate process — either on a remote server or at the edge — and communicate with ThingsBoard over a secure channel. Use this option for deployments where the integration service must reside outside the main ThingsBoard cluster (e.g., in a DMZ or on-premises gateway).

Test uplink

Once the integration is created, the CoAP server registers the endpoint and waits for incoming data. Send a test message using coap-client (part of libcoap), replacing $YOUR_COAP_ENDPOINT_URL with the URL copied during setup:

echo -e 'SN-001,default,temperature,25.7,humidity,69' | coap-client -m post $YOUR_COAP_ENDPOINT_URL -t text/plain -f-

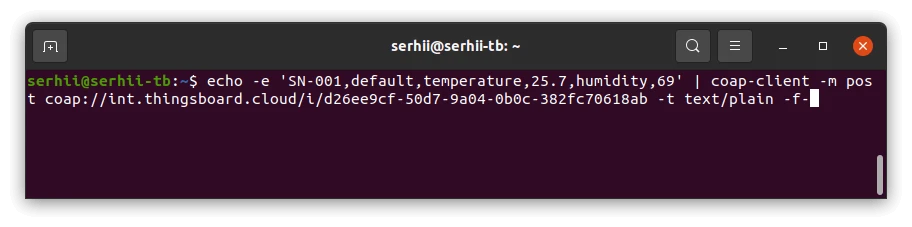

Terminal window: coap-client POST command sending CSV text payload with Content-Type text/plain to the CoAP integration endpoint

echo -e -n '{"deviceName": "SN-001", "deviceType": "default", "temperature": 25.7, "humidity": 69}' | coap-client -m post $YOUR_COAP_ENDPOINT_URL -t application/json -f-

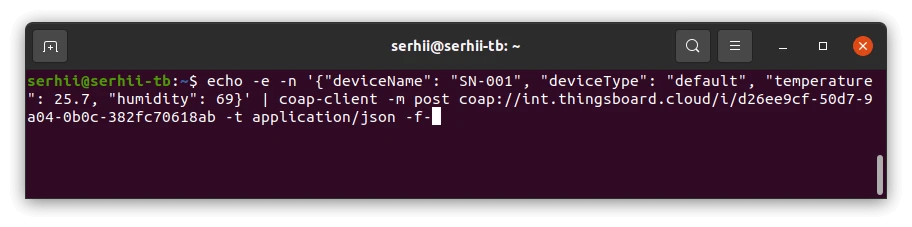

Terminal window: coap-client POST command sending JSON payload with Content-Type application/json to the CoAP integration endpoint

echo -e -n '\x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39' | coap-client -m post $YOUR_COAP_ENDPOINT_URL -t application/octet-stream -f-

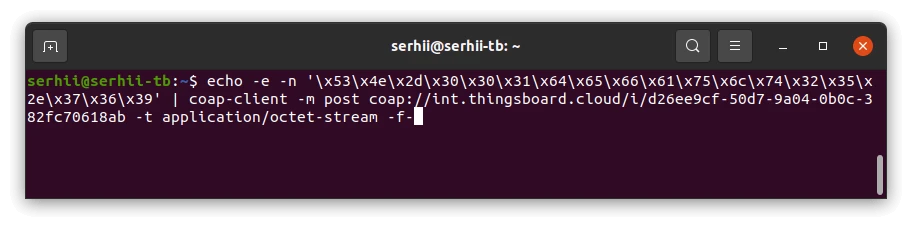

Terminal window: coap-client POST command sending hex-escaped binary payload with Content-Type application/octet-stream to the CoAP integration endpoint

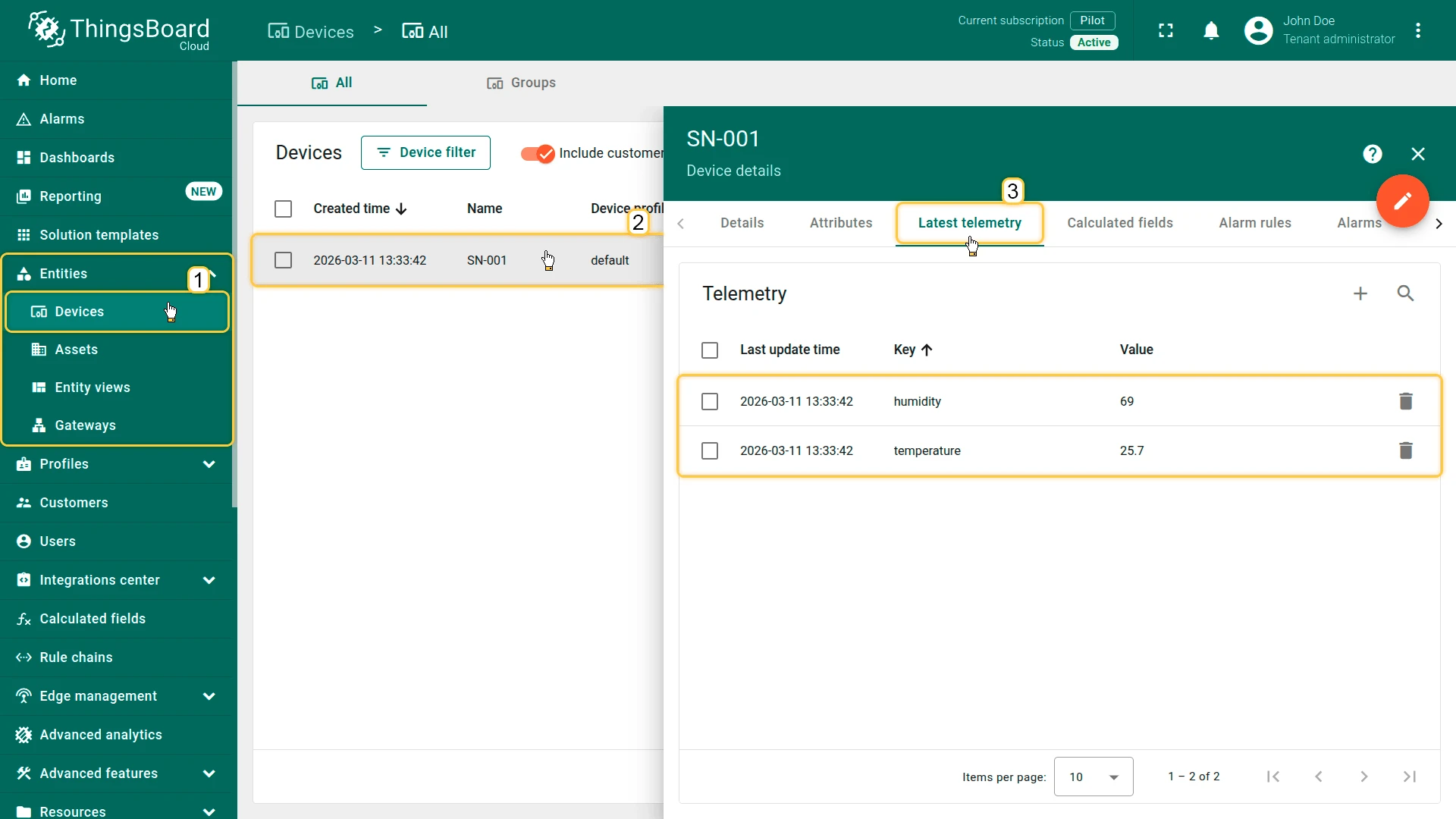

Go to Entities ⇾ Devices. Device SN-001 is auto-created on the first uplink. Open the Latest Telemetry tab to confirm temperature = 25.7 and humidity = 69.
